Lynx Sedona 30-Inch Built-In Gas Grill and Double Side Burner Package
Lynx Sedona 30-Inch Built-In Gas Grill and Double Side Burner Package - Propane is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: grill cutout 29" W x 21-1/4" D x 10" H (Lynx); double side burner cutout 21" W x 16" D x 4-1/2" H (per current listing)

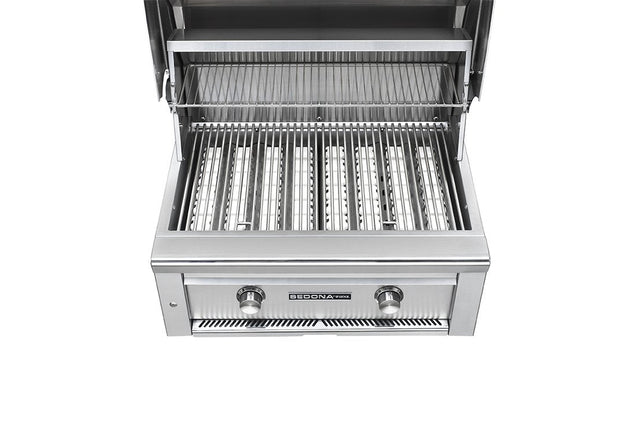

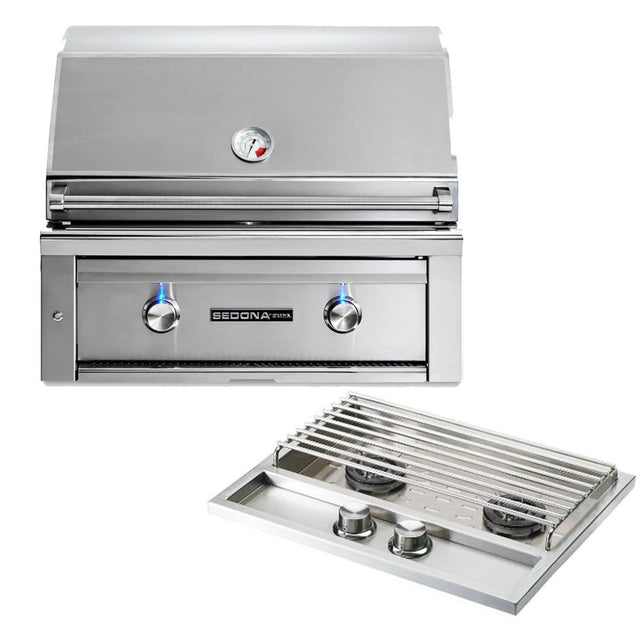

This Sedona by Lynx package pairs the L501 30 inch built-in gas grill with the LSB502 built-in double side burner, both set up for the fuel you choose. The grill has two stainless steel burners totaling 46,000 BTU over 733 sq in of cooking surface, with ceramic radiant briquettes, a halogen grill light and the Lynx Hood Assist. The side burner adds two sealed 12,500 BTU burners for sauces and sides, so a mid-size island has a complete cooking line from one brand.
Key Specifications
| Package | L501 built-in grill plus LSB502 double side burner (L501-NG + LSB502-NG, or L501-LP + LSB502-LP) |
|---|---|

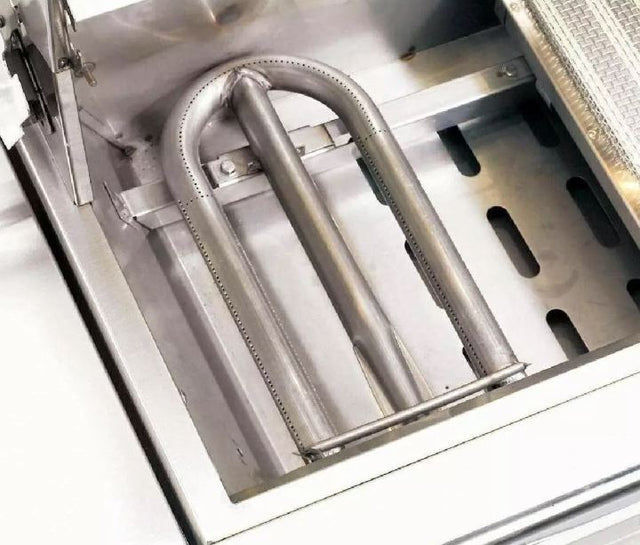

| Grill burners | Two stainless steel burners, 46,000 BTU total |
| Cooking area | 733 sq in: 508 sq in primary and 225 sq in secondary |

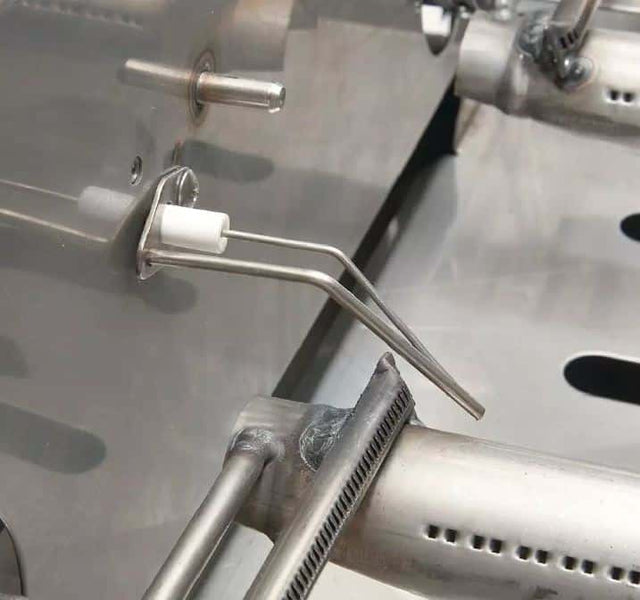

| Grill ignition | Direct spark with battery backup |

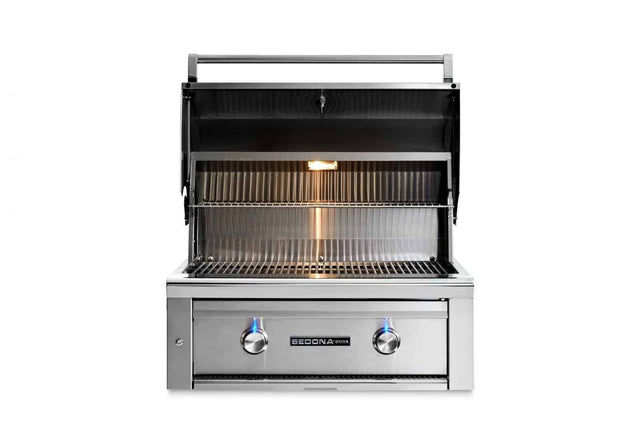

| Grill features | Halogen grill surface light, temperature gauge, Lynx Hood Assist, fluid rotation handle, blue-lit knobs, stainless grates, ceramic radiant briquettes |

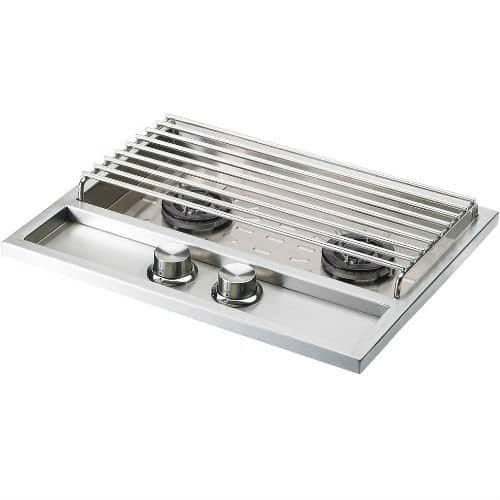

| Side burner | LSB502 with two 12,500 BTU sealed burners (25,000 BTU total), spark ignition |
| Fuel | Natural gas or propane, set at the factory; conversion needs a Lynx kit installed by a qualified technician |
| Electrical | Outdoor 120V, 15 amp GFI outlet adjacent to the grill |
| Certification | ANSI Z21.58 / CSA 1.6 outdoor cooking gas appliance |
| Grill shipping weight | 168 lb (L501 spec sheet) |
Dimensions and Cutout
| Grill cutout (W x H x D) | 29" x 10" x 21-1/4" (non-combustible island) |
|---|---|
| Combustible enclosure | LIJ500 insulated jacket required; jacket cutout 36" x 11-5/8" x 23-1/4" |
| Grill head (per current listing) | 30" W x 25-5/16" D x 25-7/8" H |
| Side burner cutout (per current listing) | 21" W x 4-1/2" H x 16" D; may be rotated 90 degrees |
| Grill clearances | 3" behind the grill for the hood; to combustibles above the counter 12" at the sides and 6-1/4" at the back |
| Side burner clearances | To combustibles 12" below the counter and 18" above it, at the sides and back |
| Gas pressure | Natural gas 10" w.c. max inlet, 4" w.c. min under full load; propane 14" max, 11" min; 3/4" supply line recommended for natural gas |
Features
- One-brand Sedona cooking line: 30 inch grill plus matching double side burner
- 46,000 BTU grill with 733 sq in of cooking surface

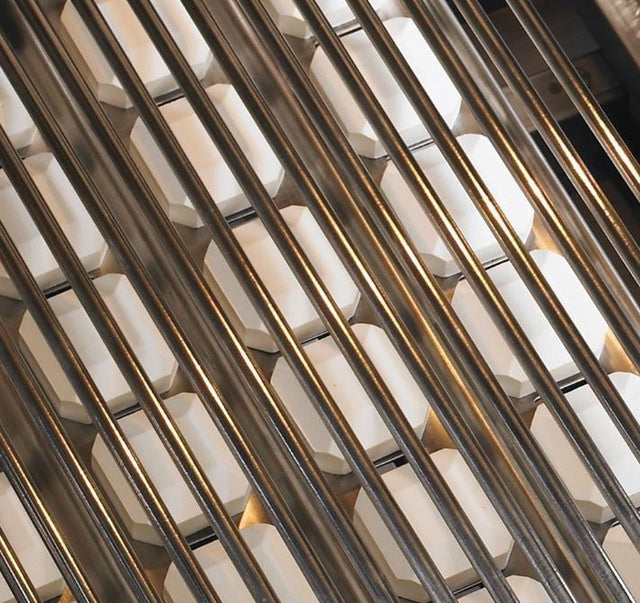

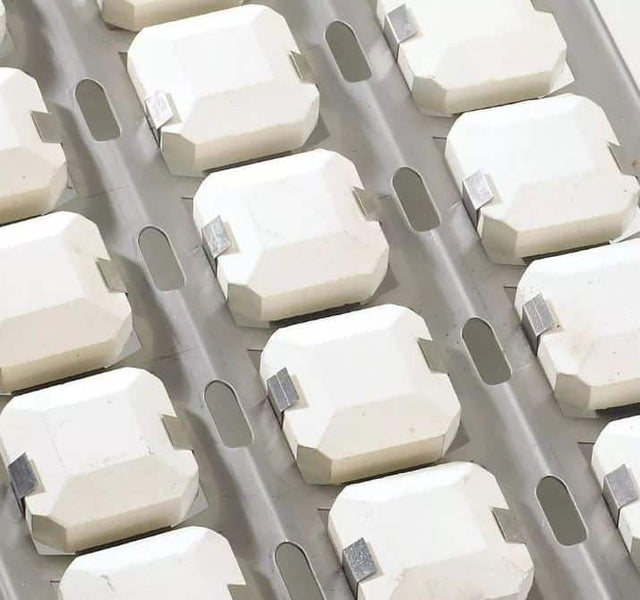

- Ceramic radiant briquettes for even heat
- Halogen grill surface light and blue-lit control knobs
- Lynx Hood Assist and fluid rotation handle
- Heavy-duty welded construction with brushed stainless canopy, bullnose and drip tray
- Sealed side burner basin for easy cleaning
What Is Included and What You Will Need
- Included: Sedona L501 built-in grill and LSB502 built-in double side burner for the selected fuel
- Required: a non-combustible island built to both cutouts, with enclosure ventilation, a 2" round hole at the rear of the grill cutout and a 120V GFI outlet within 6 ft
- Required for combustible islands: the Lynx LIJ500 insulated jacket
- Required: a gas supply sized for the combined BTU of both appliances, with a shut-off valve and the regulator
- Pairs with: Sedona 36 inch access door and drawer combo, 19 inch double drawers and 18 inch drop-in ice bin
Installation Notes
Both units drop into a non-combustible island and hang from their countertop trim. Size the gas line for the total BTU of everything on it, and never connect gas without the pressure regulator. Under combustible construction, Lynx requires an exhaust hood with 3 to 6 inches of overhang and at least 1,200 CFM. In New York City, gas work for an outdoor kitchen must be done by a licensed master plumber under permit, and propane cylinders are restricted in many buildings. Book a free design consultation and we will help you plan the layout, utilities and installation.
Documentation
Frequently Asked Questions
What cutouts do I need?
29" W x 10" H x 21-1/4" D for the grill per Lynx, and 21" W x 4-1/2" H x 16" D for the side burner per the current listing.
Can it go in a wood-framed island?
The grill can with the LIJ500 insulated jacket. The side burner is designed for a non-combustible enclosure.
Does it need electricity?
Yes. Lynx calls for an outdoor 120V, 15 amp GFI outlet near the grill.
Natural gas or propane?
Choose the fuel above. Both units ship set for that fuel.
Related reading: Built-in gas grill buying guide and Side burner, power burner and griddle guide.
Warranty
Per the Sedona by Lynx limited warranty in the side burner manual: stainless steel body and cooking grates for the lifetime of the original purchaser; manifolds and gas valves for five (5) years; all other components for two (2) years; and in the first year, parts, shipping and authorized service labor at no cost. Extended terms cover replacement parts only, with a processing fee and labor paid by the owner. The grill listing also cites 12 years on stainless tube burners; confirm the grill terms in the Sedona grill manual. Commercial and common-area use is excluded.
