Lynx Sedona 36-Inch 3-Piece Outdoor Kitchen Package
Lynx Sedona 36-Inch 3-Piece Outdoor Kitchen Package - Propane is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: grill cutout 35 in W x 10 in H x 21.25 in D (Lynx L601 spec sheet)

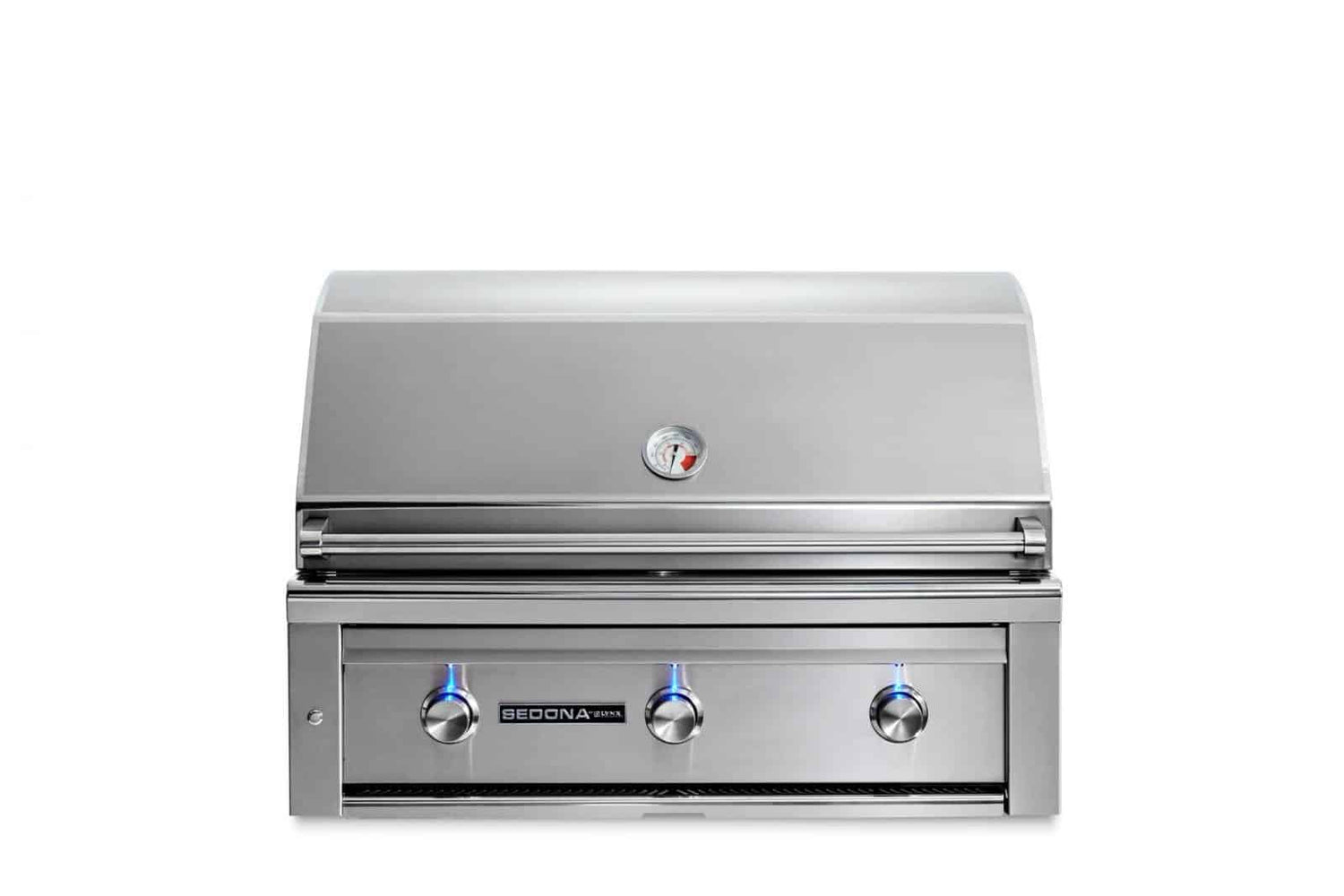

This Lynx Sedona package pairs the L601 36 inch built-in gas grill with a Ventana 36 inch true width double access door and a fitted grill cover, so one order covers the core of a simple outdoor kitchen island. The L601 delivers up to 69,000 BTU from three stainless steel burners across 891 square inches of cooking area. It is a good starting point when you want Lynx quality and a clean, finished island front.
Key Specifications
| Package | Sedona L601 grill, Ventana LDR36T-4 double access door and VC601 grill cover |
|---|---|
| Grill model | L601 in natural gas or propane (variant) |
| Total input | Up to 69,000 BTU from three stainless steel burners |
| Cooking area | 891 sq in total: 618 sq in primary and 273 sq in secondary |
| Ignition | Direct spark with battery backup |
| Construction | Brushed stainless steel canopy, bullnose and drip tray with heavy-duty welded construction |
| Door | LDR36T-4: stainless steel, raised mounting, two doors; no trash bin, paper towel holder or tank holder (per current listing) |
| Cover | VC601 for the built-in 36 inch Sedona grill, waterproof nylon (per current listing) |
| Certification | ANSI Z21.58 / CSA 1.6, tested by Intertek (Lynx installation manual) |
Dimensions and Cutout
| Grill cutout | 35 in W x 10 in H x 21.25 in D |
|---|---|
| Grill shipping size | 33.5 in W x 41 in H x 30 in D, 180 lb shipping weight |
| Insulated jacket | Required for a combustible enclosure; the LIJ600 jacket measures 42 in x 11.62 in x 23.25 in per the Lynx manual |
| Gas and power | 2 in round hole at the rear of the cutout, with a 120V GFI outlet within 6 ft of it |
| Gas supply | Natural gas inlet 10 in w.c. maximum; propane 11 to 14 in w.c.; pipe not smaller than 3/4 in inside diameter |
Features
- Three burner Sedona L601 grill with 891 sq in of cooking area
- Direct spark ignition with battery backup
- Halogen grill surface lights and blue-lit control knobs
- Temperature gauge, Lynx Hood Assist and a fluid rotation handle
- Ceramic radiant briquettes
- Stainless steel true width double access door for island storage
- Fitted cover for the built-in grill
What Is Included and What You Will Need
- Included: Sedona L601 36 inch built-in grill, Ventana LDR36T-4 double access door and VC601 grill cover
- Required: an island with a 35 in grill cutout, an outdoor 120V 15 A GFI outlet, a gas supply at the correct pressure and a licensed gas fitter
- Combustible enclosure: the Lynx Sedona insulated jacket LIJ600 is required
- Optional: Sedona access door and drawer combo and the 18 inch drop-in sink
Installation Notes
Build the cutout at 35 in W x 10 in H x 21.25 in D, with a 2 in round hole at the rear for the electrical cord and an outdoor GFI outlet within 6 ft. Natural gas installs need 3/4 in gas lines. Under combustible construction an exhaust hood is required, so plan the island and overhead early. Confirm the access door rough opening size before framing. In New York City, gas work for an outdoor grill must be done by a licensed master plumber under permit. Book a free design consultation and we will help you plan the layout, utilities and installation.
Documentation
Frequently Asked Questions
What is in the package?
The L601 36 inch Sedona built-in grill, an LDR36T-4 Ventana double access door and a VC601 cover. Choose natural gas or propane.
Does the grill have an infrared burner?
The package SKU is the base L601 with three stainless steel burners and no ProSear infrared burner.
Do I need an insulated jacket?
Yes, if the grill goes into a combustible enclosure. A non-combustible island is typical, but confirm with your builder.
What cutout do I need?
35 in wide, 10 in high and 21.25 in deep for the grill, per the Lynx spec sheet.
Related reading: Built-in gas grill buying guide and How to plan an outdoor kitchen.
Warranty
Per the current listing: lifetime on the stainless steel body, 12 years on stainless steel tube burners, 5 years on cooking grates, warming racks, spit rods, briquette trays, manifolds and gas valves, 2 years on other grill components and 1 year of labor. The Lynx manual describes lifetime coverage as rust-through that makes a part inoperable and excludes surface rust.
