Lynx | Ventana 30" Access Door & Double Drawer Combo
Lynx | Ventana 30" Access Door & Double Drawer Combo is backordered and will ship as soon as it is back in stock.
Description
Description
10% Cash Back on Lynx - Limited Time
Click Here For Details
Overall Dimensions: 30 in W x 25-9/16 in D x 23 in H; cutout 25-7/16 x 19 x 24-1/2 in (W x H x D), per Lynx

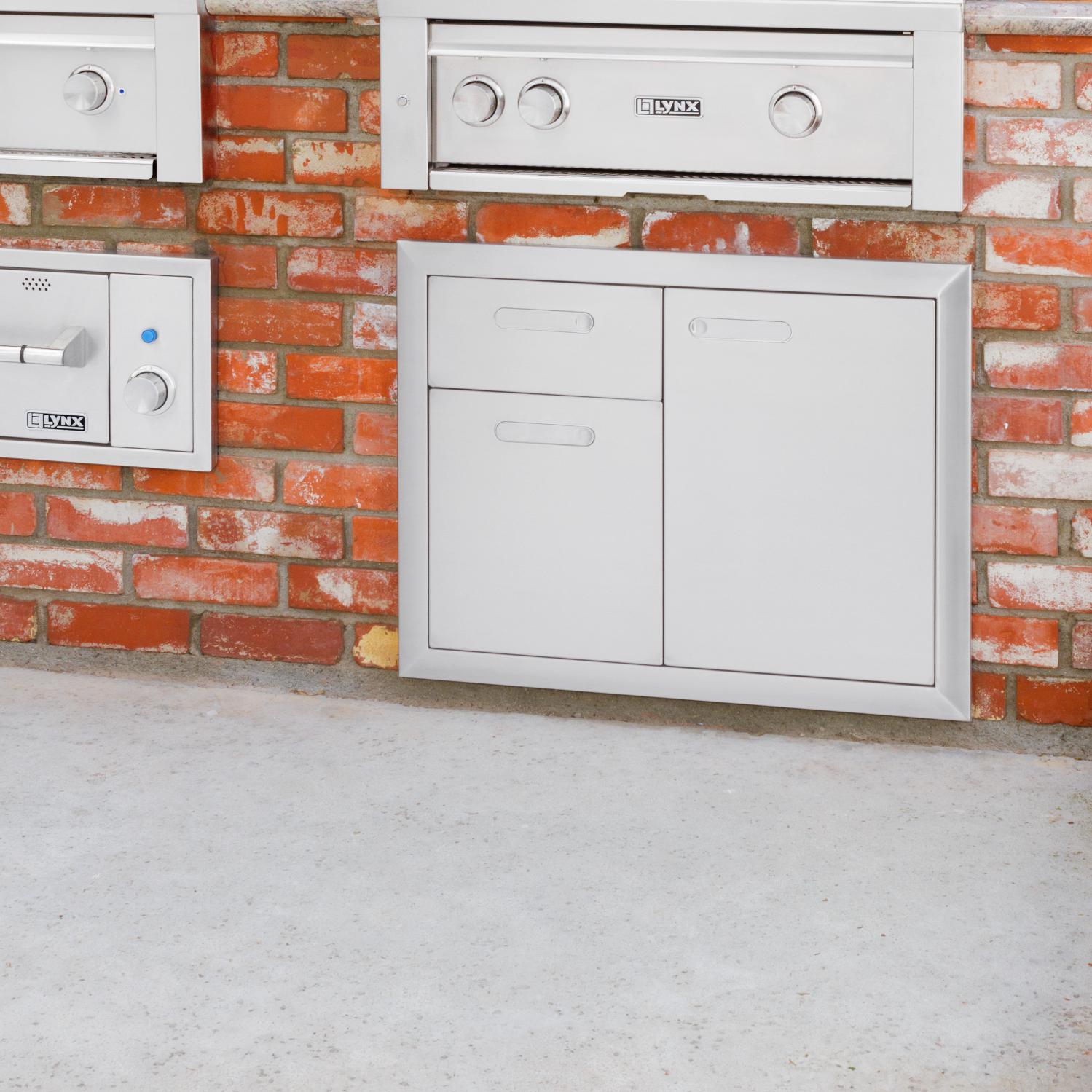

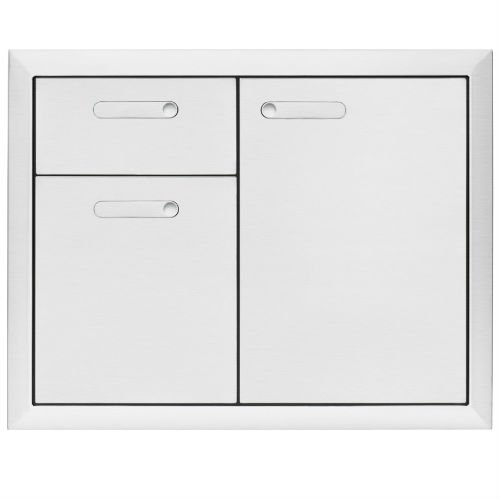

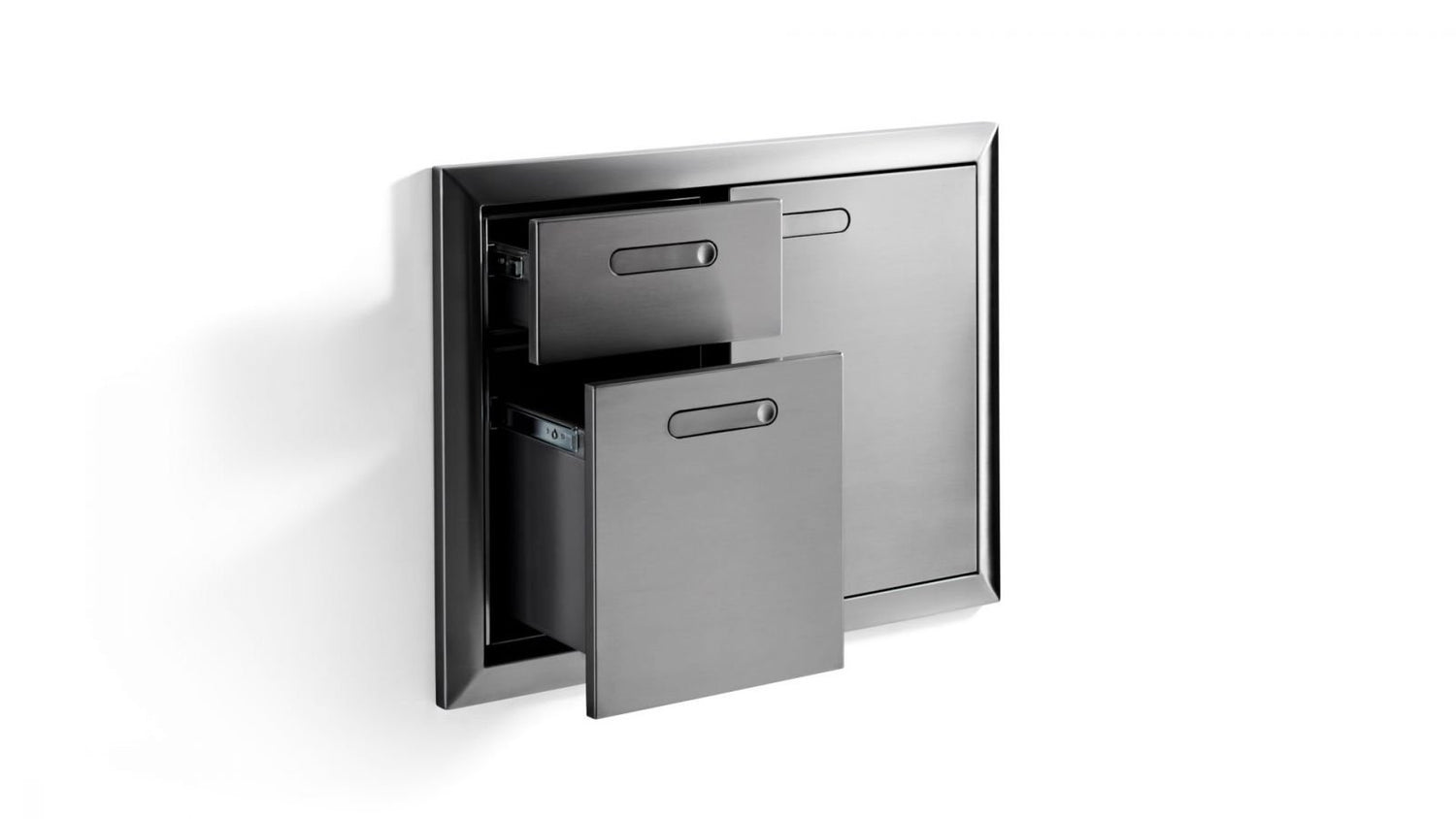

The Lynx Ventana LSA30-4 puts an access door and two drawers behind one 30 in opening, with the clean, contemporary Ventana face and lit interiors for evening cooking. The door has a soft-close hinge and the drawers run on soft-close slides, while the sealed frame helps keep dust and water out.
Features
- Access door with a soft-close hinge that opens to 110 degrees
- Two lined 22 in deep drawers on soft-close slides
- Interior lighting for the door side and drawers
- Sealed framing helps keep out dust and water
- Reversible flush-mounted handles
- Room behind the door for a propane tank once the bottle holder is lifted out
Key Specifications
| Model / SKU | Lynx Ventana LSA30-4 |
| UPC | 810043023467 |
| Doors | 1, soft-close hinge, 14-1/16 in wide |
| Drawers | 2, 22 in deep, soft-close; fronts 12-1/4 in wide, 5-15/16 in and 13-3/8 in high |
| Lighting | Interior lighting, 5 ft power cable |
| Construction | Stainless steel |
| Weight | 61 lb (BBQGuys) |
Dimensions and Cutout
| Overall | 30 in W x 23 in H x 25-9/16 in D (24-5/16 in body plus 1-1/4 in front) |
| Body | 25-3/16 in W x 18-9/16 in H x 24-5/16 in D |
| Cutout | 25-7/16 in W x 19 in H x 24-1/2 in D |
| Cutout margins | 3-1/2 in minimum above and 2-1/2 in minimum below the opening |
| Clearance in front | Drawers open 22 in; the door opens to 110 degrees with a 14-3/8 in swing |
What Is Included and What You Will Need
- LSA30-4 door and double drawer unit
- You will need: a finished island opening 25-7/16 in wide, 19 in high and 24-1/2 in deep, power for the lighting, and (optional) a Lynx condiment shelf kit for the door
Optional Accessories
- Lynx Ventana 30 in double access doors (LDR30T-4)
- Lynx Ventana 19 in double drawers (LDW19-4)
- Lynx Ventana 20 in roll-out trash and recycling bin (L20TR-4)
- Lynx Ventana 36 in sealed dry storage pantry (LPA36-4)
Installation Notes
Frame a 25-7/16 in wide by 19 in high opening with 24-1/2 in of depth, leaving at least 3-1/2 in above and 2-1/2 in below as the Lynx drawing shows, then set the unit in and fasten it through the 11/16 in mounting flange. The unit has a 5 ft power cable for its interior lighting, so plan an outlet or Lynx power connection inside the island.
If you keep the grill's propane cylinder behind the door, follow your grill manual for enclosure ventilation. In New York City, FDNY rules limit propane cylinder storage on balconies, terraces and rooftops, so confirm what your building allows before planning tank storage in the island.
Choosing Ventana storage for a new island? Book a design consultation.
Documentation
Frequently Asked Questions
What cutout does the LSA30-4 need?
25-7/16 in wide, 19 in high and 24-1/2 in deep.
Are the door and drawers soft close?
Yes, the door has a soft-close hinge and the drawers soft-close slides.
Does it need power?
Yes, for the interior lighting; it has a 5 ft power cable.
Is it the same as the Professional LSA30?
No. The classic LSA30 uses a 28-1/4 in cutout.
Related reading: Outdoor kitchen planning guide, Stainless vs aluminum outdoor kitchen cabinetry.
Warranty
Lynx warrants the stainless steel housing against defects in material and workmanship under normal domestic use for the lifetime of the original purchaser, and all other components for one (1) year from the original date of purchase, with defective parts repaired or replaced at no cost to the original purchaser. Residential use only; see the Lynx warranty for full terms.
