Description
Description
Overall Dimensions: rough opening 42 in. W x 39-3/4 in. H x 22 in. D

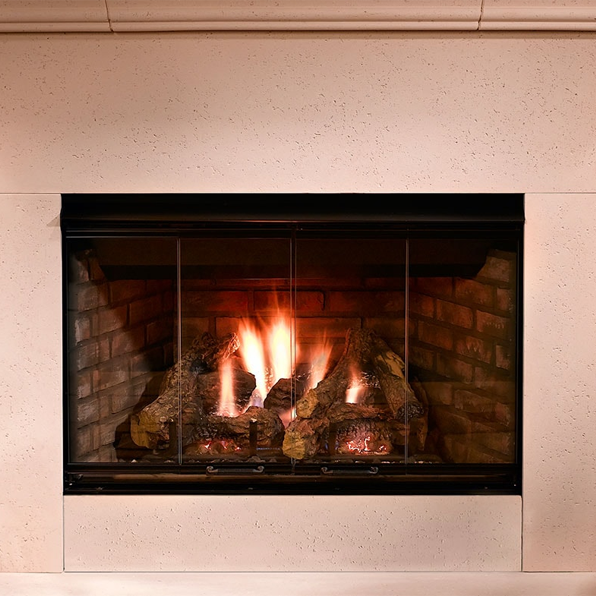

The Majestic Reveal 36 is an open-hearth B-vent gas fireplace with a traditional brick interior, a detailed ceramic fiber log set and a three-level burner that builds a tall, full flame. It is meant for homeowners who want the look of a wood-burning masonry fireplace with the convenience of gas.
Majestic rates it at 40,000 BTU/h on natural gas and 38,000 BTU/h on propane, with IntelliFire intermittent pilot ignition. It vents vertically with 6 in. B-vent and draws combustion air from the room, and optional bi-fold glass doors finish the opening.
Key Specifications
| Model | RBV4236IT-B (traditional brick interior) |
|---|---|
| Input | NG 40,000 BTU/h; LP 38,000 BTU/h |
| Type | B-vent (natural vent) decorative gas fireplace, open hearth |
| Burner | Three-level burner with ceramic fiber log set |
| Ignition | IntelliFire intermittent pilot ignition; 3 V valve powered by a transformer or two D-cell batteries |
| Venting | 6 in. double-wall B-vent; combustion air from the room |
| Electrical | Junction box wired to 110-120 VAC |
| Certification | UL listed vented decorative gas appliance, ANSI Z21.50-2016 / CSA 2.22-2016 |

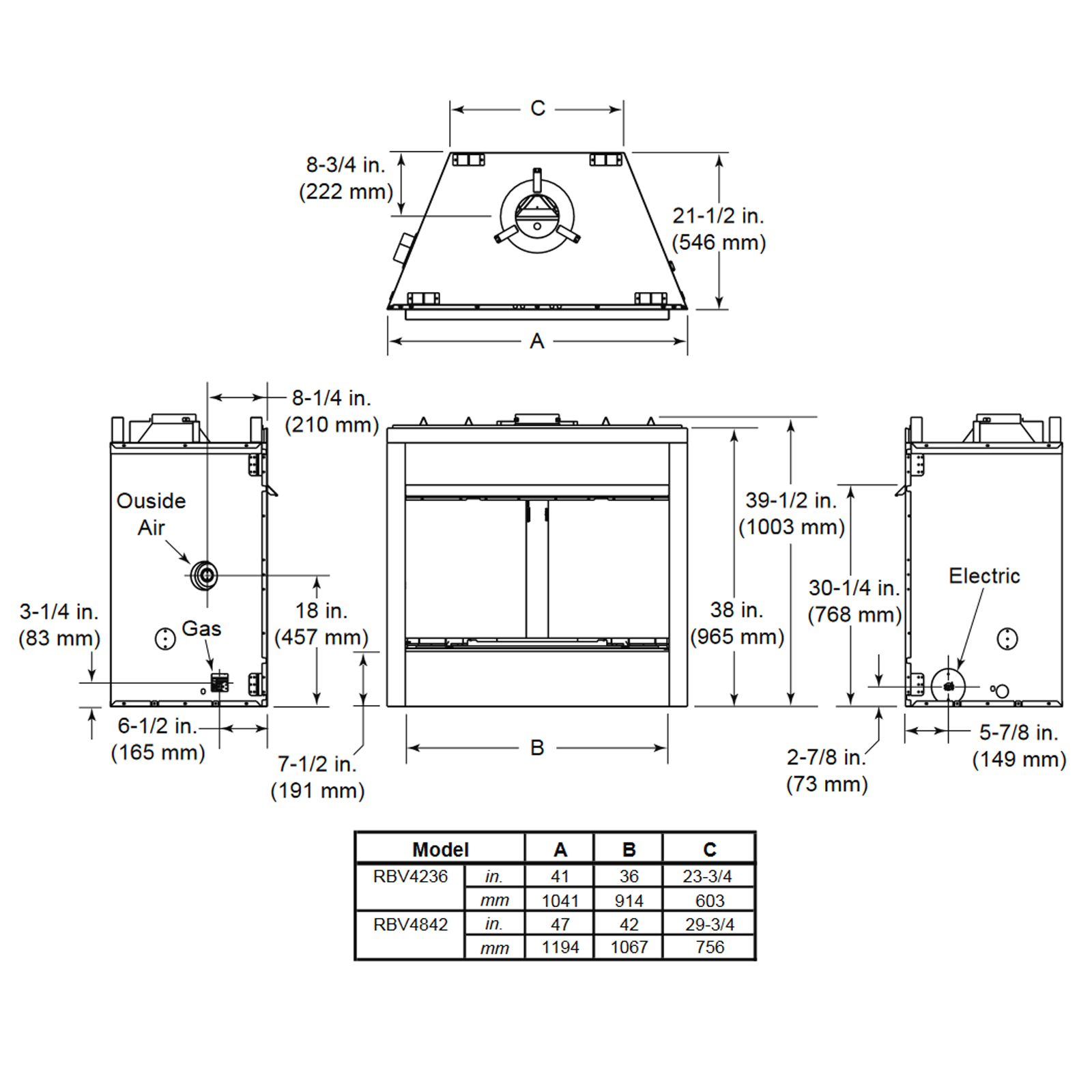

Dimensions and Cutout
| Rough opening | 42 in. W x 39-3/4 in. H x 22 in. D |
|---|---|
| Clearances | 1/2 in. minimum sides and rear to combustibles; 30 in. minimum to ceiling; 0 in. hearth |
| Mantel legs | 1 in. from the side and 3-1/2 in. from the fireplace opening, minimum |
| Vent run | 12 ft minimum and 60 ft maximum vertical, 30 ft maximum horizontal, up to four 45 degree elbows |
Features
- 36 in. open-hearth viewing area for a masonry fireplace look
- Three-level burner for a tall, layered flame

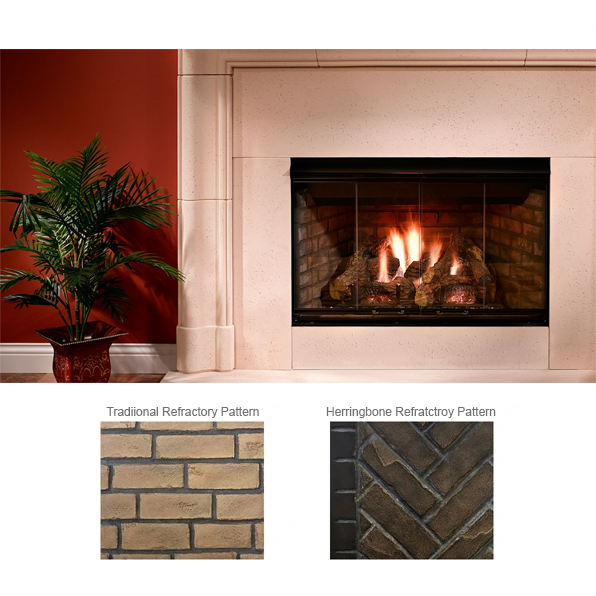

- Traditional brick interior
- IntelliFire ignition with battery backup on the control valve
- Approved as supplemental room heat or as a decorative appliance
- Optional bi-fold glass doors in black or stainless trim
- Optional outside air kit and DG3 thermal damper, per the manual
What Is Included and What You Will Need
- Included: fireplace with burner, ceramic fiber log set and firescreen, per the installation manual
- Optional: Majestic DM1036 bi-fold glass doors for 36 in. Royalton and Reveal
- For propane: the Propane option adds the DCKP-RBV conversion kit, per variant SKU
- Required: 6 in. double-wall B-vent pipe, a roof termination and a gas supply line
- Required: 110-120 VAC to the junction box; remote or wall switch optional
Installation Notes

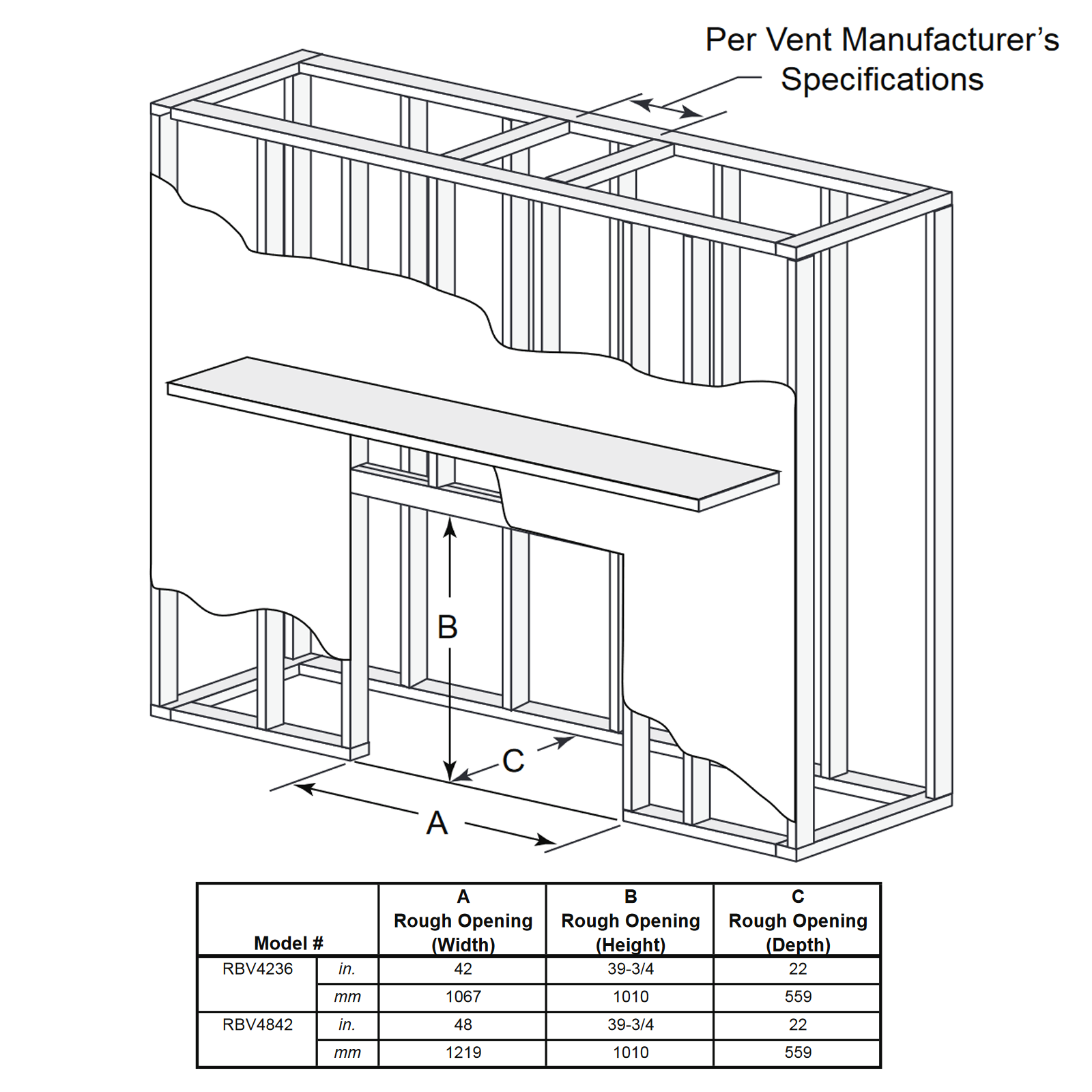

Frame a 42 in. wide, 39-3/4 in. high and 22 in. deep rough opening and run 6 in. double-wall B-vent vertically, with at least 12 ft and no more than 60 ft of rise and no more than 30 ft of horizontal run. Leave 3 ft of clear space in front, keep 30 in. to the ceiling, and use only certified glass doors, operated fully open or fully closed. Majestic says the Reveal should not be counted as a primary heat source. In New York City, gas fireplaces are installed under the NYC Fuel Gas Code by a licensed plumber with DOB filing where required, and a B-vent needs a clear vertical path to the roof. Book a free design consultation and we will help you plan the layout, utilities and installation.
Documentation
Frequently Asked Questions
Is this a direct vent fireplace?
No. The Reveal is a B-vent fireplace: it exhausts through 6 in. B-vent to the roof and uses room air for combustion.
Does it need glass doors?
Doors are optional in most areas, though the manual notes they are required in Massachusetts. If you add them, use only certified doors and run them fully open or fully closed.
Can it heat my house?
Majestic approves it as supplemental room heat or a decorative appliance and says not to count it as primary heat.
Natural gas or propane?
Both. It is rated at 40,000 BTU/h on natural gas and 38,000 BTU/h on propane; the Propane option includes the conversion kit.
Related reading: Gas Fireplace Insert vs. Direct Vent Fireplace and Gas Fireplace Cost Installed.
Warranty
Hearth & Home Technologies Limited Lifetime Warranty, per the Majestic owner's manual: the firebox and heat exchanger are covered for the lifetime term (HHT defines lifetime as 20 years for gas appliances) with 3 years labor; burners, logs and refractory components 10 years with 1 year labor; electrical components such as modules, remotes, wall switches, valves, pilots, blowers and lights 2 years; all other parts 1 year. Coverage begins at installation, is transferable while the fireplace stays at its original site, and requires purchase through an authorized HHT dealer.
