Description
Description
Explore other Majestic Ruby direct vent gas insert sizes: 25 inch | 30 inch (current size) | 35 inch
Overall Dimensions: 31-1/8 in. W x 14-1/2 in. D x 20-3/4 in. H (insert body, before surround and front), per Majestic

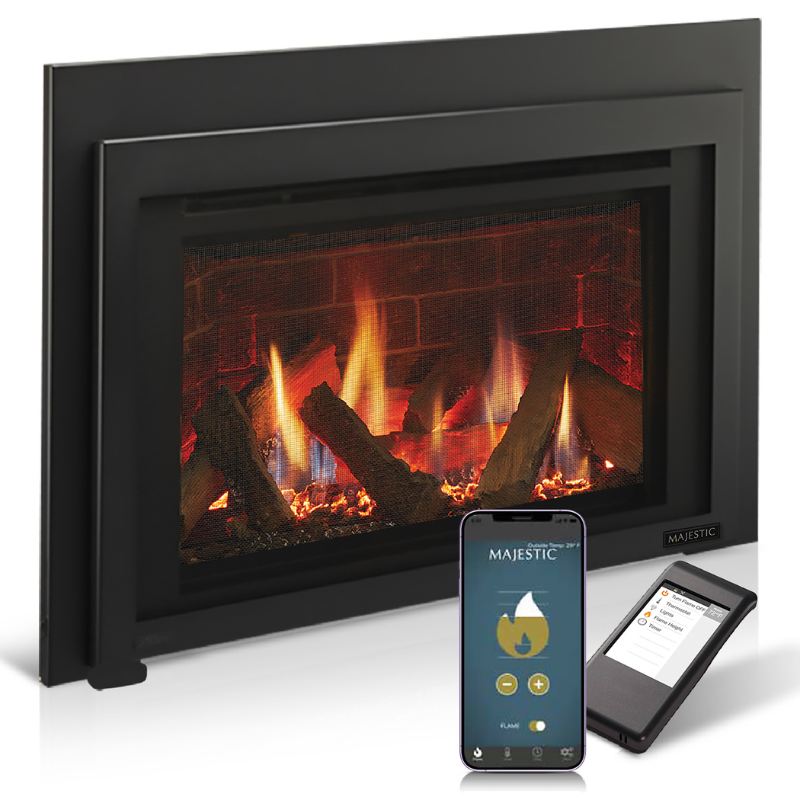

The Majestic Ruby 30 (RUBY30IN natural gas, RUBY30IL propane) is a direct vent gas insert that converts an existing wood-burning masonry or factory-built fireplace into a sealed, remote-controlled gas fire. It is sized for openings at least 31-5/8 in. wide, 21 in. high and 15 in. deep, and vents through the old chimney with a co-linear 3 in. flex kit. Choose a surround and a front (both required) to finish the installation.
Key Specifications
| Models | RUBY30IN (natural gas), RUBY30IL (propane) |
| Input, natural gas | 22,890 to 32,700 BTU/h (0 to 2,000 ft) |
| Input, propane | 22,400 to 32,000 BTU/h (0 to 2,000 ft) |
| Viewing area | 27-1/2 in. x 15-15/16 in. |
| Type | Direct vent fireplace insert |
| Ignition | IntelliFire Touch |
| Venting | Vertical co-linear, two 3 in. flex pipes; 10 ft minimum, 50 ft maximum vertical run |
| Electrical | 110 to 120 VAC, unswitched; cord about 10 ft 3 in. (left) and 7 ft 6 in. (right) |
| Gas pressure | NG inlet 5.0 to 10.0 in. w.c., manifold 3.5; LP inlet 11.0 to 13.0, manifold 10.0 |
| Certification | ANSI Z21.88-2019 / CSA 2.33-2019 vented gas fireplace heater |
Dimensions and Cutout
| Insert body (W x D x H) | 31-1/8 in. x 14-1/2 in. x 20-3/4 in.; rear width 19-5/8 in. |
| Minimum fireplace opening, 3/4 in. surround | Front width 31-5/8 in.; rear width 20-1/8 in.; front height 21 in.; rear height 19-3/16 in.; depth 15 in. |
| Minimum opening, 2 in. deep surround | Front width 31 in.; front height 21 in.; depth 14 in. |
| Damper note | If the insert exhaust collar and fireplace damper do not line up, add 4 in. to the minimum depth |
| Surround options | Small 40 x 27 in. (black) or 42 x 29 in. (bronze), Medium 42 x 30 in., Medium Deep 42 x 30 x 2 in., Large 44 x 32 in. |
Features
- Converts an existing wood fireplace to sealed direct vent gas
- Up to 32,700 BTU/h on natural gas
- IntelliFire Touch ignition with RC400 remote (per listing)
- Variable-speed fan kit GFK-160A and battery backup (per listing)
- Ceramic glass with ceramic fiber split logs and glowing embers
- Optional crushed glass or stone media, interior panels and accent lights

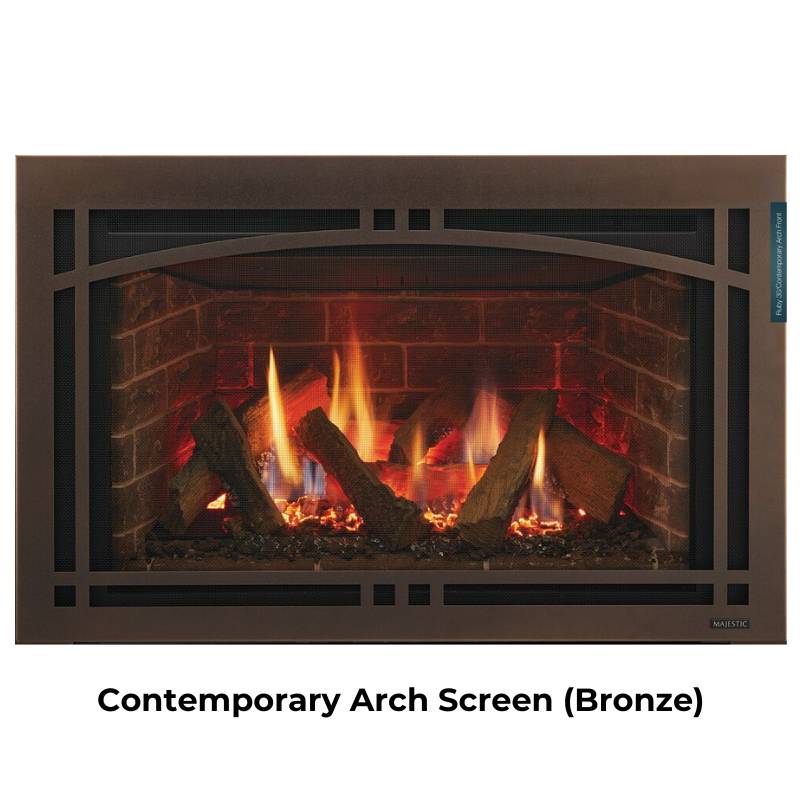

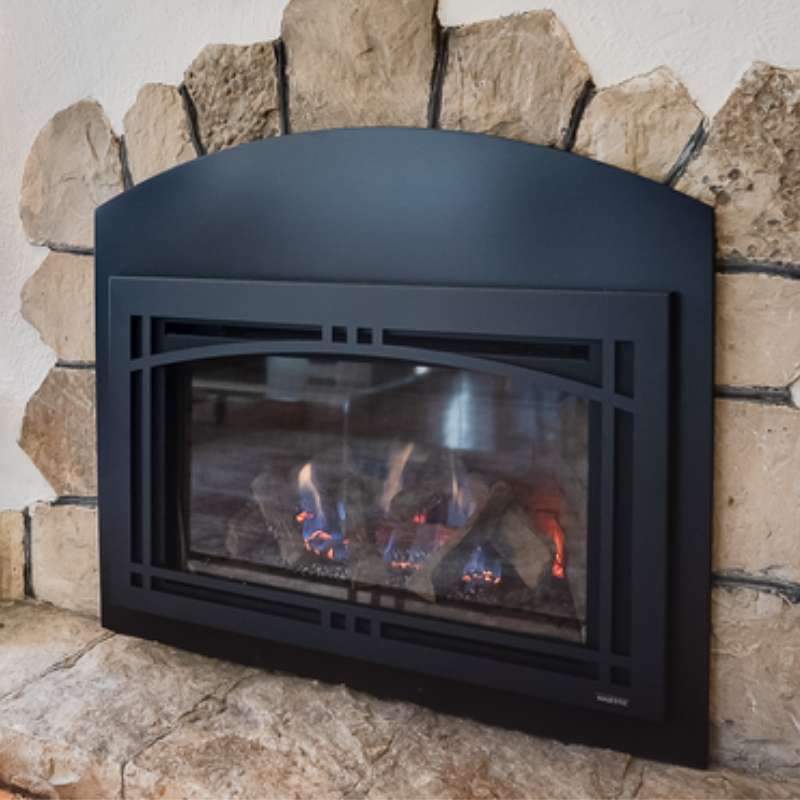

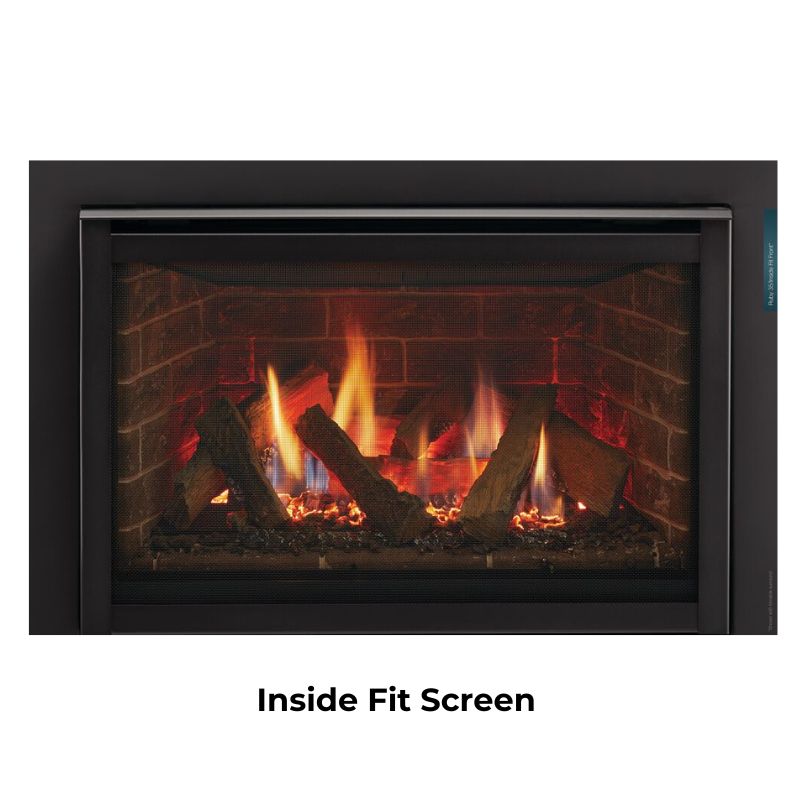

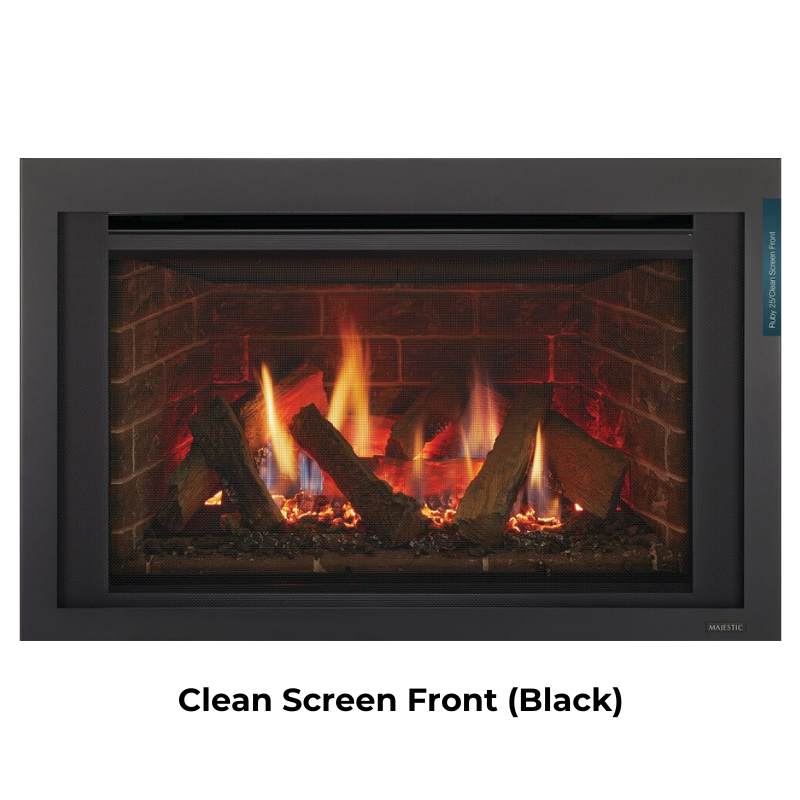

- Clean Screen, Contemporary Arch and Inside Fit fronts in black or new bronze
- Co-linear venting through the existing chimney
What Is Included and What You Will Need
- Included per listing: insert, IntelliFire Touch ignition, RC400 remote, GFK-160A fan, decorative brick base, ceramic glass, 8 ceramic fiber split logs, embers, battery backup, electrical cord, gas flex connector
- Required: one surround and one decorative front (select above)

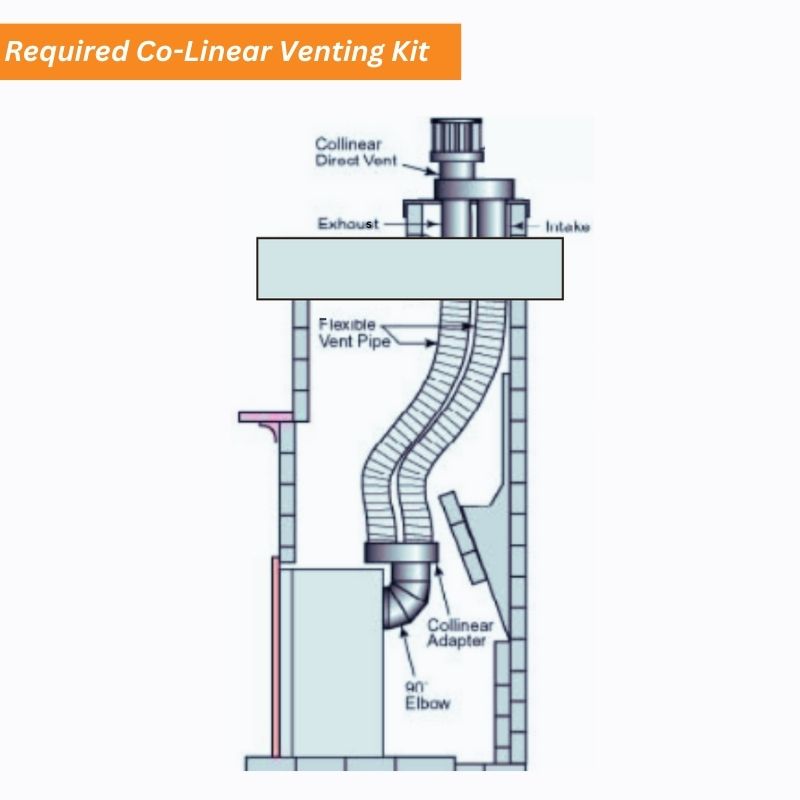

- Required: co-linear vent kit LINK-DV30B or LINKSQ-DV30 (or LINK-DV4-30B / LINKSQ-DV4-30), which supply two 3 in. flex pipes and the vertical termination cap
- Optional: Tavern Brown or Cottage Red panels, reflective black glass, accent lights, IntelliFire app module, wireless wall switch
Installation Notes
The existing fireplace must be cleaned and inspected, the damper fixed open or removed, and the opening must meet the minimum dimensions in installation manual 2542-980. A qualified installer runs the co-linear liner up the chimney (10 to 50 ft vertical) and connects gas and an unswitched 110 to 120 VAC outlet. In New York City, gas work requires a licensed master plumber and permits, and converting a wood fireplace to a direct vent gas insert is a common NYC upgrade. Book a free design consultation and we will help you plan the layout, utilities and installation.
Documentation
- On-Site Custom Surround for Metal Inserts
- Surrounds and Fronts for Metal Inserts
- BRICK-MI25 / MI30 / MI35 Refractory
- Ruby Owner's Manual
Frequently Asked Questions
Will the Ruby 30 fit my fireplace?
Your opening needs at least 31-5/8 in. front width, 20-1/8 in. rear width, 21 in. front height and 15 in. depth with the standard surround. Send us your measurements and we will confirm.
Do I need a surround and front?
Yes. Both are required to complete the installation; choose them in the options above.
How is it vented?
Through the existing chimney with a co-linear kit of two 3 in. flex pipes and a vertical termination cap, 10 ft minimum and 50 ft maximum vertical.
Does it work during a power outage?
The Ruby uses a battery pack backup for the IntelliFire Touch ignition; batteries are installed at setup.
Related reading: Gas Fireplace Insert vs Direct Vent Fireplace and How to Measure a Fireplace Opening.
Warranty
Hearth & Home Technologies limited warranty (Ruby owner's manual 2542-981): firebox and heat exchanger limited lifetime, defined as 20 years for gas appliances, with 3 years labor; burners, logs and refractory 10 years parts and 1 year labor; electrical components 2 years; most other parts 1 year. Purchase from an authorized dealer is required.
