Marquis Titan FreeStanding Direct Vent Gas Stove FDV200S

Overall Dimensions: 23-13/32 in. W x 18-19/32 in. D x 30-9/16 in. H

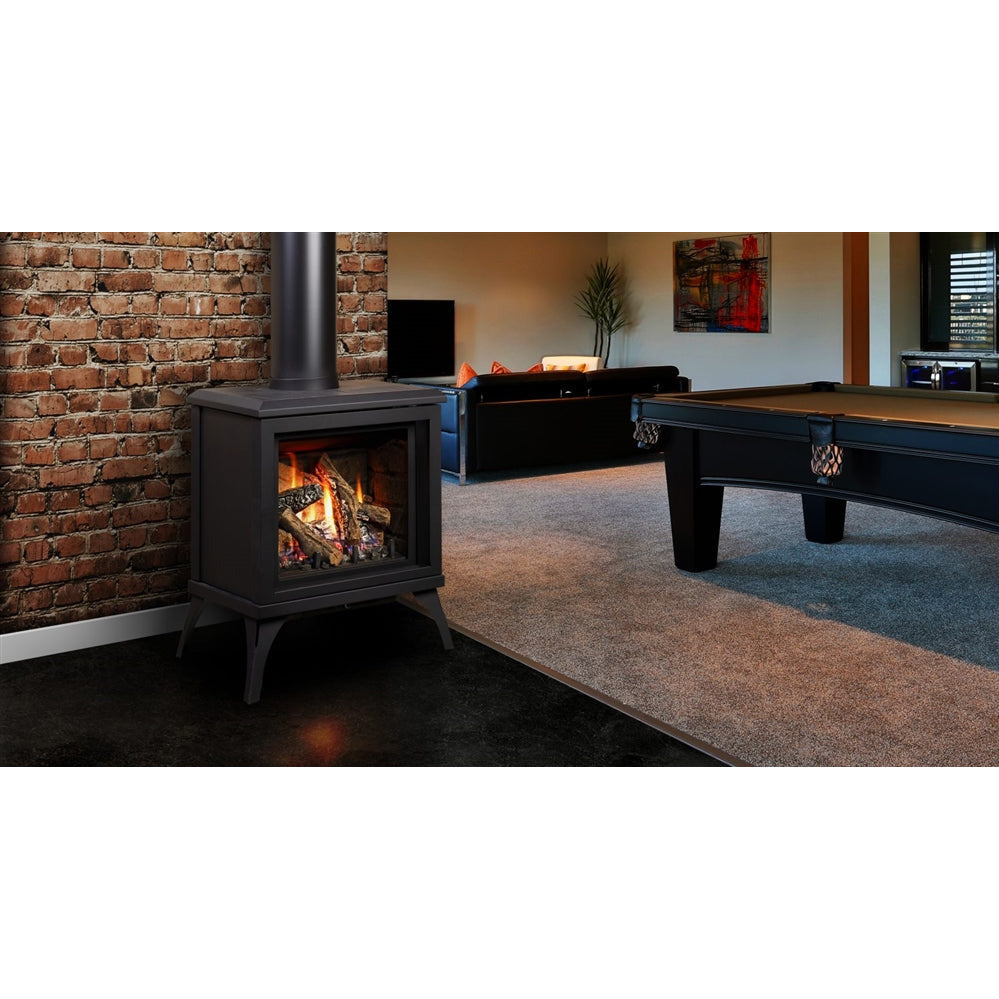

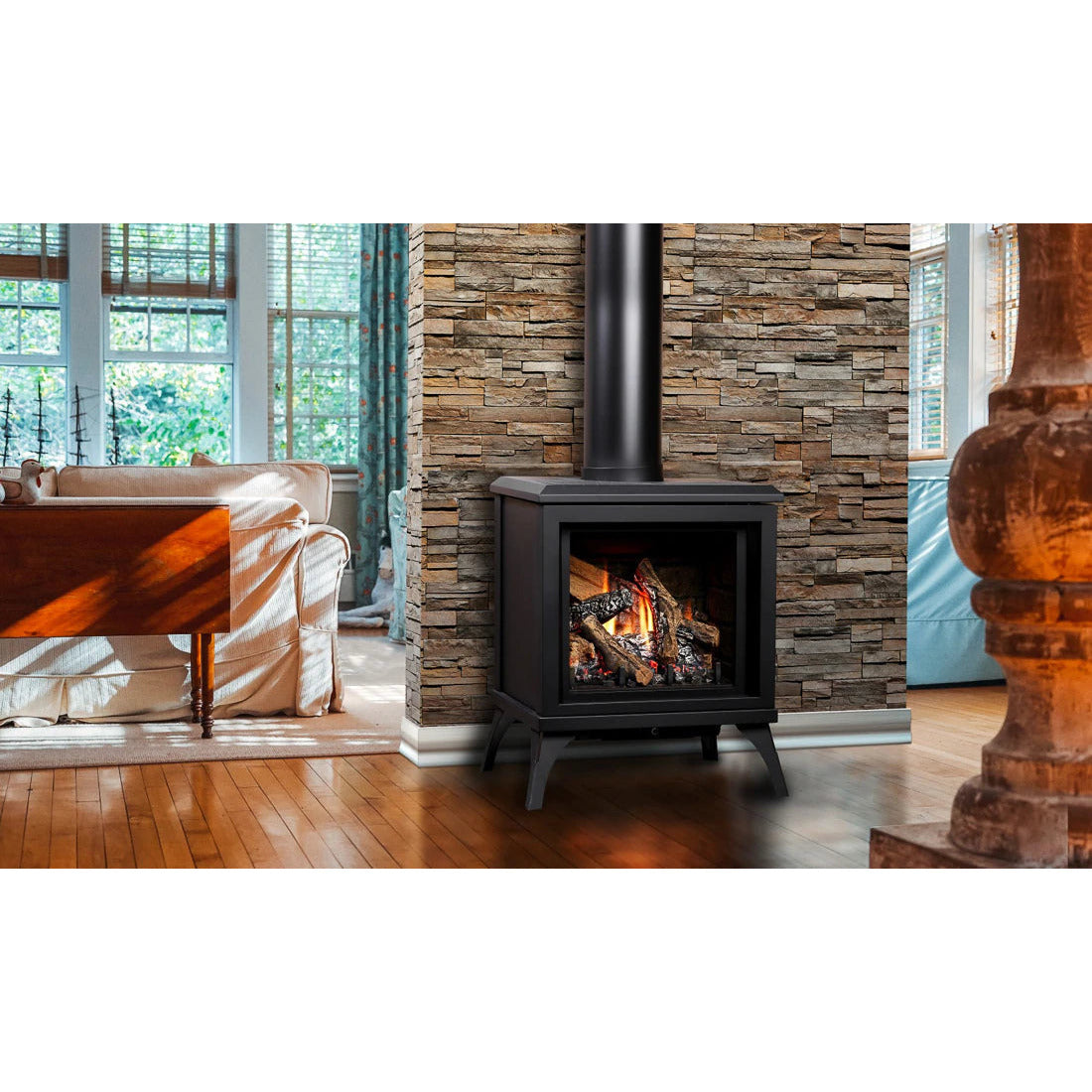

The Marquis Titan (FDV200S) is a compact traditional freestanding direct vent gas stove on cabriole-style legs, sized for smaller rooms, bedrooms and cabins where a large stove would overwhelm the space.

It draws combustion air from outside and vents horizontally or vertically, running 19,500 to 28,500 BTU/h on natural gas and 20,000 to 26,000 BTU/h on propane with a dual burner and fiber oak logs. Choose the control option above: Millivolt (standing pilot, works without power), IPI Proflame 1 (intermittent pilot, upgradeable) or IPI Proflame 2 (full-function remote with flame, fan and thermostat control, factory installed).

Key Specifications

Dimensions and Cutout

Features

• Compact footprint for smaller rooms
• Dual burner system with a realistic flame pattern
• Fiber oak log set with glowing embers
• Safety screen barrier
• Millivolt and IPI valves run during a power failure with Hi-Low flame adjustment
• Proflame II models include a remote with flame, fan, thermostat and smart thermostat control
• Can sit directly on carpet, tile or other combustible flooring
• Vents horizontally or vertically

What Is Included and What You Will Need

• Included: stove body, burner and controls for the option you select
• Marquis notes components may need to be ordered separately to complete the unit, such as the LOGF200 fiber oak log set; we confirm the full list with your order
• Optional: FDV200RL refractory brick liner (3 pieces)
• Optional: blower with heat-activated variable speed control, and wall mount or programmable thermostat
• Required: vent kit, such as the ZDVFK5 or ZDVFK8 flex kit
• Required: gas line with shutoff; household power for the optional blower

Installation Notes

The Titan vents 4 in. x 7 in.: Kingsman 4 in. x 7 in. flex vent kits, or M&G DuraVent DirectVent Pro, Ameri-Vent, BDM Pro Form or Selkirk Direct Temp with the approved adapter. Keep 6 in. to combustibles at the sides and 3 in. at the back, plus the alcove limits in the manual. A product-approved vent terminal must be used and a qualified gas installer must do the work to local codes. In New York City, direct vent gas stoves are installed under the NYC Fuel Gas Code by a licensed plumber with DOB filing where required, and the vent termination location usually decides feasibility. Book a free design consultation and we will help you plan the layout, utilities and installation.

Documentation

• Marquis Titan Brochure
• Marquis Titan FDV200S Installation and Operating Manual
• Proflame II Manual
• Marquis Collection Brochure

Frequently Asked Questions

How big a room will it heat?

It runs up to 28,500 BTU/h on natural gas, which suits a smaller room. We can size it against your room and insulation during a consultation.

Which control option should I choose?

Millivolt runs without power, IPI Proflame 1 lights the pilot only when needed, and Proflame 2 adds a factory-installed full-function remote.

Can it go in a corner?

Yes. Marquis allows a 45 degree corner installation with 3 in. from the sides of the unit to combustibles.

Is the log set included?

Marquis lists the fiber oak log set as standard but notes some components may be ordered separately. We confirm everything needed for a complete unit when you order.

Related reading: Direct Vent Gas Fireplace Buying Guide and Gas Fireplace Cost Installed.

Warranty

Kingsman (Marquis) Basic One Year Warranty: for the first year after installation, any defective component part is replaced, with labor paid on Kingsman's rate schedule through an authorized dealer (accent light bulbs, gasketing and paint excluded). Limited Lifetime Warranty: the heat exchanger, combustion chamber and burner are warranted for as long as the original owner owns the stove; labor, material, freight and handling on lifetime-warranty repairs are not covered. Coverage applies while the unit stays at its original installation site in the continental United States, Alaska, Hawaii or Canada.
