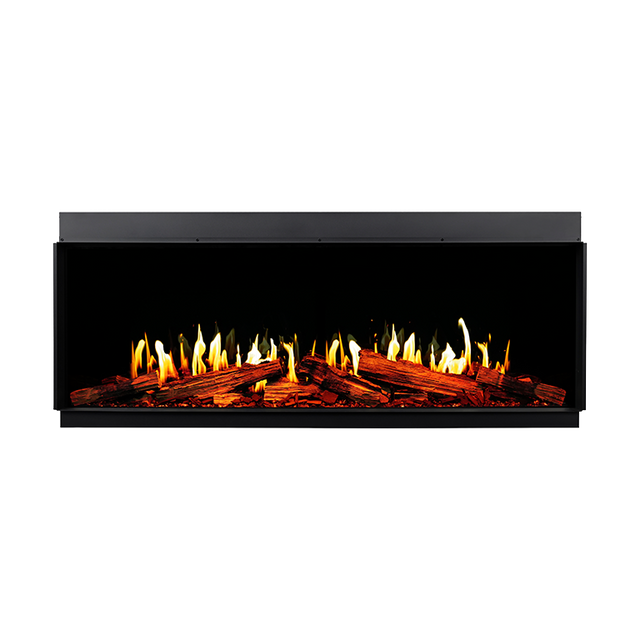

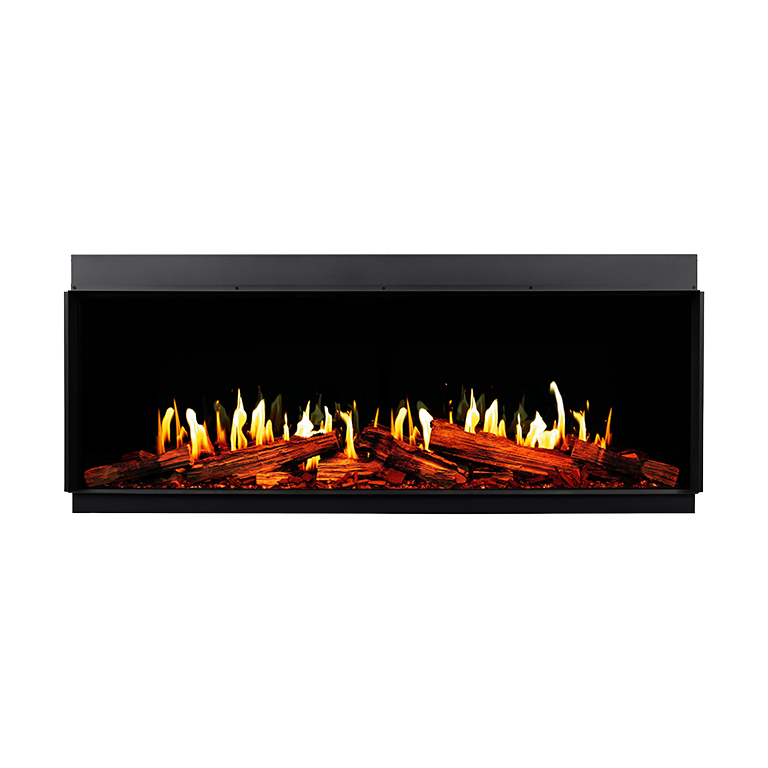

Modern Flames Orion V2 Multi Linear LCD Virtual Electric Fireplace - Indoor & Outdoor Rated
Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.
Modern Flames Orion V2 Multi Linear LCD Virtual Electric Fireplace - Indoor & Outdoor Rated - 52 Inch / Without TruWood Timber Kit is backordered and will ship as soon as it is back in stock.
Pickup available at Maspeth, NY Showroom
Usually ready in 2-4 days
Free & Flat Rate Shipping
Free & Flat Rate Shipping
- Orders Over $999 Ship Out Fast & Free
- Delivery typically takes 5 -7 transit days
- $19.95-$99.95 Flat-Rate Shipping on orders under $999
- Our team & trucks deliver locally within 60 miles of our showroom. (Tri-State NY,NJ,CT including all of Suffolk County)
- Free Shipping Applies to Contiguous US only - See our shipping page for exclusions e.g. ethanol fuel
Assembly & Installation
Assembly & Installation
Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!
WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW
- Outdoor Kitchens
- Outdoor Fireplaces/Firepits
- Outdoor Pizza Ovens
- Gas Fireplaces
- Gas Inserts
- Gas Log Sets
- Fireplace Doors
- Fireplace Mantels
- Electric Fireplaces
- Water Vapor Fireplaces
- Ethanol Fireplaces
Call for a free quote 718-326-4328
Warranty
Warranty
Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.
Returns
Returns
- No-Restock Fees
- 30-Day Return Policy
- The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
- We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.
Modern Flames Orion V2 Multi Linear LCD Virtual Electric Fireplace - Indoor & Outdoor Rated - 52 Inch / Without TruWood Timber Kit is backordered and will ship as soon as it is back in stock.
Description
Description

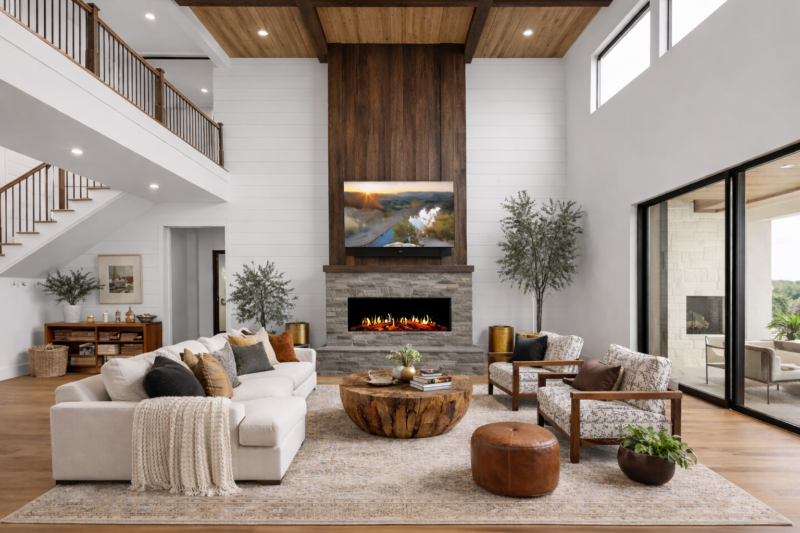

The Orion V2 Multi is the most flexible fireplace Modern Flames builds: one unit that installs front-facing, in a left or right corner, or as a three-sided bay, so the same fireplace solves a flat wall or a room divider. The second-generation LCD panel brings sharper contrast, deeper blacks and adaptive brightness, and at 240V it doubles its output to 10,000 BTU for rooms up to 800 sq ft. Indoor and outdoor rated.

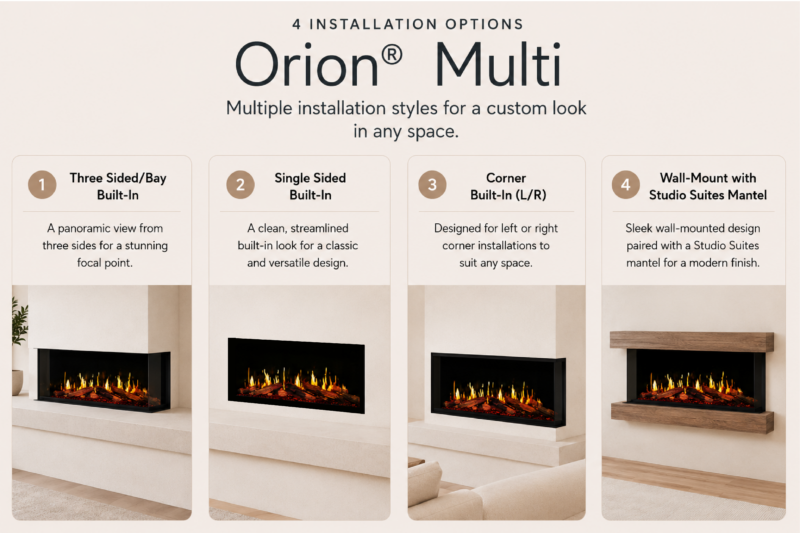

- Five installation methods from one unit — front-facing, left corner, right corner, three-sided bay, partial recess or wall-mount.

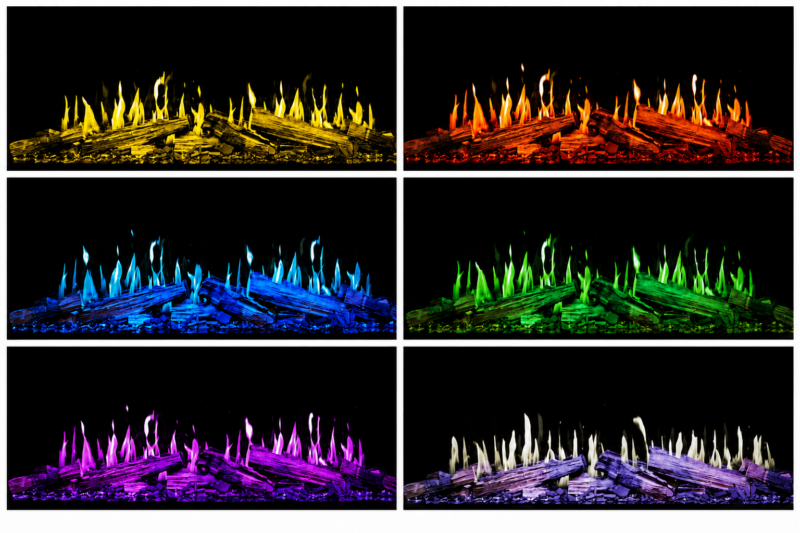

- 24 multi-dimensional flame options — three flame patterns across six colours, three-speed control, ten-colour ember bed with Fade Mode.

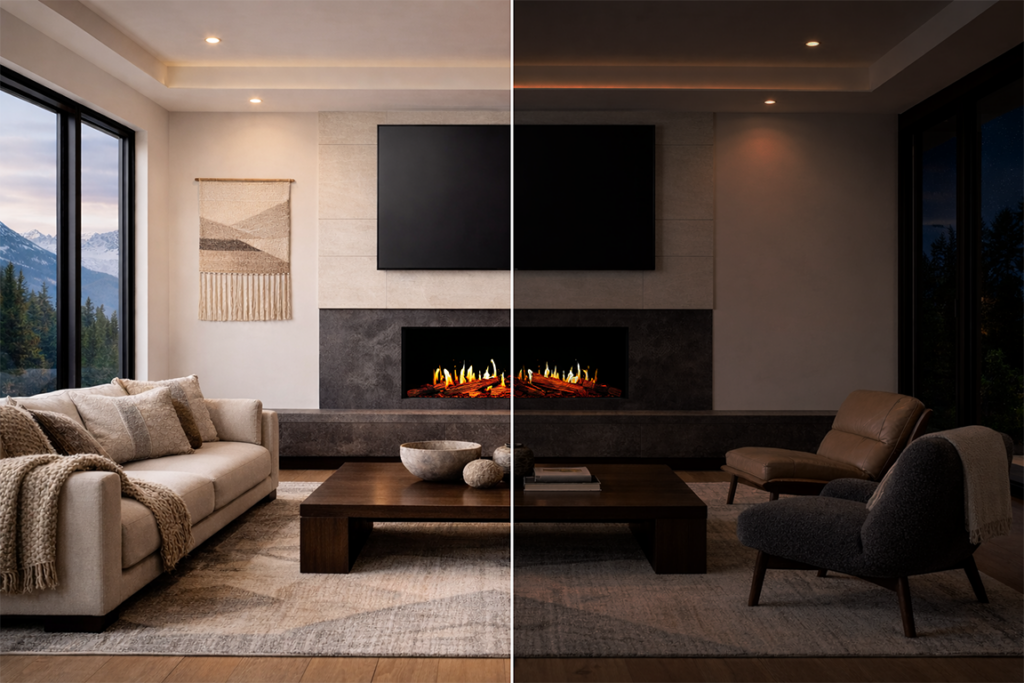

- Next-generation LCD with adaptive brightness, a mirrored background and tinted front glass for depth without glare.
- Dual-voltage heat — 5,000 BTU on 120V or 10,000 BTU on 240V, PTC ceramic, independent of the flame.
- Premium audio — custom speakers, Bluetooth streaming, three crackling soundscapes.
- Indoor and outdoor rated — outdoor installations must be fully built-in under a covered patio meeting the manual's requirements.

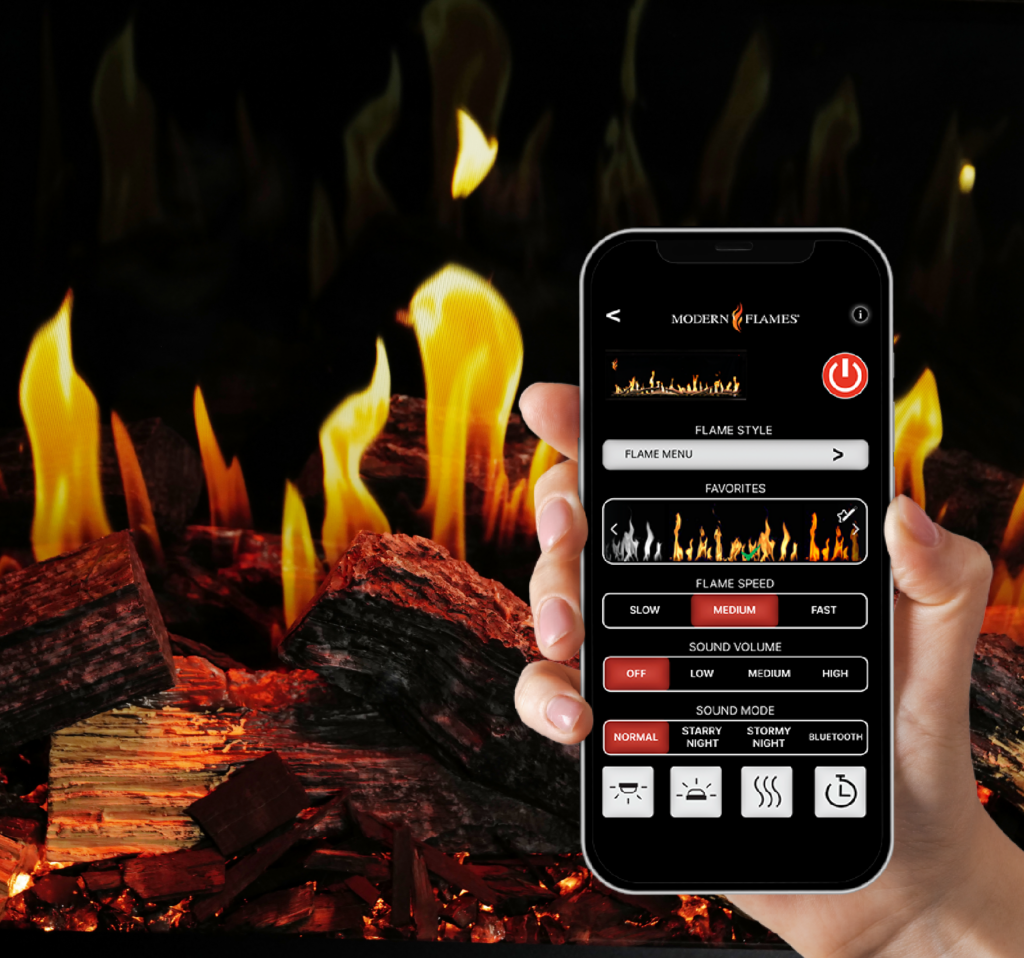

- Ever-expanding flame library delivered over the air through the Modern Flames+ app.
Choosing Your Configuration
Size is required. The TruWood Premium Timber Kit is optional — leave it set to "Without" for the fireplace as supplied. TruWood replaces the standard log set with real split-wood timbers and is matched to your size automatically.
Looking for a finished wall? The Studio Suite floating mantel sets pair with the 52", 60" and 76" Multi — see the linked products below.
Specifications
| 52" (OR52-MULTI-V2) | 51-1/2"W x 23-7/8"H x 8-15/16"D · viewing 50-1/8" x 18-7/16" · 146 lbs |
| 60" (OR60-MULTI-V2) | 60"W x 23-7/8"H x 8-15/16"D · viewing 58-5/8" x 18-7/16" · 165 lbs |
| 76" (OR76-MULTI-V2) | 75-3/4"W x 23-7/8"H x 8-15/16"D · viewing 74-7/16" x 18-7/16" · 206 lbs |
| 100" (OR100-MULTI-V2) | 100"W x 23-7/8"H x 8-15/16"D · viewing 98-3/4" x 18-7/16" · 262 lbs |
| 120" (OR120-MULTI-V2) | 124-3/8"W x 23-7/8"H x 8-15/16"D · viewing 123" x 18-7/16" · 314 lbs |
Framing / Rough Opening
| Recessed (9" minimum depth) | 52": 51"W · 60": 59-1/2"W · 76": 75-1/4"W · 100": 99-1/2"W · 120": 124"W — all x 24-3/4"H |
| Partial recess (2-5/8" minimum depth) | 50-15/16" / 59-7/16" / 75-3/16" / 99-1/2" / 123-13/16" W x 24-9/16"H |
| Three-sided bay framing width | 50-5/8" / 59-1/8" / 74-15/16" / 99-1/4" / 123-1/2" |
Confirm framing against the dimensional drawing for your exact size and chosen installation method before building the opening.
| Electrical | 120V or 240V, 20A dedicated circuit, 1,465 W / 2,930 W |
| Heat output | 5,000 BTU @ 120V (up to 500 sq ft) · 10,000 BTU @ 240V (up to 800 sq ft) |
| Heater type | PTC ceramic, operates independently of the flame |
| Flame technology | Next-generation LCD, 24 flame options, 6 colours, 3 patterns |
| Ember bed | 10 colours plus Fade Mode |
| Audio | Custom speakers, Bluetooth streaming, 3 crackling soundscapes |

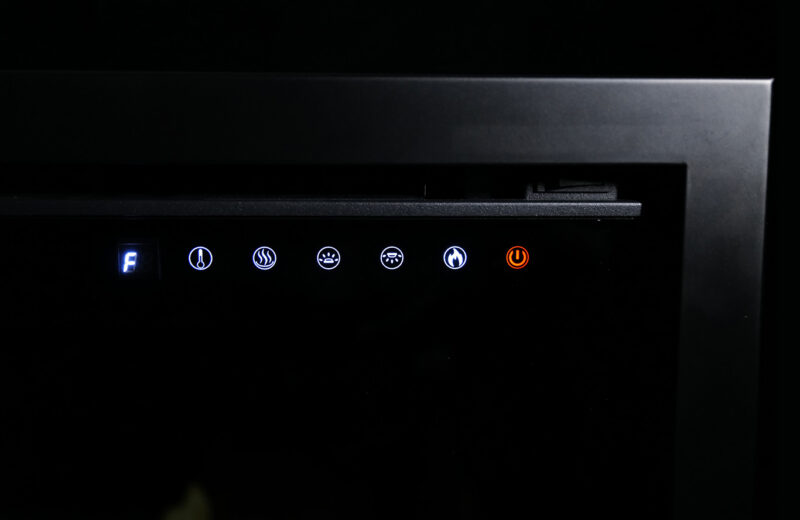

| Controls | Remote, on-unit touch panel, Modern Flames+ app, Alexa and Google Home |
| Indoor / outdoor | Approved for both; outdoor requires built-in installation under cover |
| Warranty | 5 years |
What's Included
- Orion V2 Multi fireplace

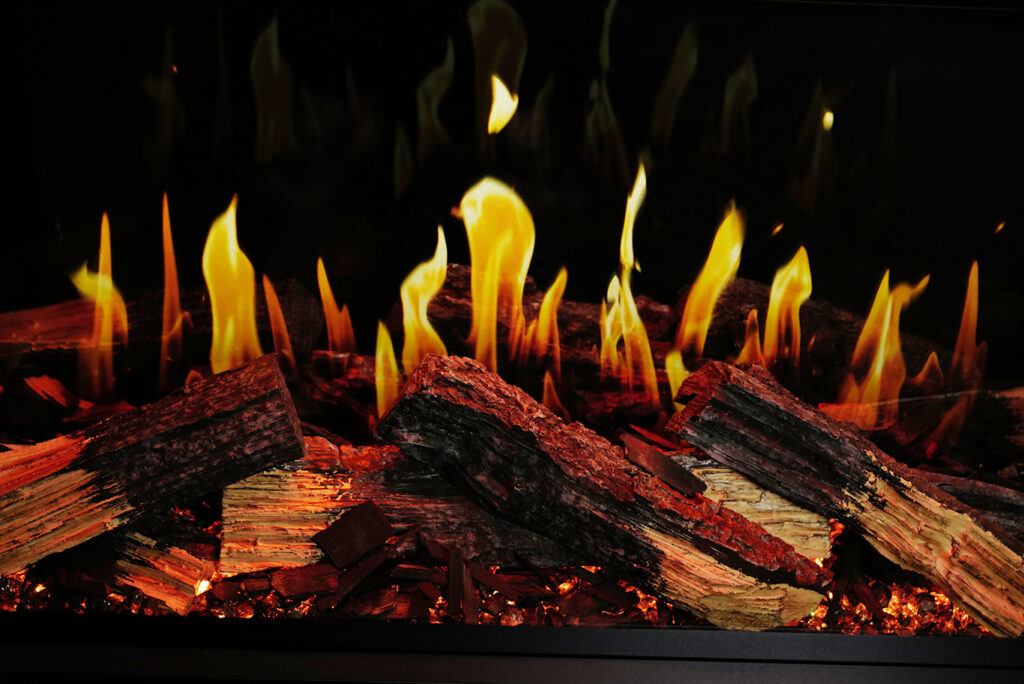

- Lit log set and black reflective crushed glass media
- Remote control
- Installation manual
- TruWood Premium Timber Kit if selected above
Spec Sheet | Installation Manual | Owner's Manual
Dimensional drawings: 52" · 60" · 76" · 100" · 120"
Warranty: Modern Flames covers the Orion V2 Multi with a 5-year warranty and dedicated factory support. Outdoor installations are approved only in a fully built-in configuration under adequate cover; follow the manual exactly.
