Description
Description
Overall Dimensions: 57-1/4" W (front) x 12-3/4" D x 26-3/4" H

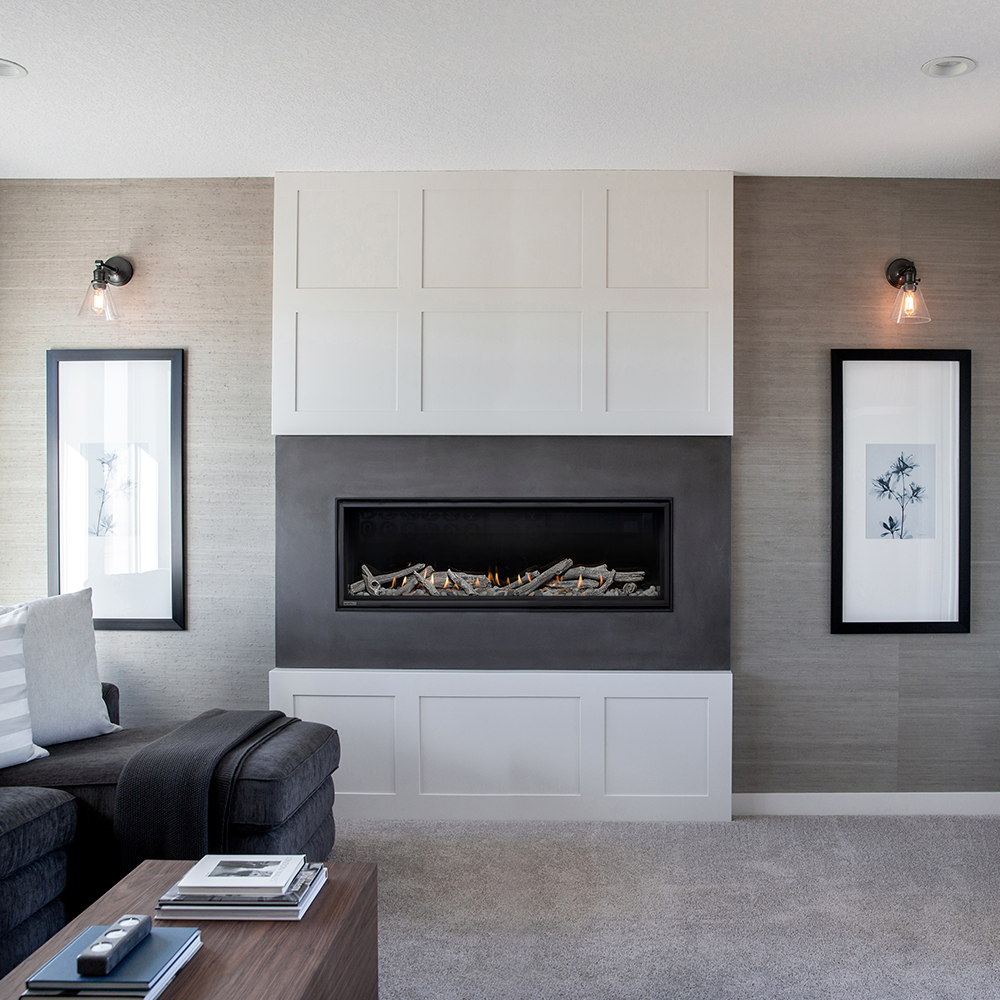

The Montigo DelRay Full-Load 48 (DRL4813NI-2) is a linear direct vent gas fireplace with a 48-1/2 inch wide viewing area and only 12-3/4 inches of depth, designed for large open rooms where a slim built-in wall is the goal. A concealed burner with ice fireglass makes the flame float over black reflective glass, and the Full-Load package adds a multi-function remote, remote-controlled fans, halogen downlighting and battery backup.
Key Specifications
| Model | DRL4813NI-2 (natural gas); propane with conversion kit |
| Input | NG 21,000 BTU/h; LP 19,000 BTU/h |
| Efficiency | 63% (NG), 60% (LP) |
| Viewing Area | 48-1/2" x 14-11/16" |
| Venting | Direct vent, 4"/7" system |
| Burner | Concealed linear burner with ice fireglass |
| Electrical | 120 VAC, 60 Hz, 6 A main power with 3.15 A fuse |
| Gas Inlet | 1/2" or 3/8" port |
Dimensions and Cutout

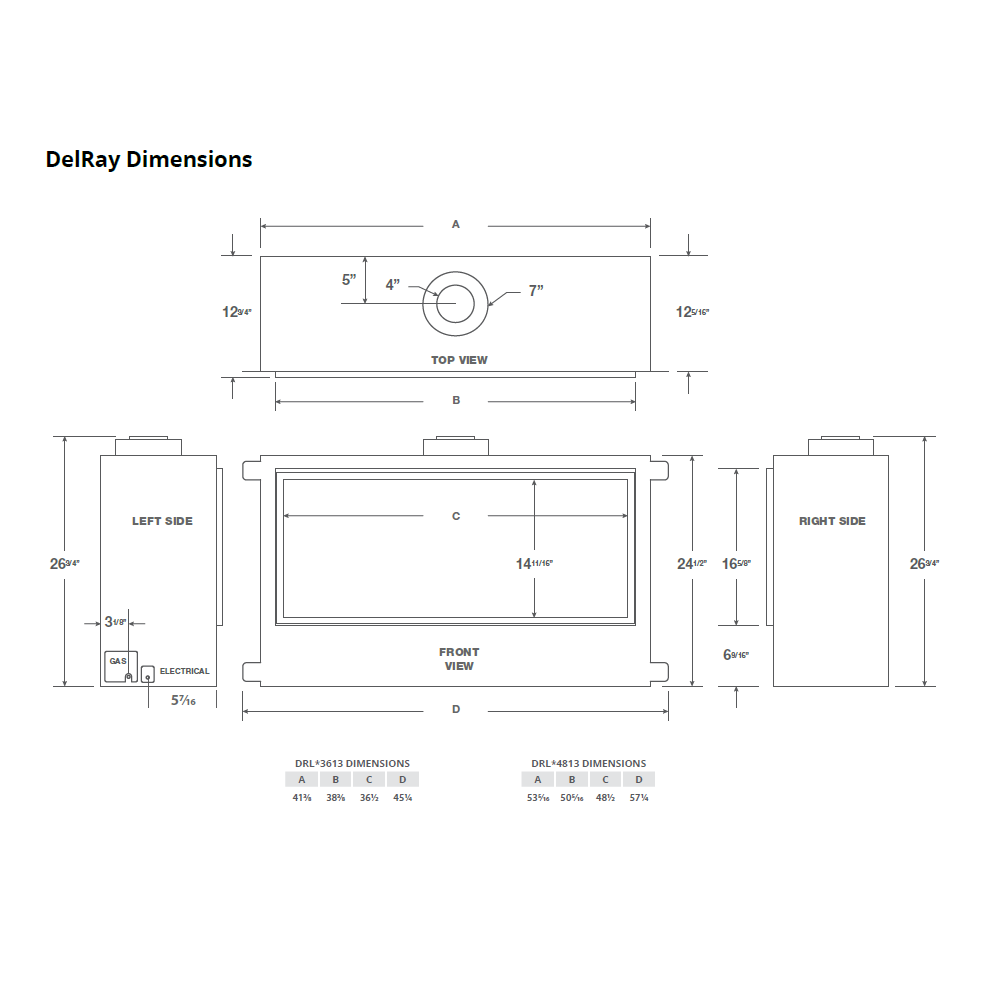

| Unit | Front width 57-1/4", back width 53-7/16", height 26-3/4", depth 12-3/4" |

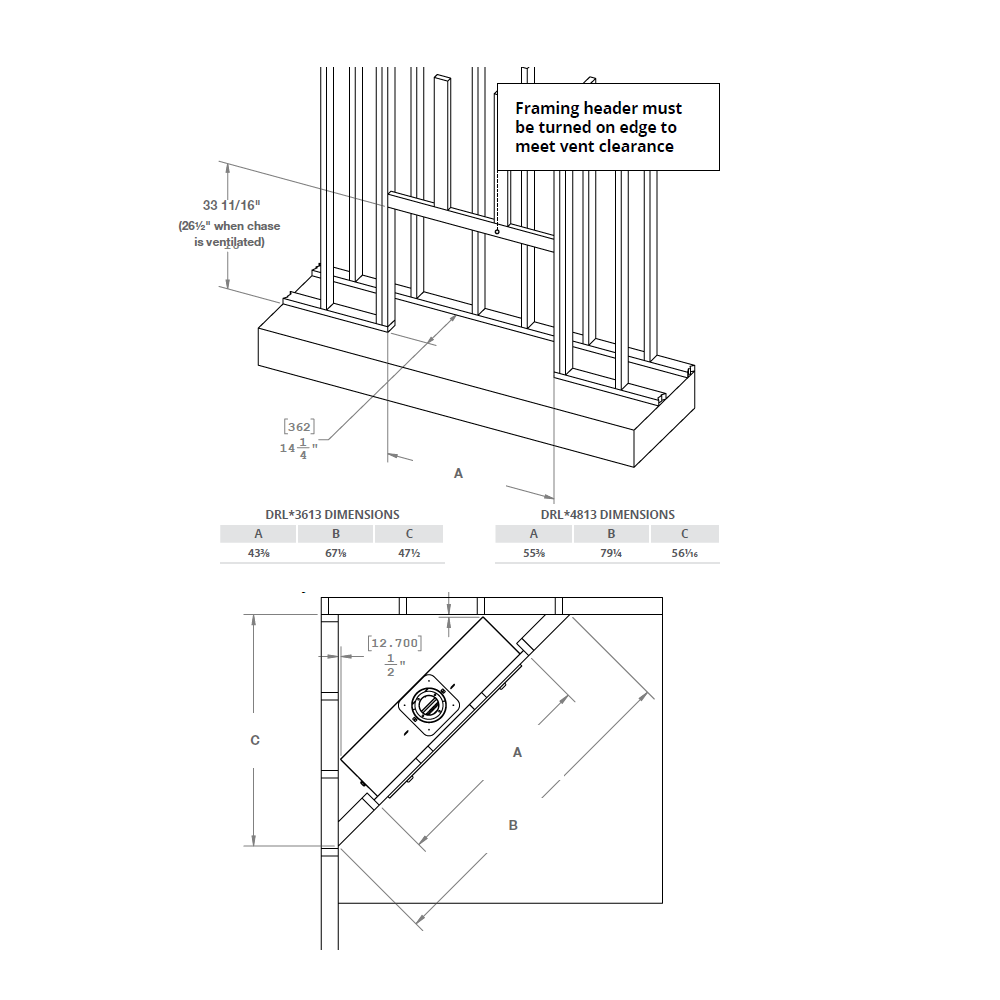

| Framing | 55-3/8" W x 33-11/16" H x 14-1/4" D |
| Vent Runs (manual) | Total run (vertical plus horizontal) up to 34 ft; maximum vertical 34 ft; maximum horizontal 20 ft; up to 4 elbows, each reducing the run by 3 ft |
| Termination | Wall: 13" vertical to center and 12" horizontal minimum. Roof: 4 ft minimum vertical. |
Features
- Concealed linear burner with ice fireglass and a floating flame over reflective black glass
- Multi-function remote to adjust flame height, heat output and lighting
- Remote-controlled fans to circulate warm air
- Micro mesh safety screen that keeps the view clear
- Halogen downlighting over the firebed
- Battery backup for operation during power outages

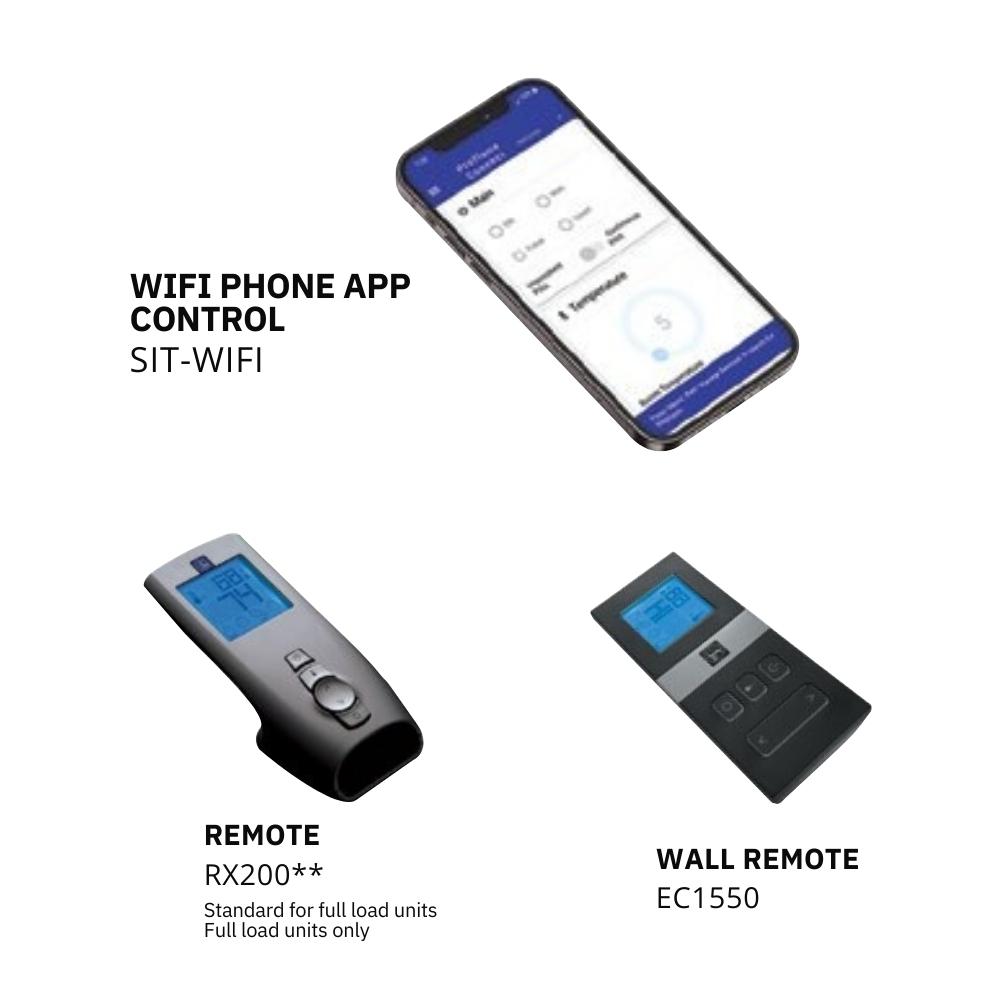

- Optional Wi-Fi phone app control, wall remote and adjustable trim kits
What Is Included and What You Will Need
- Included per the manual: the fireplace, a glass barrier (install it where children or at-risk individuals are present), and 15 ft of low-voltage wall switch wire
- Required: 4"/7" direct vent pipe and termination, a gas line, a 120 VAC supply and a finished chase or wall built to the framing dimensions
- Required for propane: Montigo propane conversion kit

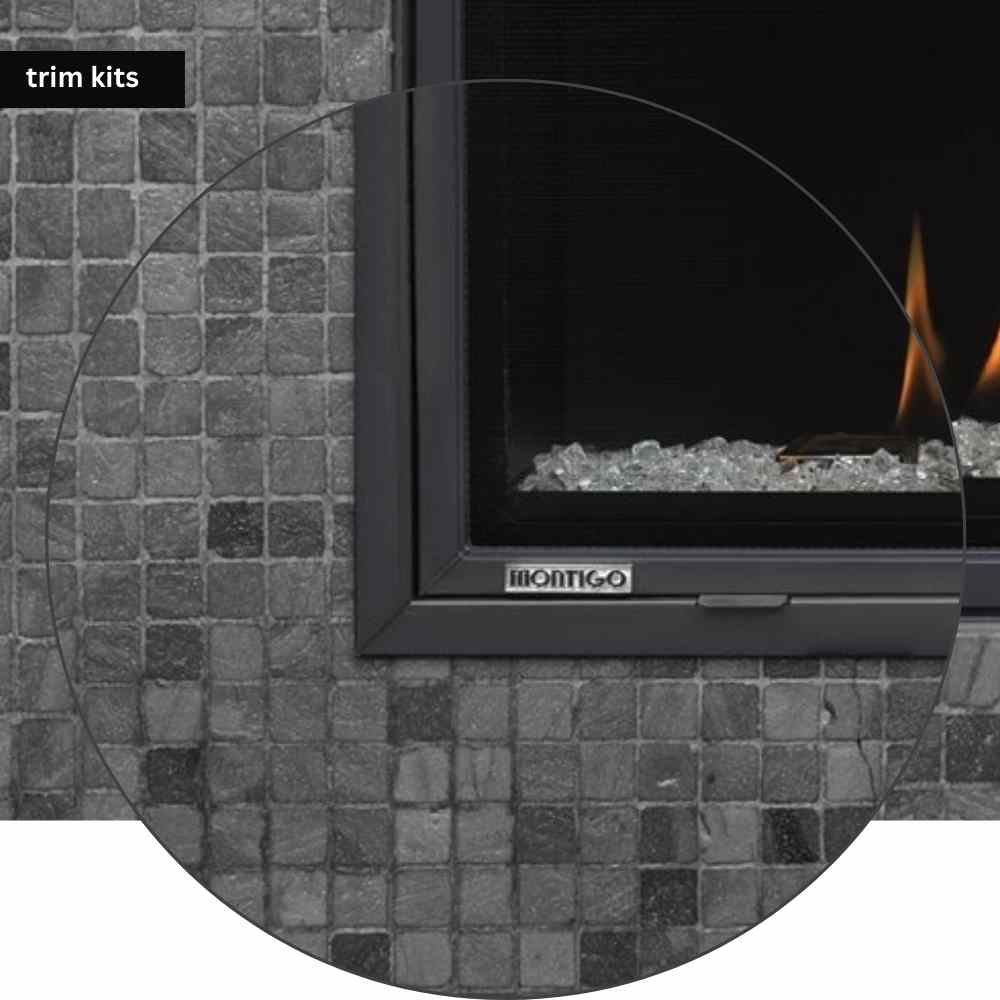

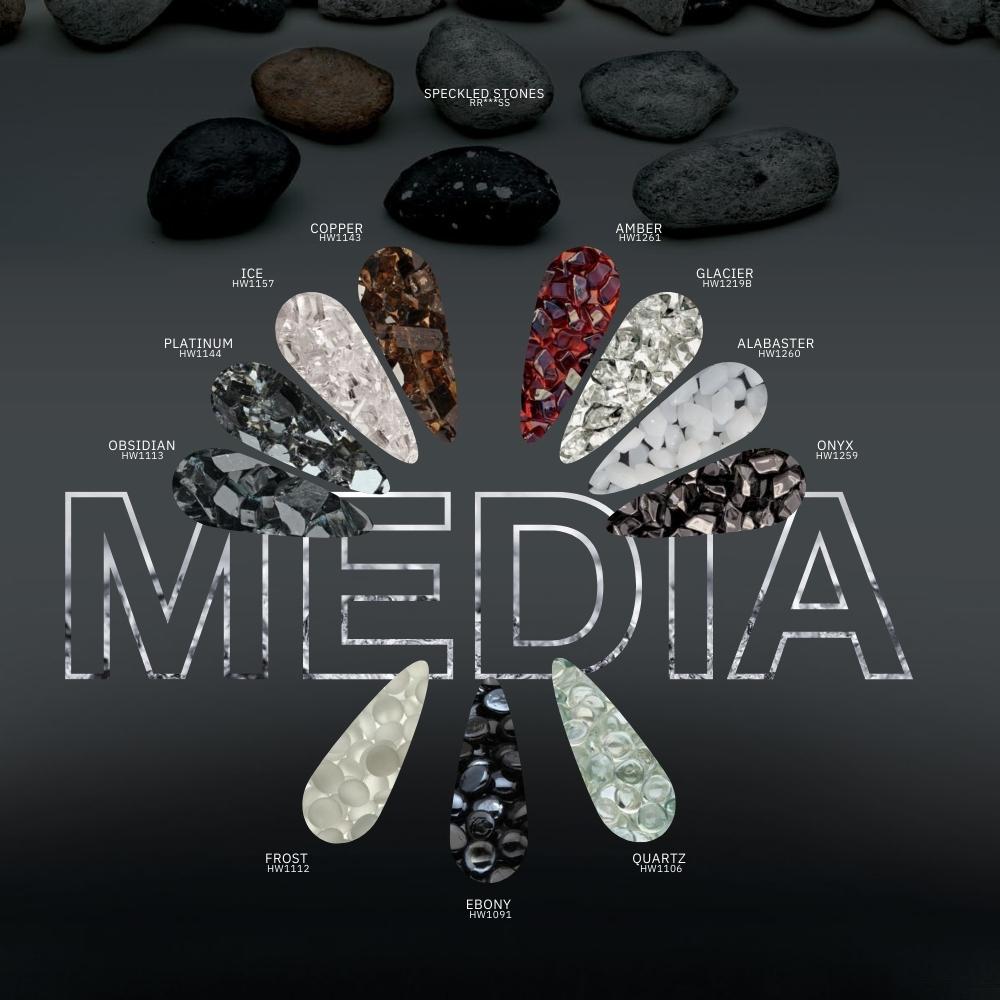

- Optional: adjustable trim kits (DRLT series), black reflective glass (RBGDRL series), speckled stones, driftwood or glass media, wall remote (EC1550), Wi-Fi control (SIT-WIFI), RX200 remote
Installation Notes
The manual lists clearances to combustibles of 21 inches at the top, 2 inches at the rear, 1 inch at the sides and 0 inches at the floor, with a 6 inch maximum combustible mantel height. A 10 inch noncombustible hearth is recommended on vinyl or delicate flooring. Gas and venting must be installed by a licensed professional. In New York City, a direct vent gas fireplace must meet the NYC Fuel Gas Code and be permitted. Book a consultation and we will confirm framing and venting before you order.
Documentation
Frequently Asked Questions
Can I run it on propane?
Yes, with Montigo's propane conversion kit. Propane input is 19,000 BTU/h compared with 21,000 BTU/h on natural gas.
How deep does the wall need to be?
The framing depth is 14-1/4 inches, which keeps the build slim for an interior wall.
Can I put a TV above it?
The manual says a TV can be wall-mounted above the fireplace but gives no specific TV clearance for the 48, so confirm the heat and clearance plan with us before you build the wall.
Related reading: Direct Vent Gas Fireplace Buying Guide and Best Fireplace Under a TV.
Warranty
Per the current listing, Montigo provides a 15-year limited warranty on the firebox, heat exchanger and main burner, with 1-year coverage on gas controls, electronic ignition and other electrical components. Montigo's warranty terms require the fireplace to be purchased, installed and serviced annually by an authorized Montigo dealer for coverage to remain valid.
