Description
Description
Explore other Montigo Divine Multi-Sided See-Through models: 38 inch | 42 inch (this model)
Overall Dimensions: 43-9/16 in. W x 24-1/2 in. D x 44-3/8 in. H

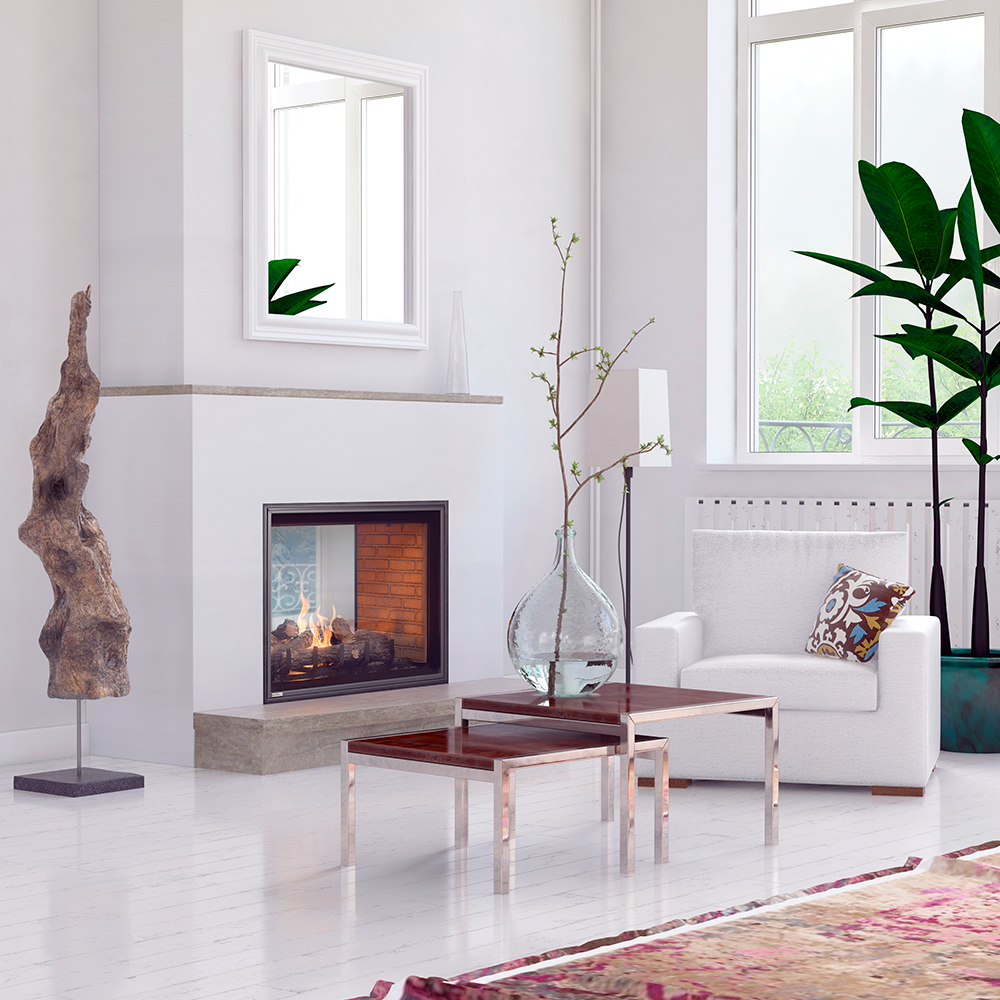

The Divine 42 See-Through (H42FSD) is a two-sided direct vent gas fireplace with a large, nearly square 39-3/8 in. x 30-3/8 in. viewing area on each face, a traditional burner and logset, a Heritage brick liner and a wrought iron grate. It suits a wall between a living room and a dining room or kitchen where both spaces should feel like they have a real fireplace. Choose a millivolt standing pilot model that needs no household power, or Proflame 2 electronic ignition for remote, wall control and WiFi options.
Key Specifications
| Models | H42FSDN / H42FSDL standing pilot (natural gas / propane); H42FSDNI / H42FSDLI Proflame 2 electronic ignition (natural gas / propane) |
| Input | 37,000 BTU/h natural gas and propane |
| Efficiency (FE) | 66% standing pilot; 68.3% electronic ignition |
| Viewing area | 39-3/8 in. x 30-3/8 in. per side (spec sheet); product page glass opening 39-1/2 in. x 30-1/2 in. |
| Burner and media | Traditional burner and logset, Heritage brick liner, wrought iron grate |
| Flame control | Manual Hi-Lo standard; remote Hi-Lo with Proflame 2 models |
| Venting | Direct vent, 5 in. / 8 in., top or side vent |
| Electrical | Standing pilot models run on a millivolt circuit; Proflame 2 models connect to 115V, 60 Hz |
Dimensions and Cutout
| Unit (W x H x D) | 43-9/16 in. x 44-3/8 in. x 24-1/2 in. |
| Framing (W x H x D) | 45 in. x 49-1/2 in. x 24 in. |
| Shelf clearance | Combustible shelf at least 12 in. above the unit with side venting, 19 in. with top venting |
| Other clearances | 2 in. from the side of the fireplace to a wall; 3 in. to combustible side surrounds; 1 in. around vent pipe and 2 in. above horizontal runs |
| Venting | Termination up to 32 ft above the fireplace; vent graphs in the manual set horizontal limits |
Features
- See-through design with a 39-3/8 in. x 30-3/8 in. viewing area on both faces
- Traditional burner with logset, wrought iron grate and Heritage brick liner
- Choice of standing pilot (no household power needed) or SIT Proflame 2 electronic ignition

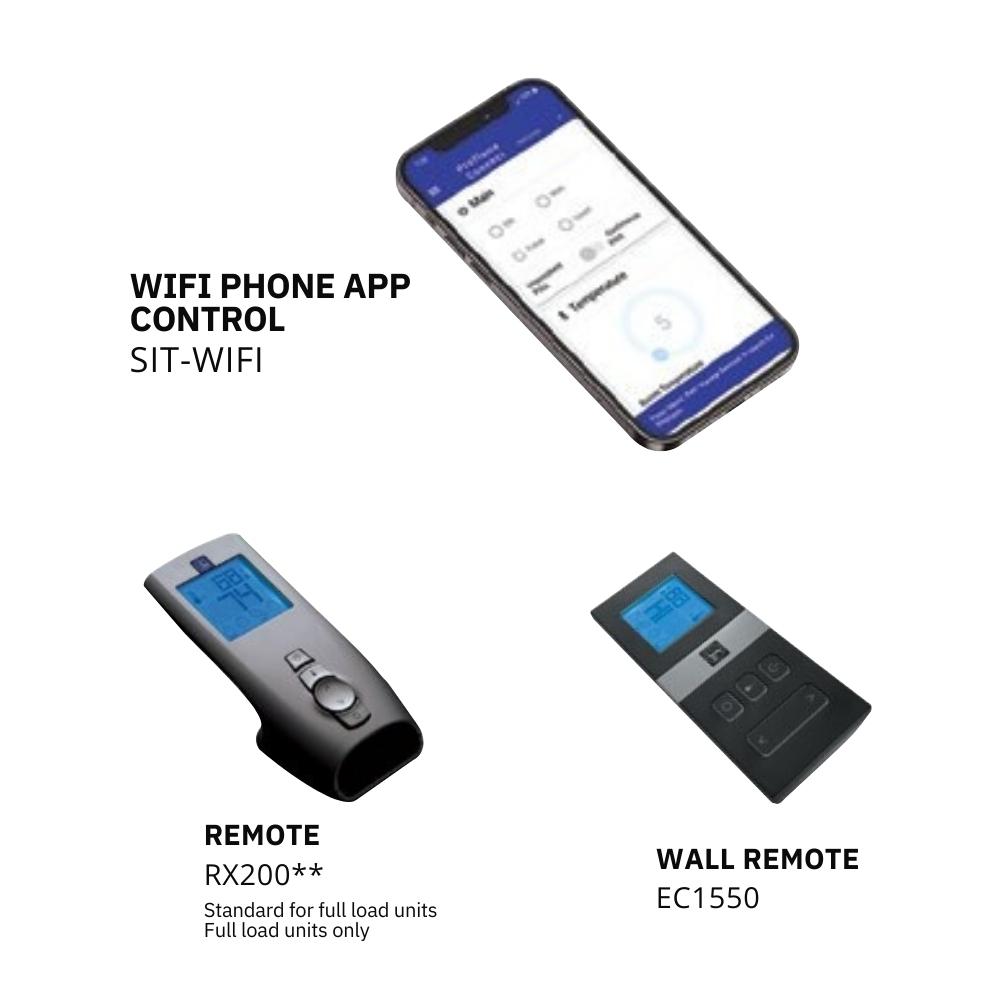

- Proflame 2 models add multi-function remote, EC1550 wall remote and SIT-WiFi app options
- Micro mesh safety screens on both faces
- Optional fans and battery backup
- Optional surrounds in satin black or stainless steel
- Surround can be personalized with stone or tile
What Is Included and What You Will Need
- Included: H42FSD firebox with traditional burner, logset, Heritage brick liner, wrought iron grate, micro mesh screens and the ignition system you select above
- Required: 5 in. / 8 in. direct vent pipe and a wall or roof termination, either Montigo vent or an approved alternate listed in the manual (DuraVent DirectVent Pro connects through adapter 58DVA-AD-M1). We carry 58DVA-HC horizontal and 58DVA-VCH vertical caps, 58DVA-36 pipe and 58DVA-E90 elbows
- Required: a gas supply line; Proflame 2 models also need a 115V, 60 Hz circuit
- Optional (Proflame 2 models): multi-function remote, EC1550 wall remote, SIT-WiFi app control
- Optional: fans, battery backup, satin black or stainless steel surround
Installation Notes

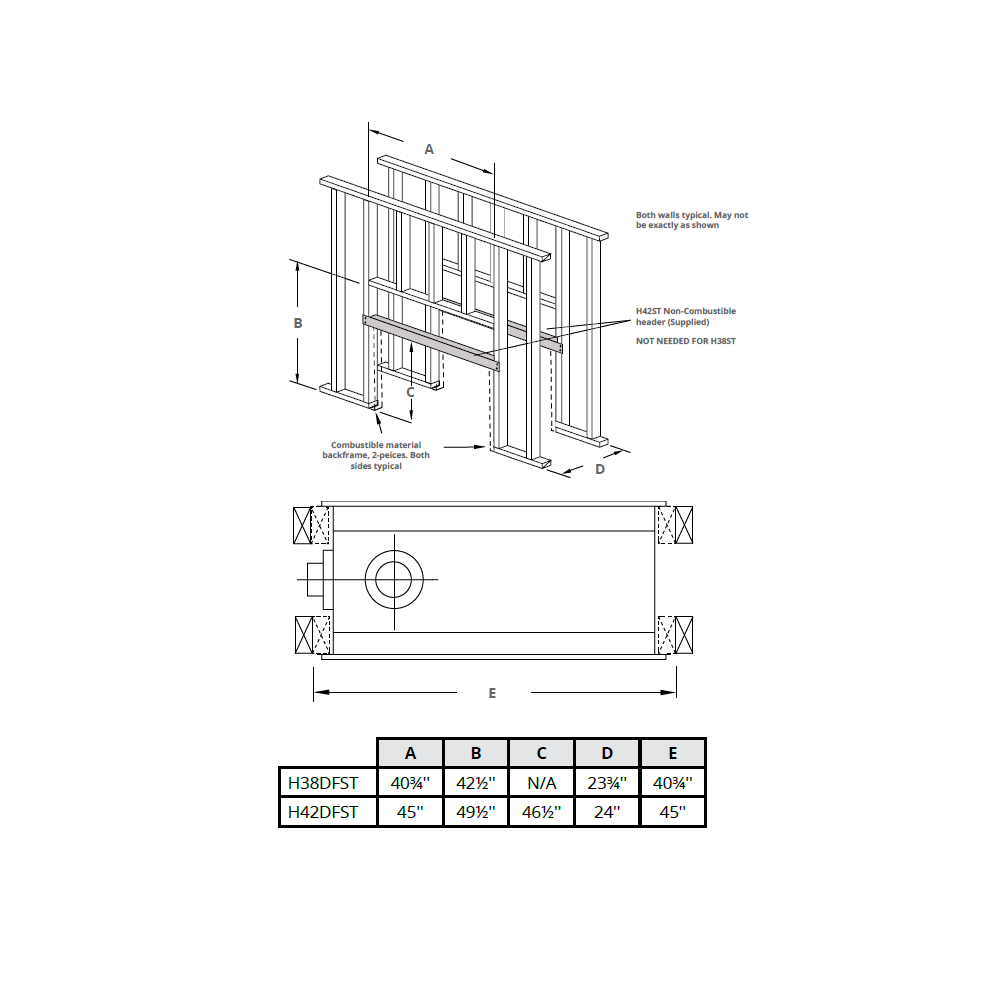

Frame to 45 in. W x 49-1/2 in. H x 24 in. D and finish both faces of the wall. A combustible shelf must sit at least 12 in. above the unit with side venting or 19 in. with top venting, and the sides of the fireplace need 2 in. to a wall. The vent can terminate up to 32 ft above the fireplace. Standing pilot models operate without household electricity, which helps in a power outage; Proflame 2 models need a 115V supply and gain remote and app control. Installation must be done by a qualified, licensed gas installer. In New York City, direct vent fireplaces fall under the NYC Fuel Gas Code, with a licensed master plumber and DOB filing where required; the termination location usually decides feasibility in apartments and townhouses. We confirm venting and permitting during a fireplace design consultation.
Documentation
- Spec Sheet
- Installation Manual
- Montigo Divine See-Through H42FSD product page (manufacturer site)

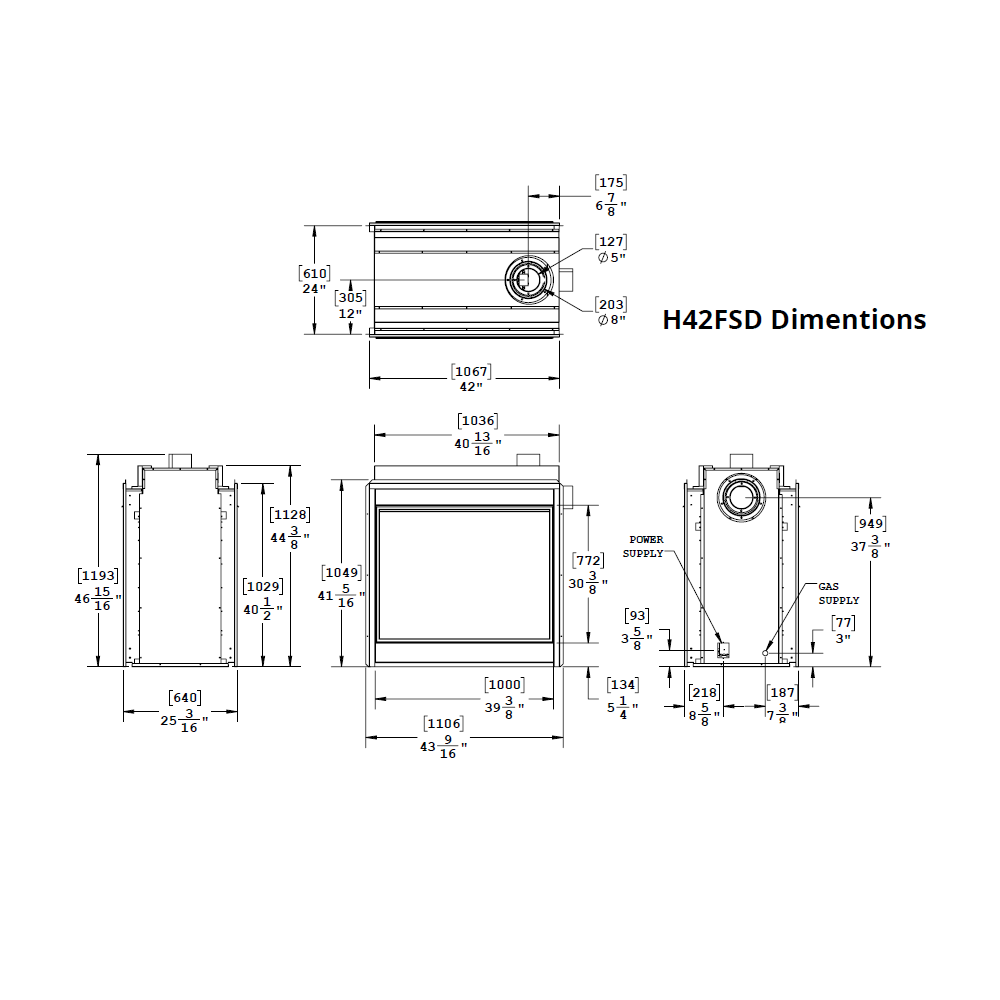

- H42FSD dimension drawing (manufacturer site)
Frequently Asked Questions
Standing pilot or electronic ignition: which should I choose?
Standing pilot (H42FSDN / H42FSDL) keeps a small pilot lit and runs on its own millivolt power, with manual Hi-Lo flame control. Proflame 2 electronic ignition (H42FSDNI / H42FSDLI) lights the pilot only when needed, is slightly more efficient (68.3% vs 66% FE) and is required for the remote, wall remote and WiFi options.
Is a remote included?
The multi-function remote is an option on this model and works only with the Proflame 2 electronic ignition versions.
Can I get glass media instead of logs?
The H42FSD ships with the traditional logset. Montigo also builds a contemporary Divine see-through burner for glass media; ask our team about availability for the 42 before you order.
Does it vent through both rooms?
No. It is one sealed firebox with a single 5 in. / 8 in. direct vent run through an exterior wall or the roof.
Related reading: Direct Vent Gas Fireplace Buying Guide and NYC Fireplace Code Guide.
Warranty
Montigo Residential Warranty Program (per the manual): firebox, heat exchanger and main burner 15 years, with 1 year of labor; gas controls, electrical components, remotes, media, glass, finishes and safety barriers 1 year, parts and labor. Transferable while the fireplace stays in its original installation; requires installation by a licensed professional and annual service by an authorized Montigo dealer. Montigo's terms also require the fireplace to be purchased and installed through an authorized Montigo dealer.
