Montigo Phenom 38 See-Thru Direct-Vent Gas Fireplace - L38F
Montigo Phenom 38 See-Thru Direct-Vent Gas Fireplace - L38F - Propane / Standing Pilot is backordered and will ship as soon as it is back in stock.
Description
Description

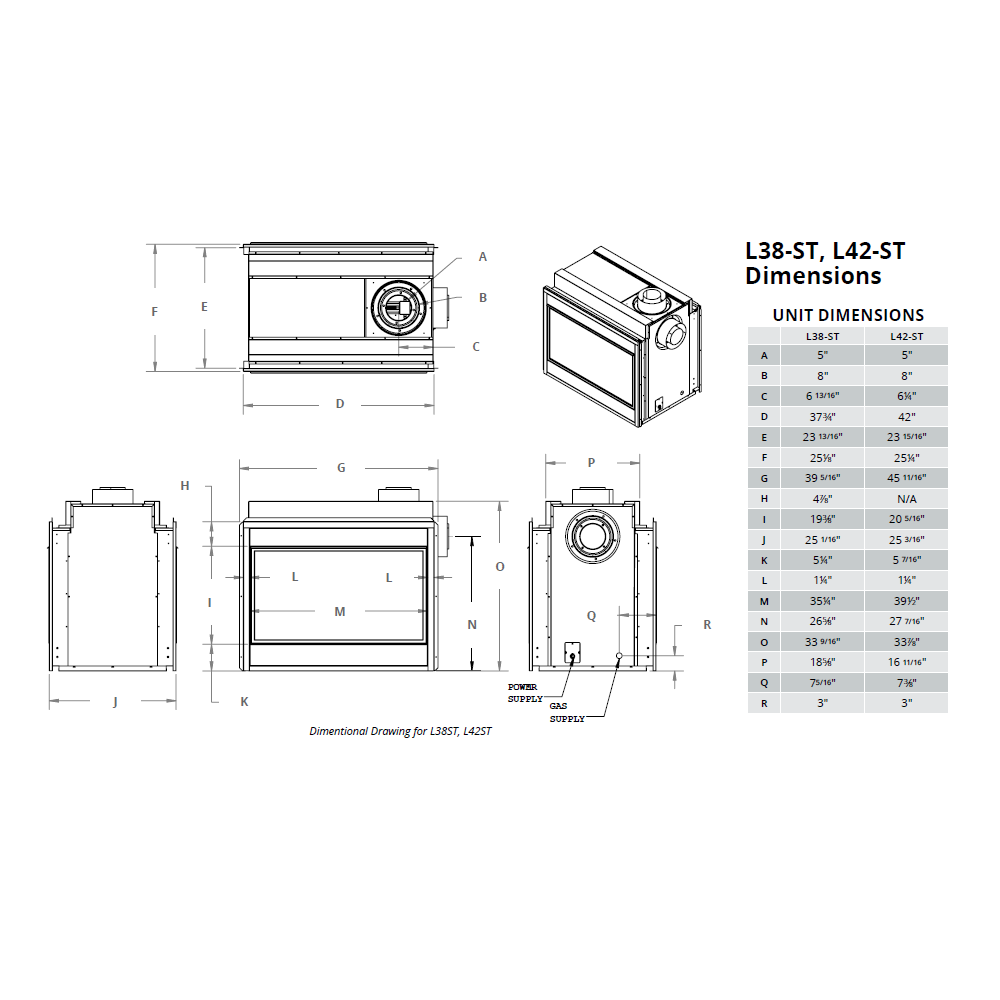

Overall Dimensions: 37-3/4 in. W (39-5/16 in. across the nailing flanges) x 26-5/8 in. H (33-9/16 in. to the top of the vent collar) x 25-1/8 in. D (per Montigo drawing)

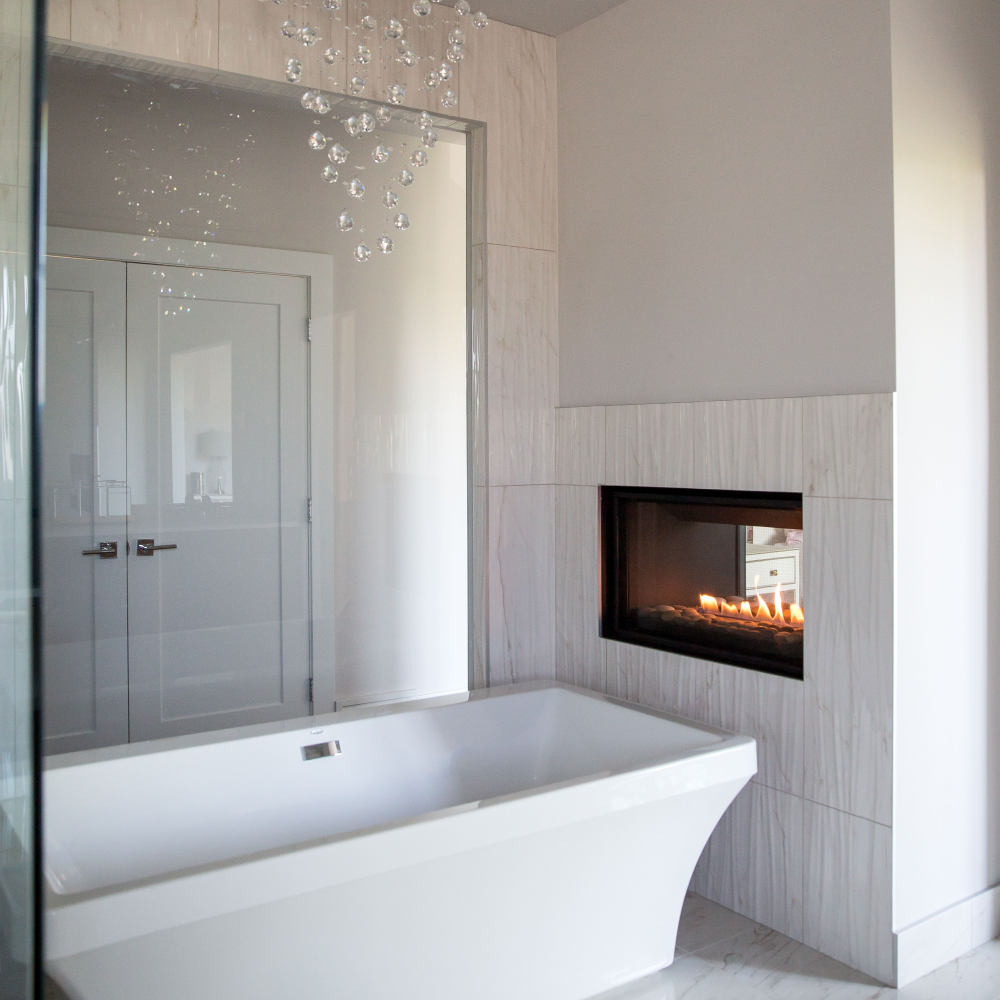

The Montigo Phenom 38 See-Thru (L38FSD) is a modern direct vent gas fireplace with glass on both sides and a concealed ribbon burner over Ice fireglass. It is built for the wall between two rooms, such as a living room and a den, a bedroom and bath, or an indoor-to-covered-porch divider, where one fire is seen from both sides. Choose a millivolt standing pilot that runs without electricity, or SIT Proflame 2 electronic ignition for remote control.
Key Specifications
| Model | L38FSDN / L38FSDL (standing pilot), L38FSDNI / L38FSDLI (electronic ignition) |
| Fuel | Natural gas or propane, selected by option |
| Input | 27,000 BTU/h on natural gas and propane (manual rating table) |
| Efficiency | 58 to 59.6 percent depending on fuel and ignition (per dealer data; Montigo page not available) |
| Viewing area | 35-1/4 in. W x 19-3/8 in. H on each side |
| Burner and media | Contemporary ribbon burner with Ice fireglass; speckled stones and driftwood log set optional |
| Ignition | Standing pilot (millivolt, SIT Nova 820 valve, manual Hi/Lo flame) or electronic IPI with SIT Proflame 2 |
| Venting | Direct vent, 5 in. inner / 8 in. outer; ships set for top vent, side vent possible |
| Electrical | Electronic ignition models: 120 VAC, 60 Hz, 6 A. Standing pilot: none for ignition |
| Weight | Not published on the sources reviewed |
Dimensions and Cutout
| Unit | 37-3/4 in. W x 26-5/8 in. H x 25-1/8 in. D; 33-9/16 in. H to the top of the vent collar; 39-5/16 in. across the flanges |

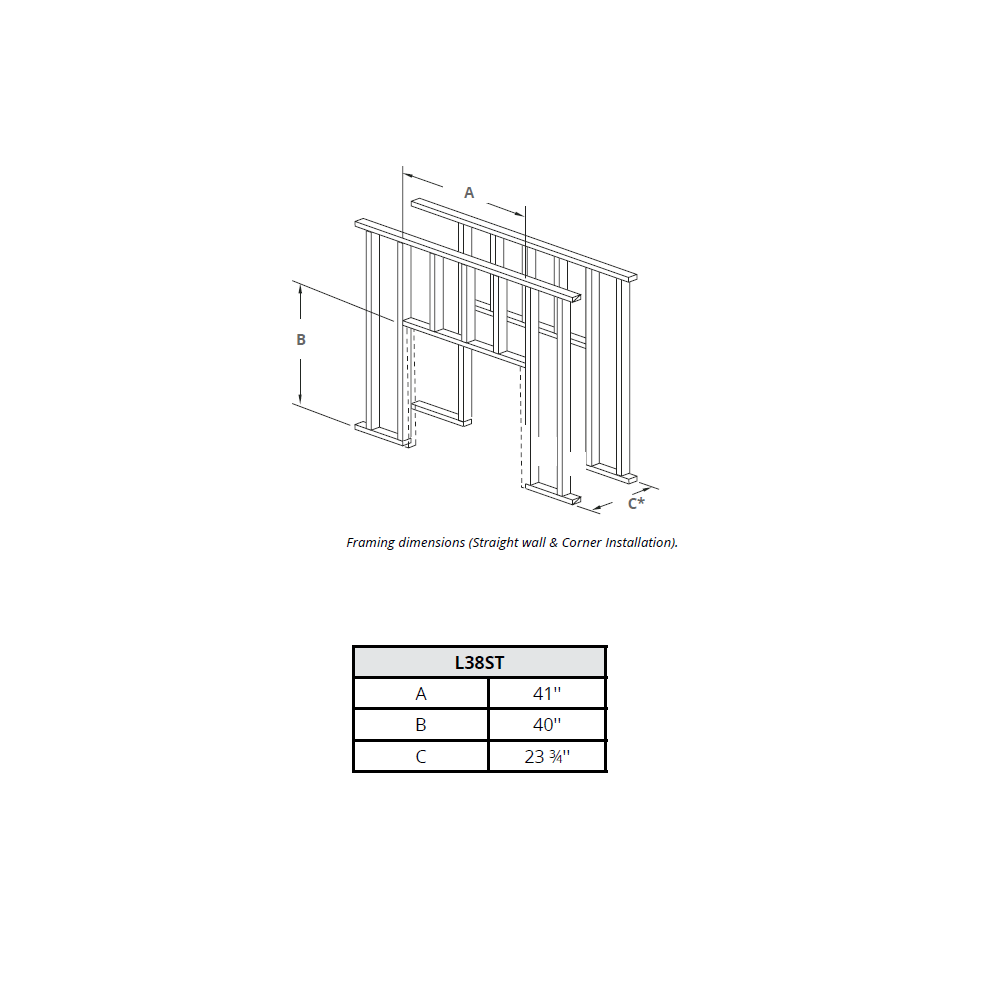

| Framing (W x H x D) | 41 in. x 40 in. x 23-3/4 in. (manual figure 3.b) |
| Clearances | Sides 1 in.; floor 0 in.; 17-1/2 in. from the top of the unit to a ceiling with top venting, 10 in. with side venting; 1 in. to the sides and bottom of vent runs and 2 in. above horizontal runs |
| Vent | 5 in. / 8 in. coaxial; wall or roof termination; the termination must be the highest point of the vent system |
| Gas pressure | Inlet minimum 5.5 in. w.c. natural gas, 11 in. w.c. propane |
Features
- See-through glass on both sides with safety barriers
- Concealed burner with Ice fireglass for a clean modern flame line
- Choice of millivolt standing pilot or Proflame 2 electronic ignition
- Manual Hi/Lo flame control; remote and flame modulation on electronic models
- Micro mesh screens (per current listing)
- Direct vent, so combustion air comes from outside and exhaust goes outside
- Optional fan kit, battery backup, multi-function remote and wall remotes
- Optional surrounds and alternative media
What Is Included and What You Will Need
- Included: Phenom 38 See-Thru firebox with burner and Ice fireglass, glass front and rear with safety barriers
- Required: 5 in. / 8 in. direct vent pipe and a wall or roof termination, either Montigo vent or an approved alternate listed in the manual. We carry 58DVA-HC horizontal and 58DVA-VCH vertical caps, 58DVA-36 pipe and 58DVA-E90 elbows
- Required: a gas supply line in the fuel you select, and a 120 VAC circuit for electronic ignition models
- Optional: fan kit, battery backup, standing pilot or Proflame remotes, surrounds, speckled stones and driftwood log set
Installation Notes
Frame to 41 in. W x 40 in. H x 23-3/4 in. D and leave access to the gas line. Keep 1 in. at the sides, zero at the floor and 17-1/2 in. above the unit to a ceiling with top venting (10 in. with side venting), and follow the manual for finishing and mantels on both faces. Because both sides are glass, plan the finish on each room and its surface temperatures. Installation must be done by a qualified, licensed gas installer. In New York City, direct vent fireplaces fall under the NYC Fuel Gas Code, with a licensed master plumber and DOB filing where required, and the termination location usually decides feasibility. We confirm venting and permitting during a fireplace design consultation.
Documentation
Frequently Asked Questions
Can I see the fire from both sides?
Yes. The L38FSD has glass front and rear, each with a 35-1/4 in. x 19-3/8 in. viewing area, so it works as a room divider or pass-through fireplace.
Standing pilot or electronic ignition?
Standing pilot is millivolt and needs no household power for the flame. Electronic IPI uses Proflame 2, needs a 120 VAC circuit and supports remotes and modulation.
Does it come with a fan?
No. A fan kit is an optional accessory. Check the options before ordering if you want circulated heat.
Can it be vented through a side wall?
Yes, within the limits in the manual; the unit ships set for top venting and the termination must be the highest point of the vent system. We review the route in a consultation.
Related reading: Direct Vent Gas Fireplace Buying Guide and Linear vs. Traditional Fireplaces.
Warranty
Montigo Residential Warranty Program: firebox, heat exchanger and main burner are covered for 15 years with 1 year of labor; Montigo venting (excluding termination) 15 years; terminations 10 years; gas controls, electrical components, media, glass, finishes and safety barriers 1 year. Coverage requires installation by a licensed professional with approved components. Montigo's warranty terms require the fireplace to be purchased, installed and serviced annually by an authorized Montigo dealer for coverage to remain valid.
