The Outdoor GreatRoom Bronson Block Square Gas Fire Pit Kit
The Outdoor GreatRoom Bronson Block Square Gas Fire Pit Kit - Manual (LP or NG) is backordered and will ship as soon as it is back in stock.
Description
Description
Lead Time: Ships in 2 business days.
Overall Dimensions: 51.25 in. W x 51.25 in. D x 16 in. H (BRON5151-K spec sheet)

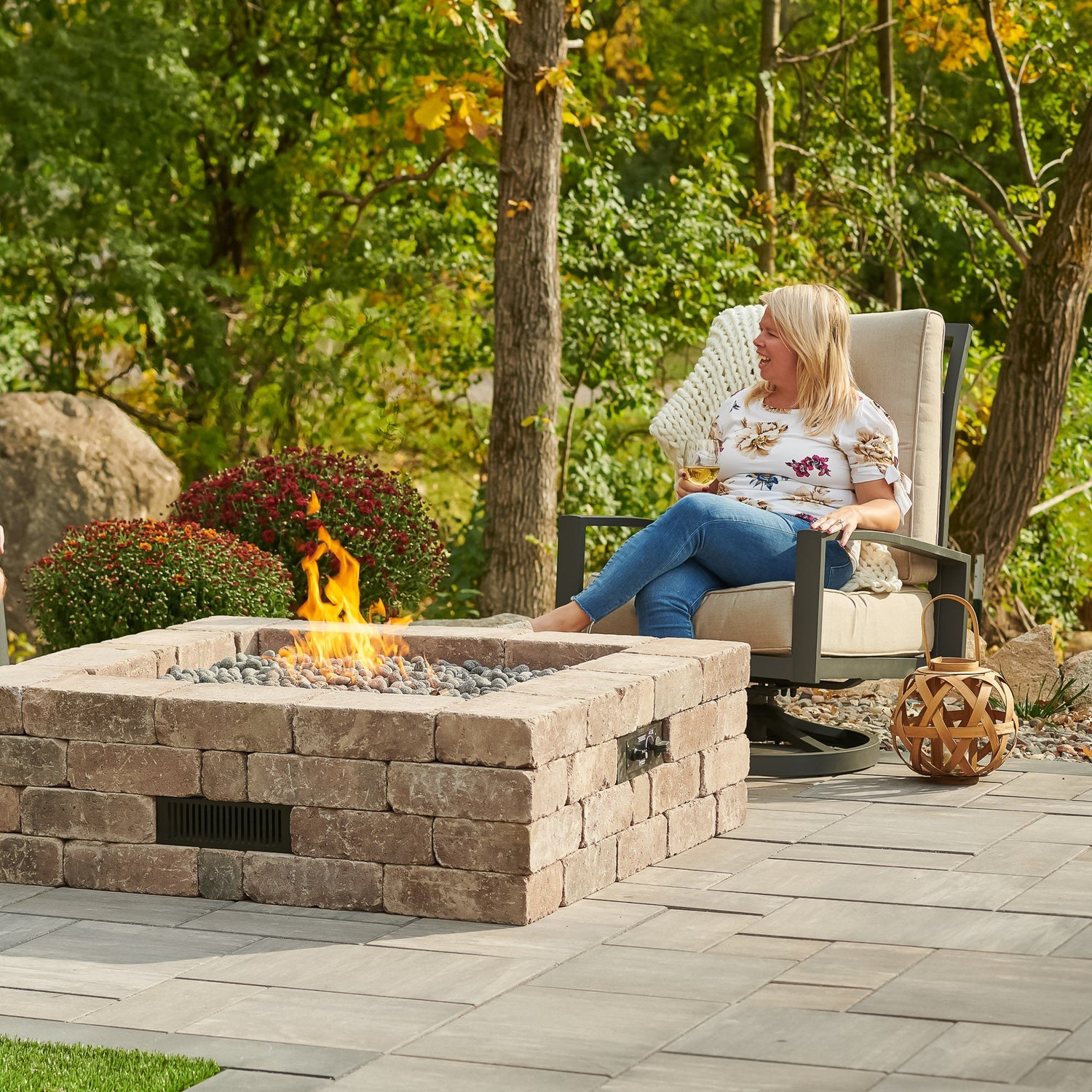

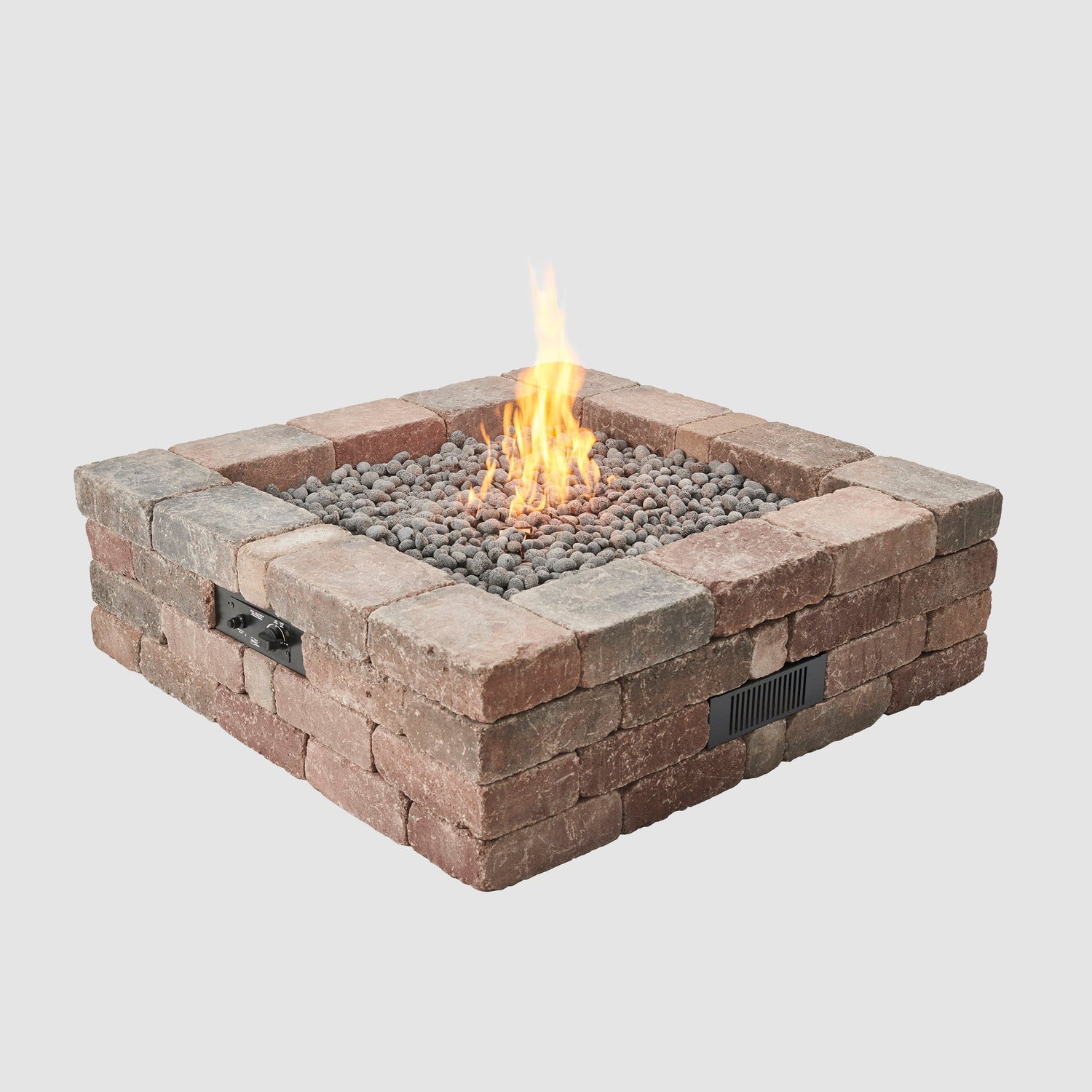

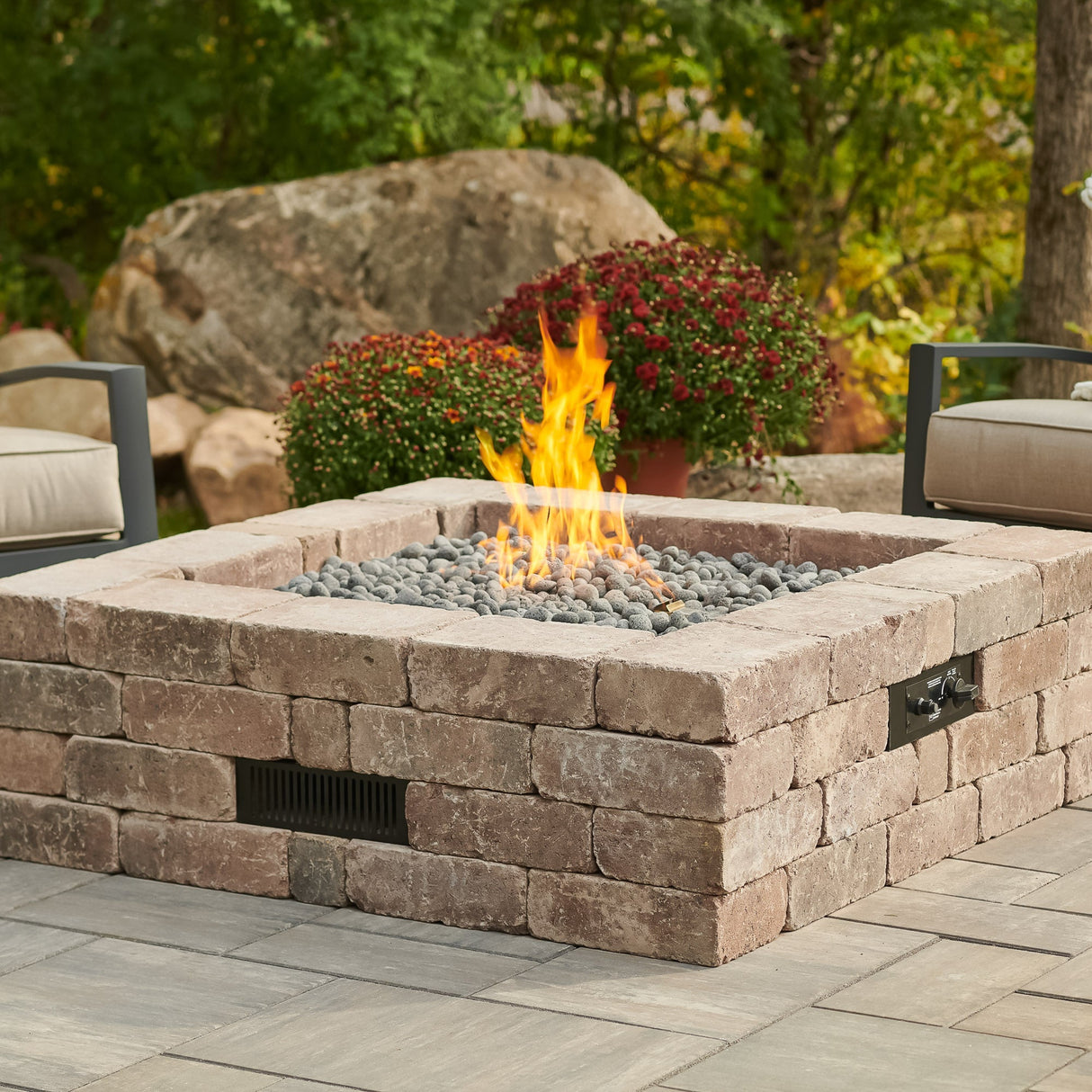

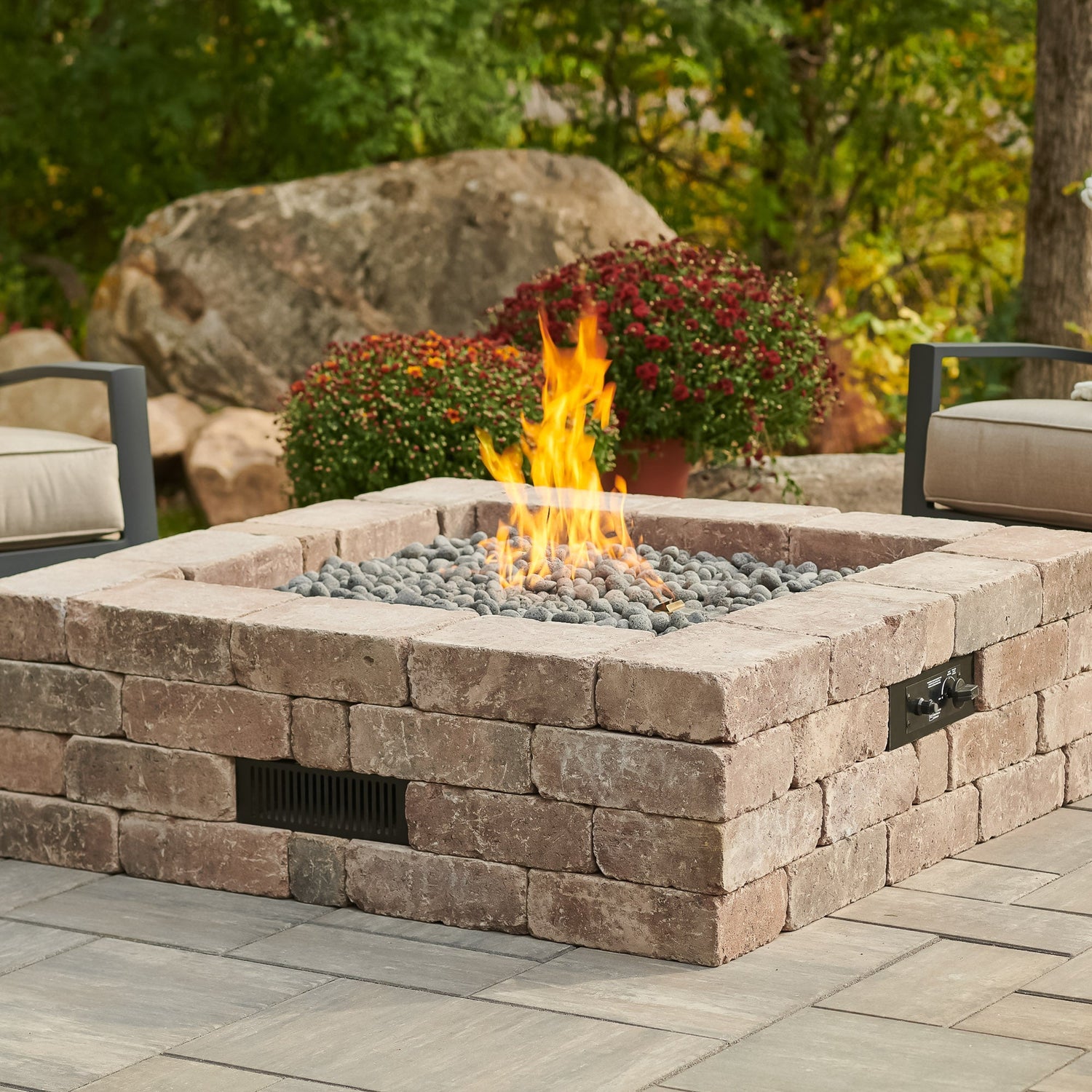

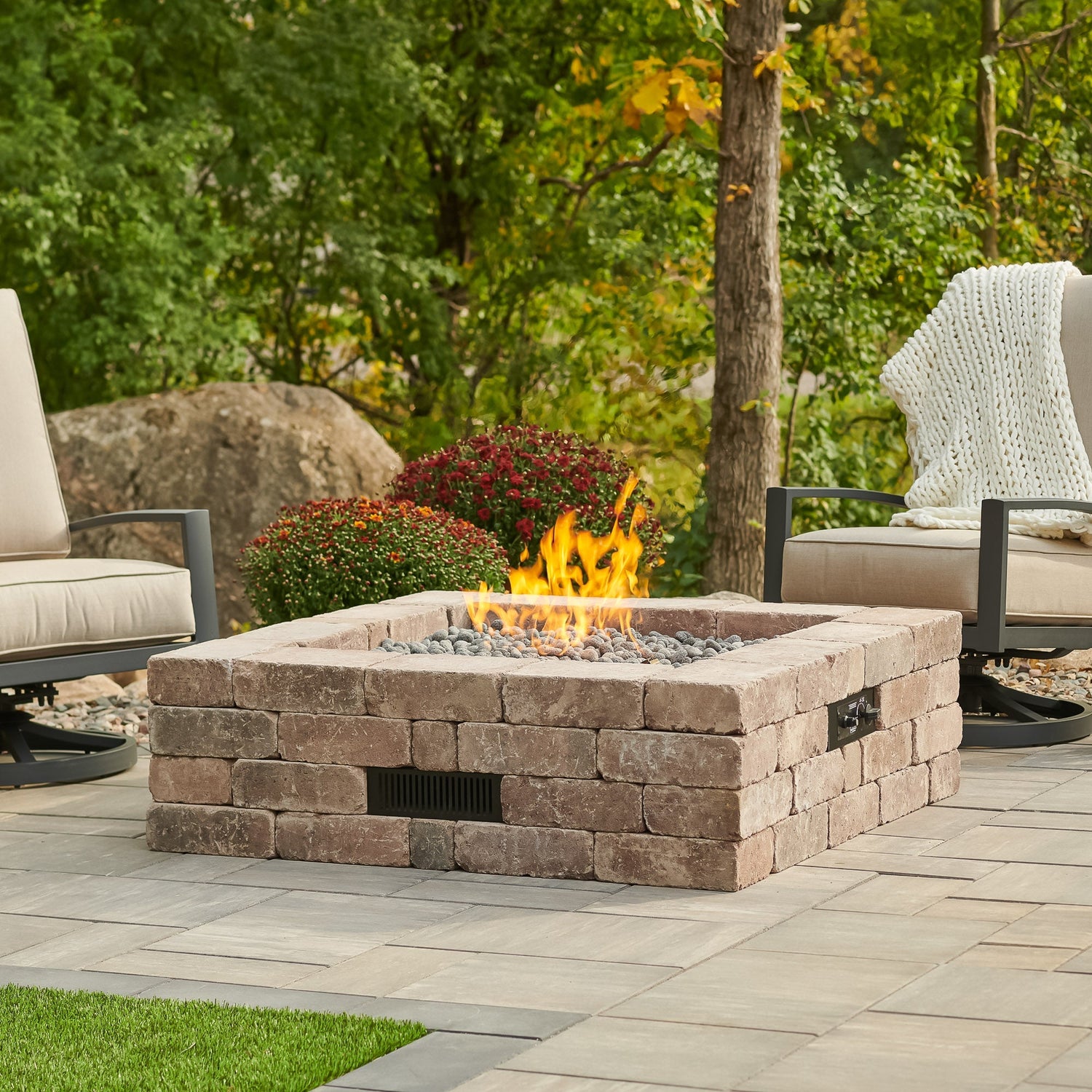

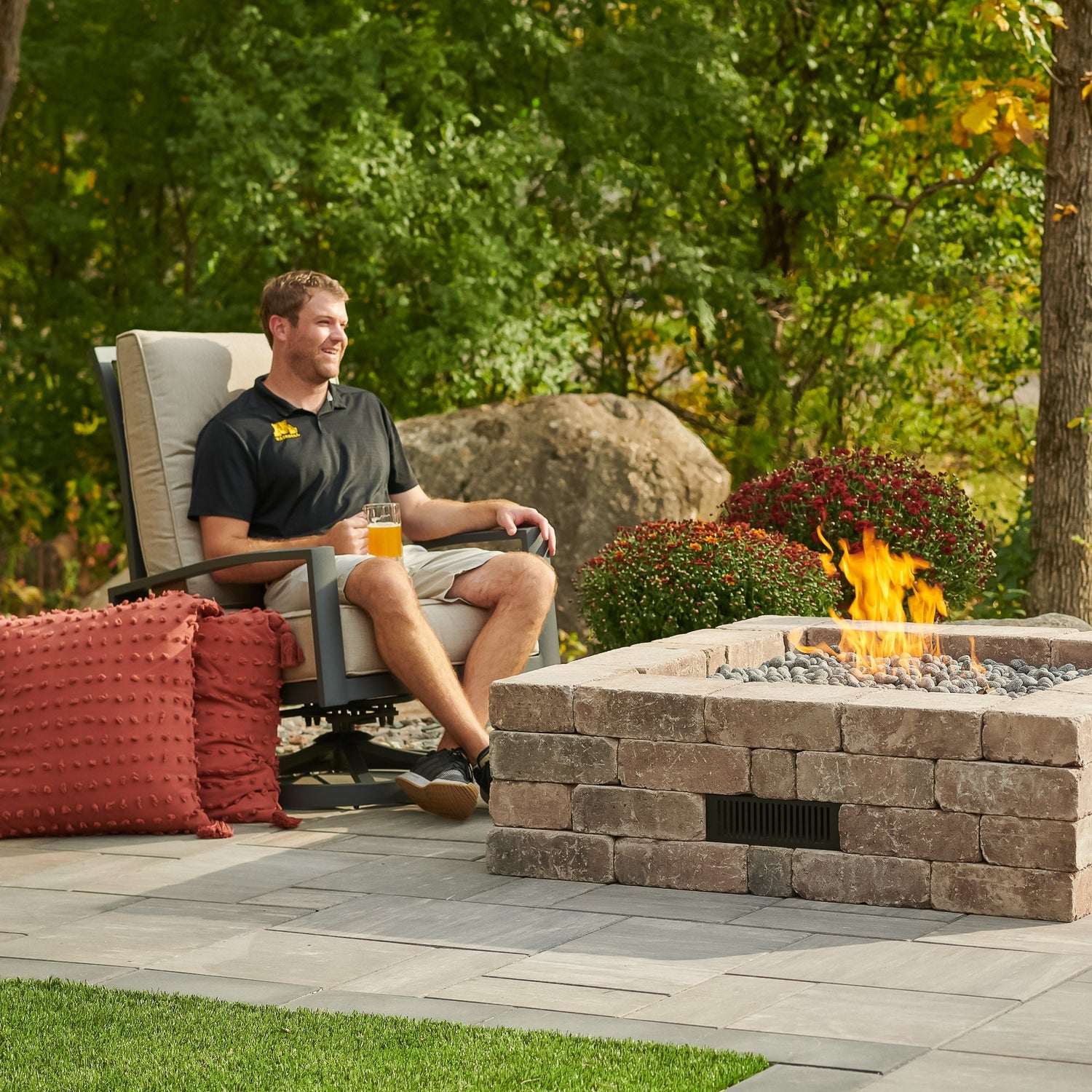

The Bronson Block Square Gas Fire Pit Kit (BRON5151-K) from The Outdoor GreatRoom Company is an all-in-one, build-it-yourself gas fire pit: stackable brick-style pavers, a 42 in. square burner plate with a Crystal Fire Plus burner, the control panel, two vent blocks and tumbled lava rock come in one kit. The pavers stack without mortar into a 51.25 in. square pit with the look of a backyard bonfire.
The burner delivers 105,000 BTU on propane and 106,000 BTU on natural gas, ships set up for propane and includes a natural gas conversion kit. The standard manual ignition uses a thermocouple safety valve and a push-button sparker; electronic direct spark ignition is an upgrade.
Features
- All-in-one kit: 64 pavers, burner and plate, control panel block, 2 vent blocks and tumbled lava rock
- Stackable pavers, no mortar required
- Crystal Fire Plus burner, 105,000 BTU LP / 106,000 BTU NG
- Ships for propane with a natural gas conversion kit included
- Thermocouple safety valve with push-button sparker
- Glass-fiber reinforced concrete pavers, non-combustible to ASTM E136-16
- Burner listed by UL to ANSI Z21.97 / CSA 2.41
Key Specifications
| Model | BRON5151-K |
|---|---|
| Type | Square paver gas fire pit kit, manual ignition |
| Burner | Crystal Fire Plus BI28 burner on a 42 in. square burner plate (BP42S) |
| Output | 105,000 BTU propane, 106,000 BTU natural gas |
| Controls | Thermocouple safety valve and push-button sparker (1 AAA battery, not included) |

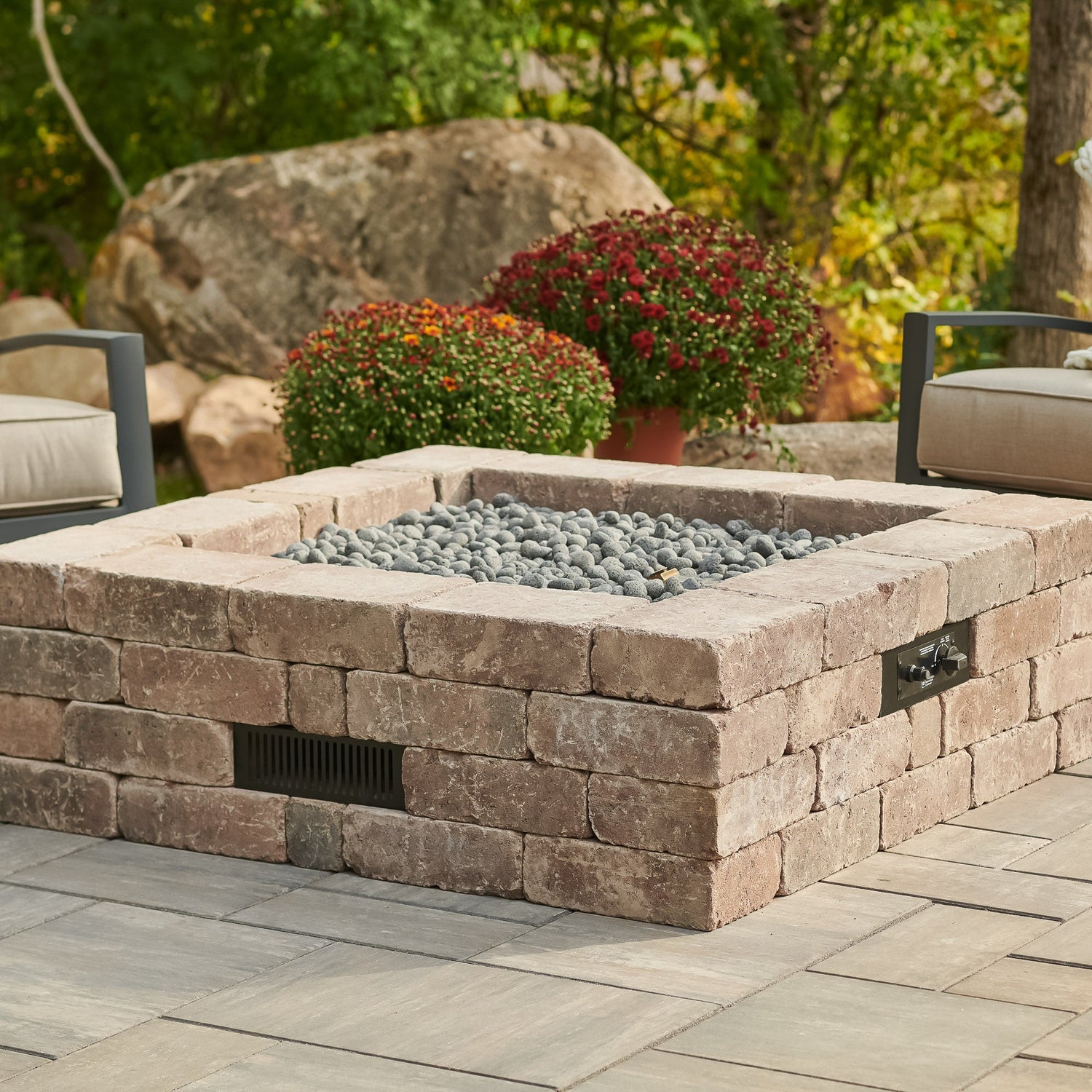

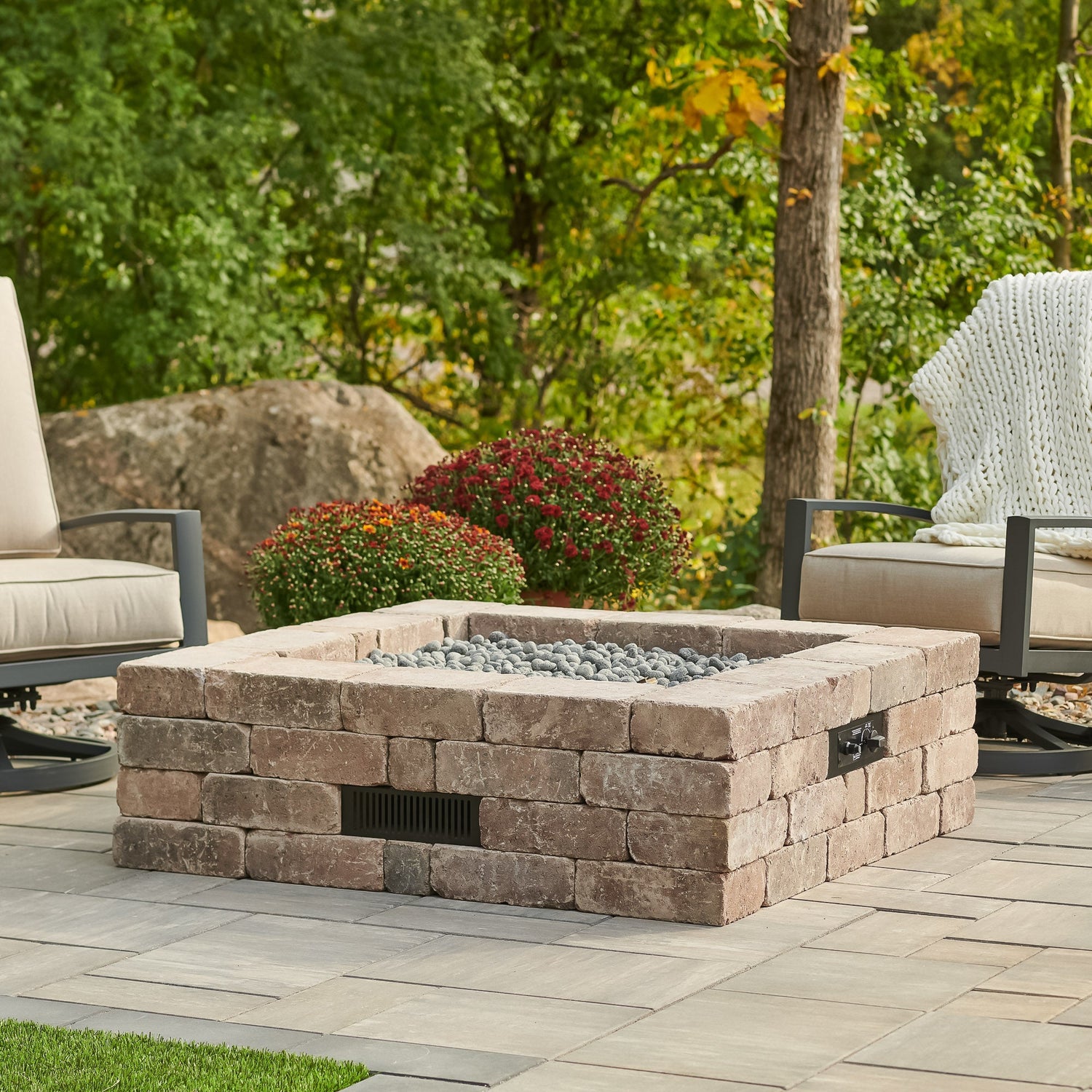

| Media | Tumbled lava rock (LAV-TMB) included |
| Base material | Glass-fiber reinforced concrete, non-combustible to ASTM E136-16 |
| Gas supply pressure | NG 6 to 10.5 in. WC (7 ideal); LP 8 to 14 in. WC (11 ideal) |
| Weight | 1,690 lbs. (base, per spec sheet) |
| Listing | ANSI Z21.97-2017 / CSA 2.41-2017, tested by UL |
Dimensions and Clearances

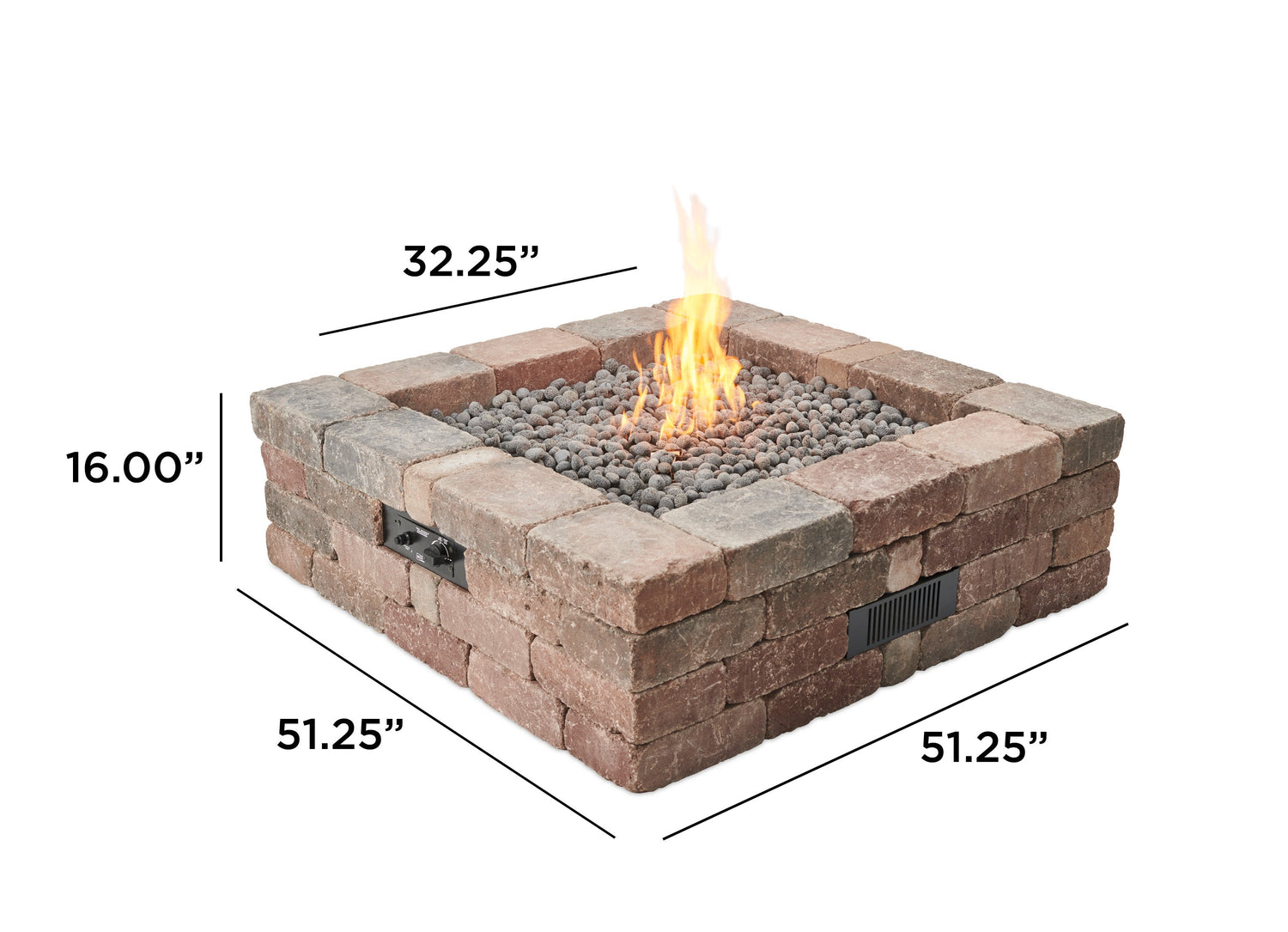

| Overall | 51.25 in. W x 51.25 in. D x 16 in. H |
|---|---|
| Clearance above | 72 in. from top of burner to overhead combustibles |
| Clearance to sides | 24 in. from burner trim to combustible side walls |
| Clearance below | 4 in. from bottom of burner to combustible floor |
What Is Included and What You Will Need
- Included: 56 large and 8 small pavers, control panel and control panel block, 2 vent blocks, 42 in. square burner plate, Crystal Fire Plus burner and accessories, 34 in. stainless flex line and tumbled lava rock, per the manual
- Required: a hard-piped natural gas or propane supply connected by a licensed gas fitter; this burner draws too much gas for a standard 20 lb. cylinder
- Optional: square glass wind guard, tempered fire glass gems and outdoor ceramic fiber log set
- Optional: tempered glass burner cover, BRON5151-ROW extra brick row (required for electronic ignition) and CVR5151 protective cover
Installation Notes
Set the kit on a level, non-combustible surface and stack the pavers in the order the manual shows, with the two vent blocks and the control panel block in their layers. Keep 72 in. above the burner and 24 in. to any combustible side wall. The kit ships for propane; convert to natural gas with the included kit, and have a licensed gas fitter hard pipe the supply. For New York City addresses, outdoor gas fire features and their gas piping fall under the NYC Fuel Gas Code and Department of Buildings permitting, and propane at residences is restricted by the NYC Fire Code, so the approval path must be confirmed before you buy. Book a design consultation to plan the patio layout and gas line.
Documentation
- BRON5151-K Product Spec Sheet
- Bronson Block Square Gas Fire Pit Manual (42527 Rev E)
- Bronson Collection Info Sheet
- Crystal Fire Plus Round and Square Burner Manual (3012-951)
- Crystal Fire Plus Quick Start Guide (42517 Rev D)
Frequently Asked Questions
Does it need mortar?
No. The pavers stack without mortar, following the layer layout in the manual.
Can I use a 20 lb. propane tank?
No. The burner's gas use is too high for a standard 20 lb. cylinder, so a hard-piped propane or natural gas supply is required.
Is it natural gas or propane?
Both. It ships set up for propane and includes a natural gas conversion kit.
What fire media comes with it?
Tumbled lava rock. Fire glass gems and a log set are optional.
Related reading: Gas Fire Pit Buying Guide and Outdoor Kitchen Planning Guide.
Warranty
The Outdoor GreatRoom Company warranty, per the Bronson manual (42527 Rev E): limited lifetime warranty of 10 years on stainless steel Crystal Fire Plus burners in residential use (5 years commercial); 3 years on ignition and electronic components in residential use (1 year commercial); and 1 year against defects in material on the Bronson bricks and capstone. Minor imperfections, texture and color variation and efflorescence are not covered. Claims go through the original selling dealer, and the warranty is for the original owner.
