Summerset IM-15N 15-Inch 55 Lb. Outdoor Rated Nugget Ice Maker
Summerset IM-15N 15-Inch 55 Lb. Outdoor Rated Nugget Ice Maker is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: 15 in. wide built-in nugget ice maker; see the Summerset line drawings above for exact dimensions

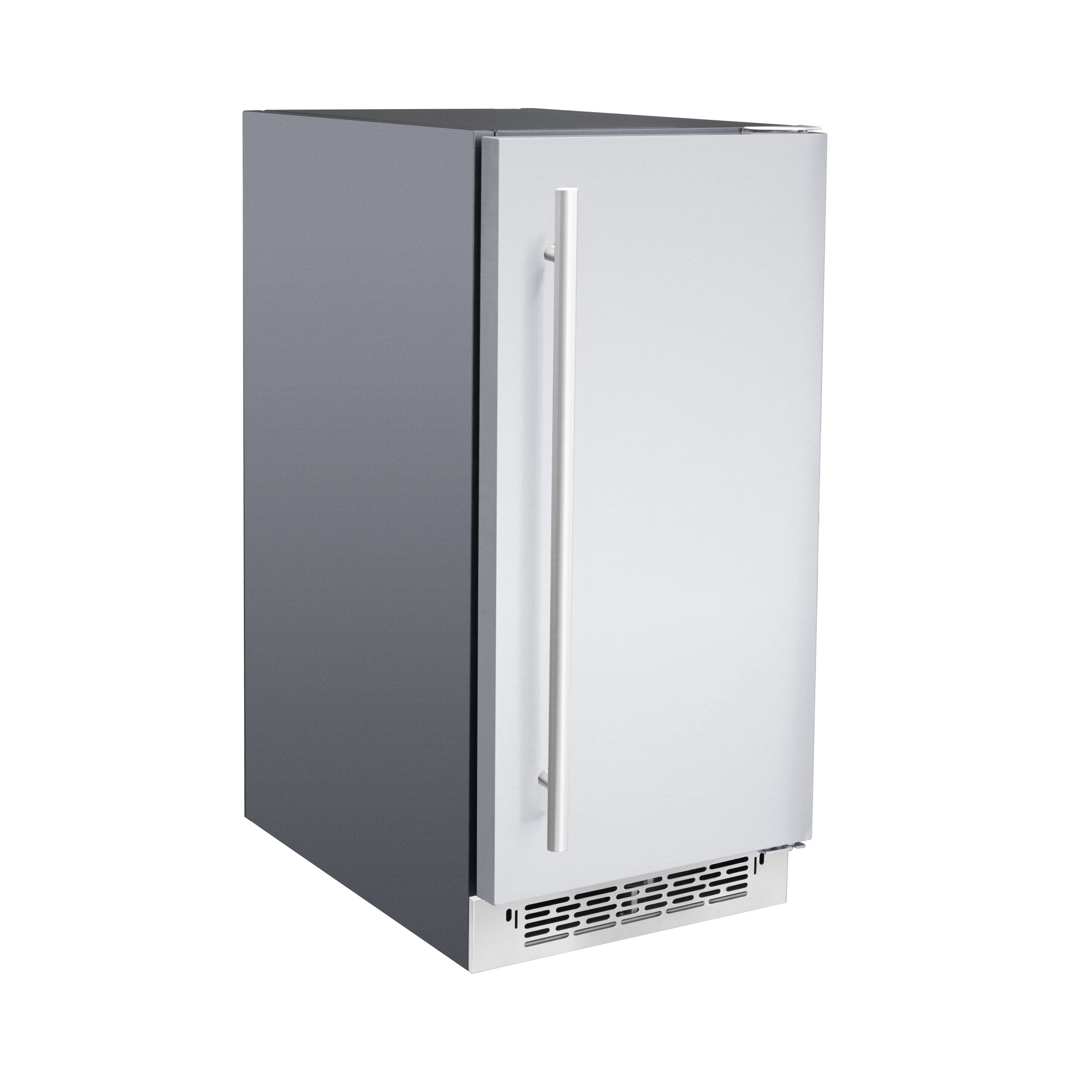

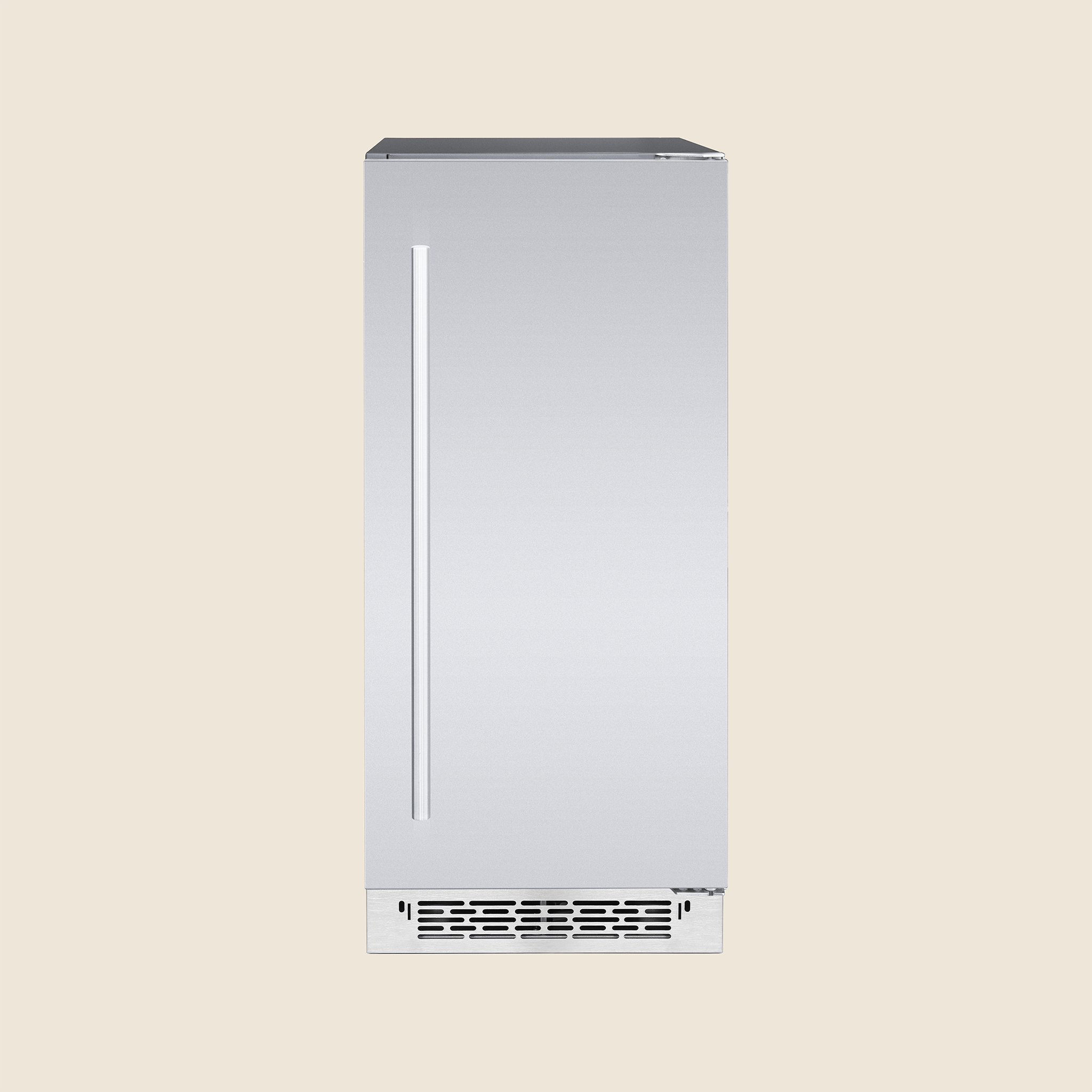

The Summerset IM-15N is a 15 in. outdoor rated nugget ice maker, the soft, chewable ice many people prefer for cocktails and soft drinks. Summerset rates it at up to 55 lb a day with 26 lb of storage, per current listing.
It drains by gravity, runs on a standard 110 to 115V outlet, and vents from the front so it can sit flush in an island with no extra clearance at the top, sides or rear.
Key Specifications
| Model | IM-15N (manual IM-15N-2) |
|---|---|
| Type | 15 in. outdoor rated nugget ice maker, built-in or freestanding |
| Ice production | Up to 55 lb per day, per current listing |
| Ice storage | 26 lb, per current listing |
| Electrical | 110 to 115V, 60 Hz, 160 W, 1.5 A; grounded 3-prong outlet, dedicated circuit recommended |
| Water supply | Inlet pressure and temperature per the manual (41 to 77 F water); inline filter recommended |
| Drain | Gravity drain with 3/4 in. connectors |
| Ambient | 53.6 to 95 F |
| Door | Field-reversible door with magnetic gasket, per current listing |
Dimensions and Cutout
| Width | 15 in. |
|---|---|
| Clearances | No added clearance at the top, sides or rear for built-in installs; front ventilation must stay unobstructed |
| Cutout | See the Summerset line drawings in the gallery and confirm before framing |
Features
- Soft, chewable nugget ice
- Up to 55 lb per day with 26 lb storage, per current listing
- Gravity drain
- Front venting for flush built-in installation
- No added top, side or rear clearance needed when built in
- Stainless steel door and handle, per current listing

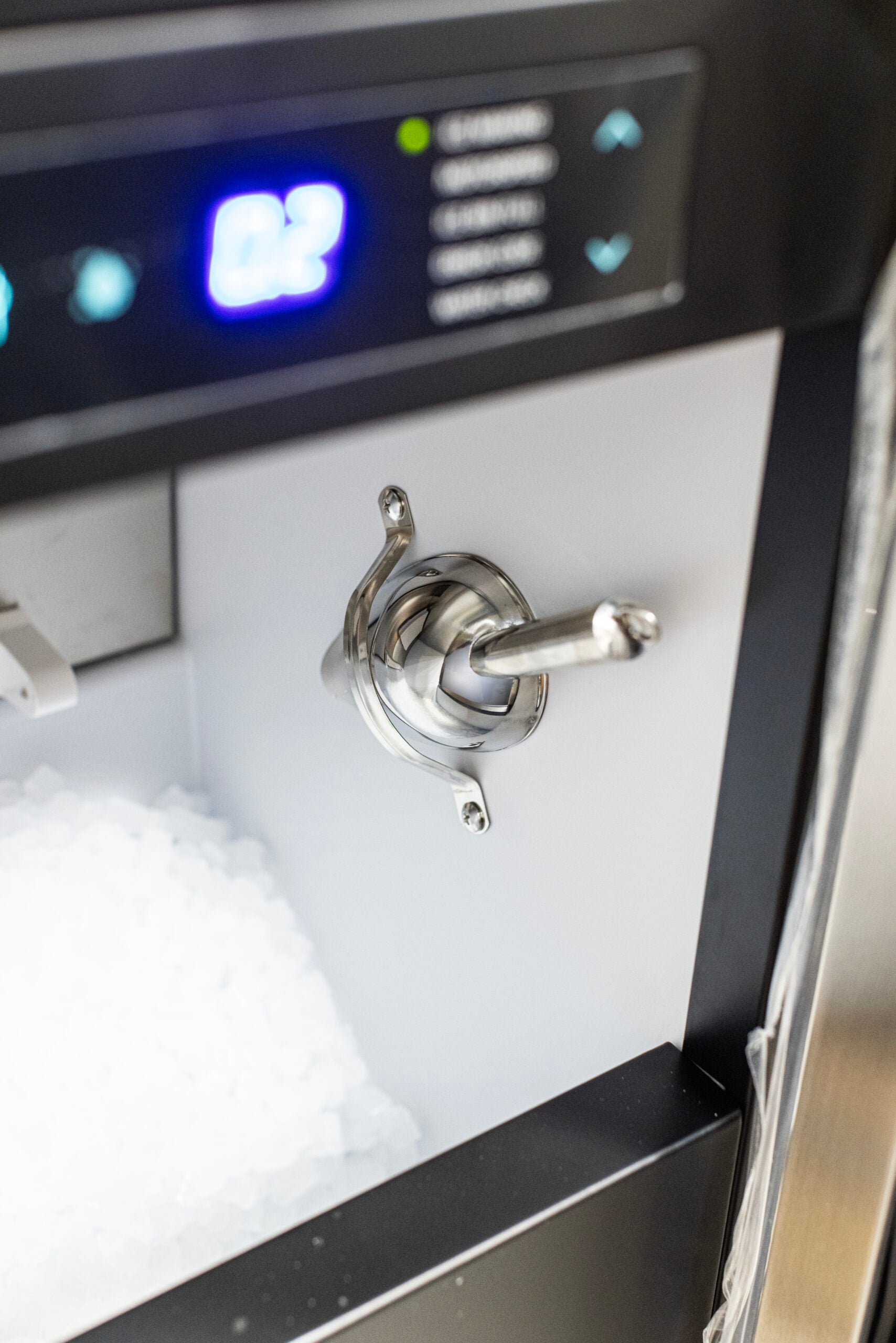

- Ice scoop, drain hose and fittings included
What Is Included and What You Will Need
- Included: ice bin, ice scoop, door with handle and gasket, power cord, internal water inlet hose, drain connectors, drainage tee, flexible drain hose with clip, water fittings and four base feet, per the manual parts list
- Optional: Summerset RTK-15 trim kit for 15 in. units
- Required: a potable water line, a gravity drain and a grounded outlet
Installation Notes
Plan a water line, a gravity drain and a grounded outlet before the island is finished; the manual calls for a pressure-reducing valve if water pressure is above its limit and recommends an inline filter. Do not install it behind a cabinet door or block the base grille, and keep it where the ambient temperature stays between 53.6 F and 95 F. In New York City, adding an outdoor outlet, water line or drain on a terrace or rooftop is work for licensed trades and often needs building or board approval. Book a free design consultation and we will help you plan the layout, utilities and installation.
Documentation
Frequently Asked Questions
What is nugget ice?

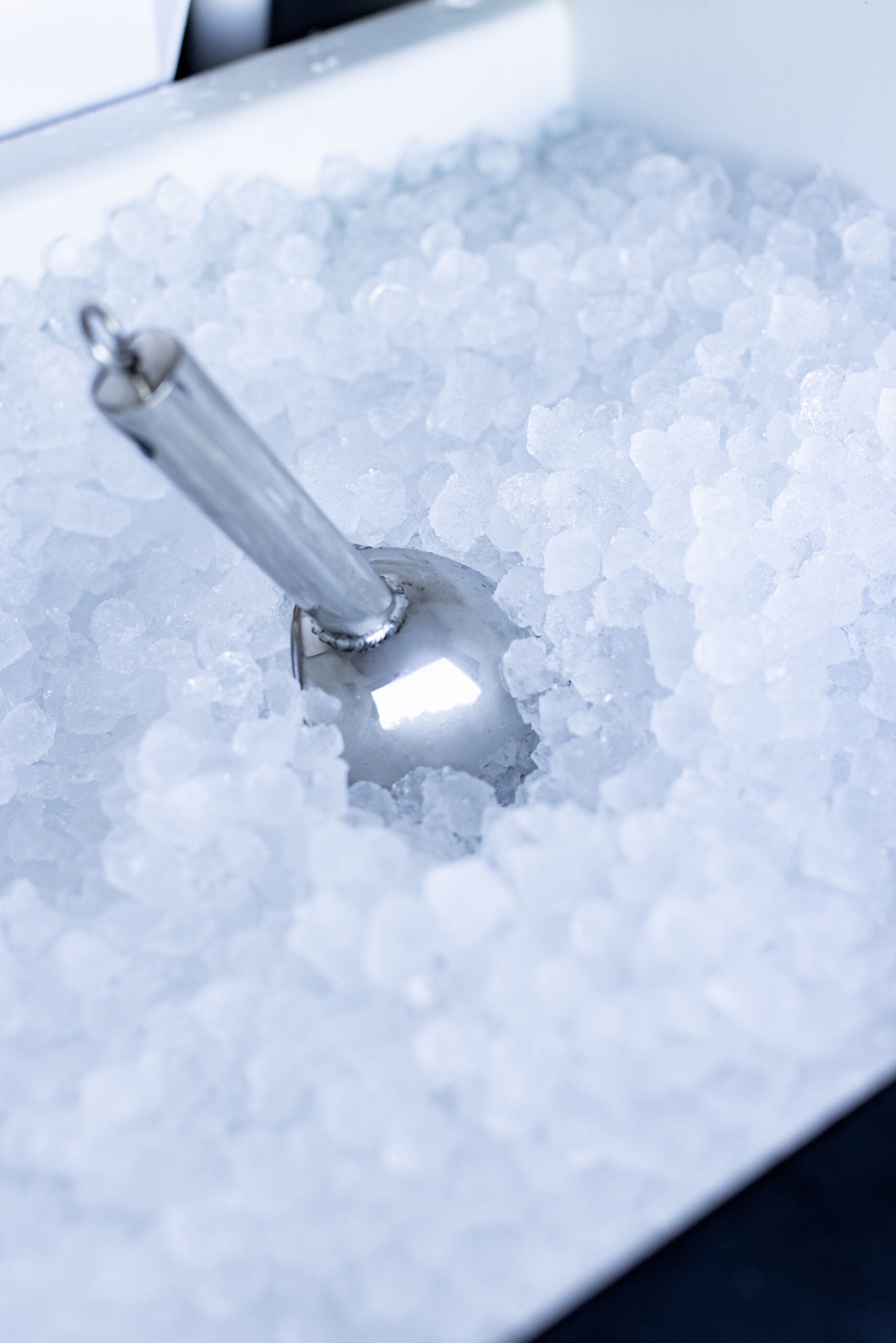

Small, soft, chewable pieces of ice, often called pellet or chewable ice, that cool drinks quickly.
Does it need a drain?
Yes. The IM-15N drains by gravity, so plan a drain line lower than the unit.
Can it be built in flush?
Yes. The manual requires no extra clearance at the top, sides or rear for built-in installations, as long as the front vent stays clear.
What warranty applies?
AMD Direct's 15 in. refrigeration warranty: 3 years on construction including the compressor, replacement parts only.
Related reading: Outdoor Refrigerator and Ice Maker Buying Guide and Outdoor Kitchen Planning Guide.
Warranty
AMD Direct refrigeration warranty for 15 in. and 24 in. models, per the AMD Direct warranty printed in the owner's manual: 3 years on all construction, including the compressor, and 1 year on the transformer, LED bulbs, LED harness, power source wire, LED switches and interior light wire and bulbs. Coverage is for the original purchaser at the original delivery site, requires online registration within 30 days of purchase, covers replacement parts only (no labor), and does not apply to commercial, rental or nonresidential installations or to discoloration, surface rust or corrosion.
