Superior 63-Inch See-Through Direct Vent Gas Fireplace
Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.
Superior 63-Inch See-Through Direct Vent Gas Fireplace is backordered and will ship as soon as it is back in stock.
Pickup currently unavailable at Maspeth, NY Showroom
Free & Flat Rate Shipping
Free & Flat Rate Shipping
- Orders Over $999 Ship Out Fast & Free
- Delivery typically takes 5 -7 transit days
- $19.95-$99.95 Flat-Rate Shipping on orders under $999
- Our team & trucks deliver locally within 60 miles of our showroom. (Tri-State NY,NJ,CT including all of Suffolk County)
- Free Shipping Applies to Contiguous US only - See our shipping page for exclusions e.g. ethanol fuel
Assembly & Installation
Assembly & Installation
Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!
WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW
- Outdoor Kitchens
- Outdoor Fireplaces/Firepits
- Outdoor Pizza Ovens
- Gas Fireplaces
- Gas Inserts
- Gas Log Sets
- Fireplace Doors
- Fireplace Mantels
- Electric Fireplaces
- Water Vapor Fireplaces
- Ethanol Fireplaces
Call for a free quote 718-326-4328
Warranty
Warranty
Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.
Returns
Returns
- No-Restock Fees
- 30-Day Return Policy
- The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
- We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.
Superior 63-Inch See-Through Direct Vent Gas Fireplace is backordered and will ship as soon as it is back in stock.
Description
Description

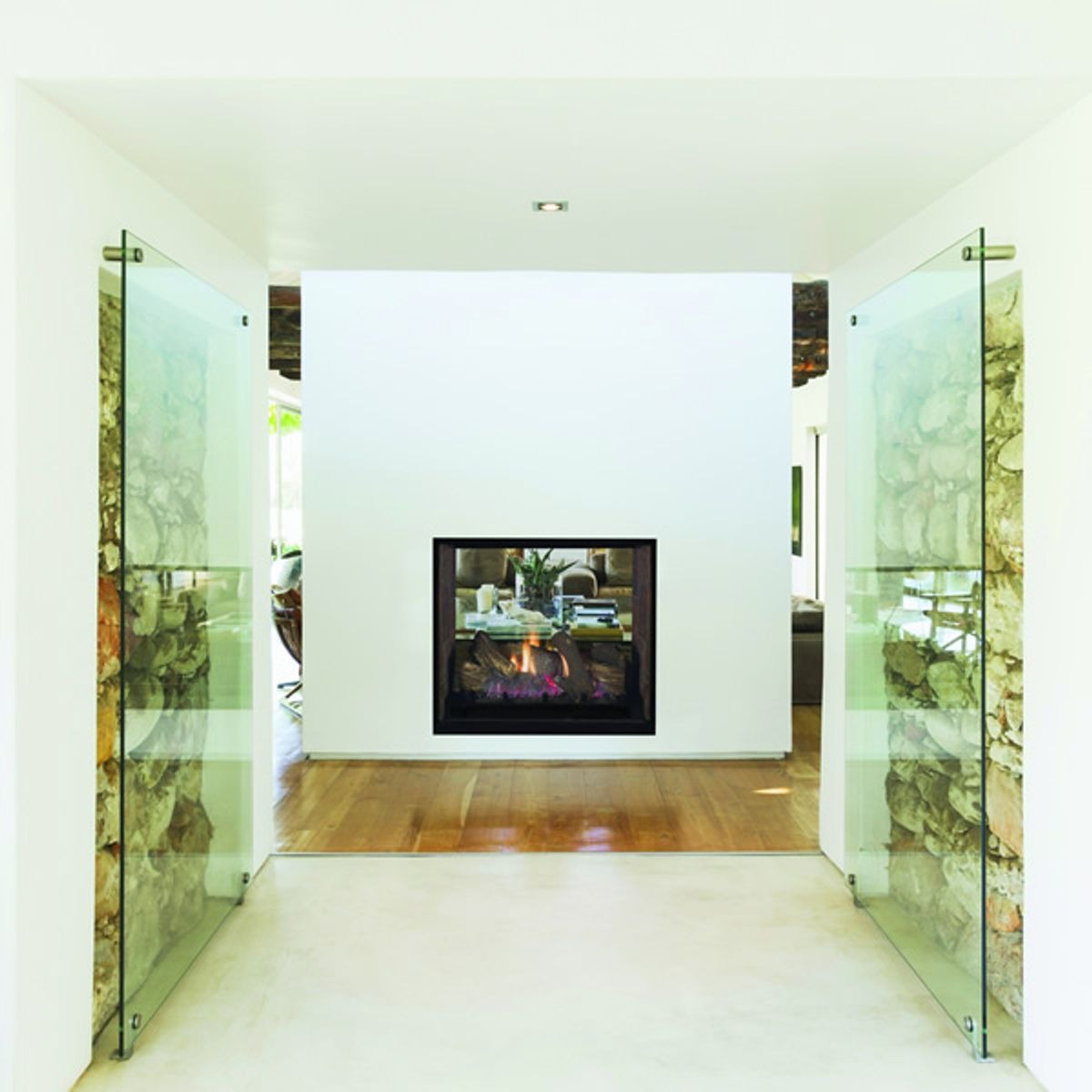

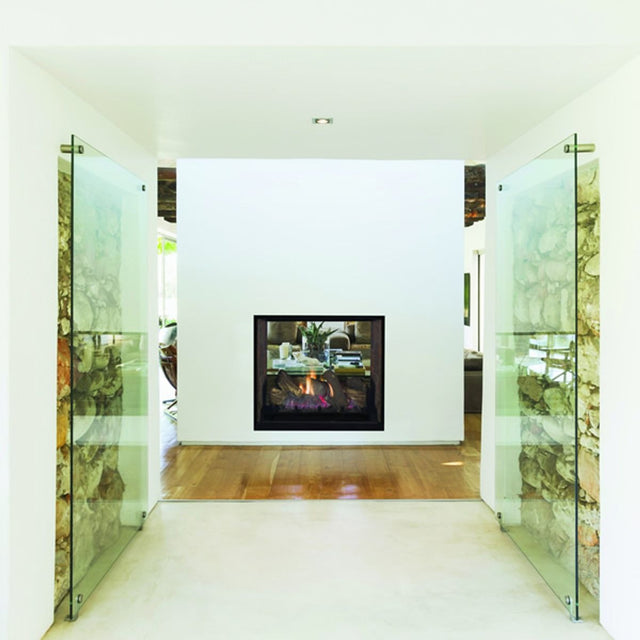

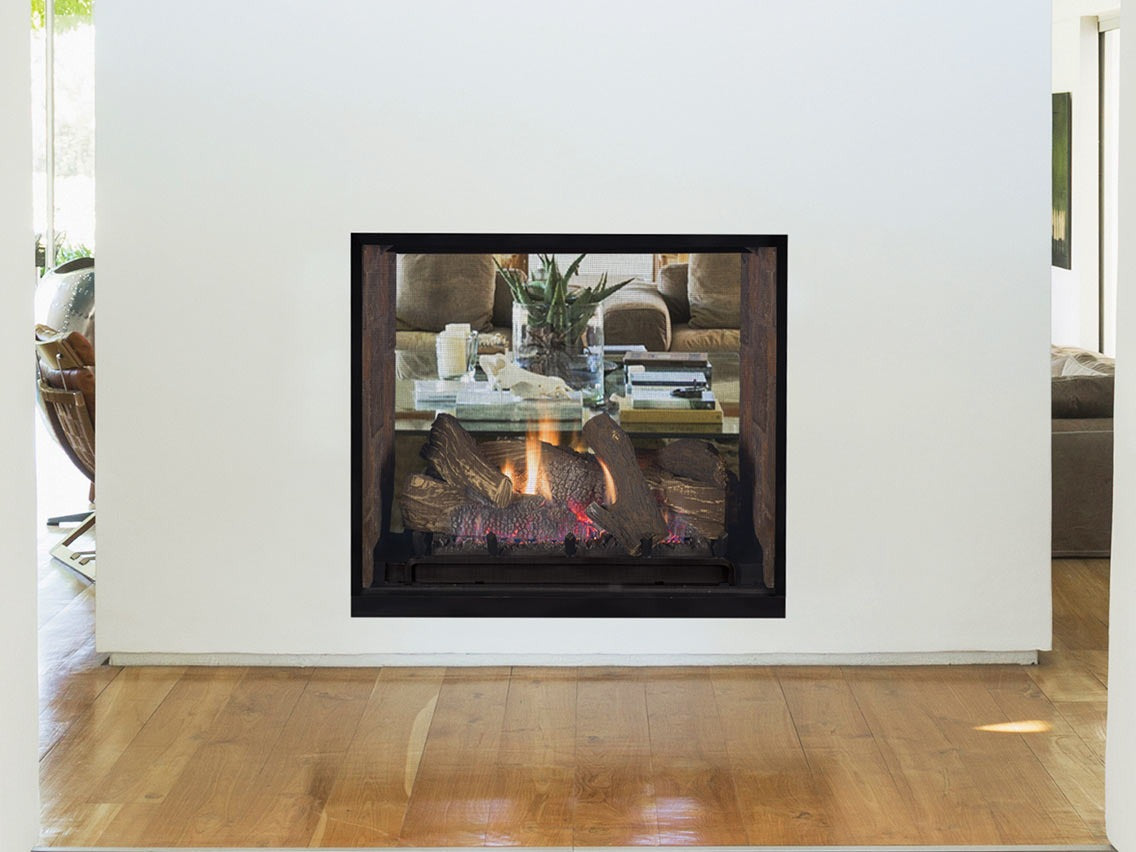

The Superior DRT63ST-B (DRT63STTEN-B) is a see-through traditional direct vent gas fireplace, viewable from two rooms or, with the outdoor window kit, from an indoor room and an outdoor living space. It fires at 37,000 to 57,000 BTU on natural gas with an oak log set, platinum glowing embers and volcanic stone included.
A SIT ProFlame remote with receiver comes in the box. One firebox panel kit is required to complete the fireplace: choose ceramic Buff Rustic, Buff Herringbone, Architectural Stone, Venetian Tile, Black Rustic or black porcelain.
Features

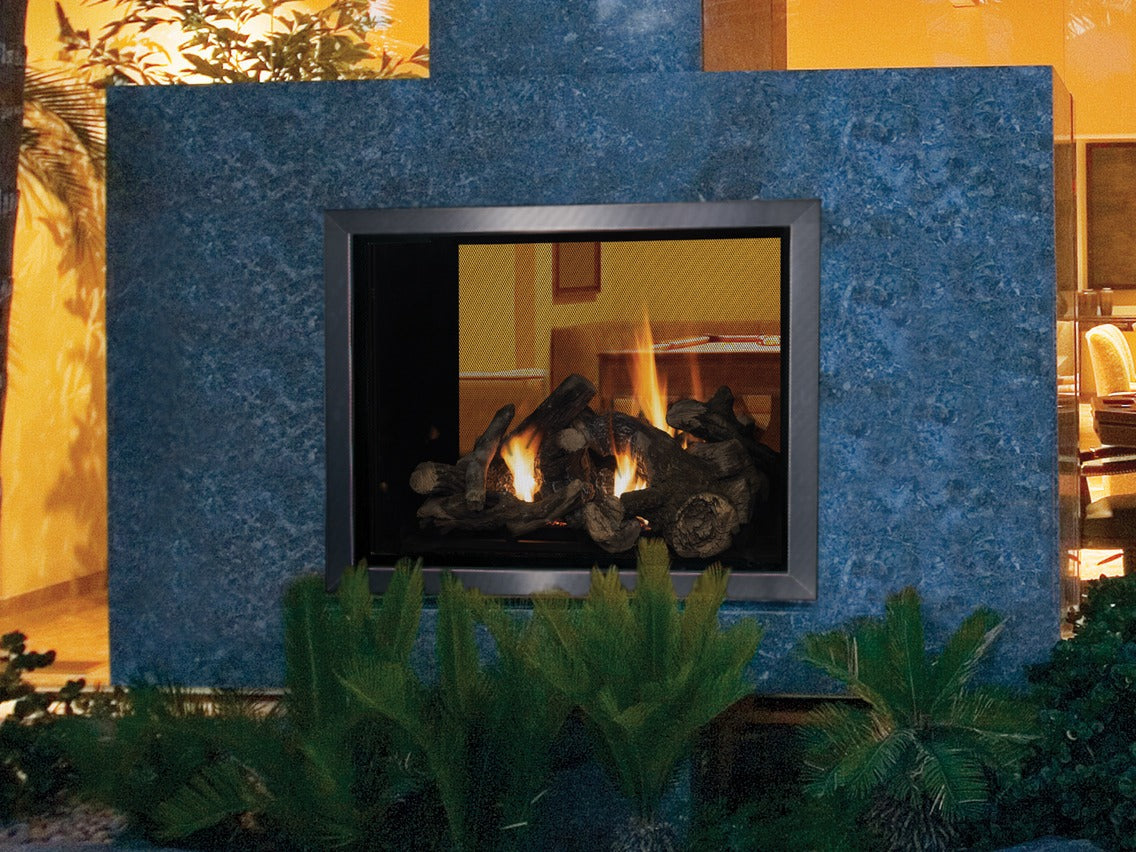

- See-through firebox for room-to-room or indoor/outdoor installation
- Up to 57,000 BTU natural gas; propane by field conversion (40,000 to 50,000 BTU)
- Log set, platinum glowing embers and four bags of volcanic stone included
- SIT ProFlame remote control with receiver included
- Six interior panel kit choices in ceramic or black porcelain (one required)
- Uses 8 in. / 11 in. IHP DV Lock direct vent, top vent
Key Specifications
| Model | Superior DRT63ST-B (DRT63STTEN-B) |
| Type | See-through traditional direct vent gas fireplace |
| Fuel | Natural gas; propane by field conversion |
| Input, natural gas | 37,000 to 57,000 BTU/hr |
| Input, propane | 40,000 to 50,000 BTU/hr |
| Efficiency | 60.9% AFUE, 59.9% EnerGuide (NG); 59.8% AFUE, 55.1% EnerGuide (LP) |
| Controls | SIT ProFlame remote control and receiver |
| Venting | Direct vent, 8 in. inner / 11 in. outer IHP DV Lock, top vent |
| Listing | PFS to ANSI Z21.88 / CSA 2.33 as a vented gas fireplace |
| Shipping weight | 383 lb |
| Warranty | 20 Year Limited (IHP) |
Dimensions and Cutout
| Framing A (width) | 52-1/8 in. |
| Framing B (base to top framing member) | 47-3/8 in. |
| Framing C (base to horizontal vent centerline, 2 ft vertical and one 90 degree elbow) | 75-1/2 in. |
| Framing D (depth) | 26-3/8 in. |
| Outdoor side (E) | 6 in. from fireplace base to the outdoor deck or patio surface as a moisture barrier |
| Clearances | 0 in. back, sides and floor; 72 in. from bottom of appliance to ceiling; 36 in. front service clearance |
| Side wall | At 14 in. a combustible side wall may project any length; at 8-1/4 in. it may project 12 in. |
| Source | Superior 901139-00 Rev. A spec sheet; confirm in the installation manual |
What Is Included and What You Will Need
- Included: DRT63ST-B firebox, log set, platinum glowing embers, 4 bags volcanic stone, remote control kit with receiver and AAA batteries, vent restrictor, door modesty shield and literature
- Required: one firebox panel kit, such as the BLK-BP-LSM40ST black porcelain, Buff Rustic ceramic or Buff Herringbone ceramic kit
- Required: 8 in. / 11 in. IHP DV Lock vent pipe and termination, sold separately
- Required for indoor/outdoor use: an outdoor window kit, LSM40ST-ODKSG light tint or dark tint, with the control side installed indoors
Optional Accessories
- Optional: other panel kit finishes (Architectural Stone, Venetian Tile, Black Rustic) from the Superior LSM40ST range
Installation Notes
Install by a qualified gas fitter to the current Superior installation manual. Framing, the 2 ft vertical rise and elbow, the outdoor-side moisture clearance and the mantel chart all depend on the vent route, so plan them before framing.
In New York City gas fireplace work requires a licensed master plumber and permit. Book a fireplace design consultation to plan the two-sided opening and venting.
Documentation
- Superior DRT63ST-B Specification Sheet (901139-00 Rev. A)
- Superior DRT63STTEN-B Installation and Operation Manual (901138-00 Rev. A)
Frequently Asked Questions
Is a panel kit included?
No. One ceramic or porcelain panel kit is required and is ordered separately.
Can one side face outdoors?
Yes, with the outdoor window kit. The control side must be on the indoor side.
Is the remote included?
Yes, the SIT ProFlame remote and receiver are packed in the firebox.
Related reading: Direct vent gas fireplace buying guide, What a gas fireplace costs installed.
Warranty
Innovative Hearth Products 20 Year Limited Warranty (installation manual): the fireplace body, firebox, barrier and ceramic glass are covered for 20 years from the date of installation. The burner, gas components and gaskets are covered for one year, optional blowers and remote controls for one year, tempered glass for one year and optional glass doors for 90 days; parts not otherwise listed carry a 90 day warranty. Labor is paid at prevailing IHP rates for each component's warranty period. Vent components, trim and paint are excluded. Refer to the manual for full terms.
