Description
Description
Overall Dimensions: 54-1/4" W fireplace (dimension A); framing opening 55-5/8" W x 39-1/8" H x 19-1/2" D
The Superior DRL4048 is a 48 inch linear direct vent gas fireplace for a feature wall in a new build or a major renovation. It runs on natural gas or propane, vents through 4-1/2 inch and 7-1/2 inch Secure Vent pipe, and offers a flush hearth floor with a ceramic glass screen, so it suits an open living room that wants a long flame without an outside-air draft.
Key Specifications
| Model | DRL4048TEN (DRL4048, Cat. F4846) |
| Fuel | Natural gas; propane by field conversion |
| Input | NG 35,000 BTU/h high, 23,500 low; LP 31,000 BTU/h high, 25,500 low |
| Venting | Direct vent, 4-1/2" inner / 7-1/2" outer Secure Vent, rigid or flex |
| Ignition | Electronic ignition with battery backup; IPI/CPI switch standard (per current listing) |
| Media | Two 5 lb bags of reflective black glass included |
| Interior | Black porcelain liner standard; reflective glass liner optional (per current listing) |
| Certifications | ANSI Z21.88 / CSA 2.33 and CSA 2.17; listed by PFS TECO |
| Altitude | Standard orifices approved from 0 to 4,500 ft |
| Weight | 283 lb |
Dimensions and Cutout
| Fireplace Dimensions (manual) | 54-1/4" (A), 27-1/8" (B), 46" (C), 50-3/8" (D), 57-7/16" (E); see the manual drawing for the position of each letter |
| Framing Opening | 55-5/8" W x 39-1/8" H x 19-1/2" D (one-sided) |
| Recessed TV Pocket | 3-1/2" maximum depth |
| Base to Ceiling | 84" minimum |
| Vent Runs (manual) | Vertical 2 ft minimum, 40 ft maximum; vertical plus horizontal 55 ft or less; up to 3 elbows |
| Clearances (manual) | 3/4" to the back wrapper, 1/2" to the sides, 36" in front |
| TV Above (manual) | 12" minimum on a flush wall, 18" for a recessed installation |
Features
- 48 inch wide linear view with ceramic glass
- Clean-faced design with a flush hearth floor and protective glass screen
- Electronic ignition with battery backup so it can run in a power outage
- HeatFlo kit option to redirect heat away from a TV or wall hangings

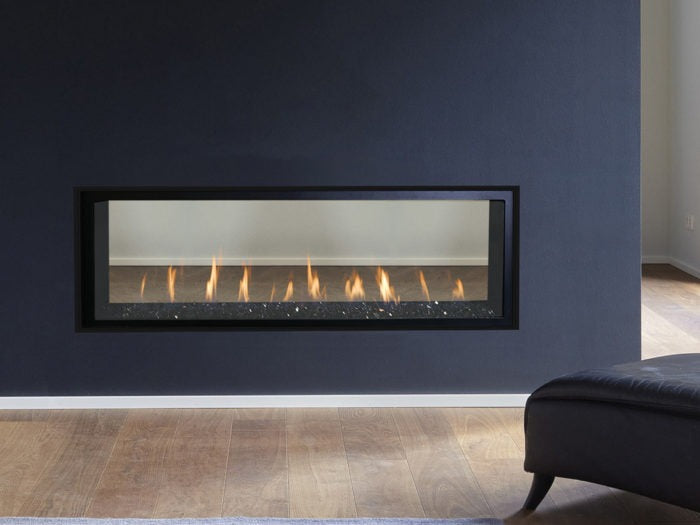

- Optional see-thru kit for see-thru installations, per the spec sheet
- Optional blower and multi-function remote, per the current listing
- Listed for bedrooms and manufactured homes per the manual
- 20-year limited warranty, per the current listing
What Is Included and What You Will Need
- Included per the manual: reflective black glass media, a 12 ft two-conductor wire, four AA batteries, fireboard top, bottom and sides with screws, a heat shield, a pipe shield and a literature kit.
- Required: Secure Vent 4-1/2" / 7-1/2" pipe and a termination. The store carries a compact horizontal termination and a 6 inch rigid vent section for Secure Vent runs.
- Required: a gas line of at least 1/2 inch pipe, a sediment trap is recommended, and a grounded electrical supply as the manual describes.
- Optional: HeatFlo kit, see-thru kit, blower and remote control.
Installation Notes
Gas supply is 5.5" to 10.5" w.c. on natural gas and 11" to 14" w.c. on propane from an external regulator. Mount the unit on a fully supported base, with a metal or wood panel over combustible flooring. Gas and venting work must be done by a licensed installer. In New York City, direct vent gas fireplaces must meet the NYC Fuel Gas Code and need a permitted installation. Book a consultation and we will confirm venting and framing before you order.
Documentation
Frequently Asked Questions
What size vent does the DRL4048 use?
It uses 4-1/2 inch inner and 7-1/2 inch outer Secure Vent pipe. The manual allows up to 40 ft vertical and a combined vertical plus horizontal run of 55 ft or less.
Can I mount a TV above it?
The manual recommends at least 12 inches above the fireplace on a flush wall and 18 inches for a recessed installation, and the HeatFlo kit can redirect heat. Always check the TV maker's temperature limit.
Does it work in a power outage?
The listing describes electronic ignition with battery backup, and the install kit includes four AA batteries.
Is it available in propane?
Yes. The spec sheet lists propane input of 31,000 BTU/h high and 25,500 low as a field conversion.
Related reading: Linear vs. Traditional Fireplace and Best Fireplace Under a TV.
Warranty
Per the current listing: a 20-year limited warranty. The manual notes that not following the installation instructions voids the warranty, and that unauthorized venting components void the venting warranty. Confirm full terms in the owner's manual.
