Superior DRL6000 48-Inch Linear Direct Vent Gas Fireplace
Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.
Superior DRL6000 48-Inch Linear Direct Vent Gas Fireplace is backordered and will ship as soon as it is back in stock.
Pickup currently unavailable at Maspeth, NY Showroom
Free & Flat Rate Shipping
Free & Flat Rate Shipping
- Orders Over $999 Ship Out Fast & Free
- Delivery typically takes 5 -7 transit days
- $19.95-$99.95 Flat-Rate Shipping on orders under $999
- Our team & trucks deliver locally within 60 miles of our showroom. (Tri-State NY,NJ,CT including all of Suffolk County)
- Free Shipping Applies to Contiguous US only - See our shipping page for exclusions e.g. ethanol fuel
Assembly & Installation
Assembly & Installation
Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!
WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW
- Outdoor Kitchens
- Outdoor Fireplaces/Firepits
- Outdoor Pizza Ovens
- Gas Fireplaces
- Gas Inserts
- Gas Log Sets
- Fireplace Doors
- Fireplace Mantels
- Electric Fireplaces
- Water Vapor Fireplaces
- Ethanol Fireplaces
Call for a free quote 718-326-4328
Warranty
Warranty
Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.
Returns
Returns
- No-Restock Fees
- 30-Day Return Policy
- The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
- We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.
Superior DRL6000 48-Inch Linear Direct Vent Gas Fireplace is backordered and will ship as soon as it is back in stock.
Description
Description

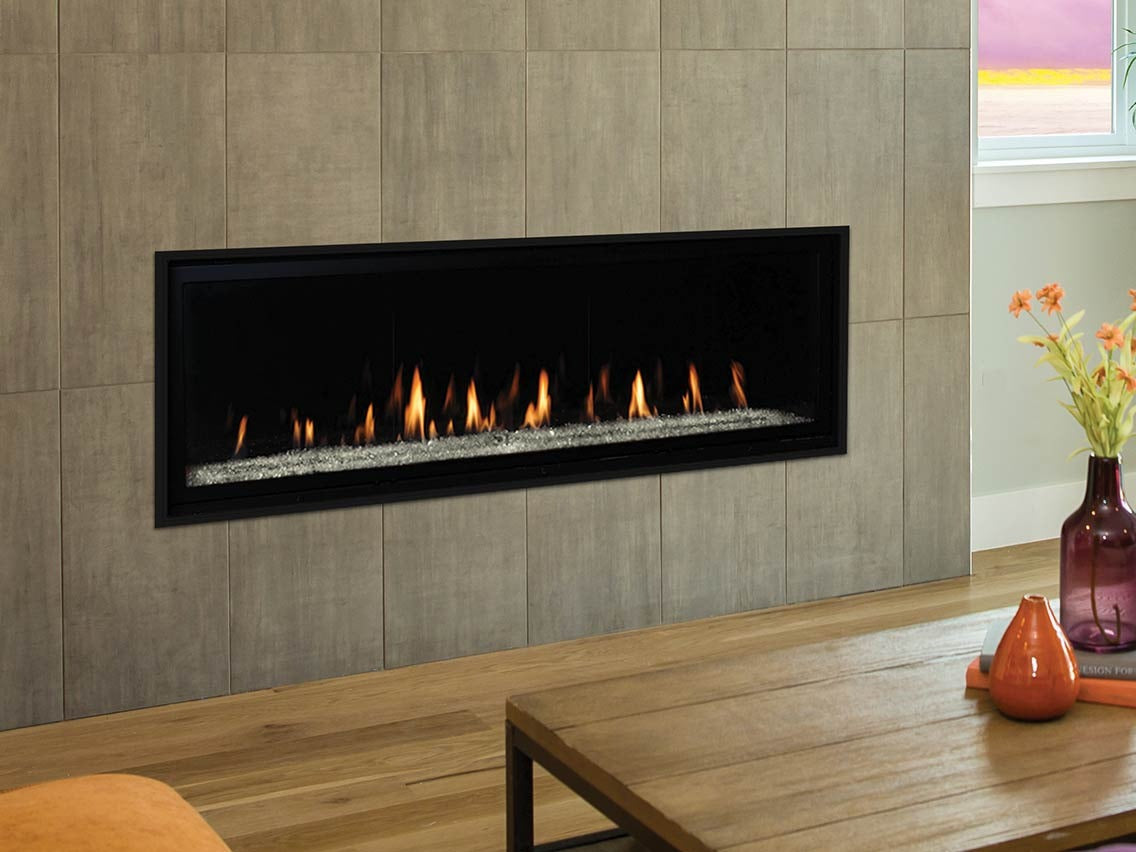

The Superior DRL6048 (DRL6048TEN) is a 48-inch clean-face linear direct vent gas fireplace from the DRL6000 series, rated up to 35,000 BTU on natural gas, with platinum glass media and a non-combustible fireboard included.
As the premium DRL6000 version it adds the ProFlame II hand-held remote with thermostat control and platinum glass media. The firebox installs single-sided as standard, converts to see-through with the optional kit, and is listed for bedrooms, aftermarket mobile homes and manufactured homes.
Features
- 48-inch clean-face linear firebox
- Up to 35,000 BTU natural gas or 31,000 BTU propane, with a low setting of 23,500 BTU (NG)
- SIT ProFlame II system with selectable IPI/CPI pilot and a hand-held remote that can also run as a room thermostat, battery backup
- Platinum glass media included; Onyx Black, Diamond Crystal and Sapphire Blue glass, driftwood logs and river rock kits available

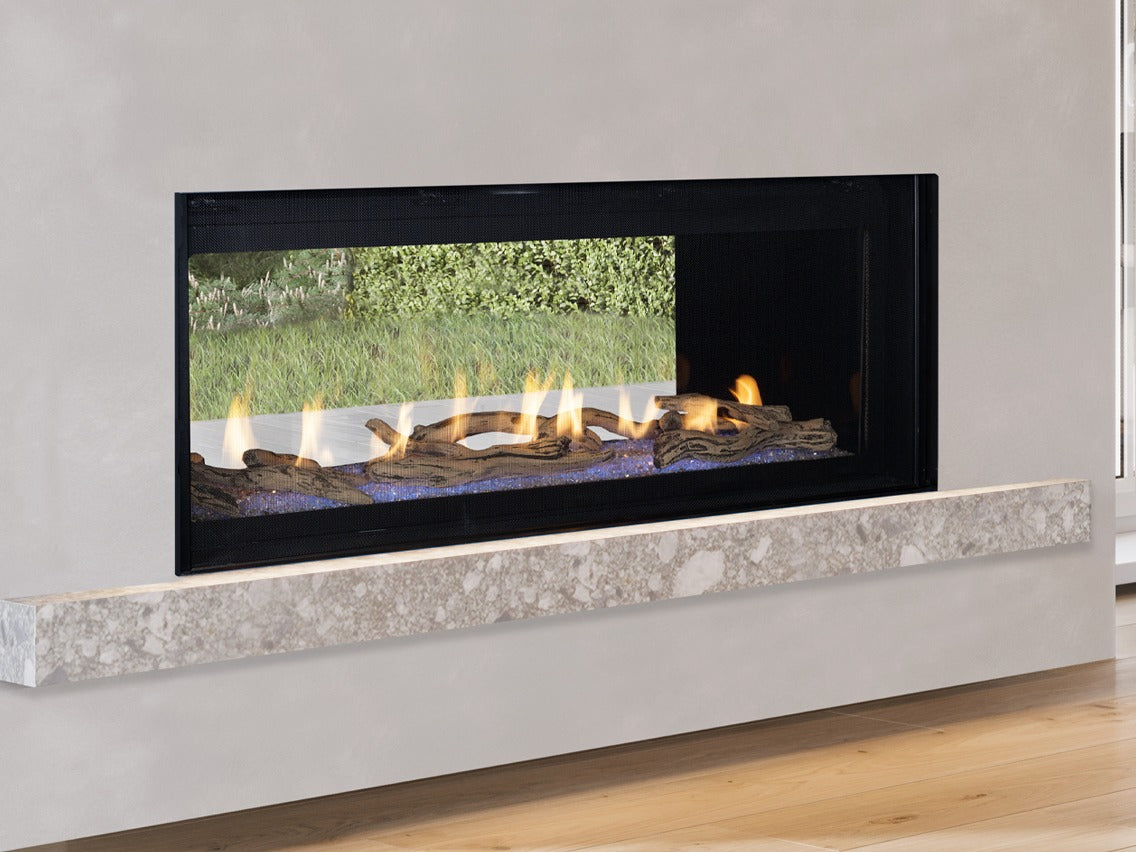

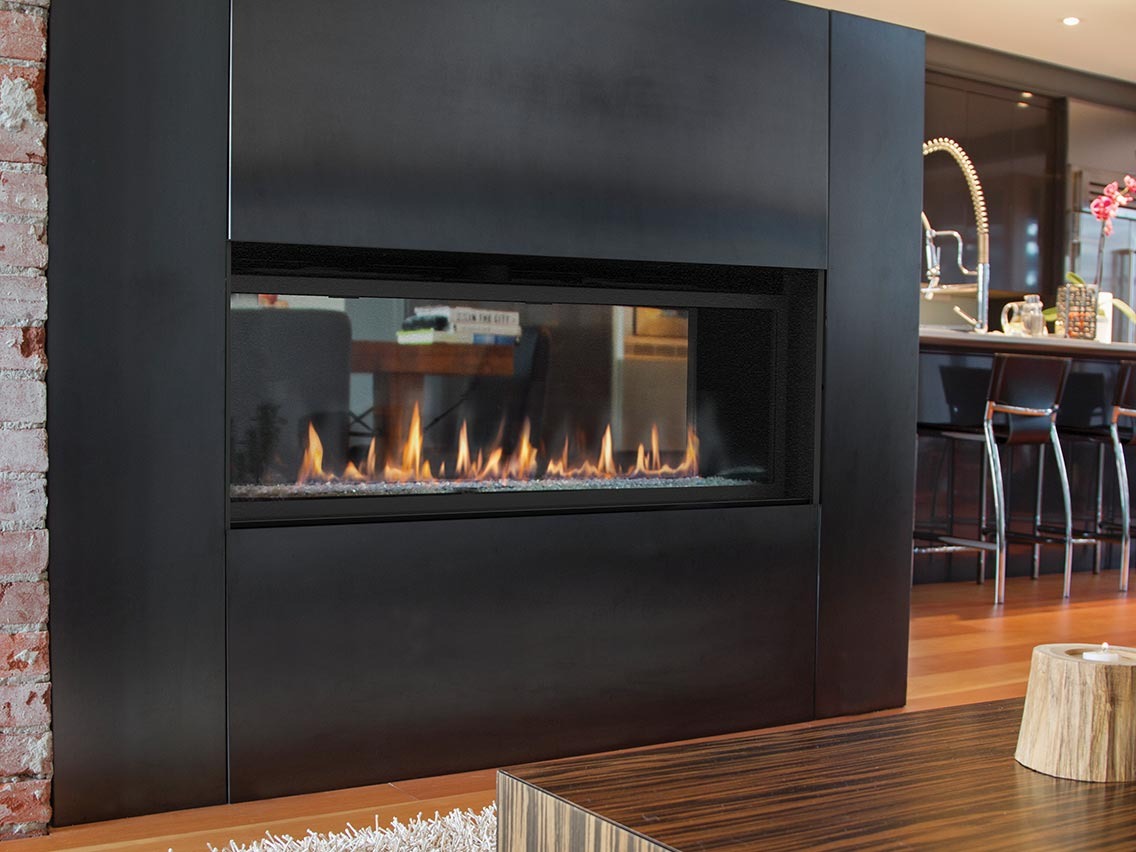

- Optional STK-DVLIN48 see-through kit for a two-sided installation
- Optional HeatFlo kit moves heat away from the wall above for a recessed TV or art pocket
- Non-combustible fireboard supplied to finish the face
Key Specifications
| Model | Superior DRL6048 (DRL6048TEN) |
| Series | DRL6000 linear direct vent |
| Fuel | Natural gas; propane by field conversion kit GCK-SM-6048NP |
| Input, natural gas | 35,000 BTU/hr high, 23,500 BTU/hr low |
| Input, propane | 31,000 BTU/hr high, 25,500 BTU/hr low |
| Efficiency, natural gas | 62.5% P4, 63% AFUE |
| Efficiency, propane | 62.4% P4, 63% AFUE |
| Controls | SIT ProFlame II system with selectable IPI/CPI pilot and a hand-held remote that can also run as a room thermostat, battery backup |
| Venting | Direct vent, Superior SV4.5 (4.5 in. / 7.5 in.) vent system; optional PVK-PF2-SV4.5 power vent kit |
| Electrical | 120 VAC, 60 Hz unswitched supply |
| Media | Platinum glass, 2 x 5 lb. bags |
| Weight | 293 lb |
| Listing | PFS TECO to ANSI Z21.88 / CSA 2.33 and CSA 2.17 as a vented gas fireplace heater |
| Warranty | 20 Year Limited (IHP) |
Dimensions and Cutout
| Overall width | 54-1/4 in. |
| Framing width | 55-5/8 in. |
| Framing depth | 19-1/2 in. single-sided, 18-1/2 in. see-through |
| Framing height | 39-1/8 in. |
| Minimum height, appliance base to ceiling | 84 in. |
| Side wall clearance | 14 in. minimum lets a combustible side wall project any length; at 8-1/4 in. it may project up to 12 in. |
| Source | Superior 901227-02 spec sheet; confirm in the installation manual before framing |
What Is Included and What You Will Need
- Included: DRL6048 firebox with safety barrier, platinum glass media (2 x 5 lb.), non-combustible fireboard (top, bottom and sides) with screws, hand-held remote with AAA batteries, AA battery backup pack and literature
- Required: direct vent pipe and a termination (Superior SV4.5), sold separately and sized to the vent plan
- Required: a 120 VAC unswitched electrical supply and a gas line sized for the input
- Required for propane: field conversion kit GCK-SM-6048NP
Optional Accessories
- Optional: STK-DVLIN48 see-through kit (required for a see-through installation), or OSTK-LIN48 indoor/outdoor see-through kit
- Optional: HeatFlo convection kit HTFLO-DV55, for a recessed TV or art pocket above the fireplace
- Optional: CGLK-BLK-LIN48 black reflective glass liner, TRMK-BLK-LIN48 black linear trim kit and FBK-LIN48 variable-speed blower kit
- Optional: GLO-BLACK, GLO-CRYSTAL or GLO-SAPPHIRE glass media, driftwood log set and river rock kits
Installation Notes
Install by a qualified gas fitter to the current Superior installation manual, including framing, mantel and side-wall clearances, venting, fireboard and the 120 VAC connection. A see-through installation needs the see-through kit and its own framing dimensions.
In New York City gas fireplace work requires a licensed master plumber and permit. Book a fireplace design consultation to plan the wall, venting route and any TV above.
Documentation
- Superior DRL4048 / DRL6048 Specification Sheet
- Superior DRL4048 / DRL6048 Installation and Operation Manual (901227-00 Rev. C)
Frequently Asked Questions
Can it be see-through?
Yes, with the optional STK-DVLIN48 see-through kit, installed with the see-through framing dimensions.
Can a TV go above it?
Yes, when the HeatFlo kit is installed and the TV manufacturer's temperature limits are respected. HeatFlo allows a recessed wall pocket above the fireplace.
What is the difference between the DRL4000 and DRL6000?
Both share the same firebox sizes. The DRL6000 adds the ProFlame II hand-held thermostat remote and platinum glass media; the DRL4000 uses wall-switch control with reflective black glass.
Related reading: Direct vent gas fireplace buying guide, Linear vs traditional fireplaces, Best fireplace under a TV.
Warranty
Innovative Hearth Products 20 Year Limited Warranty (installation manual): the fireplace body, firebox, barrier and ceramic glass are covered for 20 years from the date of installation. The burner, gas components and gaskets are covered for one year, optional blowers and remote controls for one year, tempered glass for one year and optional glass doors for 90 days; parts not otherwise listed carry a 90 day warranty. Labor is paid at prevailing IHP rates for each component's warranty period. Vent components, trim and paint are excluded. Refer to the manual for full terms.
