Description
Description
Available Superior DRT4200 fireplace sizes: 40 inch | 45 inch (this size)
Overall Dimensions: Framing opening 45-7/8" W x 41-1/4" H x 23" D (top vent with one 90 degree elbow); glass viewing area 39-1/4" W x 24-1/2" H
The Superior DRT4245 is a 45 inch traditional direct vent gas fireplace with a hand-painted ceramic fiber log set, a wide glass view and a factory blower. It runs on natural gas or propane, vents through 4-1/2 inch and 7-1/2 inch Secure Vent pipe, and suits a new build or renovation where a traditional masonry-look hearth is wanted without a chimney.
Key Specifications
| Model | DRT4245TEN-E (natural gas) and DRT4245TEP-E (propane) |
| Fuel | Natural gas or propane (select on the listing) |
| Input | NG 42,000 BTU/h high, 25,000 low; LP 41,000 BTU/h high, 22,000 low (manual) |
| Thermal Efficiency | NG 62.7%; LP 62.4% (P4, per manual) |
| Glass Viewing Area | 39-1/4" x 24-1/2" |
| Venting | Direct vent, 4-1/2" inner / 7-1/2" outer Secure Vent, rigid or flex |
| Ignition | Electronic ignition with 4 AA battery backup (not for the blower); IPI/CPI switch standard per current listing |
| Blower and Lights | Factory blower with six speeds and interior LED lighting with six settings, per current listing |
| Interior | Black porcelain liner standard; decorative ceramic fiber liners optional, per current listing |
| Certifications | ANSI Z21.88 / CSA 2.33 and CSA 2.17:17; listed by PFS TECO |
| Weight | 223 lb shipping weight |
Dimensions and Cutout
| Framing Opening (top vent, one 90 degree elbow) | 45-7/8" W x 41-1/4" H x 23" D with 1/2" drywall; 55-3/4" top depth |
| Fireplace Dimensions (spec sheet) | 37-1/8", 35-1/2", 42-7/8" and 35" listed; see the spec sheet drawing for each letter |
| Vent Runs (manual) | Vertical 6 ft minimum, 60 ft maximum; vertical plus horizontal 60 ft or less; up to three 90 degree elbows; 1 ft vertical before the first elbow |
| Clearances (manual) | 1-1/2" to the back wrapper, 1/2" to the sides, 0" to spacers, floor and top standoffs; 36" front service clearance; ceiling 64" from the bottom of the unit |
| Mantel | Combustible shelf height depends on depth (68" with a rigid elbow, 70" with a flex elbow); see the manual chart |
| Hearth | No hearth extension required; the unit cannot be recessed |
Features

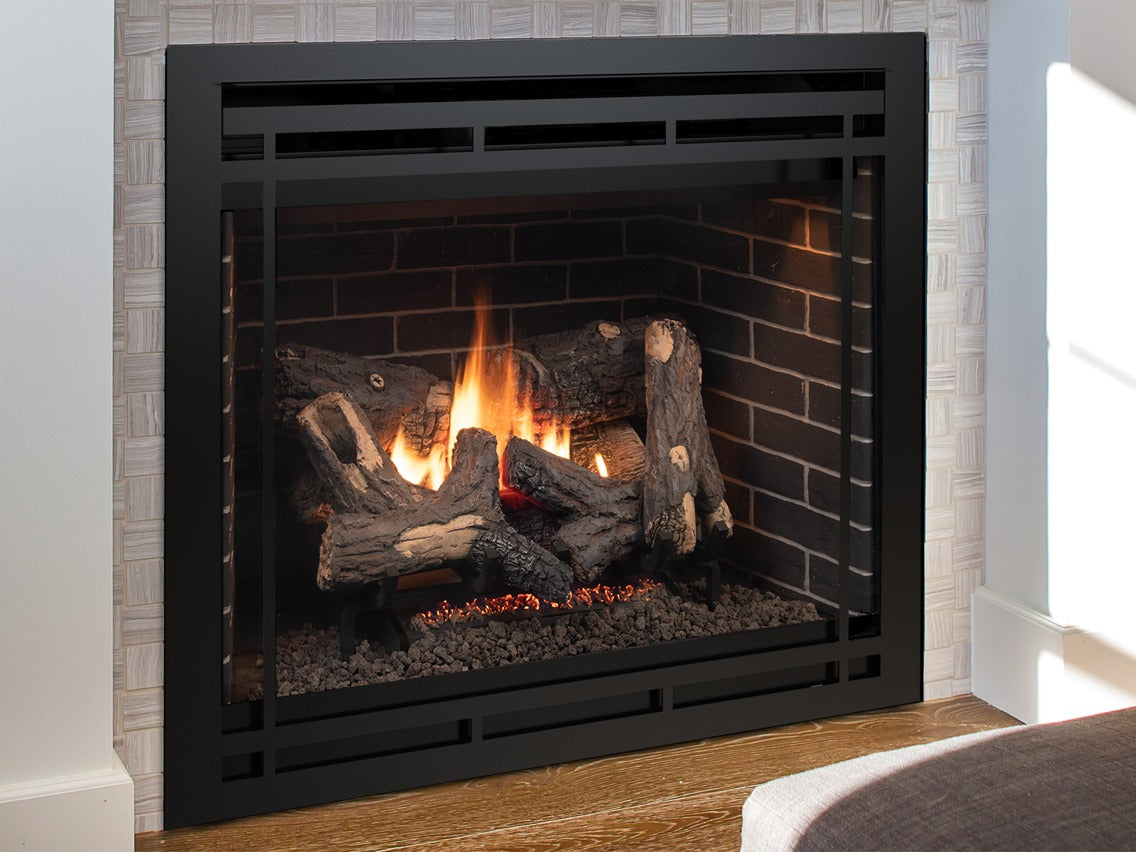

- Hand-painted ceramic fiber log set with glowing embers and volcanic stone
- Tempered ceramic glass with a protective screen
- Electronic ignition with battery backup so the fire can run in a power outage
- Factory-installed six-speed blower, per the current listing
- Six-setting interior LED lighting, per the current listing
- Full-function remote and receiver included

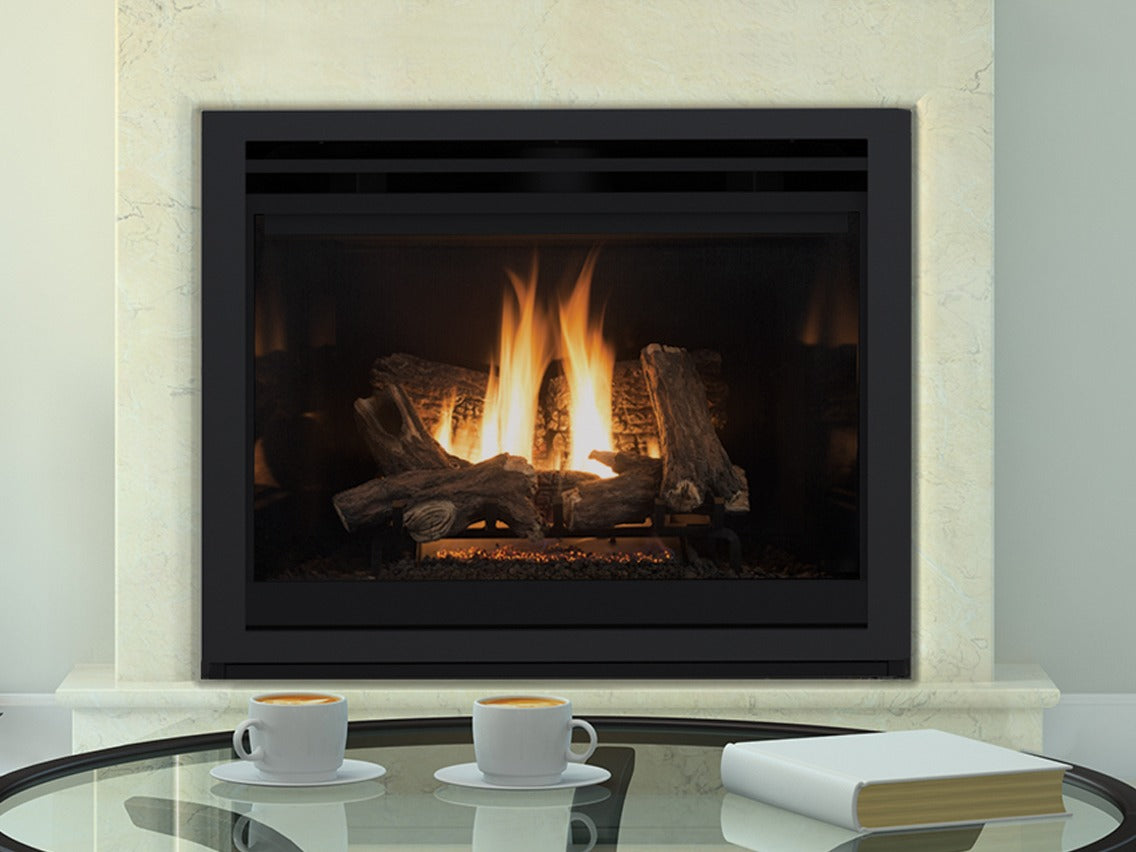

- Black porcelain liner with decorative liner options
- Listed for bedrooms and manufactured homes per the manual
- 20-year limited warranty, per the current listing
What Is Included and What You Will Need
- Included per the manual: log set, volcanic stone and glowing embers, remote control and receiver, two vent restrictors, two vent cover plates, a non-combustible board with brackets, an elbow heat shield, a header heat shield and a literature kit.
- Required: Secure Vent 4-1/2" / 7-1/2" pipe and a termination. The store carries a compact horizontal termination and a 6 inch rigid vent section for Secure Vent runs.
- Required: a 1/2 inch gas line, a grounded electrical supply as the manual describes, and finishing materials.
Installation Notes
The manual calls for framing to the exact opening dimensions with 2x4 or larger members and a fully supported base, with a metal or wood panel over combustible flooring. Gas supply is 5.0" to 10.5" w.c. on natural gas and 11.0" to 13.0" w.c. on propane. Gas and venting work must be done by a licensed installer. In New York City, direct vent gas fireplaces must meet the NYC Fuel Gas Code and need a permitted installation. Book a consultation and we will confirm venting and framing before you order.
Documentation
Frequently Asked Questions
How much heat does the DRT4245 produce?
The manual lists natural gas input of 42,000 BTU/h high and 25,000 low, and propane input of 41,000 BTU/h high and 22,000 low. Thermal efficiency is 62.7% on natural gas and 62.4% on propane.
How long can the vent run?
Up to 60 ft total vertical plus horizontal, with 6 ft minimum vertical and at least 1 ft of vertical before the first elbow. A vent restrictor is needed on runs over 6 ft of vertical rise.
Does it work in a power outage?
Four AA batteries provide backup power for operation, but not for the blower.
Can I put a mantel above it?
Yes. A combustible mantel must follow the height and depth chart in the manual, and a non-combustible mantel can go at any height above the opening.
Related reading: Direct Vent Gas Fireplace Buying Guide and Fireplace Mantels and Media Walls.
Warranty
Per the current listing: a 20-year limited warranty. Confirm full terms in the owner's manual.
