Trade-Wind | 72" Stainless Steel Vent Hood with External Blower
Trade-Wind | 72" Stainless Steel Vent Hood with External Blower is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: 72 in. W x 32 in. D (per Trade-Wind 7200 series spec sheet) x 24 in. H (per listing)

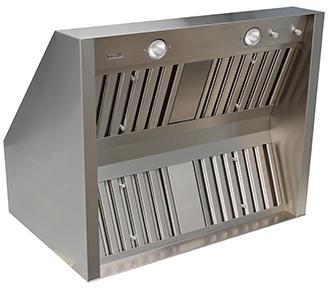

The Trade-Wind 7272 is a 72 in. wall-mount outdoor BBQ grill hood from the original 7200 series, built as a remote blower model: it has no internal fan and is pre-wired to run Trade-Wind in-line or exterior blowers. That layout suits long grill islands where you want the blower noise out on the roof or in the duct run. The 32 in. deep canopy with a 15 in. deep top covers the full grill, and the stainless baffle filters and dimmable halogen lights are built in.
Key Specifications
| Model | 7272 (7200 series BBQ grill hood, remote blower model) |
| Width | 72 in. |
| Depth | 32 in. at the bottom, 15 in. at the top |
| Blower | Not included; pre-wired for in-line or exterior blowers; Trade-Wind optional in-line blowers rated 1266 CFM each |
| Discharge | Top only, two 10 in. round collars; for rear discharge use 10 in. 90 degree elbows (not provided) |
| Lights | Dimmable 50 W halogen |

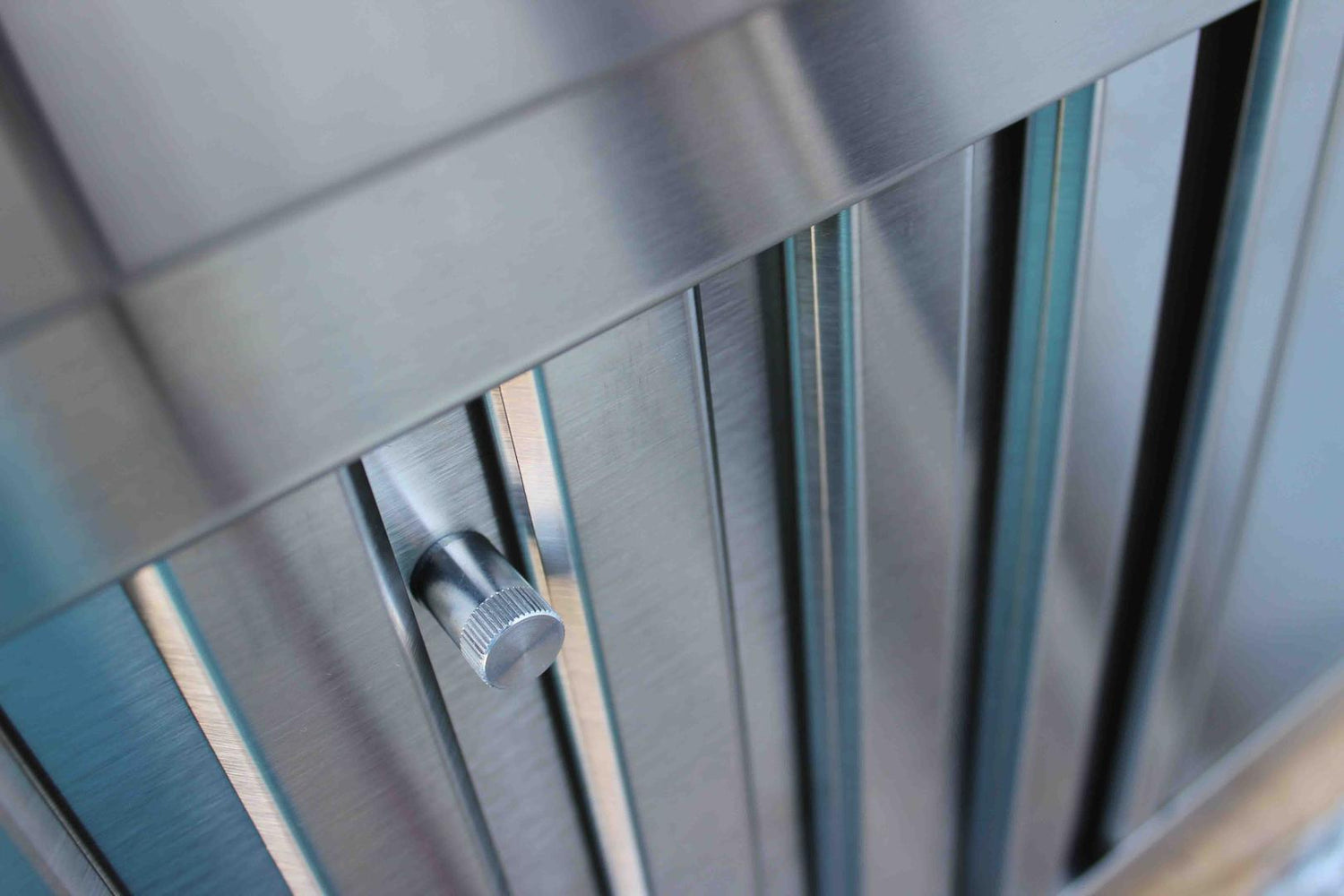

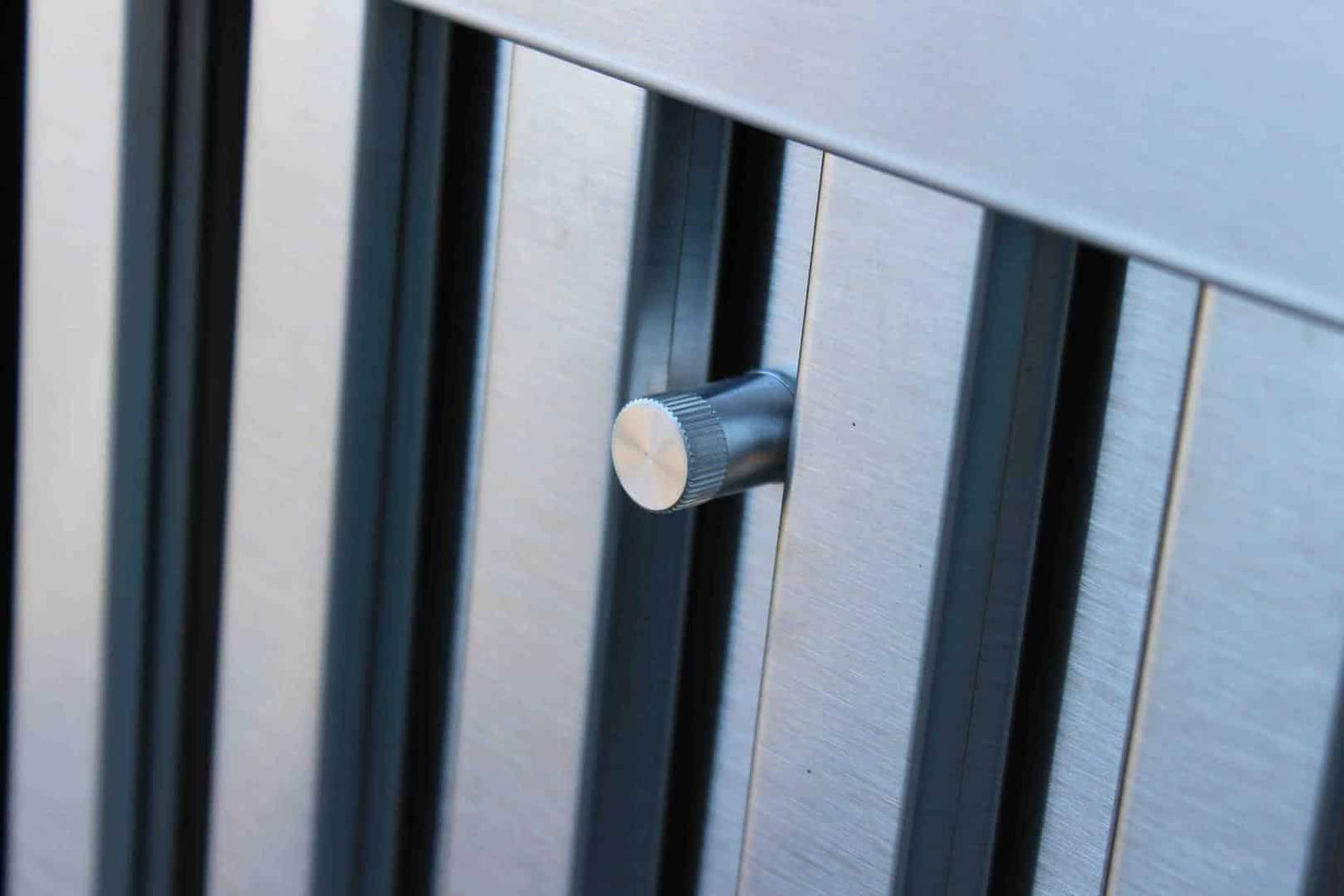

| Filters | 12 x 14 in. stainless baffle filters, dishwasher safe |
| Construction | #304 grade stainless steel with #4 brushed finish |
| Weight | 152 lb (per listing) |
Dimensions and Cutout
| Hood (W x D x H) | 72 in. x 32 in. x 24 in. (height per listing) |
| Mounting height | Per the instructions supplied with the hood; current Trade-Wind BBQ hood instructions specify 36 in. from the cooking surface |
| Duct covers | Matching telescopic stainless duct covers: DC7201D for 9 to 10 ft ceilings, DC7200D for 10 to 12 ft (sold separately) |
| Weather protection | Minimum 3 ft of weatherproof roof coverage on unprotected sides |
Features
- Remote blower design keeps fan noise away from the grill
- 72 in. width for long grill islands
- 32 in. depth with 15 in. deep top
- #304 stainless with #4 brushed finish
- Dishwasher-safe stainless baffle filters
- Dimmable 50 W halogen lights
- Pre-wired for in-line or exterior blowers
- All stainless exterior with no grease traps
What Is Included and What You Will Need
- Included: 7272 hood with baffle filters and halogen light fixtures, pre-wired for a remote blower
- Required: one or two in-line or exterior blowers (for example Trade-Wind PSD010XL, 1266 CFM), two 10 in. rigid metal ducts to an approved roof or wall cap, a dedicated 120 V circuit, a covered outdoor location
- Optional: DC7201D or DC7200D telescopic duct cover
Installation Notes
Mount the hood to solid framing at the height in the supplied Trade-Wind instructions (36 in. above the cooking surface in current Trade-Wind BBQ hood instructions), run two 10 in. rigid metal ducts to the blower and outdoors, and wire the remote blower to the hood controls per Trade-Wind instructions. Trade-Wind requires at least 3 ft of weatherproof roof coverage on every side of the hood not protected by an adjacent wall, sealed metal ductwork run to the outdoors, and no back-draft damper in a BBQ application. In New York City, kitchen exhaust ducting through roofs or exterior walls typically needs building approval, and many terraces and rooftops have their own rules, so confirm the duct route early. Book a free design consultation and we will help you plan the layout, utilities and installation.
Documentation
Frequently Asked Questions
Does the 7272 include a blower?
No. It is the remote blower model; pair it with Trade-Wind in-line or exterior blowers. The 7272-23 has internal blowers.
What airflow will I get?
It depends on the blower. Trade-Wind's optional in-line blower is rated 1266 CFM, and the hood has two 10 in. collars.
Can it vent out the back?
The 7272 discharges from the top; Trade-Wind specifies a 10 in. 90 degree elbow (not provided) for rear discharge.
How do I clean the filters?
The stainless baffle filters lift out and are dishwasher safe.
Related reading: Do You Need a Vent Hood Over an Outdoor Grill? and Outdoor Kitchen Planning Guide.
Warranty
Trade-Wind limited warranty (installation instructions): ventilation products are warranted to the original user against defects in materials and workmanship for 3 years from the date of purchase; Trade-Wind will repair or replace the unit or defective component. Light bulbs, faulty installation and use outside the US and Canada are not covered.
