Trade-Wind | Island Style 48″ Vent Hood with Blower
Trade-Wind | Island Style 48″ Vent Hood with Blower is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: 48" W x 32" D x 24" H (hood body, duct cover extra)
The Trade-Wind P7248-12-ISL is a 48-inch pyramid-style island hood for outdoor kitchens with a built-in 1200 CFM three-speed blower, so there is no separate fan to source. It is built in 304 stainless steel with a 32-inch front-to-back capture area and three dimmable halogen lights. A telescoping duct cover is included for ceilings up to 10 feet.
Key Specifications
| Brand | Trade-Wind |
| Model | P7248-12-ISL |
| Series | P7200 Pyramid Island-Style BBQ Grill Hoods |
| Blower | Internal, 1200 CFM, 3-speed control |
| Lighting | 3 dimmable 50 watt halogen lights |
| Filters | Stainless steel commercial baffle filters, double bank, dishwasher safe |
| Discharge | 10" round, top only (rear discharge by changing blower orientation, per listing) |
| Material | Commercial stainless steel (#304 grade, #4 brush finish) |
| Electrical | 120 V, 60 Hz, individual grounded 15 or 20 A branch circuit; 6.0 A three-speed fan control |
| Made In | Phoenix, AZ USA |
Dimensions and Cutout
| Width | 48" |
| Depth | 32" at the bottom, 16" at the top |
| Hood Height | 24" |
| Duct Cover | Telescoping two-piece, included for ceilings up to 10' |

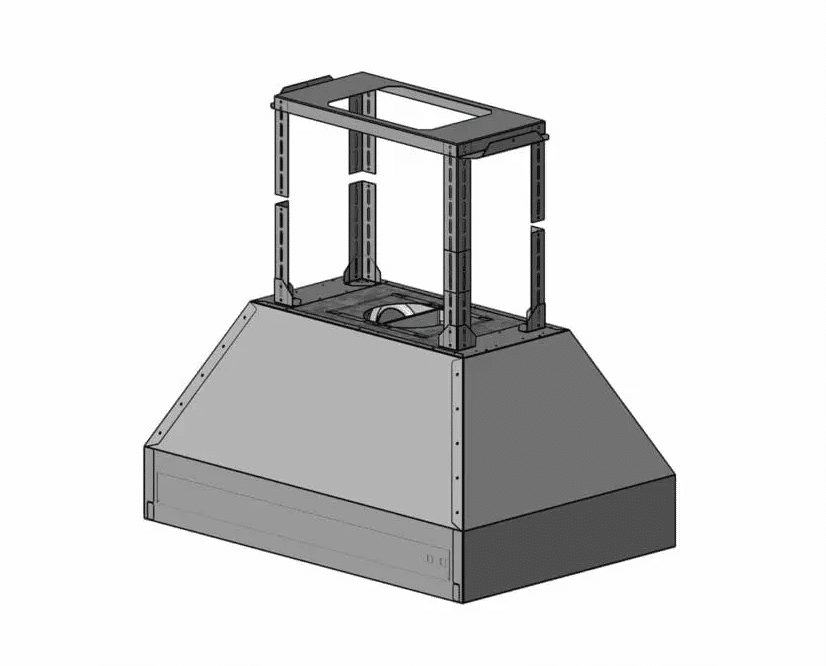

| Mounting | Four top-corner holes for all-thread rod (supplied by others) |
All dimensions are nominal, plus or minus 1/8". For ceilings higher than 10', a chase or soffit must be built before installation to secure the duct cover. See the installation instructions for exact dimensions.
Features
- Internal 1200 CFM blower with 3-speed control
- 32" front-to-back capture area under a pyramid island hood
- Double bank of stainless steel baffle filters with easy-grip handles
- Dimmable 50 watt halogen lighting over the grill
- All-stainless exterior with no grease traps to clean
- Pre-wired and ready for installation
What Is Included and What You Will Need
- Included: island hood with internal blower, baffle filters, halogen lighting, controls and telescoping duct cover
- You will need: metal ductwork, a roof or wall cap without a damper, halogen bulbs, all-thread rod for mounting, and a dedicated 120 V circuit
Special order. Call to inquire.
Installation Notes
Installation should be completed by a qualified installer and a licensed electrician. Vent the hood outdoors through metal ductwork only, and do not use a damper in a BBQ hood application. Trade-Wind specifies a minimum 36" between the cooking surface and any custom canopy structure, combustible or non-combustible; follow all published clearances. For 1200 CFM models, keep the duct run to 35 linear feet or less, counting elbows and the cap. Provide a minimum of three feet of weatherproof roof coverage on all sides not protected from rain by an adjacent wall. Trade-Wind notes that performance is not guaranteed for island installations. Plan your layout in a design consultation.
Documentation
Frequently Asked Questions
Does this hood include a blower?
Yes. The P7248-12-ISL has an internal 1200 CFM three-speed blower. The remote-blower version is the P7248-ISL.
What size duct does it need?
A single 10" round vertical duct.
How tall a ceiling can the duct cover reach?
The telescoping cover is included for ceilings up to 10'. Taller ceilings need a chase or soffit.
What power does it need?
A 120 V, 60 Hz individual grounded branch circuit protected by a 15 or 20 A breaker.
Related reading: Do You Need a Vent Hood Over an Outdoor Grill?
Warranty
This unit is backed by Trade-Wind's 3-year limited warranty covering materials and workmanship on the complete ventilation unit, at the manufacturer's discretion to repair or replace defective components for the original owner.
