Description
Description
Available Sizes: Trade-Wind P7200 Pyramid 2300 CFM
60" | 72" (Current Size)
Overall Dimensions: 72" W x 32" D x 24" H

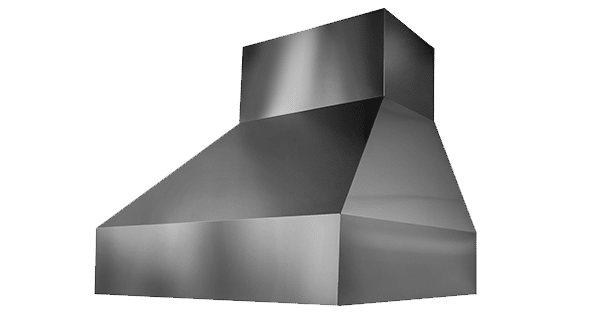

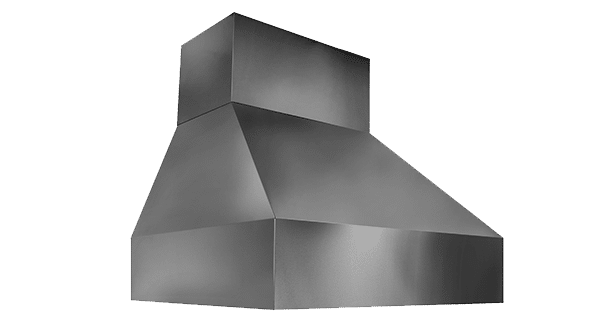

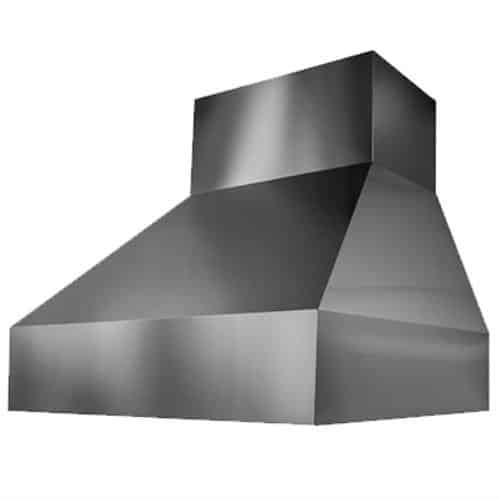

The Trade-Wind P7272-23 is a 72 inch pyramid-style outdoor vent hood with a 2300 CFM internal blower. It covers a large built-in grill and side burner run, and it is built for a covered outdoor kitchen with a ducted exhaust. A telescopic duct cover is included for 9 to 10 foot ceilings.
Key Specifications
| Model | P7272-23 (Pyramid 72 inch) |
| Airflow | 2300 CFM internal blower, 3-speed control |
| Venting | Ducted; 10 inch duct per current listing (the spec sheet table shows 2 x 10 inch entries, so confirm the discharge configuration) |
| Electrical | 120 V, 60 Hz on an individual grounded 15 or 20 A circuit; two 6.0 A three-speed fan controls (installation instructions) |
| Lighting | Dimmable halogen lights (50 watt each per spec sheet) |
| Filters | Stainless steel baffle filters in a double bank, dishwasher safe |
| Material | Commercial-grade 304 stainless steel and galvanized steel |
| Use | Outdoor approved, wall mount |
| Weight | 250 lb per current listing |
Dimensions and Cutout
| Overall | 72" W x 32" D x 24" H |
| Mounting Height | Installation instructions recommend 36" above the cooking surface (the current listing shows 30"); sides and front should extend 3" to 6" beyond the cooking surface |
| Ceiling Height | Telescopic duct cover included for 9' to 10' ceilings; optional PDC7272 cover for 10' to 12' ceilings |
| Combustibles | 36" from the cooking surface to a combustible structure above |
Features
- Pyramid hood shape, 24 inches tall for a larger capture area and 32 inches deep for full grill coverage
- 2300 CFM internal blower with 3-speed control

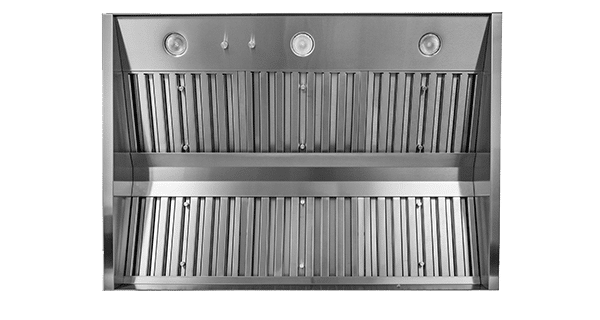

- Dishwasher-safe baffle filters with grip handles and grease exit holes
- Dimmable halogen lights
- Slip-resistant control knobs
- Easy conversion to horizontal ducting through the rear
- 3-year warranty
What Is Included and What You Will Need
- Included: the hood, baffle filters, telescopic duct cover for 9 to 10 ft ceilings and installation instructions.
- Optional: the PDC7272 duct cover for 10 to 12 ft ceilings, selectable on this listing.
- Required: metal ductwork only (no flex duct) sized no smaller than the discharge port, a wall or roof cap with no damper, and a 120 V grounded circuit. Trade-Wind no longer sells wall or roof caps; the instructions give a drawing for one built locally.
Installation Notes
Installation and electrical work must be done by a qualified installer. Seal all duct joints and roof openings, use an approved cap with open area at least equal to the discharge port, and avoid goose-neck and mushroom-style caps. Provide at least three feet of weatherproof roof cover on any side not shielded by a wall. Hood and ductwork for outdoor kitchens in New York City can fall under the building code and Department of Buildings review. Book a consultation and we will review the hood, duct run and island plan with you.
Documentation
Frequently Asked Questions
Does the hood come with a blower?
Yes. The P7272-23 has an internal 2300 CFM blower with 3-speed control.
How high should it be mounted?
The installation instructions recommend 36 inches above the cooking surface, because mounting higher reduces smoke capture.
What ceiling height does the duct cover fit?
The included telescopic cover fits 9 to 10 foot ceilings. The PDC7272 cover for 10 to 12 foot ceilings is available as a listing option.
Is a roof or wall cap included?
No. Trade-Wind no longer offers caps, and its instructions give a recommended design to build locally with no damper.
Related reading: Do You Need a Vent Hood Over an Outdoor Grill? and How to Plan an Outdoor Kitchen.
Warranty
Trade-Wind's warranty runs three years from the date of purchase for the original user, with defective parts repaired or replaced at the manufacturer's option. Light bulbs and problems from undersized ducting or restrictive caps are not covered.
