True North TN20 Wood Insert | 31040002
True North TN20 Wood Insert | 31040002 - Without Backing Plate / Without Surround / Without Venting is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: minimum masonry fireplace opening 29 in. front width x 22 in. back width x 20-1/4 in. high x 18 in. deep

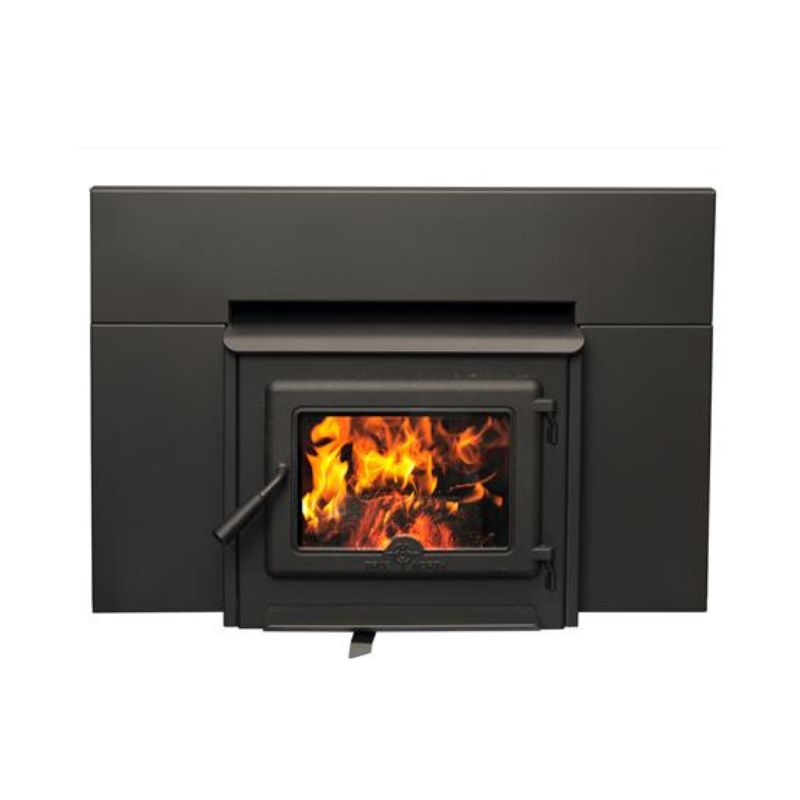

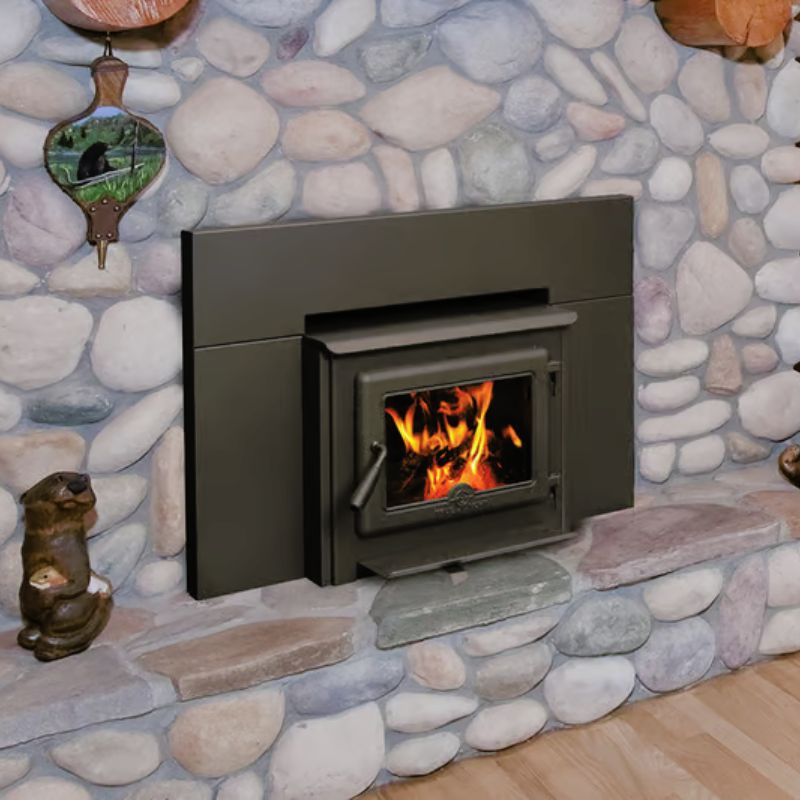

The True North TN20 (31040002) is a catalytic-free wood-burning insert that converts an existing masonry fireplace into an efficient heater. It is EPA 2020 certified at 1.6 g/hr, rated 13,900 to 29,200 BTU/h on the EPA test (55,000 BTU/h peak) and 78% efficient (LHV).
A gasketed cast iron door, air-wash glass and single-lever air control keep the fire clean and easy to run, and a variable speed blower is included. Optional oversize backing plate, 2 in. surround extension and 6 in. liner kits are offered on this listing.
Key Specifications
| Model | TN20 Insert, Series B (SKU 31040002) |
|---|---|
| Heat output | 13,900 to 29,200 BTU/h EPA range; 55,000 BTU/h peak |
| Efficiency | 78% LHV / 72.7% HHV (CSA B415) |
| Emissions | 1.6 g/hr; meets EPA 2020 crib wood standard |
| Log length | Up to 20 in. (18 in. ideal) |
| Technology | Catalytic-free with air-wash glass and single-lever air control |
| Blower | Variable speed, 115 V, 60 Hz, included |
| Combustion air | Inside or outside air capable |
Dimensions and Cutout
| Minimum masonry opening | 29 in. front width, 22 in. back width, 20-1/4 in. high, 18 in. deep |
|---|---|
| Approved fireplaces | Masonry only; not approved for factory-built fireplaces |
| Chimney and liner | 15 ft minimum chimney height recommended; 6 in. listed liner (UL 1777) or direct connection with 6 in. stainless liner |
| Clearances | 12 in. to adjacent sidewall; 8-1/2 in. to side facing; 15 in. from firebox top to mantel or top facing; 54 in. to ceiling from unit base |
| Hearth extension (USA) | 16 in. front and 8 in. sides raised 1 in., or 21 in. front and 8 in. sides flush with the floor |
Features
- EPA 2020 certified, catalytic-free design
- Gasketed cast iron door
- Air-wash system for clean ceramic glass
- Single-lever air control
- Variable speed blower included
- Inside or outside combustion air

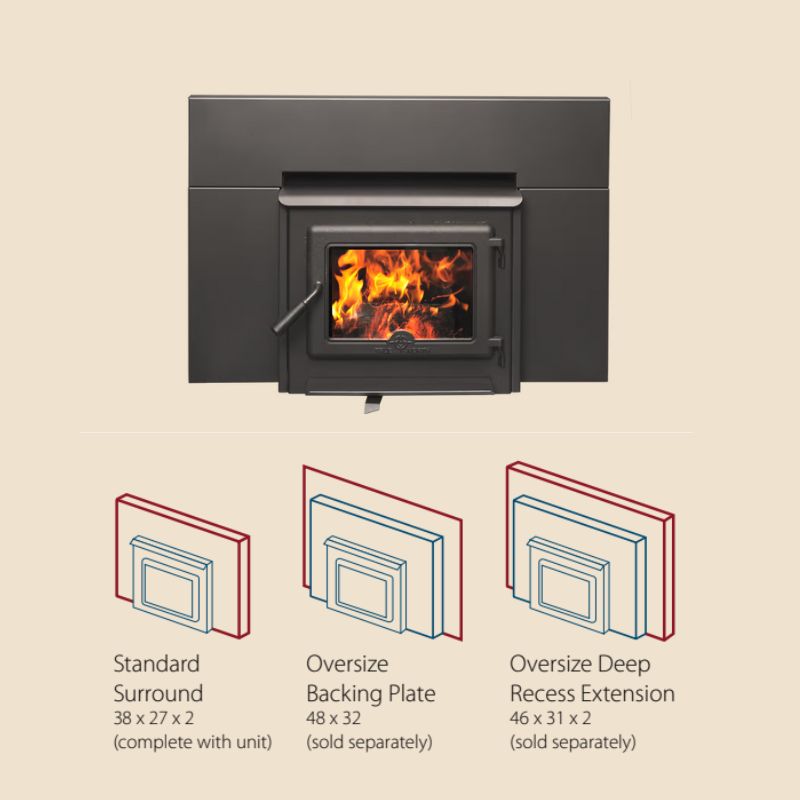

- Optional oversize backing plate (31120002) and 2 in. surround extension (31250001)
What Is Included and What You Will Need
- Included: insert with surround panels and fan controls, blower, leveling legs, firebricks, baffle boards and tubes, flame shield, outside-air rodent screen
- Required: a sound masonry fireplace and chimney that meet the minimum opening, and a 6 in. listed stainless liner (25 ft or 35 ft liner kits offered on this listing)
- Required: hearth extension per the manual and a 115 V outlet for the blower
Installation Notes
The TN20 installs only in a masonry fireplace, with a 6 in. listed liner run the full height of the chimney and the clearances and hearth extension in the True North manual. Have the chimney inspected and swept before installation and use a certified installer. New York City does not permit new wood-burning fireplaces or heaters under Local Law 38 of 2015, so confirm the rules for your building with us; we sell this insert for installations outside the five boroughs where local code allows. Book a free design consultation and we will check your fireplace, chimney and local rules before you order.
Documentation
Frequently Asked Questions
Will it fit my fireplace?
Your masonry fireplace needs at least a 29 in. front width, 22 in. back width, 20-1/4 in. height and 18 in. depth.
Can it go in a prefab fireplace?
No. True North approves the TN20 insert for masonry fireplaces only.
Do I need a liner?
Yes. Use a 6 in. listed stainless liner; 25 ft and 35 ft kits are offered on this listing.
Can I install it in New York City?
New wood-burning heaters are restricted under Local Law 38 of 2015, so talk to us about your building before ordering.
Related reading: Are Wood-Burning Fireplaces Legal in NYC? and How to Measure a Fireplace Opening.
Warranty
True North limited warranty per the manual (original consumer, residential use): 3 years parts and 1 year labor on the firebox, castings and glass (thermal breakage only); 1 year parts and labor on electrical components and switches; 1 year parts only on gaskets, paint, bricks, baffle tubes, baffle manifold and ceramic fibre board. Register at truenorthstoves.com/register.
