True North TN24 Direct Vent Gas Stove | 32010001
True North TN24 Direct Vent Gas Stove | 32010001 - Natural Gas is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: 25 in. W x 19-3/16 in. D x 29-11/16 in. H (24 in. to center of flue outlet), per True North

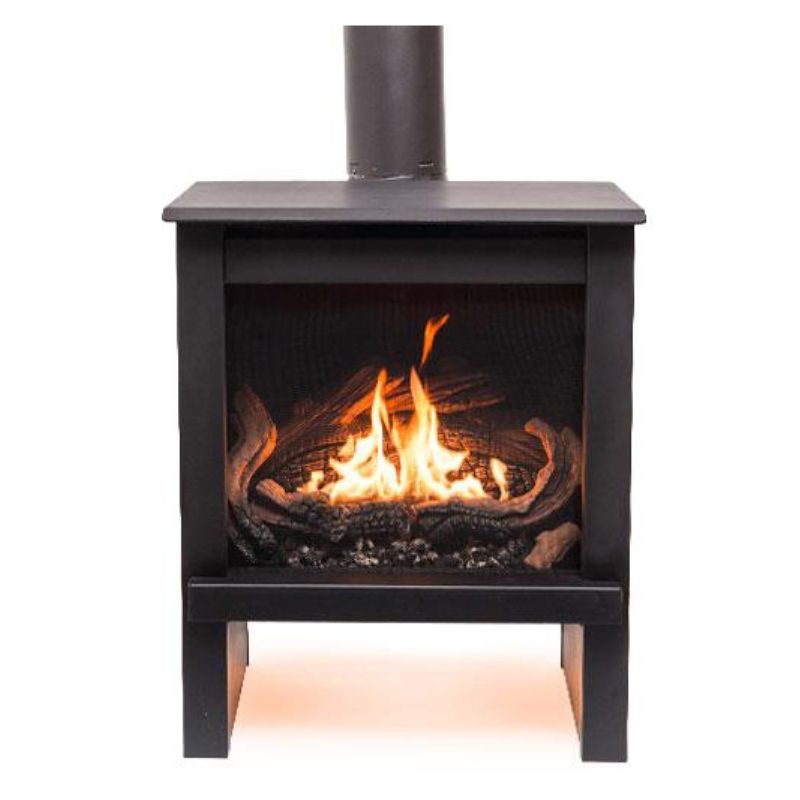

The True North TN24 (32010001) is a compact freestanding direct vent gas stove with clean lines, a full window of flame and a nearly invisible integrated micro-mesh safety screen that keeps hands and pets off the hot glass. Rated 24,000 BTU/h on natural gas or propane, it suits small and medium rooms, finished basements and cabins, and it sits directly on any stable floor without a separate floor protector. It vents through a wall or roof with 4 x 6-5/8 in. coaxial pipe, or up an existing masonry chimney with a 3 in. co-linear kit.
Key Specifications
| Model | TN24 direct vent gas stove, part 32010001 (ships natural gas; propane conversion kit available) |
| Input | Natural gas 13,500 to 24,000 BTU/h; propane 12,000 to 24,000 BTU/h (True North) |
| Efficiency | 74.4% P.4.1-15; 75.9% AFUE (True North product page); manual gas table lists 73.0% AFUE |
| Viewing glass | 340 sq in. |
| Valve and controls | SIT ProFlame 2 valve with six flame levels, standard remote control, accent floor lighting |
| Blowers | 2 x 80 CFM |
| Interior | Preassembled black porcelain panels and log set |
| Gas connection | 3/8 in. NPT flare fitting at the rear; connector not included |
| Gas pressure | NG inlet 5.0 to 13.9 in. w.c., manifold 3.8 high / 1.1 low; LP inlet 12.5 to 13.9 in. w.c., manifold 11 high / 2.9 low |
| Electrical | IEC power cord to a standard wall outlet |
| Approvals | Mobile home approved |
Dimensions and Cutout
| Stove (W x D x H) | 25 in. x 19-3/16 in. x 29-11/16 in. |
| Flue center height | 24 in. |
| Clearances to combustibles | Side wall 4 in.; back wall 4 in.; ceiling 18 in.; vent pipe 1 in. |
| Floor | No floor protector required; floor must be stable and strong enough for the stove |
| Coaxial venting | 4 x 6-5/8 in., 30 ft maximum total length, up to three 90 degree elbows (reduce horizontal run 2 ft per extra elbow) |
| Co-linear venting | Two 3 in. flex liners in a masonry chimney, 10 ft minimum and 35 ft maximum to termination |
Features
- Full window of flame with integrated micro-mesh safety screen
- 24,000 BTU/h on natural gas or propane
- High-efficiency heat exchanger with aluminum fins
- Two 80 CFM blowers
- SIT ProFlame 2 remote with six flame levels
- Floor accent illumination
- Rear vent capable, minimal vertical venting
- Leveling legs; mobile home approved
What Is Included and What You Will Need
- Included: TN24 stove with preassembled porcelain panels and log set, safety screen, two blowers, ProFlame 2 remote, IEC power cord
- Required: approved 4 x 6-5/8 in. coaxial vent pipe and termination (or co-linear chimney kit), gas line with shutoff and connector, standard outlet
- Optional: propane conversion kit (selectable above)
Installation Notes
A qualified gas installer sets the stove on a stable floor with 4 in. side and back clearances, connects gas at the 3/8 in. flare fitting, and runs coaxial vent through the wall or roof within the venting chart in the True North TN24 manual 141223-40. In New York City, gas appliance installation needs a licensed master plumber and permits, and the vent termination must meet NYC Fuel Gas Code clearances to windows and doors. Book a free design consultation and we will help you plan the layout, utilities and installation.
Documentation
Frequently Asked Questions
How much heat does the TN24 make?
True North rates it at up to 24,000 BTU/h input on natural gas or propane, with six flame levels to turn it down.
Does it need a hearth pad?
No. The manual allows installation directly on any stable flooring without a separate floor protector.
Can it vent into my old chimney?
Yes, with a co-linear kit of two 3 in. flex liners, 10 ft minimum and 35 ft maximum to the top.
Can it run on propane?
Yes. It ships for natural gas; the True North propane kit replaces the burner orifices and pressure modulator.
Related reading: Direct Vent Gas Fireplace Buying Guide and Gas Fireplace Cost Installed.
Warranty
True North Gas Products Limited Warranty (truenorthstoves.com): firebox, castings, heat exchanger, ceramic fibre board and glass (thermal breakage only) 3 years parts and 1 year labour; gaskets, paint and burner tube assembly 1 year parts only. The warranty covers the original purchaser only, requires installation by an authorized qualified technician and proof of purchase through a True North or Pacific Energy dealer.
