Warming Trends UPKBW Belgard Weston Universal Paver Kit with Crossfire Brass Burner and 39" Circular Aluminum Plate
Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.
Warming Trends UPKBW Belgard Weston Universal Paver Kit with Crossfire Brass Burner and 39" Circular Aluminum Plate - Natural Gas is backordered and will ship as soon as it is back in stock.
Pickup available at Maspeth, NY Showroom
Usually ready in 2-4 days
- Free shipping on this item to most of the US, or free local delivery by our team. Most items ship within 1 business day.
- Factory-authorized Warming Trends dealer. You keep the full manufacturer warranty.
- 30-day returns, no restocking fee.
- Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Free & Flat Rate Shipping
Free & Flat Rate Shipping
- Orders Over $999 Ship Out Fast & Free
- Delivery typically takes 5 -7 transit days
- $19.95-$99.95 Flat-Rate Shipping on orders under $999
- Our team & trucks deliver locally within 60 miles of our showroom. (Tri-State NY,NJ,CT including all of Suffolk County)
- Free Shipping Applies to Contiguous US only - See our shipping page for exclusions e.g. ethanol fuel
Assembly & Installation
Assembly & Installation
Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!
WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW
- Outdoor Kitchens
- Outdoor Fireplaces/Firepits
- Outdoor Pizza Ovens
- Gas Fireplaces
- Gas Inserts
- Gas Log Sets
- Fireplace Doors
- Fireplace Mantels
- Electric Fireplaces
- Water Vapor Fireplaces
- Ethanol Fireplaces
Call for a free quote 718-326-4328
Warranty
Warranty
Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.
Returns
Returns
- No-Restock Fees
- 30-Day Return Policy
- The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
- We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.
Warming Trends UPKBW Belgard Weston Universal Paver Kit with Crossf...
Warming Trends UPKBW Belgard Weston Universal Paver Kit with Crossfire Brass Burner and 39" Circular Aluminum Plate - Natural Gas is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: 39 in. circular aluminum plate; CFB240 burner with WATERSTOP fitting
The Warming Trends UPKBW is a gas insert kit made for Belgard Weston paver fire pits. It pairs a CROSSFIRE CFB240 brass burner, rated 240,000 BTU and fitted with Warming Trends' WATERSTOP fitting, with a 39 in. circular aluminum plate, flex line kit and key valve kit.

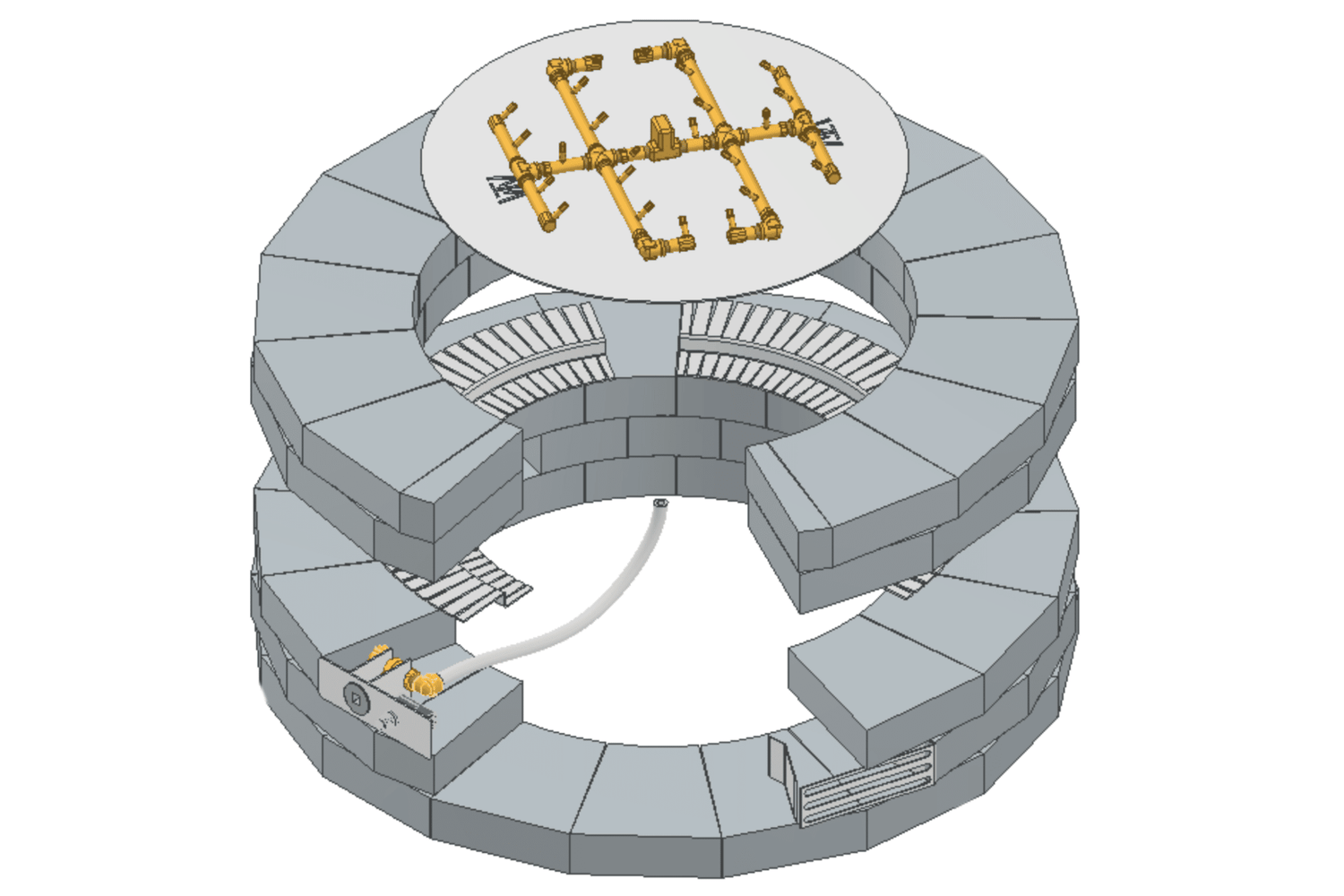

The kit is built to drop into the block wall without drilling: six flexible collars fit between blocks, and the key valve mounting bracket and two 11-3/8 x 4 in. vents are sized to replace a block and support the course above. The block fire pit itself is not included.
Key Specifications
| Model | UPKBWNG (natural gas) or UPKBWLP (propane) |
|---|---|

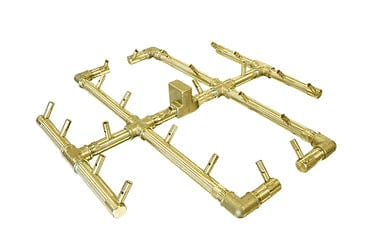

| Burner | CROSSFIRE CFB240, 100% brass, with WATERSTOP fitting |
| Output | 240,000 BTU |

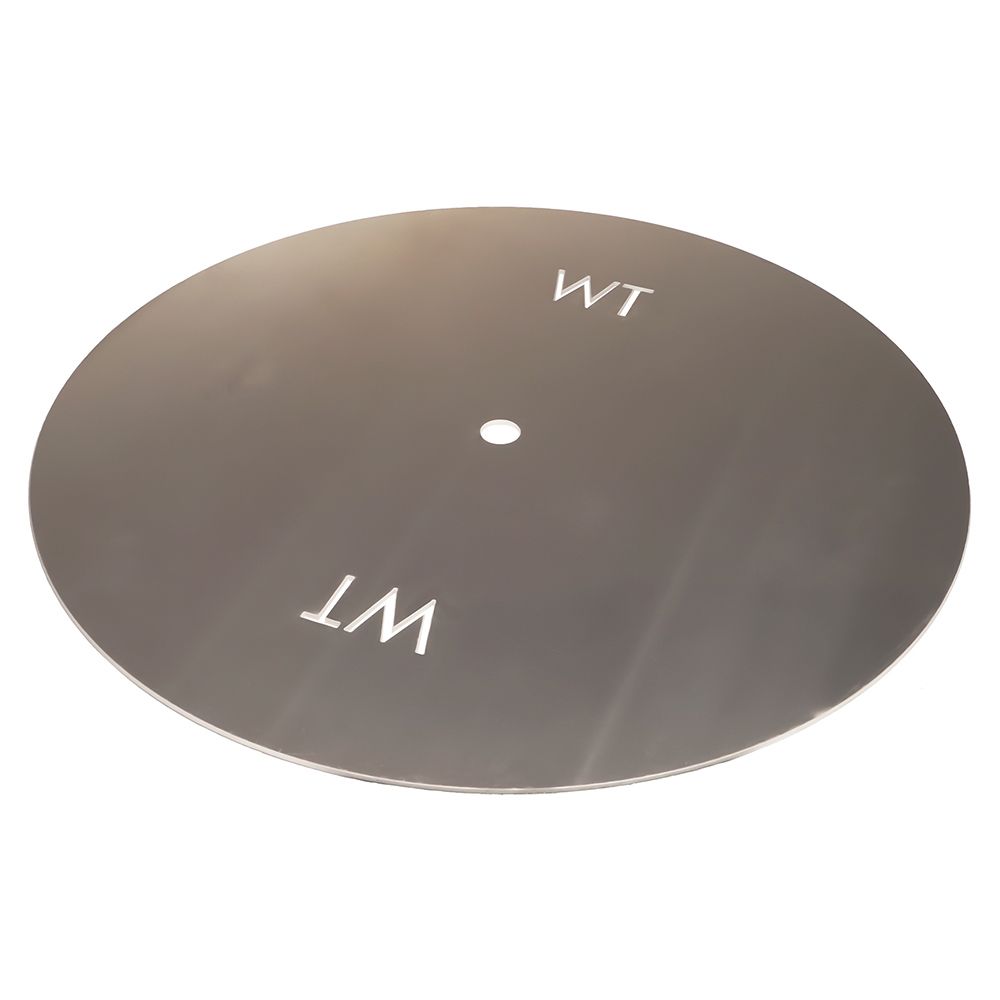

| Plate | 39 in. circular aluminum |
| Ignition | Match light with key valve |
| Gas inlet pressure | NG 3.5 to 7.0 in. W.C.; LP 11.0 to 13.0 in. W.C. (match lit, Version 6 manual) |
| Collars | 6 flexible, no-drill collars |
| Vents | 2, each 11-3/8 x 4 in. |
| Mounting | Key valve mounting bracket sized to replace a block |
| Certification | CFB240 match lit is a certified unit in the Version 6 manual |
Dimensions and Cutout
| Plate | 39 in. circular |
|---|---|
| Vents | 11-3/8 x 4 in. (2) |
| Fits | Belgard Weston paver fire pit (block kit sold separately by Belgard) |
| Clearances | 36 in. horizontal, 84 in. overhead to combustibles |
Features
- Made for Belgard Weston paver fire pits
- CROSSFIRE CFB240 burner, 240,000 BTU
- WATERSTOP fitting keeps water and debris out of the valve and gas line
- No-drill collars and block-sized valve bracket
- Two block-sized vents included
- Match light, no power needed
- Full lifetime burner warranty
What Is Included and What You Will Need

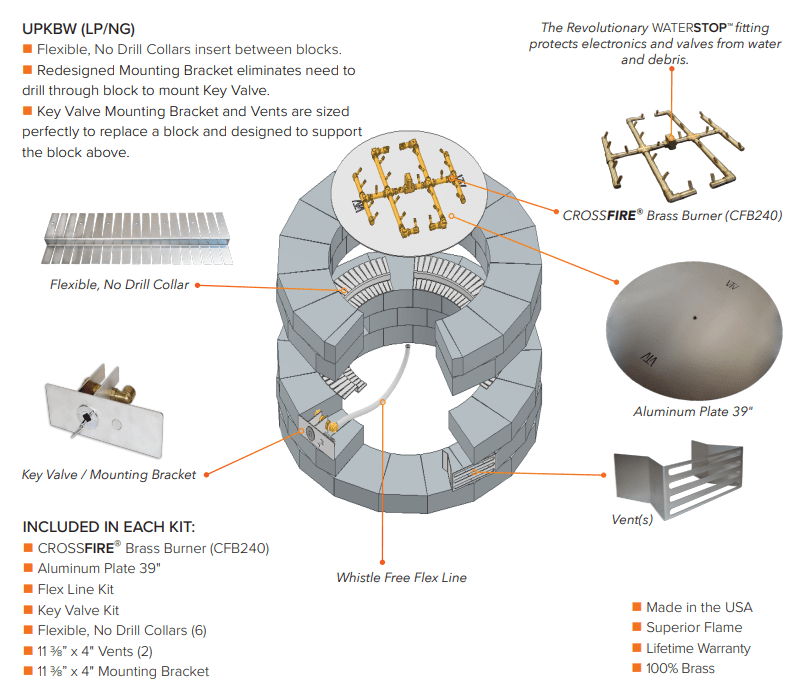

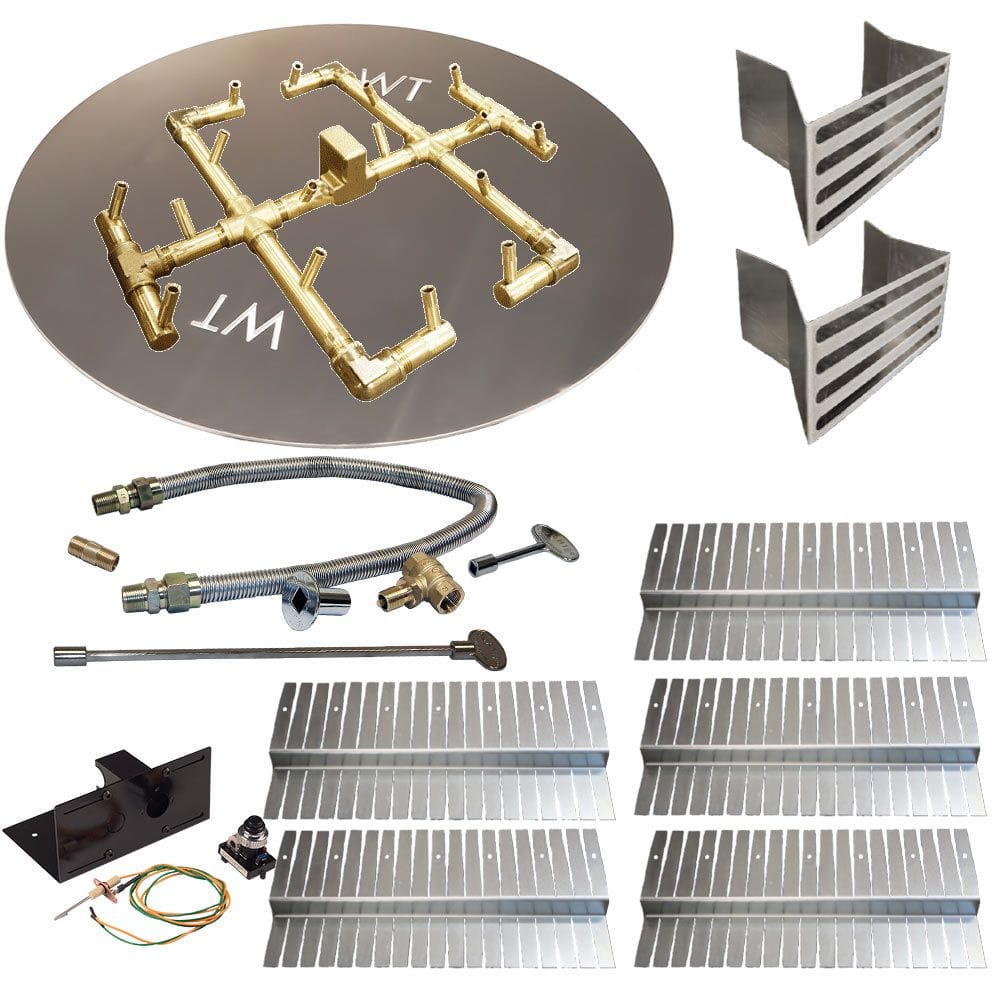

- Included: CFB240 burner with WATERSTOP, 39 in. circular aluminum plate, flex line kit, key valve kit, 6 flexible no-drill collars, 2 vents (11-3/8 x 4 in.) and key valve mounting bracket
- Not included: the Belgard Weston block fire pit and any stone; fire-rated media such as black lava rock (BLR) is required
- Required: a gas line with an exterior shutoff, run by a licensed installer
Installation Notes
Build the Weston fire pit to Belgard's instructions, set the collars between blocks and the vents and valve bracket in place of blocks, on opposing sides as Warming Trends requires (18 sq in. minimum each). Never fill the cavity, keep the burner serviceable from above, and keep 36 in. horizontally and 84 in. overhead from combustibles, per the Warming Trends Version 6 manual. Media goes on the plate, no more than 1/2 in. above the jets. For New York City addresses, outdoor gas fire features and their gas piping fall under the NYC Fuel Gas Code and Department of Buildings permitting, and propane at residences is restricted by the NYC Fire Code, so the approval path for a built-in fire pit must be confirmed before you buy. Book a design consultation and we will plan the block layout, venting and gas run.
Documentation
- Owner's Manual (2020)
- Product Catalog (Weston gas insert kits)
- FLKV34 Instructions
- Waterstop Feature
- Warming Trends Owner's Guide and Instruction Manual, Version 6 (6/26)
Frequently Asked Questions
Does it include the fire pit blocks?
No. It is the gas insert kit; the Belgard Weston blocks are bought separately.
What does the WATERSTOP do?
It is a Warming Trends fitting that keeps water and debris away from the valve and gas line while letting the burner purge water when lit.
Do I need to drill the blocks?
No. The flexible collars fit between blocks, and the valve bracket and vents replace a block.
Can I install this in New York City?
Possibly, but outdoor gas fire features and their gas piping need NYC Fuel Gas Code and Department of Buildings approval, and propane at residences is restricted by the NYC Fire Code. Talk to us before you order.
Related reading: Gas Fire Pit Buying Guide and Outdoor Fireplace Buying Guide.
Warranty
Warming Trends Full Lifetime Warranty on CROSSFIRE and other jetted brass burners, from the date of purchase and transferable with proof of ownership; Warming Trends repairs or exchanges a defective burner free during the warranty period. Misuse, installation defects, modification and indoor use are excluded, installation services are not covered, and electronics carry separate warranties. Burners and electronics must be covered when not in use or the warranty is void.
