Description
Description
Overall Dimensions: 14-7/8 in. W x 22-5/8 in. D (door, without handle) x 33-3/4 in. H (XO owner's manual)

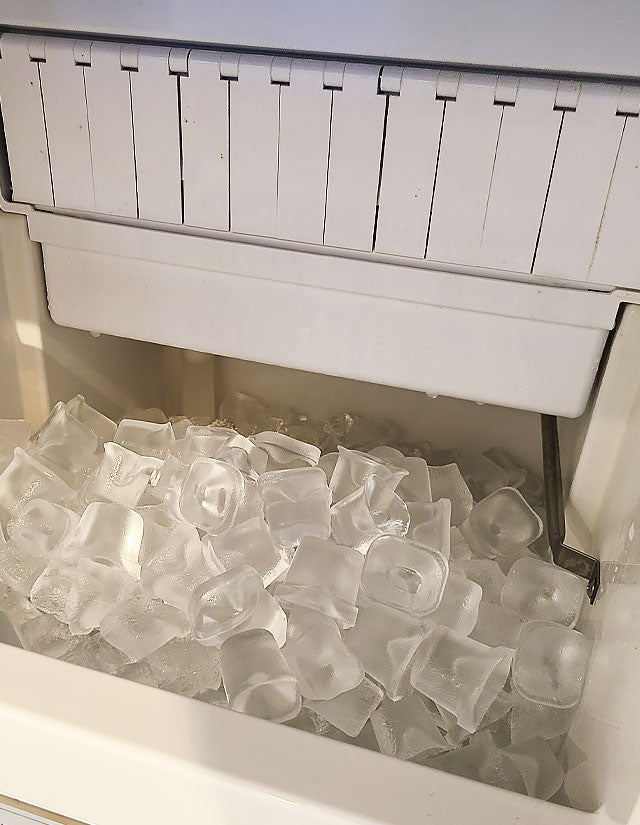

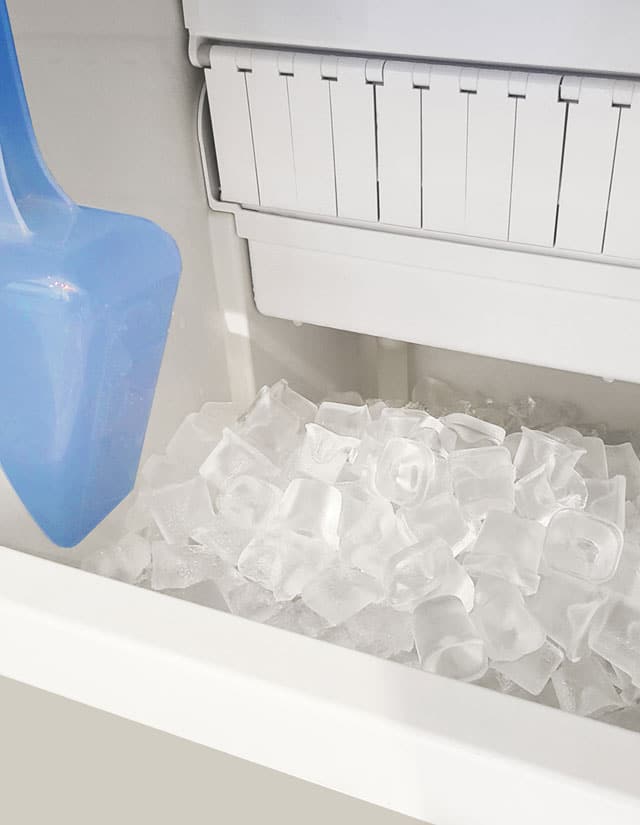

The XO XOUIM1565SP is a 15 in. undercounter gourmet ice maker rated for indoor or outdoor use. It makes up to 65 lb of crystal clear, rectangular bell-shaped cubes a day, designed to melt slowly, and holds up to 27 lb on hand, pausing production automatically when the bin is full.

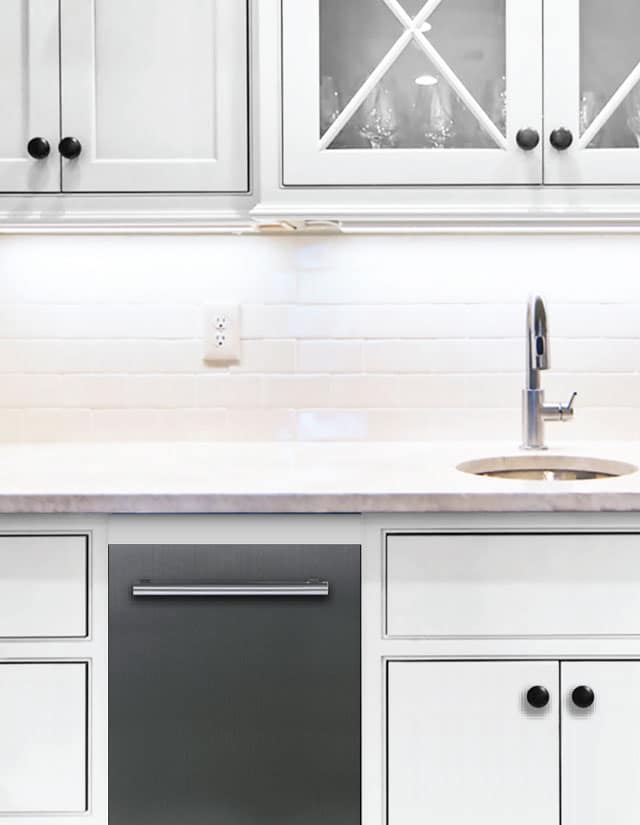

Front venting and a zero-clearance, field-reversible door let it sit flush in an outdoor kitchen or bar. A factory-installed drain pump discharges to a drain up to 8 ft above the unit, and 9 ft of 3/8 in. ID drain hose is included.
Key Specifications
| Model | XOUIM1565SP (with drain pump) |
|---|---|
| Ice production | Up to 65 lb per day; 24 cubes per 20 to 30 minute cycle |
| Storage | Up to 27 lb (XO brochure) |

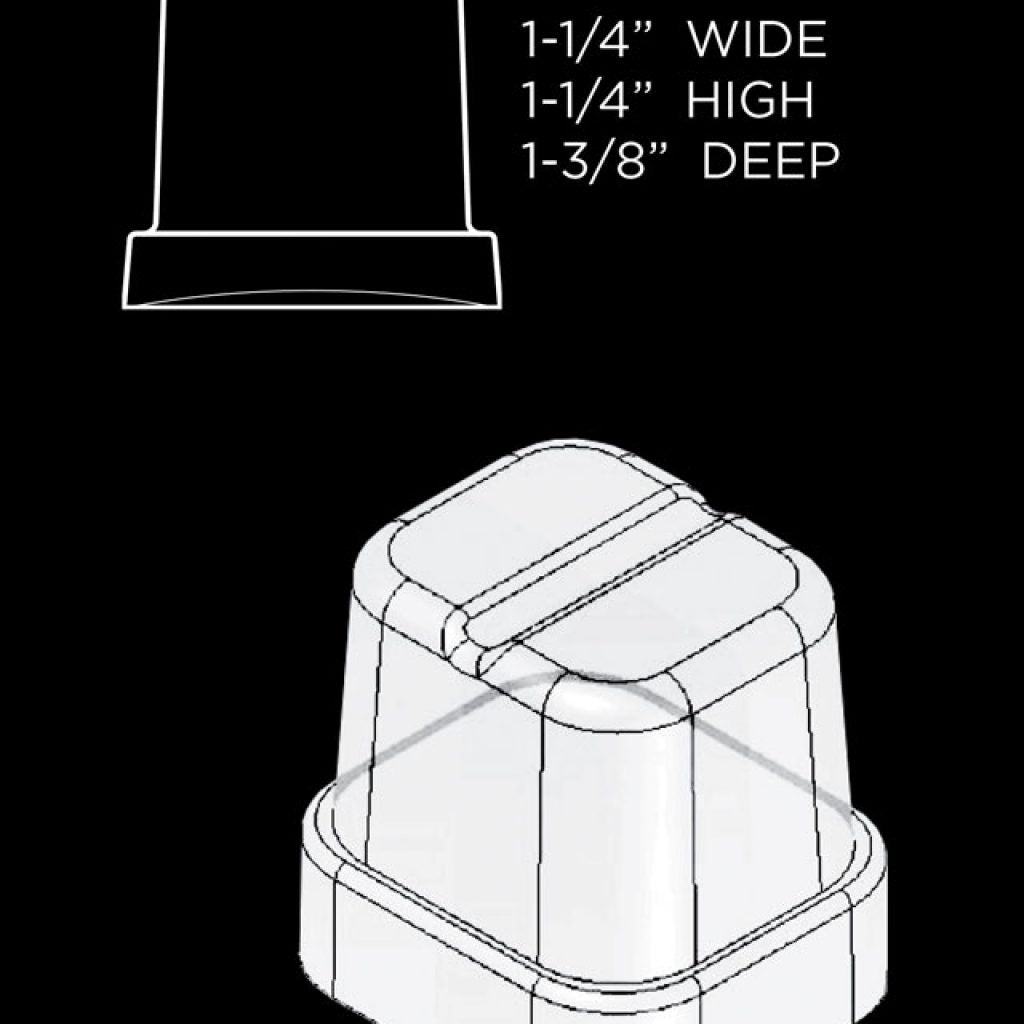

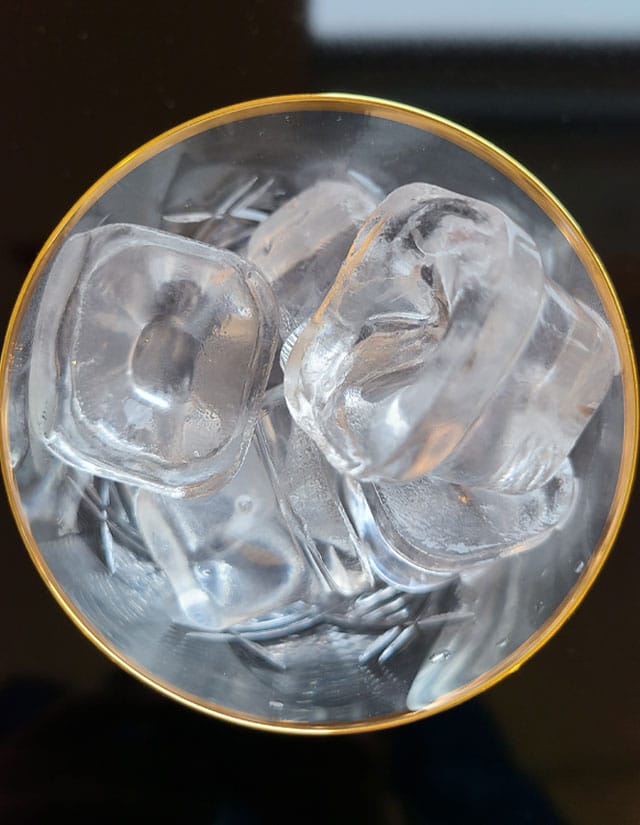

| Cube | Crystal clear rectangular bell shape |
| Rated use | Indoor or outdoor, 50 to 90 F per the manual's feature list |
| Electrical | 115V, 60 Hz, 4.0 A, 340 W; dedicated 15 A circuit |
| Water supply | 20 to 80 psi, 50 to 90 F inlet water |
| Drain | Factory pump, 3/8 in. ID hose (9 ft included), lifts up to 8 ft |
| Refrigerant | R-134a |
| Sound | 52 dBA (XO brochure) |
| Weight | 104 lb empty |
Dimensions and Cutout
| Width | 14-7/8 in. |
|---|---|
| Height | 33-3/4 in. |
| Depth | 22-5/8 in. with door, plus 2-1/4 in. for the handle; cabinet only 21-3/16 in. |
| Overall with handle, hinges and legs | 14.9 x 24.6 x 33.7 in. (W x D x H) |
| Venting | Front venting for undercounter installation |
Features
- Up to 65 lb of crystal clear ice per day
- 27 lb storage, auto pause when full
- Indoor or outdoor rated

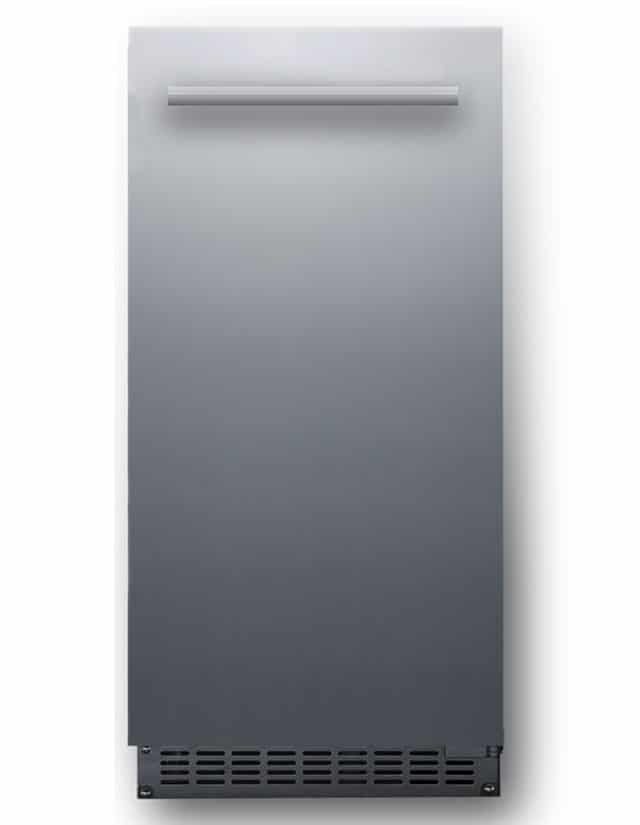

- Front venting for flush undercounter installation

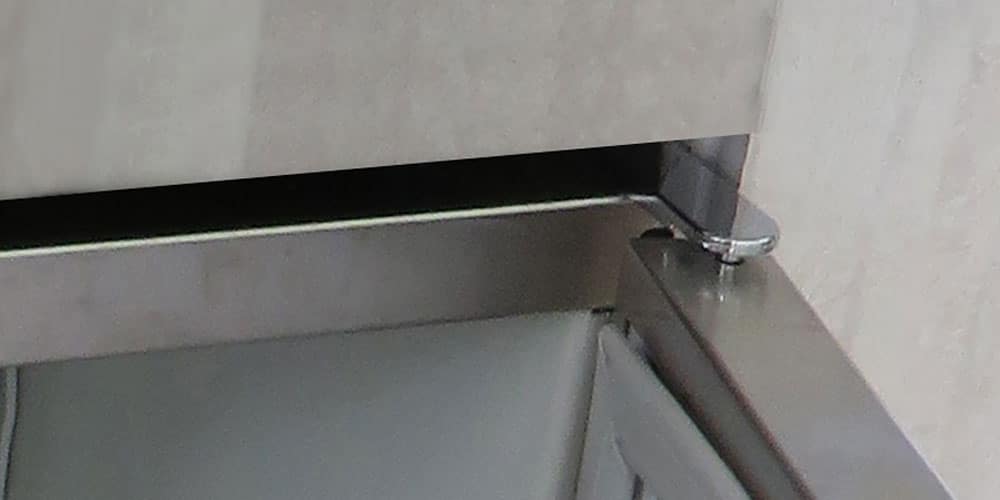

- Zero-clearance, field-reversible door
- Two handle styles included
- Factory-installed drain pump
- Fingerprint-resistant stainless steel
What Is Included and What You Will Need

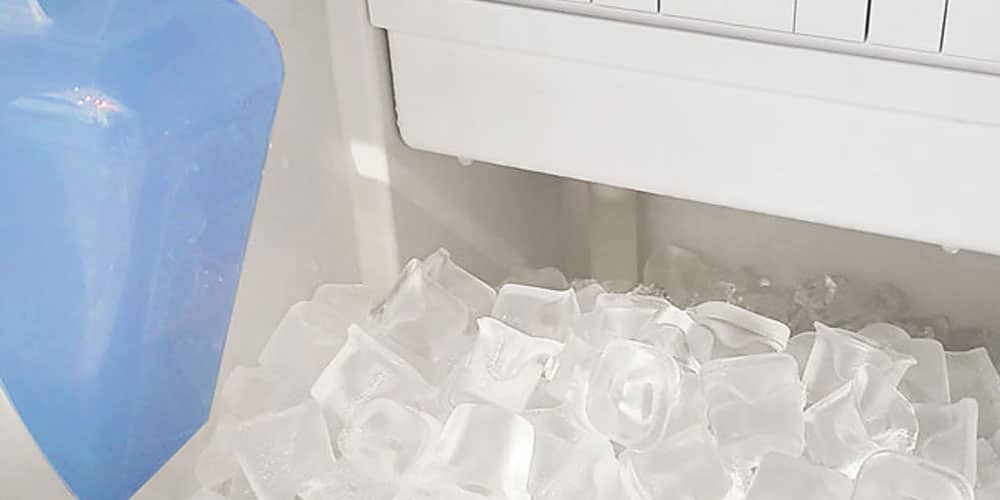

- Included: XOUIM1565SP ice maker, two handle styles and ice scoop, plus 9 ft of 3/8 in. ID drain hose
- Required: a cold water line, a dedicated 15 A, 115V grounded outlet and a drain within 8 ft of lift
Installation Notes
Plan the water line, drain and outlet before the cabinetry is built, and use a dedicated 15 A circuit without an extension cord. The pump model can lift drain water up to 8 ft; check local code for an air gap. XO rates it for 50 to 90 F use and says to keep it out of direct sun, rain and splashing; winterize it when nights approach 40 F, since freezing can damage the unit. In New York City, adding an outdoor outlet, water line or drain on a terrace or rooftop is work for licensed trades and often needs building or board approval. Book a design consultation and we will plan the water, drain and power.
Documentation
Frequently Asked Questions
How much ice does it make?
Up to 65 lb a day, with up to 27 lb stored in the bin.
Do I need a floor drain?
No. The factory pump can push drain water up to 8 ft to a drain above the unit.
Can it stay outside all winter?
No. XO says to winterize it when nights approach 40 F, because freezing can damage it.
What warranty does it have?
1 year parts and labor and 5 years on the compressor, which requires registration with XO.
Related reading: Outdoor Refrigerator and Ice Maker Buying Guide and Outdoor Kitchen Planning Guide.
Warranty
XO refrigeration warranty, per the XOUIM1565S owner's manual: 1 year parts and labor on the cabinet and all parts, and 5 years on the compressor, with a replacement compressor supplied free and the owner paying transportation and labor; the compressor warranty requires product registration. XO also offers a 90 day Love It or Leave It guarantee. Coverage is for the original purchaser at the original installation location and excludes commercial use and damage from improper installation, freezing or water, drain or power problems.
