XO 15 Inch Undercounter Indoor Nugget Ice Maker with Drain Pump
XO 15 Inch Undercounter Indoor Nugget Ice Maker with Drain Pump - Without Door/Handle Kit is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: 14 7/8 in. W x 22 25/32 in. D x 33 9/16 in. H

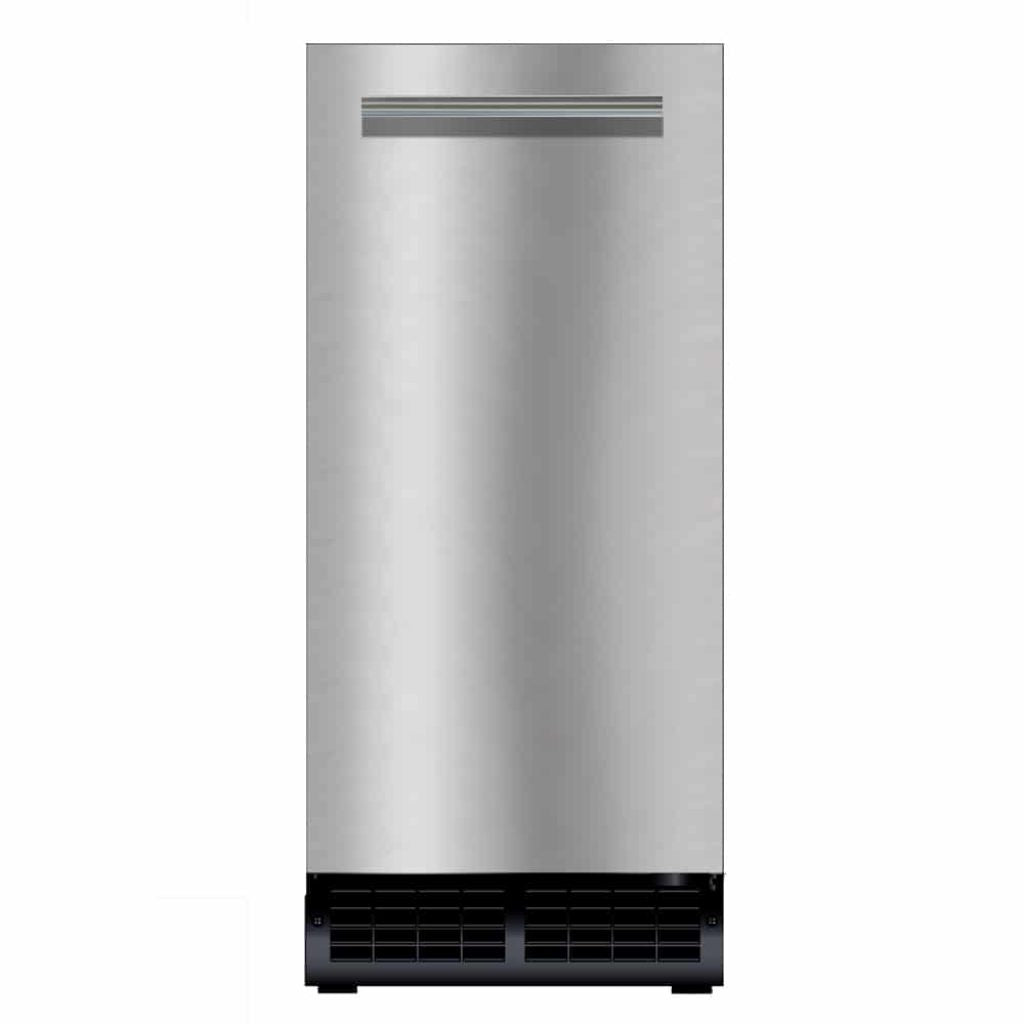

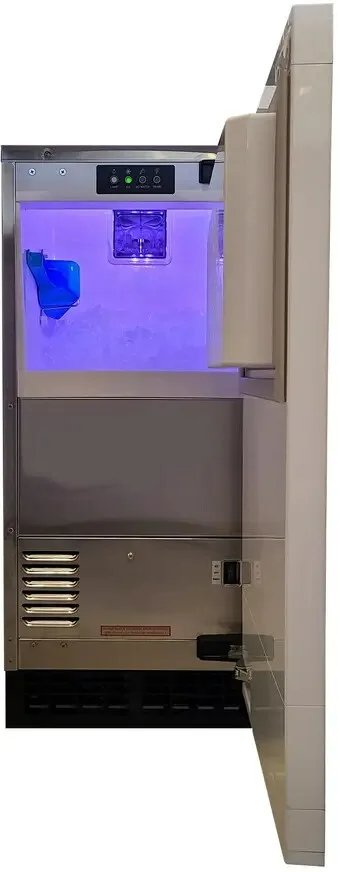

The XO 15-inch undercounter nugget ice maker makes the soft, chewable nugget ice that bartenders and home entertainers prefer, at up to 85 lb a day with a 25 lb bin. The drain pump is factory installed, so the unit can discharge to a drain above its own level instead of needing a gravity run. It is panel ready for your own cabinet front or the optional XO stainless steel door and handle kit, and it is rated for indoor use only.
Key Specifications
| Model | XOUIM1585NOP (factory drain pump) |
| Ice type | Nugget |
| Ice production | Up to 85 lb per day |
| Ice storage | 25 lb |
| Drain | Factory installed drain pump |
| Electrical | 115V, 60 Hz, 3.3 A, 550 W, dedicated 15 A grounded circuit |
| Power cord | 6.5 ft with low profile 90 degree flat plug |
| Controls | Digital touch controls, 6-color interior illumination |
| Ambient range | 50 to 100 degrees F (optimal 50 to 68 degrees F) |
| Rating | Indoor use only |
| Weight | 126 lb empty |
Dimensions and Cutout
| Unit | 14 7/8 in. W x 22 25/32 in. D x 33 9/16 in. H (without panel, per XO spec sheet) |
| Rough-in cutout | 15 1/4 in. W x 34 1/4 in. H minimum x 24 in. D (per XO spec sheet) |
| Door panel (custom) | 14 7/8 in. W, up to 3/4 in. thick, up to 20 lb |
Features

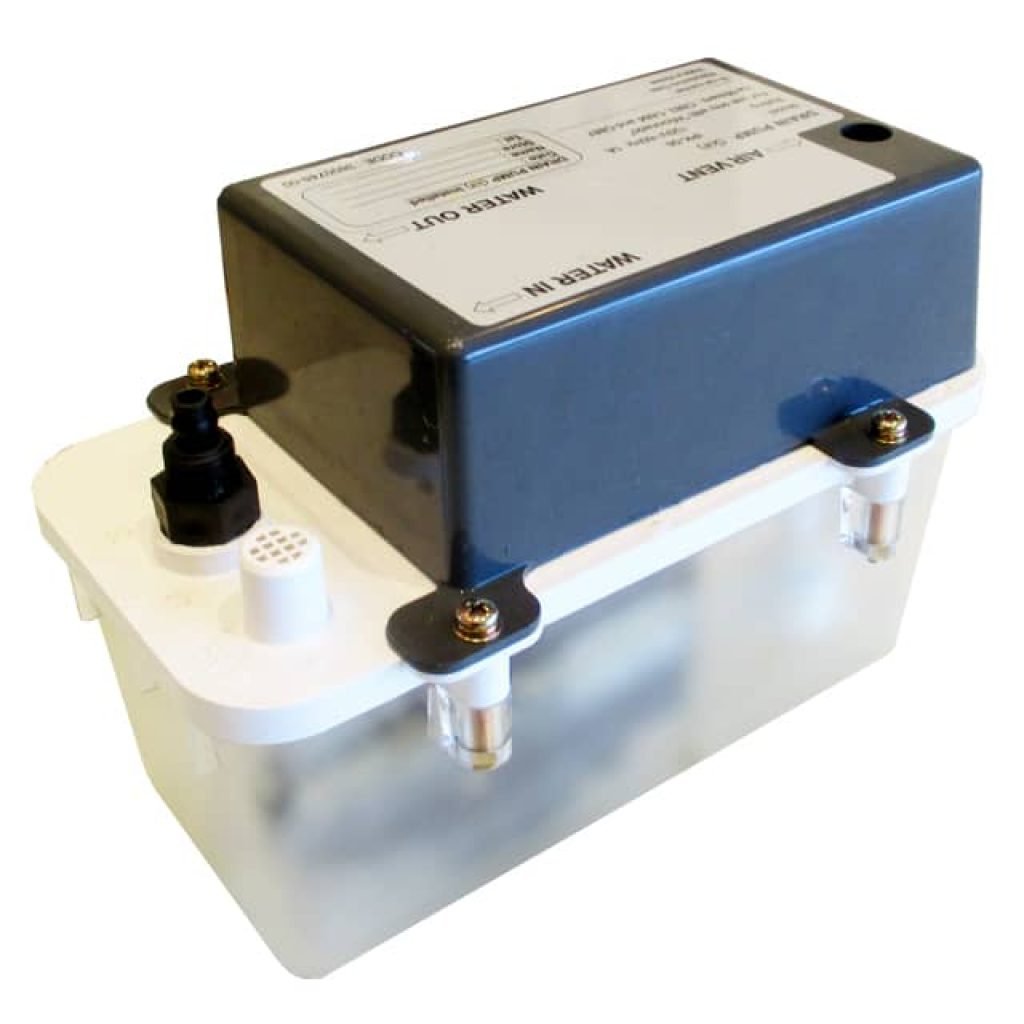

- Factory installed drain pump
- Articulated hinges for seamless cabinet integration

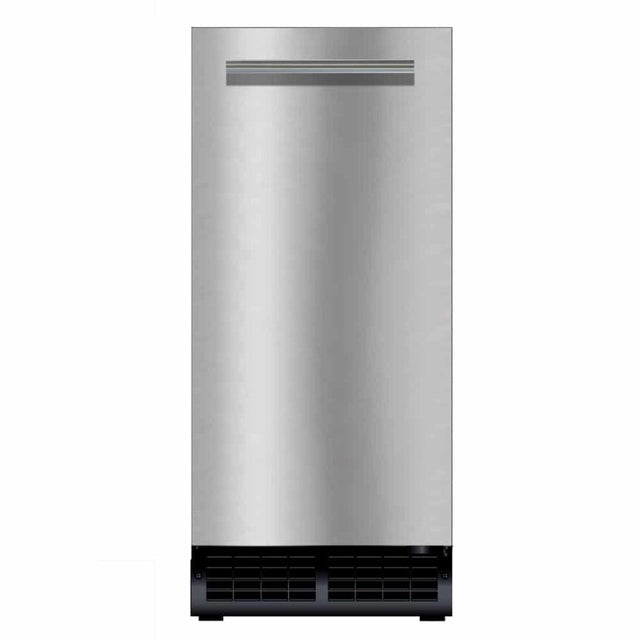

- Panel ready, or add the optional XO stainless steel door with a choice of Pro or Contemporary handles

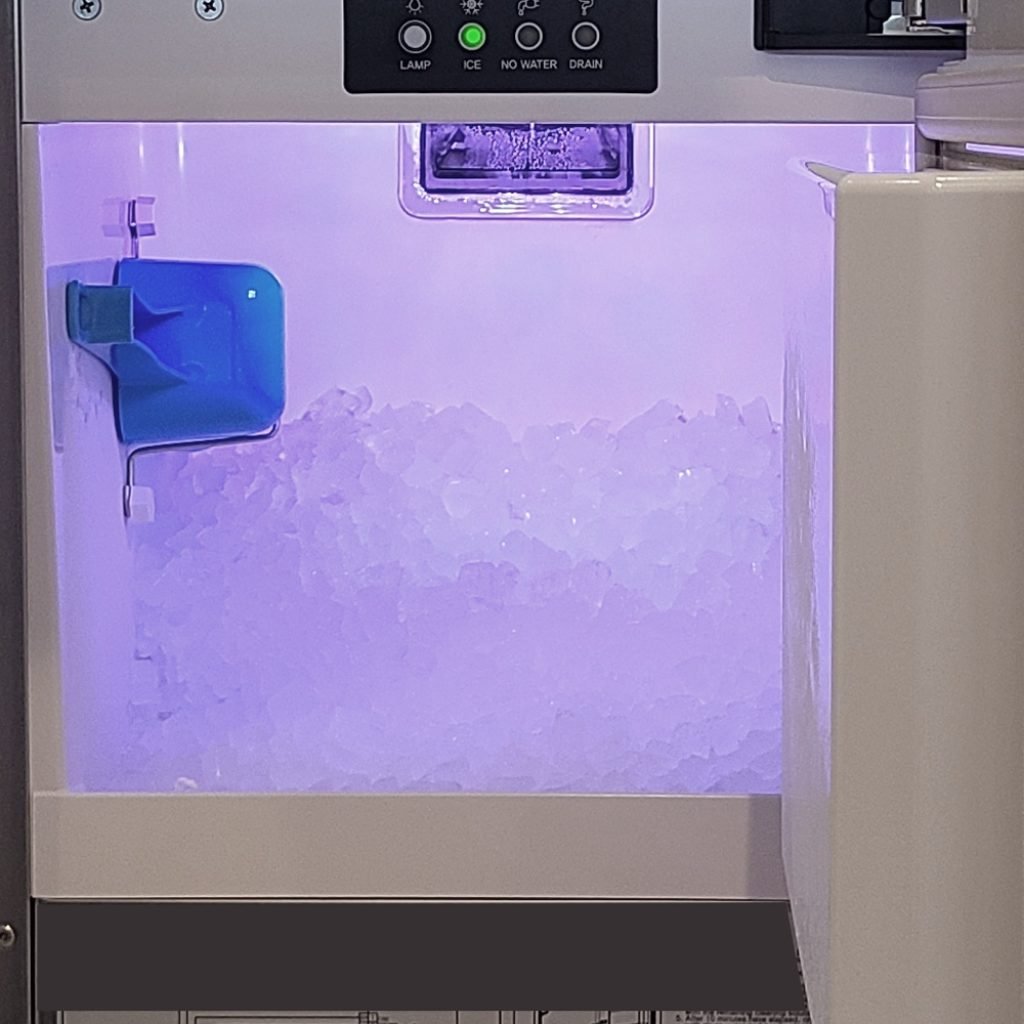

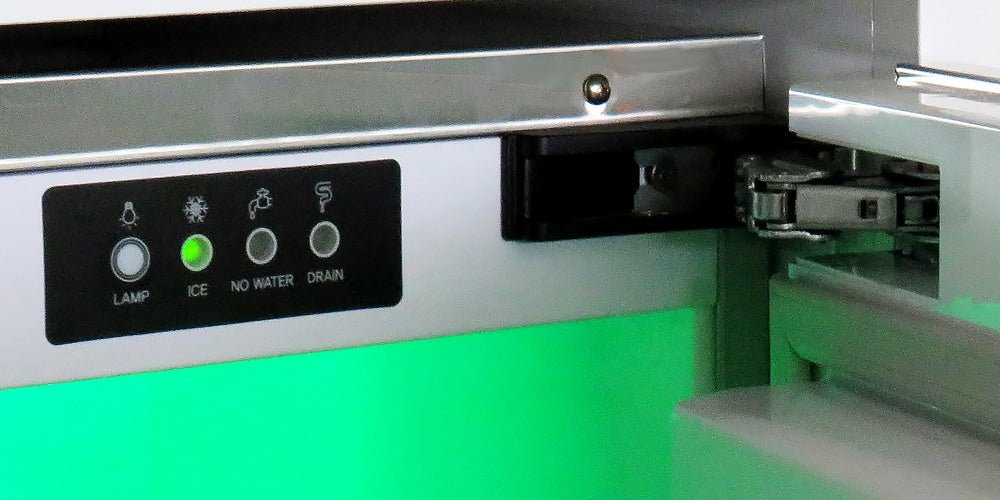

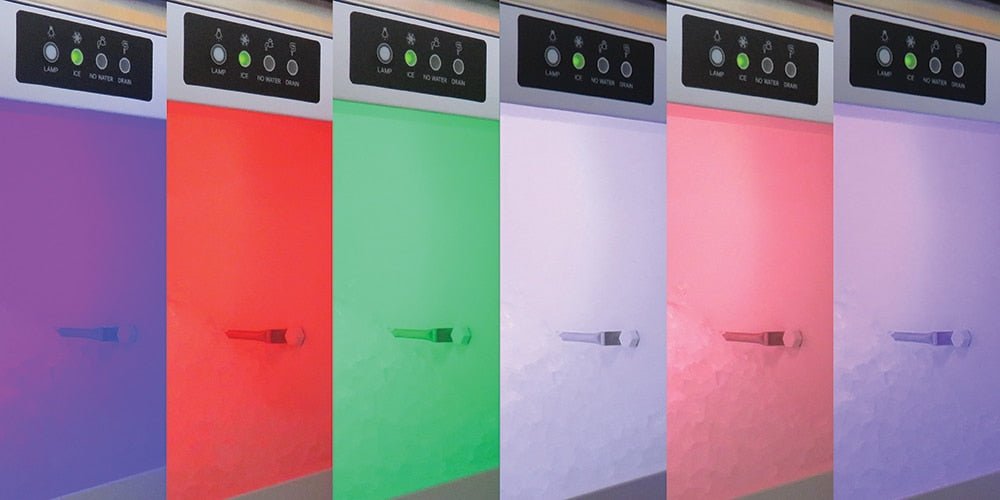

- Digital touch controls and 6-color interior illumination
- Pre-wired with a low profile 90 degree flat plug for tight installs

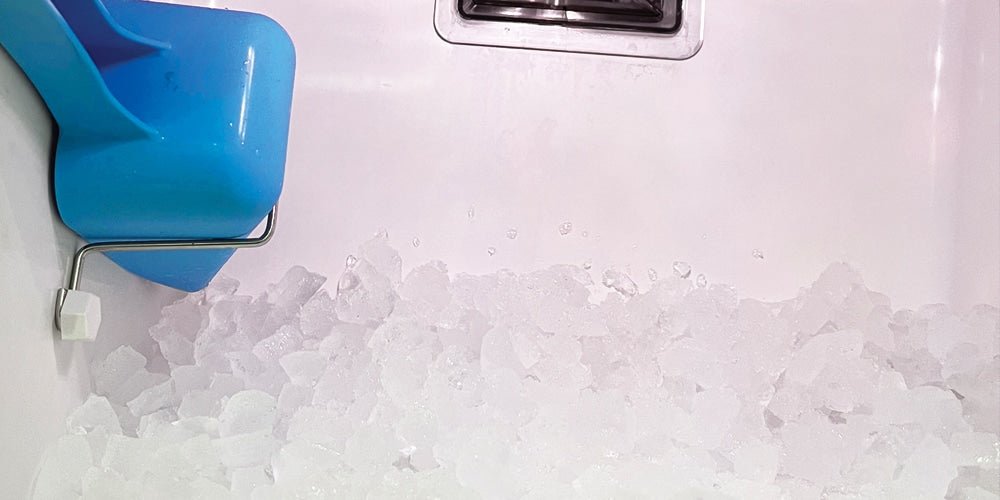

- Ice scoop stored in a holder inside the unit
What Is Included and What You Will Need
- Included: ice maker with factory drain pump, 9 ft of 3/8 in. drain hose, ice scoop and mounting hardware for a custom panel (per XO manual)
- Option: the With Door/Handle Kit variant adds the XOUIM15SD stainless steel door and handles
- You will need: a 1/4 in. cold water line with an isolation valve (20 to 80 psi); an inline water filter is recommended
- You will need: a drain with an air gap device and sanitary trap
- You will need: a dedicated 15 A grounded outlet; a licensed electrician is required in New York City
Installation Notes
The drain pump can discharge up to 8 ft above the unit through 3/8 in. tubing. Keep the toe kick vents and the front clear, leave the clearances shown in the XO manual, and leave room for the door handle if the hinge side is against a wall. This unit is indoor only; XO states that use outdoors voids the warranty. In New York City the dedicated circuit must be installed by a licensed electrician. Book a design consultation and we will help you plan the bar or kitchen layout.
Documentation
Frequently Asked Questions
Is this ice maker for outdoor use?
No. XO rates it for indoor use only. For outdoor kitchens, see our outdoor ice maker options.
Does a door panel come with it?
Not on the base variant. It is panel ready. The With Door/Handle Kit variant adds the XO stainless steel door and handles.
How high can the drain pump lift?
Up to 8 ft above the unit, per the XO manual.
What size panel can I use?
14 7/8 in. wide, up to 3/4 in. thick and 20 lb.
Related reading: Outdoor refrigerator and ice maker buying guide.
Warranty
Per the XO manual: 1-year parts and labor from the original purchase date, and 5 years on the compressor if the product is registered with XO. Compressor coverage does not include transportation or labor. Read the XO manual for full terms and exclusions.
