XO 24 Inch Dual Zone Wine Cooler Panel Ready Built-In Wine Cellar
XO 24 Inch Dual Zone Wine Cooler Panel Ready Built-In Wine Cellar - Left Hinge is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: 23-7/8 in. W x 34-1/8 in. H x 23-3/4 in. D with a 3/4 in. panel; rough-in 24 in. W x 34-1/4 in. H x 24 in. D (XO specification sheet)

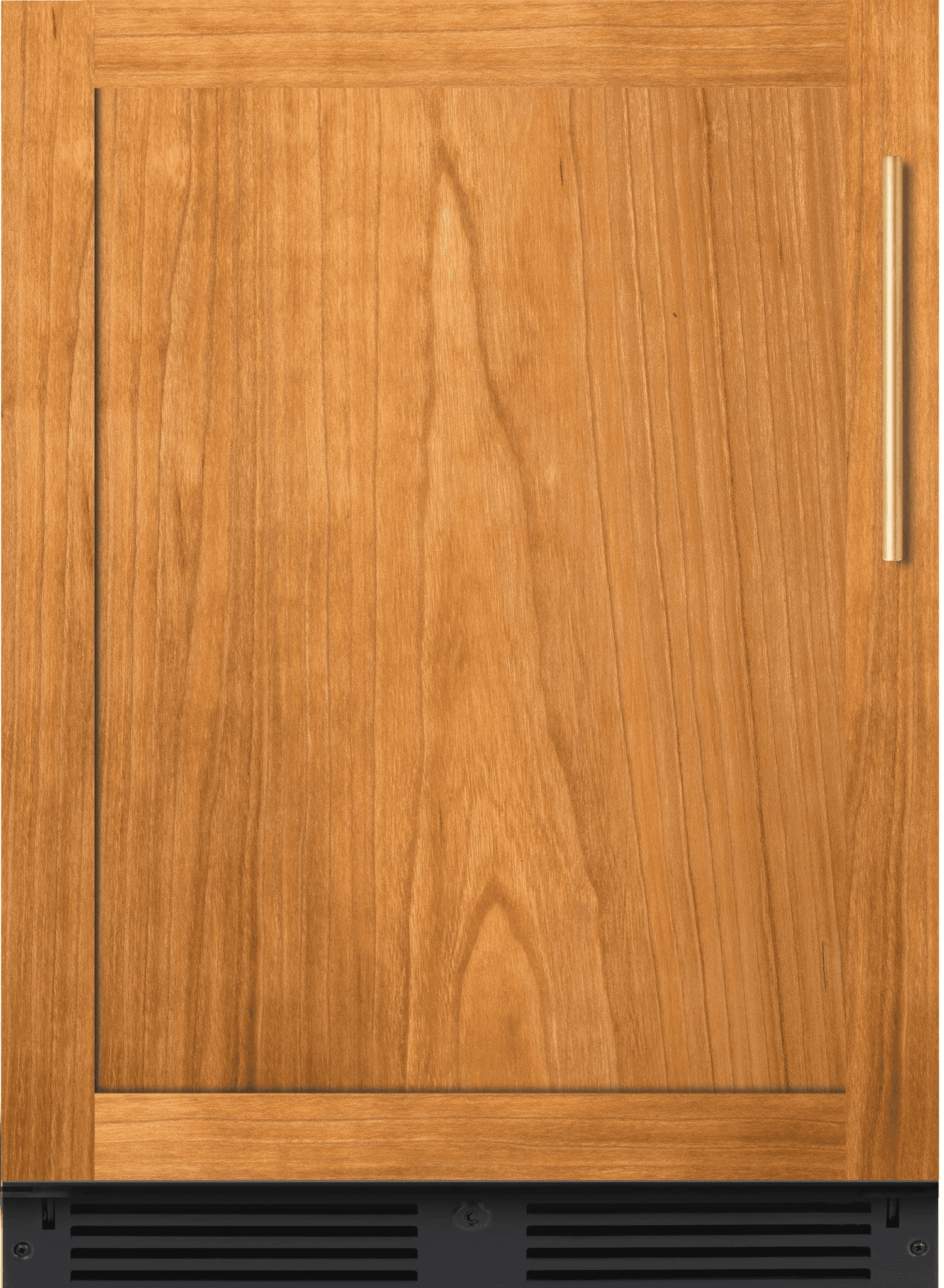

The XO XOU24WDZOF is a 24 in. full panel overlay dual zone wine cooler that disappears into the cabinetry: it takes a custom 3/4 in. wood panel on zero clearance hinges, so it installs flush with the surrounding doors. The upper zone keeps 16 bottles at 41 to 50 F and the lower zone stores 30 at 50 to 64 F.

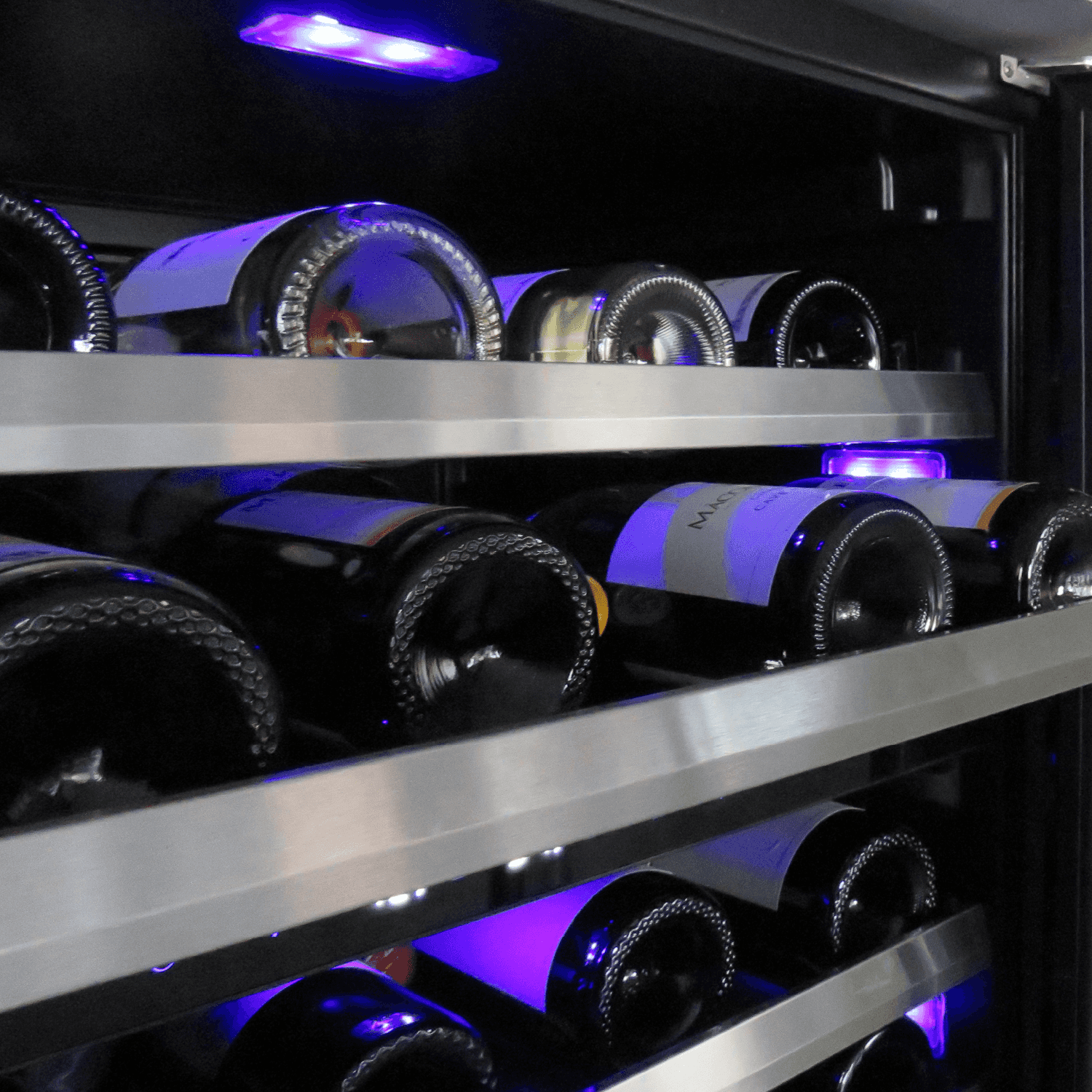

Racks fully extend while loaded, tri-color LED lighting and a secure lock come standard, and it runs at 39 dBA. The door is not reversible: XOU24WDZOFL is left hinged and XOU24WDZOFR is right hinged, selectable above.
Features
- Panel ready: accepts a 23-3/4 x 29-3/4 in. custom overlay panel
- Zero clearance hinges for flush integration
- Dual zone: 16 bottles at 41 to 50 F, 30 bottles at 50 to 64 F
- Full extension racks, tri-color LED lighting, secure lock
- Energy saver and Sabbath modes, 39 dBA
- ENERGY STAR (XO specification sheet)
Key Specifications
| Model | XOU24WDZOF: XOU24WDZOFL left hinge (UPC 814830014508), XOU24WDZOFR right hinge |
|---|---|
| Type | 24 in. undercounter dual zone wine cooler, full panel overlay, indoor |
| Capacity | 46 x 750 ml bottles: 16 upper (41 to 50 F), 30 lower (50 to 64 F) |
| Door | Panel ready overlay; zero clearance hinges (visible just above and below the panel); non-reversible |
| Electrical | 120V, 60 Hz, 4.35 A; 6-1/2 ft cord with low profile 90 degree flat plug |
| Refrigerant | R600a |
Dimensions, Rough-In and Panel (XO specification sheet)
| Width | 23-7/8 in. |
|---|---|
| Height | 34-1/8 in. |
| Depth | 23 in. cabinet; 23-3/4 in. with a 3/4 in. panel |

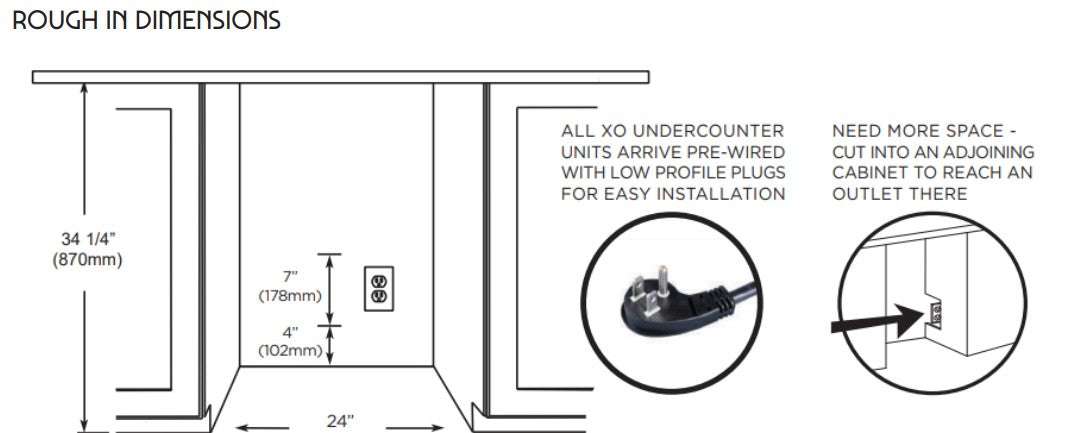

| Rough-in | 24 in. W x 34-1/4 in. minimum H x 24 in. D |

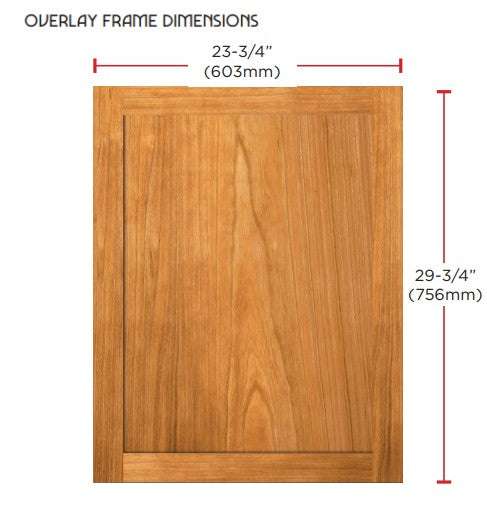

| Overlay panel | 23-3/4 in. W x 29-3/4 in. H, 3/4 in. thick |

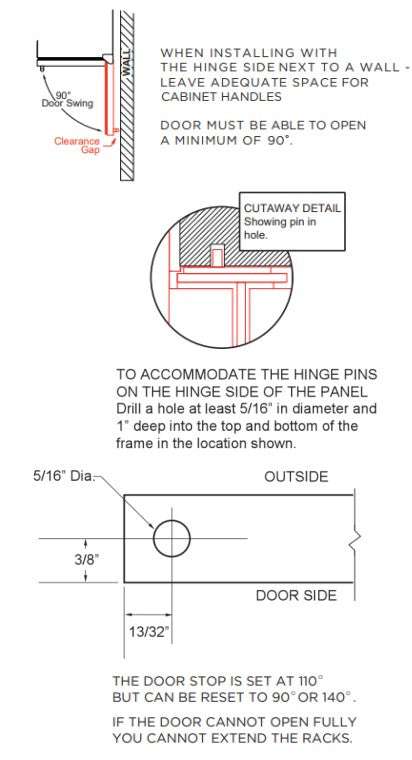

| Hinge pin holes | 5/16 in. diameter, 1 in. deep, top and bottom of the panel on the hinge side, per the XO drawing |
| Door stop | Set at 110 degrees; can be reset to 90 or 140 degrees |
What Is Included and What You Will Need
- Included: XOU24WDZOF wine cooler with overlay frame, wine racks, lock and keys
- Required: a custom 3/4 in. overlay panel, 23-3/4 x 29-3/4 in., made by your cabinetmaker
- Required: an indoor undercounter opening 24 in. wide, 34-1/4 in. high and 24 in. deep, with a grounded 120V outlet
Installation Notes
Build the opening 24 in. wide, at least 34-1/4 in. high and 24 in. deep. Have the cabinetmaker make a 23-3/4 x 29-3/4 in. panel and drill the hinge pin holes as the XO drawing shows. If the hinge side is next to a wall, leave room for the cabinet handles so the door opens at least 90 degrees; if it cannot open fully, the racks cannot extend. This is an indoor unit; it is not rated for outdoor installation. Book a design consultation to plan the cabinetry and panel.
Documentation
- XO XOU24WDZOF Panel Ready Dual Zone Wine Cooler Specification Sheet
- XO Wine Cooler and Beverage Center Use and Care Manual (2022)
- XO Refrigeration Brochure
Frequently Asked Questions
What size panel does it take?
23-3/4 in. wide x 29-3/4 in. high, 3/4 in. thick.
Is the panel included?
No. The custom panel is supplied by your cabinetmaker.
How many bottles does it hold?
46 standard 750 ml bottles across two zones.
Which hinge should I order?
XOU24WDZOFL for a left hinge or XOU24WDZOFR for a right hinge; the door is not reversible.
Related reading: Outdoor Refrigerator and Ice Maker Buying Guide and Outdoor Kitchen Planning Guide.
Warranty
XO undercounter refrigeration warranty, per the XO beverage center and wine cooler manual: 2 years parts and labor on the cabinet and all parts, and 5 years on the compressor, with a replacement compressor supplied free and the owner paying transportation and labor; the compressor warranty requires product registration with XO. XO also offers a 90 day Love It or Leave It guarantee. Coverage is for the original purchaser at the original installation location in the 48 continental United States and excludes commercial use.
