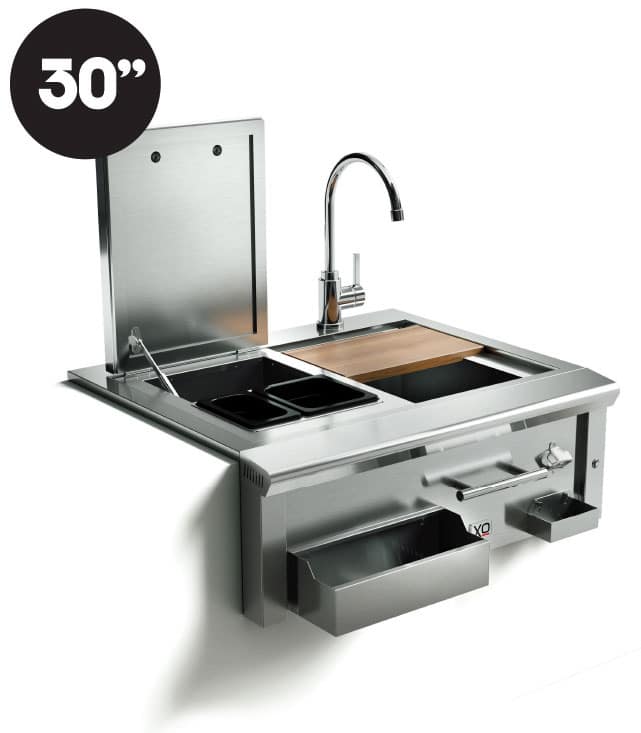

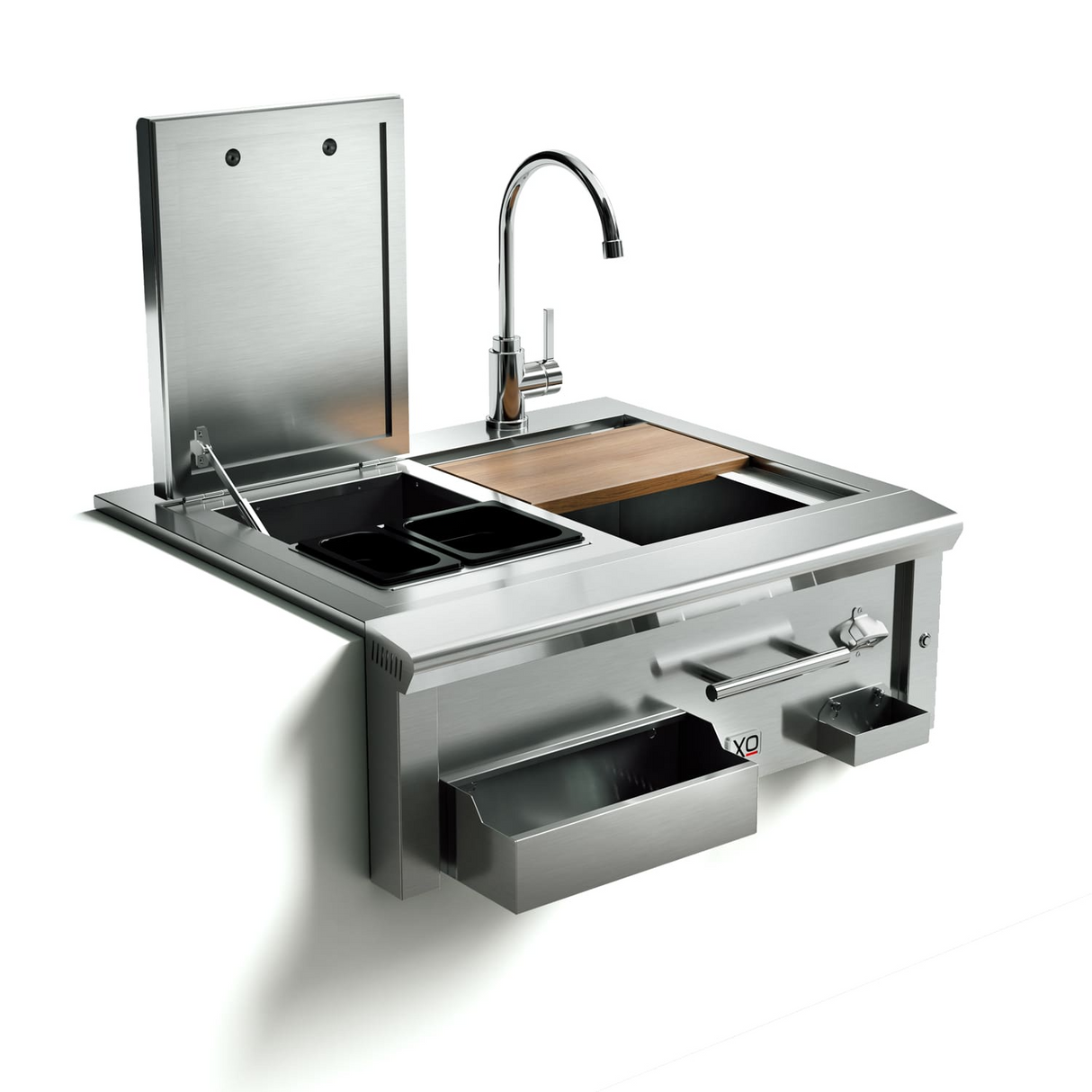

XO 30 Inch Cocktail Pro Station with Sink, Ice Bin, Chilled Bins, Faucet, Hand Towel Bar and Bottle Caddy
Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.
XO 30 Inch Cocktail Pro Station with Sink, Ice Bin, Chilled Bins, Faucet, Hand Towel Bar and Bottle Caddy - Without Cover is backordered and will ship as soon as it is back in stock.
Pickup available at Maspeth, NY Showroom
Usually ready in 2-4 days
- Local delivery or pick-up across NYC, Long Island, NJ and CT. Delivery is free on this item.
- Factory-authorized XO dealer. You keep the full manufacturer warranty.
- 30-day returns, no restocking fee.
- Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Free & Flat Rate Local Delivery
Free & Flat Rate Local Delivery
- Our team & trucks deliver locally within 60 miles of our showroom. (NYC Tri-State including all of Suffolk County)
- Orders Over $999 Ship Out Fast & Free
- Delivery typically takes 5 -7 days
- $49.95 Flat-Rate Local Shipping on orders under $999
- Setup & Assembly available for most items at checkout
Assembly & Installation
Assembly & Installation
Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!
Call for a free quote 877-692-3765
Visit our sister site to learn more about our showroom products like Direct Vent Gas Fireplaces, www.NYCFireplaces.com
Warranty
Warranty
Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.
Returns
Returns
- No-Restock Fees
- 30-Day Return Policy
- The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
- We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.
XO 30 Inch Cocktail Pro Station with Sink, Ice Bin, Chilled Bins, F...
XO 30 Inch Cocktail Pro Station with Sink, Ice Bin, Chilled Bins, Faucet, Hand Towel Bar and Bottle Caddy - Without Cover is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: 30 in. W x 27-7/16 in. D x 28-1/4 in. H to the top of the faucet (10-7/16 in. body below the counter); cutout 29-1/8 in. W x 24 in. D x 10-1/2 in. H (XO specification sheet)
The XO XOG30BARPRO Pro-Grade cocktail station builds a full outdoor bar into a 30 in. countertop cutout. An insulated ice compartment under a stainless steel cover holds up to 40 lbs. of ice, chilled garnish bins keep limes and cherries cold, and a hot and cold faucet serves the bar sink.
A bamboo cutting board and stainless drain board sit over the sink, and pulling the inserts reveals a 30 in. wide basin big enough for platters. Up front, a speed rail holds 1 liter bottles beside a towel bar and bottle opener, with blue LED bullnose lighting for evening service.
Features
- Insulated ice compartment with stainless steel cover, up to 40 lbs. of ice
- Chilled garnish bins
- Hot and cold faucet with bar sink; inserts lift out for a 30 in. wide basin
- Bamboo cutting board and stainless steel drain board
- Front speed rail for 1 liter bottles, towel bar and bottle opener
- Blue LED bullnose lighting
- Heavy-duty stainless steel, rated for outdoor use
Key Specifications
| Model | XOG30BARPRO |
|---|---|
| Type | Built-in drop-in cocktail station with sink and ice bin |
| Ice capacity | Up to 40 lbs. |
| Sink | Bar sink with hot and cold faucet; removable inserts open a 30 in. wide basin |
| Accessories | Garnish bins, bamboo cutting board, drain board, speed rail, towel bar, bottle opener |
| Lighting | Blue LED bullnose, low voltage transformer plugged into a GFI outlet |
| Drain | Drain assembly included; drain piping and trap by others |
| Rated use | Outdoor, residential use only |
| UPC | 814830011965 |
Dimensions and Cutout
| Width | 30 in. |
|---|---|
| Depth | 27-7/16 in. overall; 24-1/8 in. behind the front |
| Height | 28-1/4 in. to the top of the faucet; 10-7/16 in. body below the counter |
| Cutout | 29-1/8 in. W x 24 in. D x 10-1/2 in. H |
| Countertop support | At least 1/2 in. of overlap on the sides and rear; notch 1/2 in. wide where the countertop overhangs |
What Is Included and What You Will Need
- Included: XOG30BARPRO with ice bin cover, faucet, drain assembly, garnish bins, cutting board, drain board, speed rail, towel bar, bottle opener and LED transformer
- Optional, selectable above: XO XOGCOVERBAR vinyl cover
- Required: hot and cold water supply and a drain with trap, installed by a licensed plumber
- Required: a grounded GFI outlet inside the island for the LED transformer
Installation Notes
Cut the countertop to 29-1/8 in. wide and 24 in. deep with 10-1/2 in. of clear depth below, leaving at least 1/2 in. of overlap at the sides and rear so the unit hangs on its lip. Install the drain assembly before setting the station, have a licensed plumber pipe the drain through a trap to code, and mount the LED transformer inside the island away from water. Drain the lines before freezing weather. In New York City, adding an outdoor outlet, water line or drain on a terrace or rooftop is work for licensed trades and often needs building or board approval. Book a design consultation to plan the island, plumbing and power.
Documentation
Frequently Asked Questions
How much ice does it hold?
Up to 40 lbs. in the insulated compartment.
Does it need hot water?
The faucet is hot and cold, so plan both supplies along with a drain and trap.
What cutout does it need?
29-1/8 in. wide, 24 in. deep and 10-1/2 in. high, per XO's specification sheet.
Does it need power?
Yes, for the LED lighting. The transformer plugs into a grounded GFI outlet inside the island.
Related reading: Outdoor Kitchen Planning Guide and Outdoor Refrigerator and Ice Maker Buying Guide.
Warranty
XO limited warranty for residential use, per the XOG30BARPRO care and use manual: lifetime parts coverage on the fabricated stainless steel housing and 2 years on all other components. Coverage is parts only, with the owner paying labor, installation and shipping. Common area use, such as multi-dwelling condos and apartments, carries a 180 day warranty. Coverage is for the original purchaser in the continental United States and Canada, requires online registration within 90 days, and excludes discoloration, surface scratches and minor surface rust.
