XO Pro-Grade 30 Inch Built-In Griddle with 2 Burners
XO Pro-Grade 30 Inch Built-In Griddle with 2 Burners - Natural Gas / Without Cover is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: 30 in. W x 25-5/16 in. D x 11-9/16 in. H; cutout 28-3/4 in. W x 24 in. D x 10-7/8 in. H (XO specification sheet)
The XO Pro-Grade 30 in. built-in griddle (XOGRIDDLE30) gives an outdoor kitchen a flat-top for smash burgers, fajitas, fried rice, pancakes and vegetables. Two independently controlled 304 stainless steel U-shaped burners put out 18,000 BTU each, 36,000 BTU in all, across a 495 sq. in. stainless steel cooking surface with room for about 22 burgers.

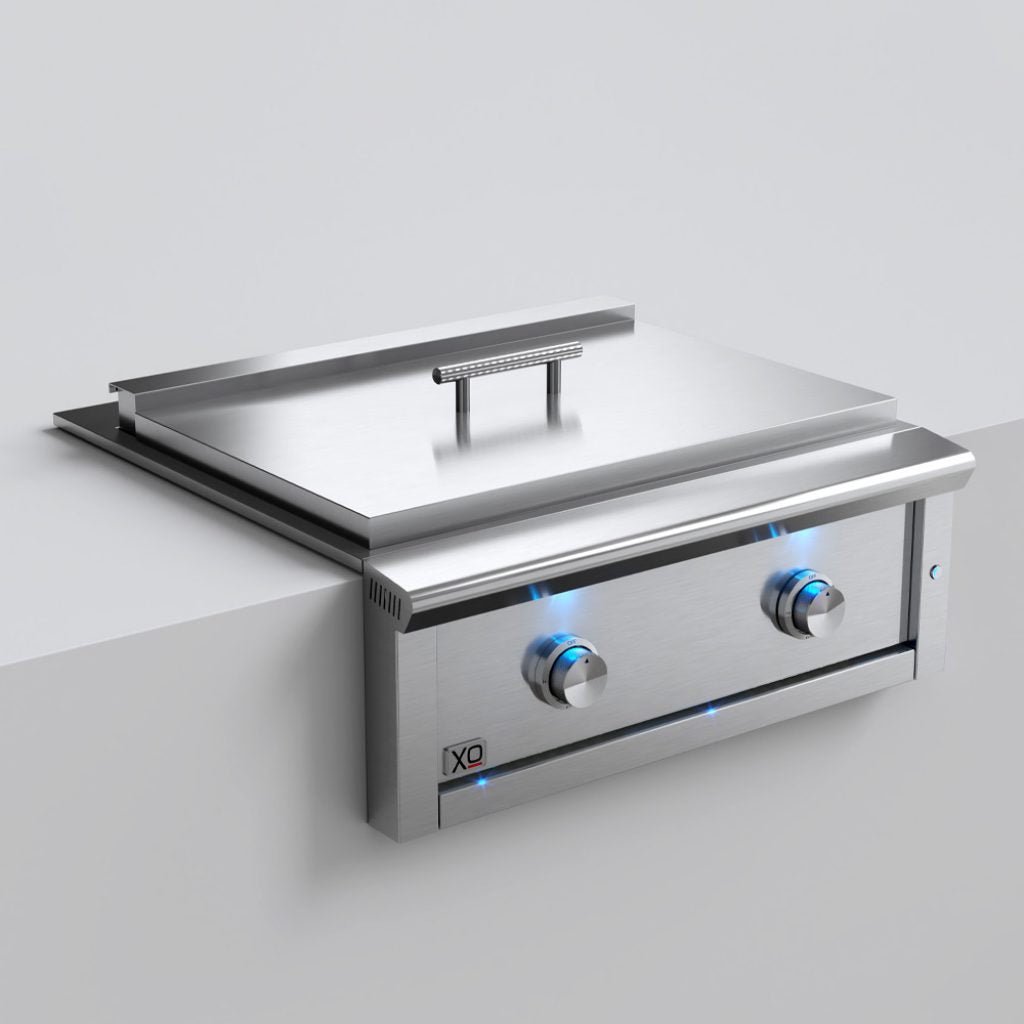

Flame Thrower ignition lights without electricity, blue LEDs illuminate the knobs, and a built-in grease trough keeps cleanup simple. A stainless steel lid covers the griddle when it is not in use. Choose natural gas or propane, with or without the vinyl cover, above.
Features
- Two 18,000 BTU 304 stainless U-burners, 36,000 BTU total
- Two independent cooking zones
- 495 sq. in. 304 stainless steel cooking surface, about 22 burgers
- Flame Thrower ignition, no electricity needed to light
- Blue LED control knob illumination
- Built-in grease trough
- Stainless steel lid
- ETL certified
Key Specifications
| Model | XOGRIDDLE30 (store SKUs XOGRIDDLE30N natural gas, XOGRIDDLE30L propane) |
|---|---|
| Type | 30 in. built-in gas griddle |
| Burners | 2 x 304 stainless steel U-tube, 18,000 BTU each, 36,000 BTU total |
| Cooking surface | 495 sq. in. (XO specification sheet), 304 stainless steel |
| Ignition | Flame Thrower, no electricity needed |
| Lighting | 12 VDC blue LED knobs; requires a 115V GFI outlet |
| Gas | Natural gas or propane; XO recommends 3/4 in. supply piping for natural gas |
| Construction | 304 welded, polished stainless steel |
| Certification | ETL |
Dimensions and Cutout
| Width | 30 in. |
|---|---|
| Depth | 25-5/16 in. |
| Height | 11-9/16 in. |
| Cutout, non-combustible island | 28-3/4 in. W x 24 in. D x 10-7/8 in. H |
| Cutout with XOG30JACKET liner | 31-1/4 in. W x 25-3/4 in. D x 12 in. H |
| Countertop overhang | Notch both corners of the cutout to the depth of the overhang |
What Is Included and What You Will Need
- Included: XOGRIDDLE30 griddle with stainless steel lid
- Optional, selectable above: XO XOGCOVERGRID vinyl cover
- Required: a non-combustible island with the cutout above, or XO's XOG30JACKET insulated liner when combustible materials are present
- Required: a gas supply run by a licensed installer and a 115V GFI outlet for the LED lighting
Installation Notes
Install the griddle in a cross-ventilated, non-combustible island with a 28-3/4 in. wide, 24 in. deep and 10-7/8 in. high cutout; any combustible construction requires XO's XOG30JACKET liner and its larger 31-1/4 x 25-3/4 x 12 in. cutout. XO says never to install it in an enclosed space, under unprotected overhead combustibles, or in an elevated location without approval from local code authorities. In New York City, gas grills on terraces and rooftops are regulated by the FDNY and the Department of Buildings, gas piping must be run by a licensed master plumber, and propane cylinder use is heavily restricted, so we review the space before quoting. Book a design consultation to plan the island, cutout and gas run.
Documentation
Frequently Asked Questions
How many BTU is it?
36,000 BTU from two 18,000 BTU stainless U-burners, each with its own control.
What cutout does it need?
28-3/4 in. W x 24 in. D x 10-7/8 in. H in a non-combustible island, or 31-1/4 x 25-3/4 x 12 in. with the XOG30JACKET liner.
Does it need electricity?
Only for the blue LED knob lights. Ignition works without power.
Is a lid included?
Yes. A stainless steel lid is included; the vinyl weather cover is optional above.
Related reading: Side Burner, Power Burner and Griddle Guide and Outdoor Kitchen Planning Guide.
Warranty
XO limited warranty for residential use, per the XO griddle owner's manual: lifetime parts coverage on the stainless steel burners and fabricated stainless steel housing; 5 years on stainless steel grates, drip pans and gas valves; and 2 years on all other components. Coverage is parts only, with the owner paying labor, installation and shipping. Common area use, such as multi-dwelling condos and apartments, carries a 180 day warranty. Coverage is for the original purchaser in the continental United States and Canada, requires online registration within 90 days, and excludes discoloration and minor surface rust.
