Delta Heat  |  SKU: DHSB1D-DN

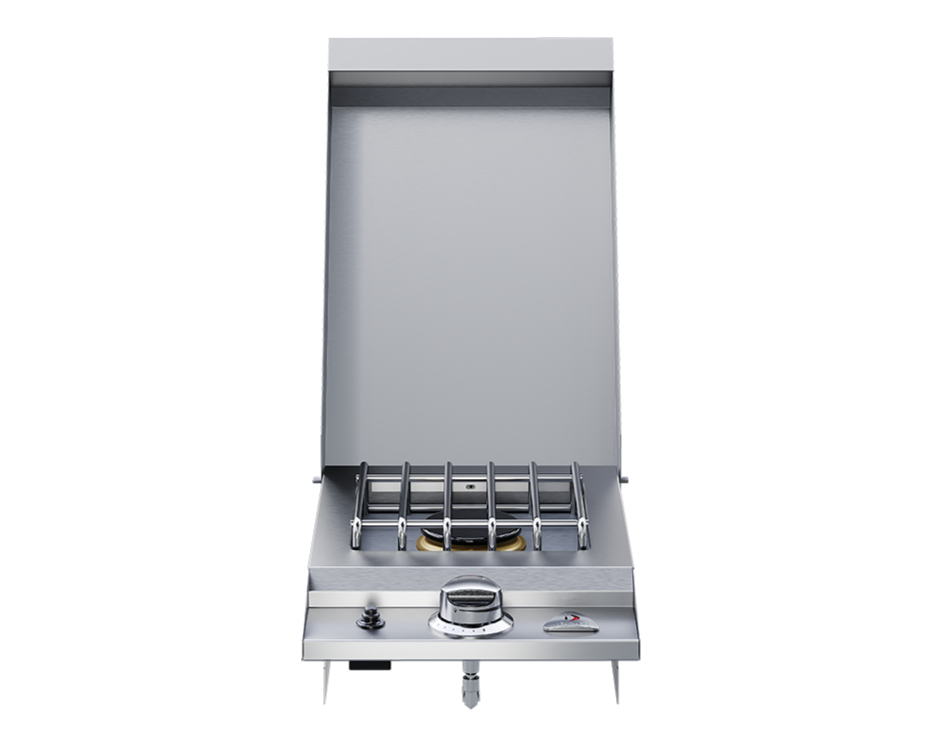

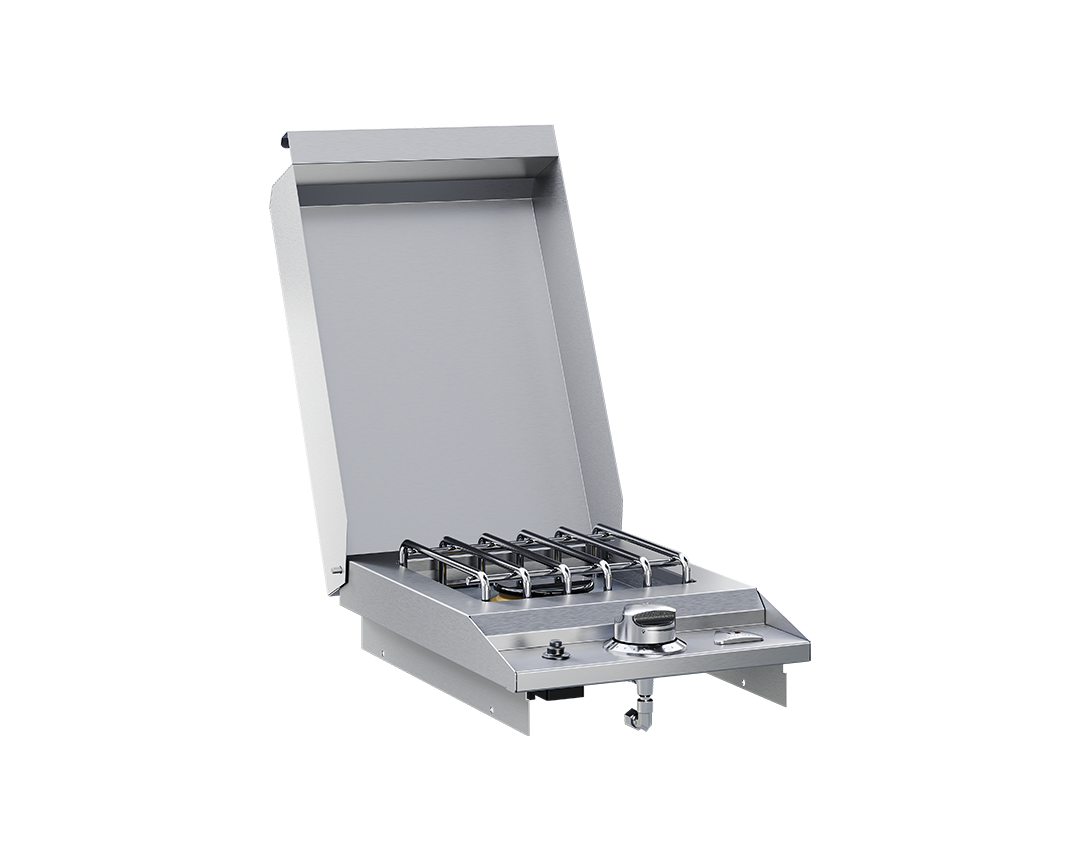

Delta Heat Drop-In Gas Single Side Burner

$949.00 $1,103.49

Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.

Most items ship within 1 business day. Manufacturer-direct items may take up to 2 weeks. Call us before ordering if needed immediately. 718-326-4328

Pickup available at Maspeth, NY Showroom

Usually ready in 2-4 days
400+ five-star Google reviews
  • Flat-rate shipping from $19.95. Free on orders over $999.
  • Factory-authorized Delta Heat dealer. You keep the full manufacturer warranty.
  • 30-day returns, no restocking fee.
  • Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Questions about fit, venting or power? Talk to the team that installs it. Mon to Fri 9 to 5, Sat 10 to 3.
Call 718-326-4328 Free Consultation

Free & Flat Rate Shipping
  • Orders Over $999 Ship Out Fast & Free
  • Delivery typically takes 5 -7 transit days
  • $19.95-$99.95 Flat-Rate Shipping on orders under $999
  • Our team & trucks deliver locally within 60 miles of our showroom. (Tri-State NY,NJ,CT including all of Suffolk County)
  • Free Shipping Applies to Contiguous US only - See our shipping page for exclusions e.g. ethanol fuel

Assembly & Installation

Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!

WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW

Call for a free quote 718-326-4328

Warranty

Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.

Returns
  • No-Restock Fees
  • 30-Day Return Policy
  • The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
  • We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.

Description

Overall Dimensions: 12 x 17 x 9 in (W x D x H), current listing

The Dometic Delta Heat DHSB1D is a drop-in single side burner for an outdoor kitchen: one sealed burner under a stainless steel top cover, set into the countertop next to the grill for sauces, sides or a pot of corn. Delta Heat builds it in 304 stainless steel in the USA, with battery spark ignition so it needs no electrical connection.

Features

  • 13,500 BTU sealed burner (Delta Heat 2024 catalog)
  • Stainless steel top cover protects the burner when not in use
  • Battery powered electronic ignition (AAA battery, per the manual)
  • 304 stainless steel, made in USA (Delta Heat catalog)
  • Natural gas or propane versions

Key Specifications

Model / SKU Dometic Delta Heat DHSB1D; DHSB1D-DN (natural gas), DHSB1D-DL (propane)
Burner 1 sealed burner, 13,500 BTU (2024 catalog)
Ignition Battery electronic, 1.5 VDC
Gas supply 3/4 in ID line, 1/2 in NPT female inlet
LP regulator Supplied, set to 11 in WC, for a 20 lb cylinder (manual)
Weight 19 lb, current listing

Dimensions and Cutout

Overall 12 in W x 17 in D x 9 in H (current listing)
Cutout 10-5/8 in W x 16-1/4 in D (Delta Heat catalog)
Clearance 12 in minimum all around, combustible or non-combustible (catalog); not under unprotected overhead combustibles (manual)

What Is Included and What You Will Need

  • Delta Heat DHSB1D side burner with stainless top cover, for the gas type you choose
  • You will need: a gas supply to code (or a 20 lb cylinder for propane), a countertop cutout of 10-5/8 x 16-1/4 in, and a AAA battery

Optional Accessories

Installation Notes

Cut a 10-5/8 x 16-1/4 in opening and keep 12 in of clearance all around, per the Delta Heat catalog. Gas connections must be made by a qualified technician to local code or ANSI Z223.1/NFPA 54, leak tested before use, and the burner is for outdoor use only. Order the version that matches your gas; the rating plate must match the supply.

In New York City, gas piping to an outdoor kitchen needs a licensed master plumber, and rooftop or terrace kitchens usually need building approval.

Planning the rest of the island? Book a design consultation.

Documentation

Frequently Asked Questions

Does it need electricity?

No. Ignition runs on a battery (1.5 V, AAA per the manual).

How much clearance does it need?

12 in all around, per the Delta Heat catalog.

Natural gas or propane?

Both are offered; choose the version that matches your supply.

Related reading: Side burner, power burner and griddle guide, Outdoor kitchen planning guide.

Warranty

Delta Heat warrants its outdoor side burners and all component parts against defects in materials and workmanship under normal residential use for one year from the original date of purchase, with a ninety (90) day warranty for residential plus settings such as bed and breakfast inns, private clubs and multi-dwelling condos; commercial use is excluded. The part is repaired or replaced free, with the owner paying labor, installation and shipping. Registration and proof of purchase are required (Delta Heat side burner manual).
