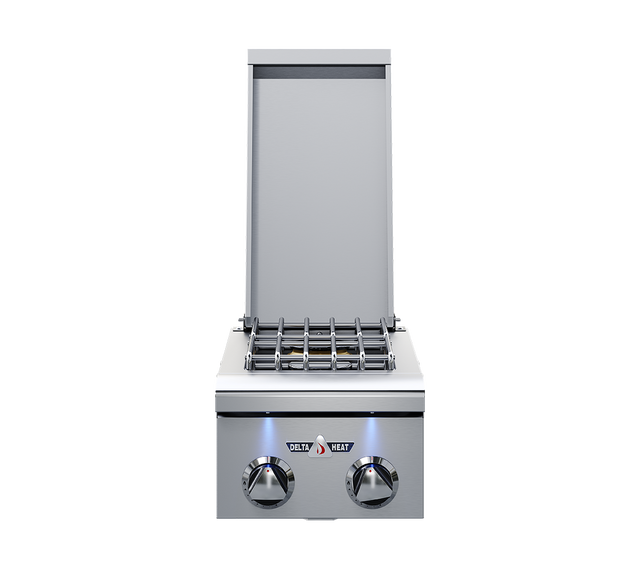

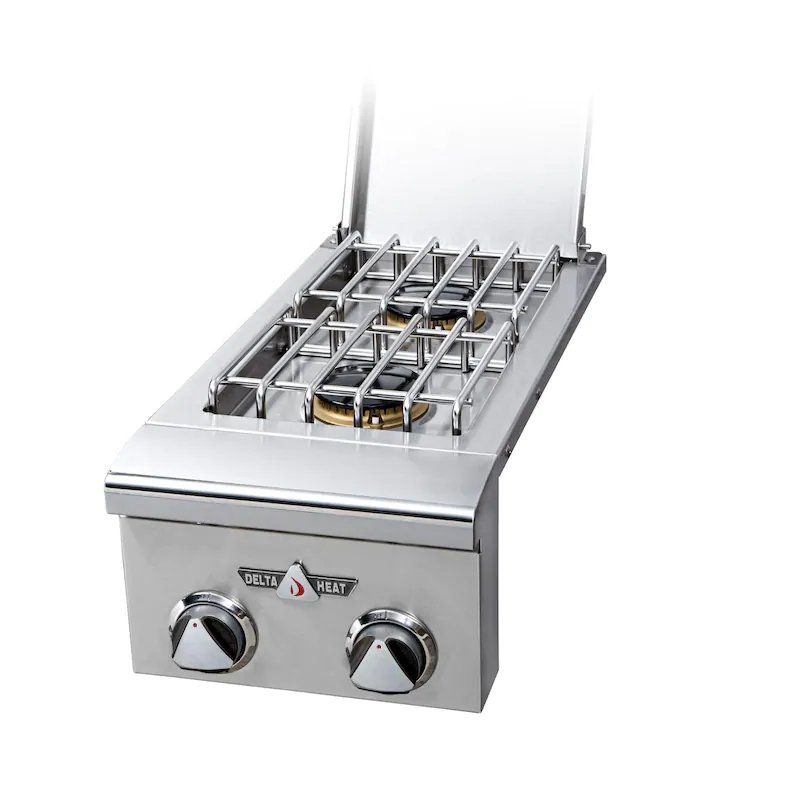

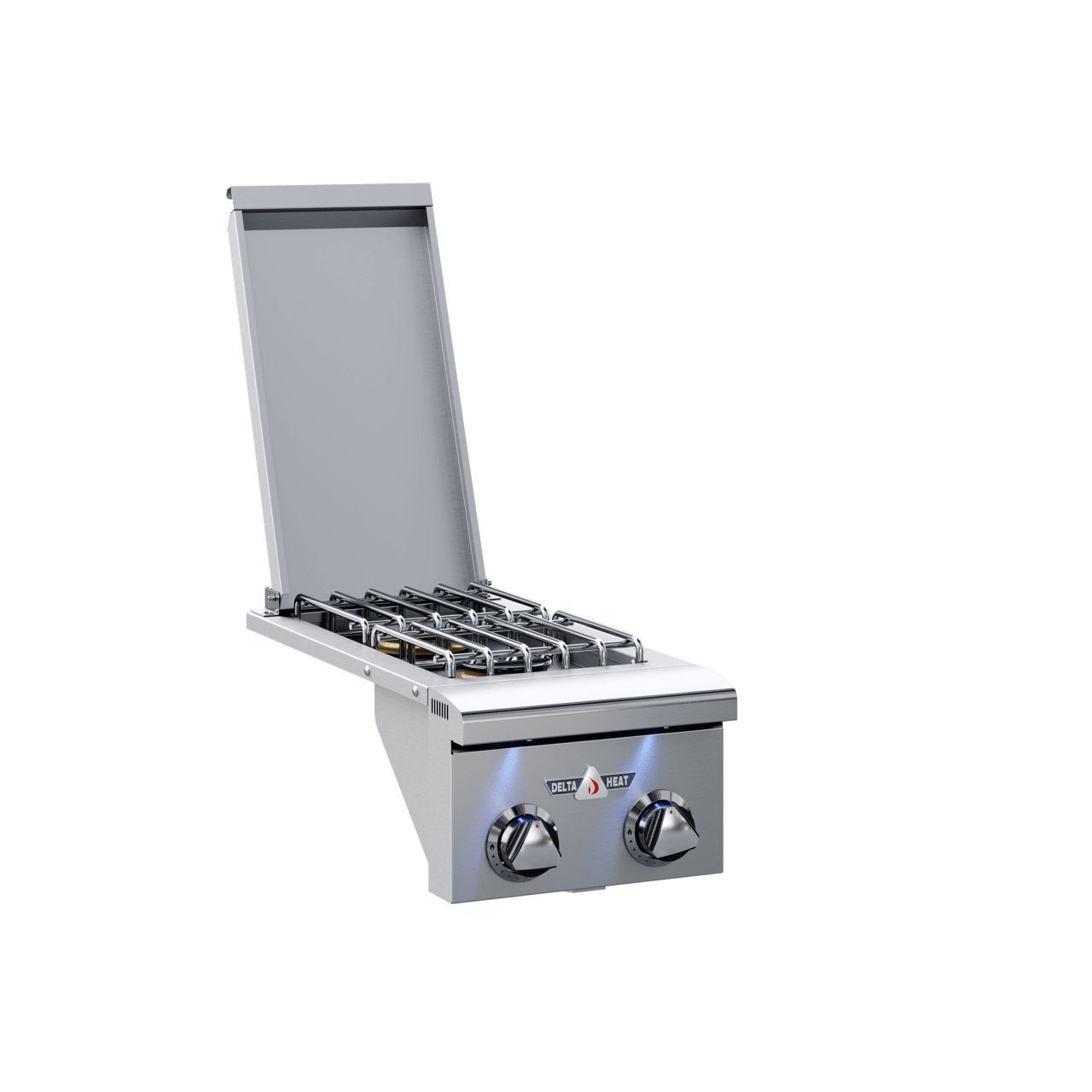

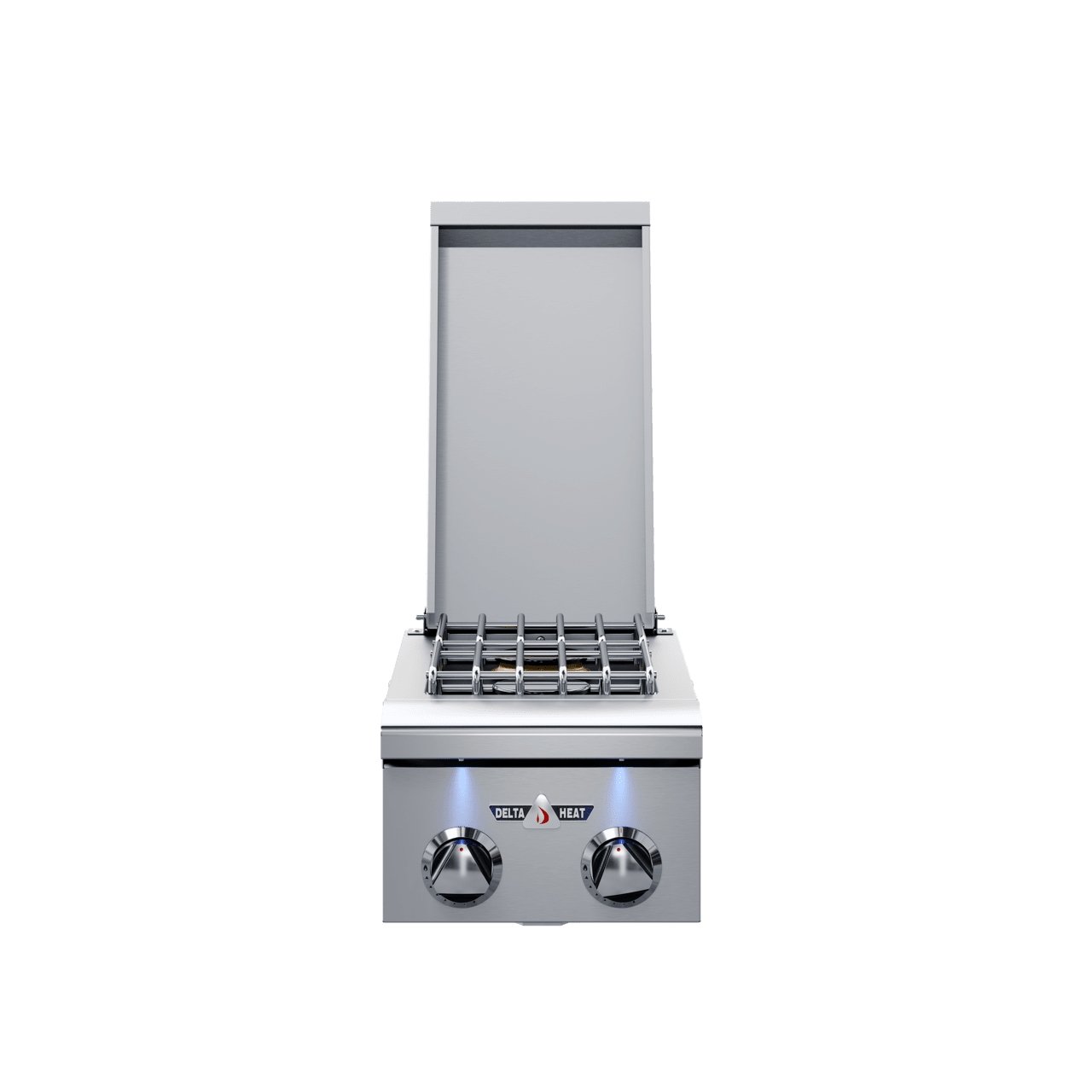

Delta Heat Built-In Gas Double Side Burner
Delta Heat Built-In Gas Double Side Burner - Natural Gas / Stainless Steel is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: 12 x 20.5 in (W x D) overall, per the Delta Heat manual
The Delta Heat double side burner drops into the outdoor kitchen countertop beside the grill and adds two sealed 16,000 BTU burners for sauces, sides and a pot of corn while the grill handles the main course. It is built in 304 stainless steel with a matching lid, battery spark ignition and LED-lit knobs that can be powered from a Delta Heat grill, and it comes in natural gas or propane with stainless, black or white trim.
Features
- Two sealed 16,000 BTU burners (32,000 BTU total), per the current listing
- Sealed burner pan resists spills and the weather and is easy to clean
- Stainless steel lid closes over the burners when not in use
- Battery-powered spark ignition: push and turn the knob to light
- LED knob lights powered through a wire connection to a Delta Heat grill
- 304 stainless steel body with polished accents; black and white trim versions available
- Natural gas or propane, factory built for the gas you order
Key Specifications
| Model / SKU | Delta Heat DHSB2 double side burner: DHSB2-DN / DHSB2-DL (stainless), DHSB2-KDN / DHSB2-KDL (black), DHSB2-WDN / DHSB2-WDL (white); N = natural gas, L = propane |
| Burners | 2 sealed burners, 16,000 BTU each (current listing) |
| Fuel | Natural gas or propane (LP); factory set, rating plate inside the unit |
| Gas pressure | Regulator set at 4 in WC (natural gas); 11 in WC LP regulator supplied (Delta Heat manual) |
| Ignition | Battery spark (9 V battery for DHSB2, per the manual) |
| Material | 304 stainless steel |
| Weight | 29 lb (current listing) |
Dimensions and Cutout
| Overall (W x D) | 12 x 20-1/2 in (Delta Heat manual) |
| Countertop cutout | 10-5/8 in W x 19-3/4 in D x 7-1/4 in H (Delta Heat manual) |
| Clearance to combustibles | 12 in from the back and sides (Delta Heat manual) |
What Is Included and What You Will Need
- Delta Heat DHSB2 double side burner with stainless lid, in the selected fuel and trim
- LP models: factory-supplied regulator and hose for a 20 lb propane cylinder
- You will need: a countertop cutout, a gas line with an accessible shutoff valve (natural gas) or a 20 lb propane cylinder in a vented enclosure, and a licensed gas installer
Optional Accessories
- Delta Heat 32-Inch 3-Burner Built-In Gas Grill - DHBQ32G
- Delta Heat 38-Inch 3-Burner Outdoor Built-In Gas Grill
- Delta Heat 26-Inch 2-Burner Built-In Gas Grill
Installation Notes
Order the fuel your site has; the burner is set at the factory for natural gas or propane and the rating plate must match the supply. Keep 12 in of clearance from the back and sides to combustible construction, never install it under an unprotected combustible overhead, and keep the gas shutoff accessible. Propane enclosures need ventilation openings, and the factory regulator and hose must be used.
In New York City, gas piping to an outdoor kitchen requires a licensed master plumber and a DOB permit, and roof or terrace installations usually need building approval.
Planning a side burner next to your grill? Book a design consultation.
Documentation
- Delta Heat Side Burner Use and Care Manual (DHSB1D-C, DHSB2-C; P/N 18778J)
- Delta Heat Cutout Dimensions (earlier edition)
Frequently Asked Questions
How do the knob lights get power?
A wire under the burner plugs into the matching connection on a Delta Heat grill, which powers the LED knob lights.
Can I convert natural gas to propane later?
Order the correct fuel. Delta Heat builds each burner for one gas type and the rating plate must match the supply.
What cutout does it need?
10-5/8 in W x 19-3/4 in D x 7-1/4 in H, per the Delta Heat manual.
Related reading: Side burner, power burner and griddle guide, Outdoor kitchen planning guide.
Warranty
Delta Heat warrants the side burner and all of its component parts against defects in materials and workmanship under normal residential use for one year from the original date of purchase; the part is repaired or replaced free of charge and the owner pays labor, installation and shipping. In multi-user settings such as bed and breakfast inns, private clubs and multi-dwelling condos and apartments the term is 90 days, and commercial locations are excluded. Coverage is for the original owner in the continental United States and Canada, and rust, discoloration and surface scratches are excluded. See the manual for full terms.
