Fire Magic  |  SKU: E790i-9E1P

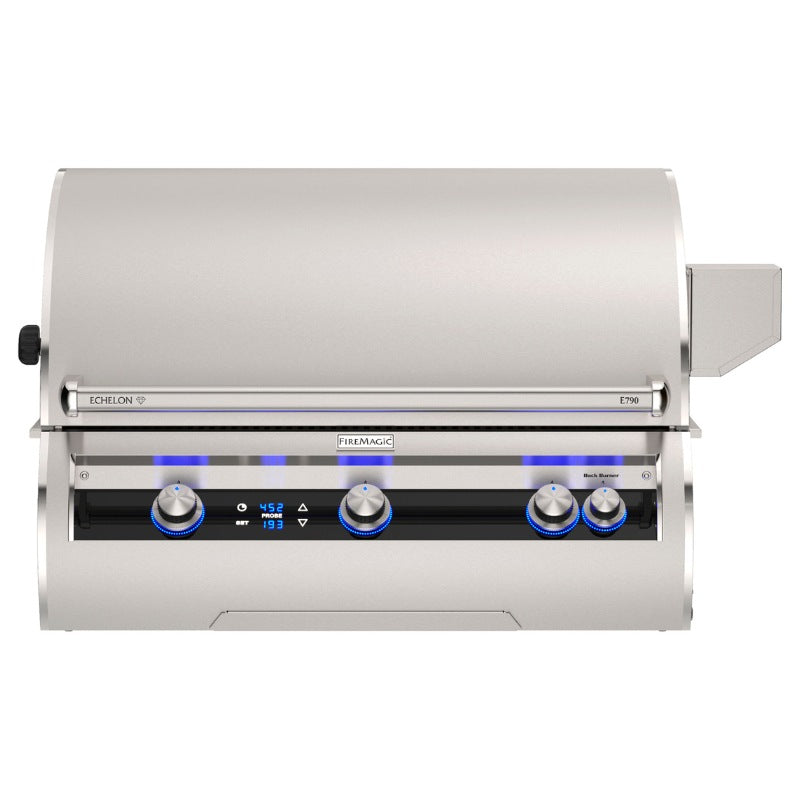

Fire Magic 36" Echelon Diamond E790i Built-In Gas Grill with Digital Thermometer

Regular price $10,348.00

Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.

Most items ship within 1 business day. Manufacturer-direct items may take up to 2 weeks. Call us before ordering if needed immediately. 718-326-4328

Choose with help from our Maspeth showroom. Read customer reviews on Google.

Northeast shipping only: ME, VT, NY, NH, MA, CT, PA, NJ, MD, DE and RI. For any other state, call 718-326-4328 for a shipping quote before ordering. Product and local-service restrictions apply. Shipping details.

400+ five-star Google reviews
  • Northeast shipping. Eligible orders over $999 ship free within our 11-state area; other eligible orders have a flat rate at checkout. Product exclusions apply. Shipping details.
  • Factory-authorized Fire Magic dealer. You keep the full manufacturer warranty.
  • 30-day returns, no restocking fee.
  • Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Visit our Maspeth, Queens showroom
58-30 Maspeth Ave
Maspeth, NY 11378
Monday–Friday
9:00 AM–5:00 PM
Saturday
10:00 AM–3:00 PM
Sunday
Closed

Call ahead to confirm the model you want to see and pickup readiness.

Shipping & Delivery Area

  • Online shipping is limited to Maine, Vermont, New York, New Hampshire, Massachusetts, Connecticut, Pennsylvania, New Jersey, Maryland, Delaware and Rhode Island.
  • Eligible orders over $999 receive free standard shipping; eligible orders of $999 or less have a flat rate shown at checkout.
  • Our own trucks deliver eligible local orders up to 120 miles. e-NRG fuel, white-glove delivery and assembly have separate eligibility, distance limits and charges.
  • For other states, or when no delivery option appears, call 718-326-4328 for a quote before ordering.
  • Read the shipping policy for details.

Assembly & Installation

Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!

WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW

Call for a free quote 718-326-4328

Warranty

Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.

Returns

  • No-Restock Fees
  • 30-Day Return Policy
  • The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
  • We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.

Description

Explore other Fire Magic Echelon Diamond digital built-in gas grill sizes: 30 inch | 36 inch (current size) | 48 inch

Grill head overall: 40-1/4 in W x 30-1/2 in D; built-in cutout 37 in x 23-1/2 in x 11-1/2 in

The Fire Magic Echelon Diamond E790i is the 36 inch cooking area built-in in Fire Magic's Echelon Diamond line, with three cast stainless steel E-burners, a recessed infrared rotisserie burner, black glass controls and Diamond Sear grids. It is built for people who cook on the grill several nights a week and want one grill that sears, roasts and holds temperature without babysitting.

This listing covers E790i-9E1N, 9E1P, 9L1N, 9L1P and the -W window versions. Configuration: digital thermometer with smartphone monitoring, Magic View Window optional, left-side infrared burner optional, natural gas or propane. It drops into a non-combustible island or counter cutout.

Key Specifications

Model Fire Magic Echelon Diamond E790i
Configurations in this listing E790i-9E1N, 9E1P, 9L1N, 9L1P and the -W window versions
Fuel Natural gas or propane (selected at purchase)
Main burners Three cast 304 stainless steel E-burners, 1/4 inch thick, 96,000 BTU/h combined (9L configurations: two E-burners plus the left-side infrared burner)

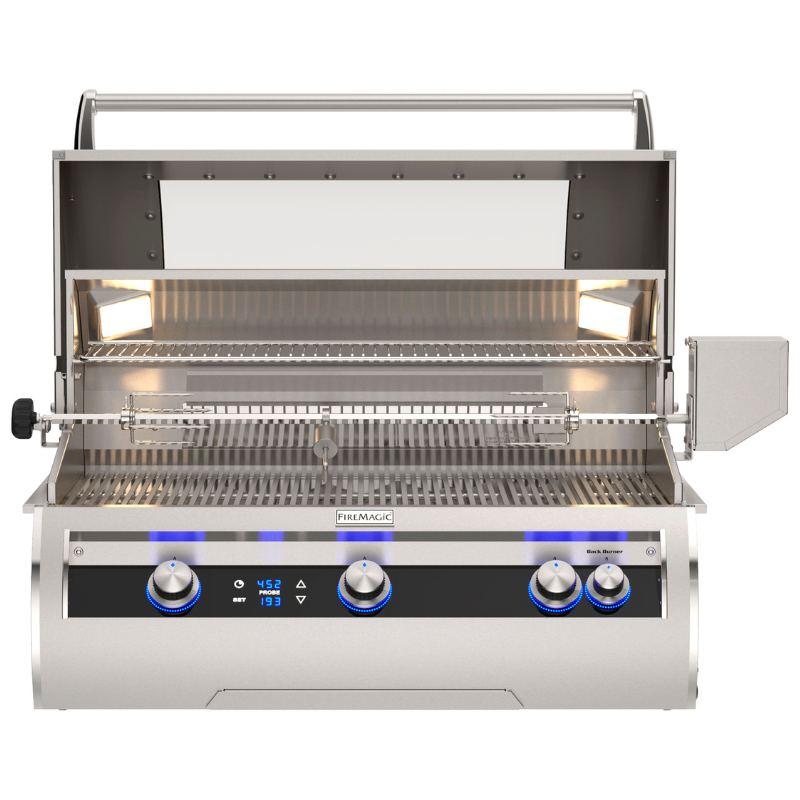

Rear burner Recessed infrared backburner for rotisserie cooking, 13,000 BTU/h
Left-side infrared burner Optional (9L configurations); it takes the place of the left E-burner. Choose it in the Side Burner option
Cooking area 36 in x 22 in main grids (792 sq in), 36 in x 8 in warming rack (288 sq in)
Cooking grids Patented Diamond Sear grids over stainless steel flavor grids
Thermometer Digital underglass thermometer with smartphone remote monitoring and a digital meat probe
Controls Black glass control panel with touchscreen operation and Bluetooth remote capability
Interior lighting Two angled halogen lamps
Hood Double-walled 304 stainless steel, opens to 90 degrees with spring assist

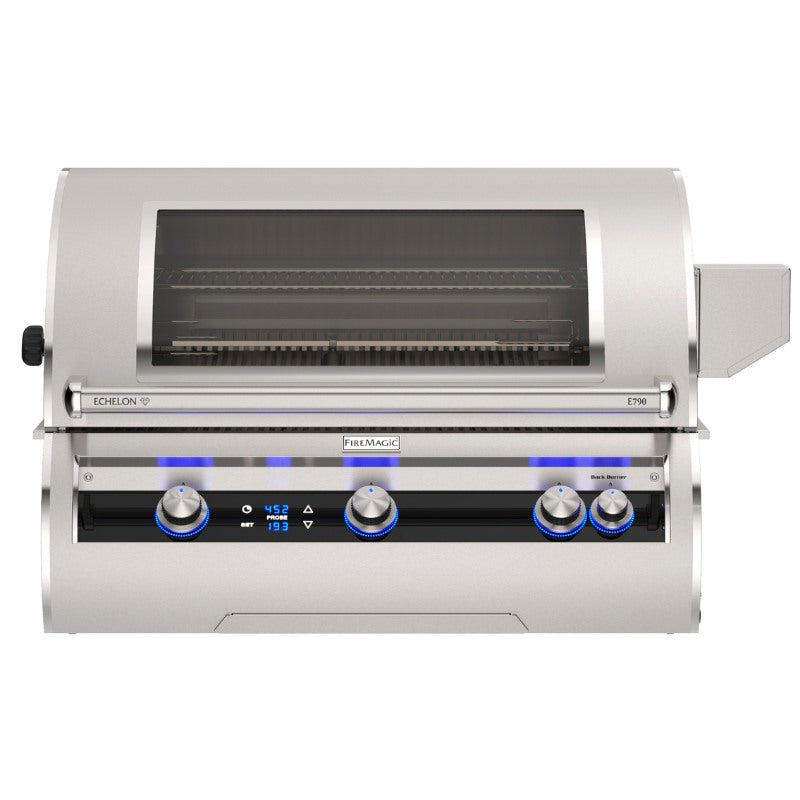

Magic View Window Optional; choose it in the Grill Window option
Electrical 13 VDC, 156 W appliance; power supply 100 to 240 VAC, 1.9 A max

Dimensions and Cutout

Grill head overall width 40-1/4 in (Fire Magic spec guide)
Grill head overall depth 30-1/2 in (Fire Magic spec guide)
Cutout (W x D x H) 37 in x 23-1/2 in x 11-1/2 in
Control panel width 38-3/4 in (matters only where the countertop overhangs the front wall)
Rear clearance 4 in to non-combustible walls, 14 in to protected combustible walls, 18 in to combustible walls
Side and corner wall clearance 24 in to side walls and corner walls (Fire Magic installation manual); 6 in from the control panel sides to obstructions
Overhead clearance At least 5 ft from the countertop to non-combustible overhead construction
Next to appliances 14 in from refrigeration, 12 in from heating appliances such as pizza ovens

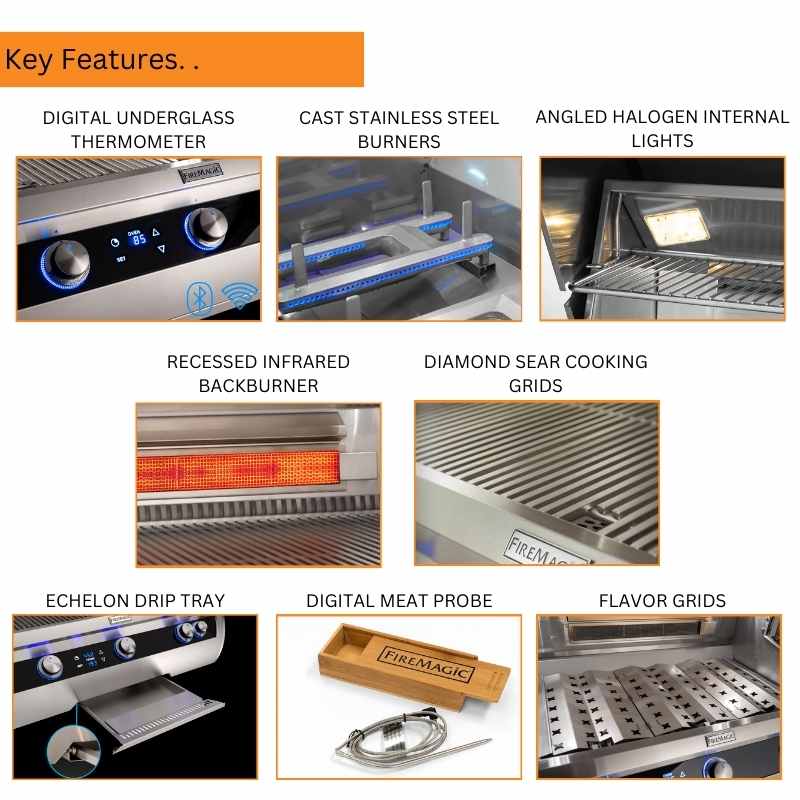

Features

  • Three 1/4 inch cast 304 stainless steel burners with a protective lip over the ports to resist grease clogging. Fire Magic backs them for as long as you own the grill.
  • Rear infrared burner under a stainless mesh element for rotisserie cooking, with a stainless cover for when it is not in use.
  • Diamond Sear grids with flat-topped bars sit over flavor grids that spread heat and vaporize drippings.
  • 36 in x 22 in main cooking area plus a 288 sq in warming rack.
  • Double-walled 90 degree hood with a Teflon-coated spring assist.
  • Two angled halogen lamps light the cooking surface after dark.
  • Digital underglass thermometer and meat probe that you can read on the grill or on your phone.
  • Magic View Window available as an option so you can check food without lifting the hood.

What Is Included and What You Will Need

  • Included: the E790i grill head in the configuration shown above, Diamond Sear grids, flavor grids and the rear infrared burner. Rotisserie kit as listed on this page; confirm contents with us before ordering.
  • Required: a gas supply for the fuel you select, a 120 V outlet for the power supply, and a non-combustible enclosure built to the cutout above.
  • Recommended for combustible enclosures: Fire Magic insulating liner for E790i built-in grills.

Installation Notes

Gas connection and ignition power must be installed by a qualified installer. Keep the clearances listed under Dimensions and Cutout, and size the enclosure to the cutout. In New York City, gas work must be done by a licensed master plumber under a DOB permit, and propane tank storage in the city carries FDNY rules, so confirm the fuel with us before you order. We install in NYC, Long Island, Westchester and New Jersey. Book a free design consultation and we will help you plan the layout, utilities and installation.

Documentation

Frequently Asked Questions

What is the difference between the 9E and 9L models?

The 9L models replace the left cast E-burner with an infrared searing burner, so they have two E-burners, one infrared burner and the rear infrared rotisserie burner. The 9E models have three E-burners and the rear rotisserie burner. Window models end in -W.

How many BTUs does the E790i have?

Fire Magic rates the three main burners at 96,000 BTU/h combined and the rear infrared burner at 13,000 BTU/h. On 9L models, authorized dealers list the two E-burners at 64,000 BTU/h plus a 25,000 BTU/h infrared burner; Fire Magic does not publish a separate figure.

What cutout do I need for the E790i?

37 inches wide, 23-1/2 inches deep and 11-1/2 inches high, with the clearances to walls, corners and neighboring appliances listed above.

Digital or analog thermometer: which should I pick?

Digital adds the underglass display, smartphone monitoring and a meat probe. Analog is a hood gauge with no app. The grill cooks the same either way.

Related reading: Built-In Gas Grill Buying Guide and What Size Grill Do I Need?.

Warranty

Fire Magic's published residential warranty covers the cast stainless steel burners, Diamond Sear grids and stainless housing for as long as you own the grill. Brass valves, manifold assemblies and backburner assemblies carry 15 years (excluding ignition). Flavor grids and infrared burners carry 5 years. Other grill components carry 3 years, and ignition and electronic parts, including lights and thermometer, carry 1 year. Fire Magic also pays labor for the first two years. Per the full warranty in the owner's manual, coverage does not apply to rust, corrosion, oxidation or discoloration unless the affected part becomes inoperable, and skipping the routine cleaning the manual requires (at least monthly near salt air or pools) can void coverage. Read the full terms on Fire Magic's warranty page.
