Description
Description
Available Sizes: Kingsman ZCV Ceramic Glass Direct Vent Gas Fireplaces
Overall Dimensions: framing depth 19 in from back wall to fireplace face (18-1/2 in with drywall flush); unit width and height are in the Kingsman manual drawings

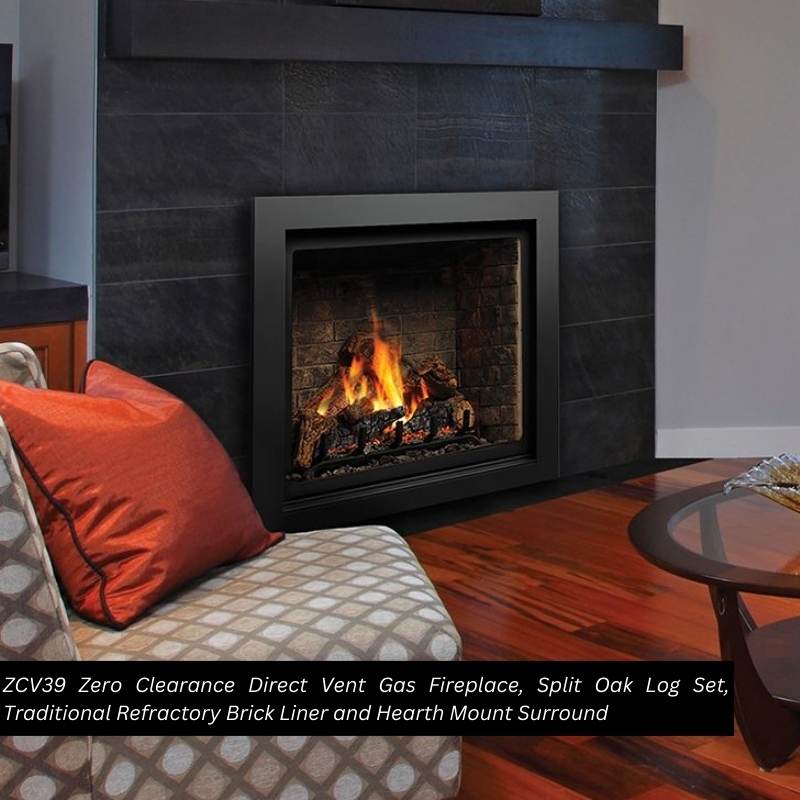

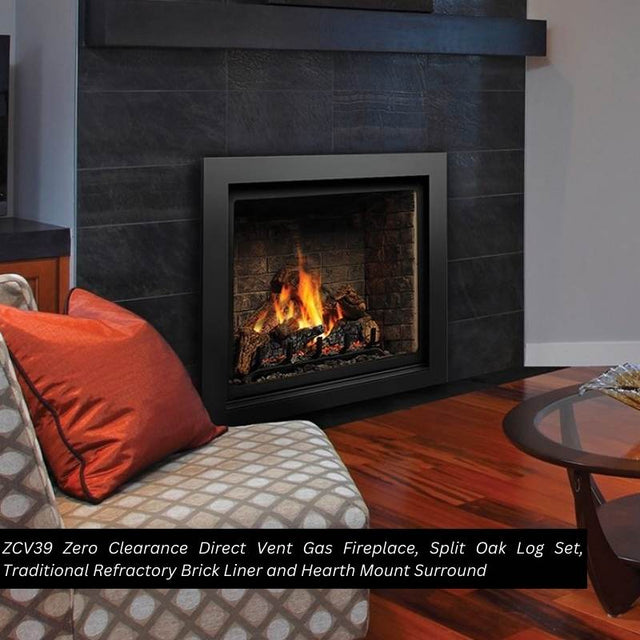

The Kingsman ZCV39 with ceramic glass is a 39 inch dedicated Clean View zero clearance direct vent gas fireplace for new construction or renovation. It has a 33 in by 28 5/8 in viewing area and 25,000 BTU maximum input, with millivolt or ProFlame II electronic ignition that keeps working in a power failure. An optional vented chase allows cool touch walls above the fireplace, and the optional glass tray supports accent lighting.
Key Specifications
| Model | ZCV39NH, ZCV39LPH (millivolt), ZCV39NHE2, ZCV39LPHE2 (ProFlame II electronic with remote) |
|---|---|
| Configuration | Dedicated Clean View, zero clearance direct vent |
| Input | 25,000 BTU maximum (per current listing) |
| Glass | Ceramic glass; Kingsman requires Robax ceramic or coated Neoceram for replacement on ceramic models |
| Glass viewing area | 33 in W x 28 5/8 in H (per current listing) |
| Gas supply | 3/8 in NPT inlet; natural gas 5.5 in w.c. minimum, 7 normal, 9 maximum; propane 11 in w.c. minimum and normal, 12 maximum, per the ZCV series manuals |
| Certification | CSA/ANSI Z21.88:19, CSA 2.33:19 and CSA 2.17-2017 |
| Weight | Not published |
Dimensions and Cutout
| Framing depth, non-vented chase | 19 in from the back wall to the fireplace face; 18-1/2 in with drywall flush with the unit face |
|---|---|
| Minimum ceiling height, non-vented chase | 55-1/2 in natural gas, 67-1/2 in propane, from the bottom of the fireplace |
| Minimum enclosure height, vented chase | 72 in for both fuels |
| Front clearance | 36 in to combustibles; 0 in back, sides, top and floor from standoffs |
| Vented chase grills | Front opening 3-5/8 in x 36-1/2 in; side openings 6-1/8 in x 12-1/2 in each |

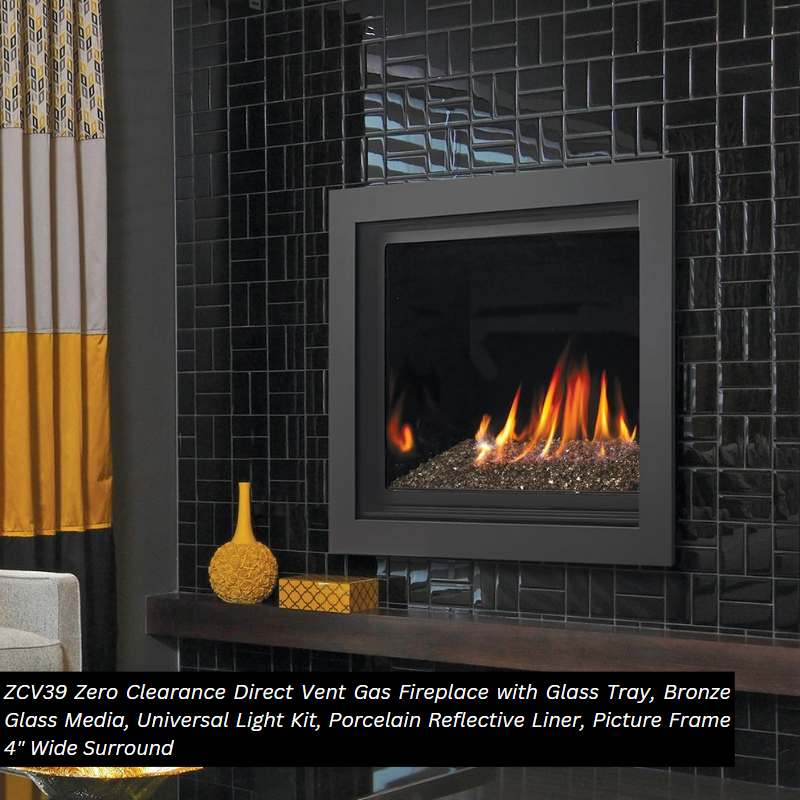

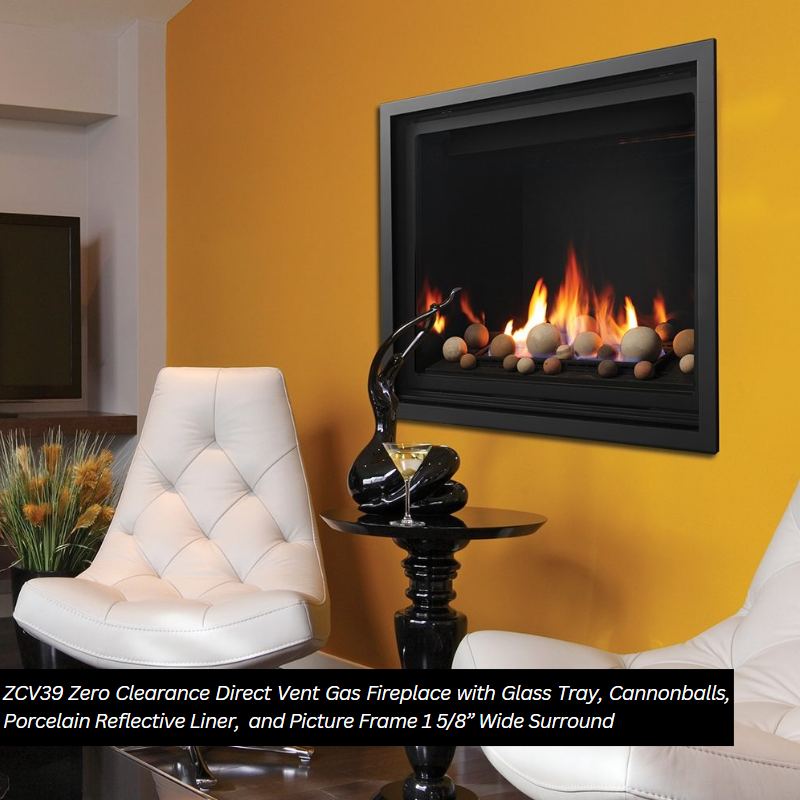

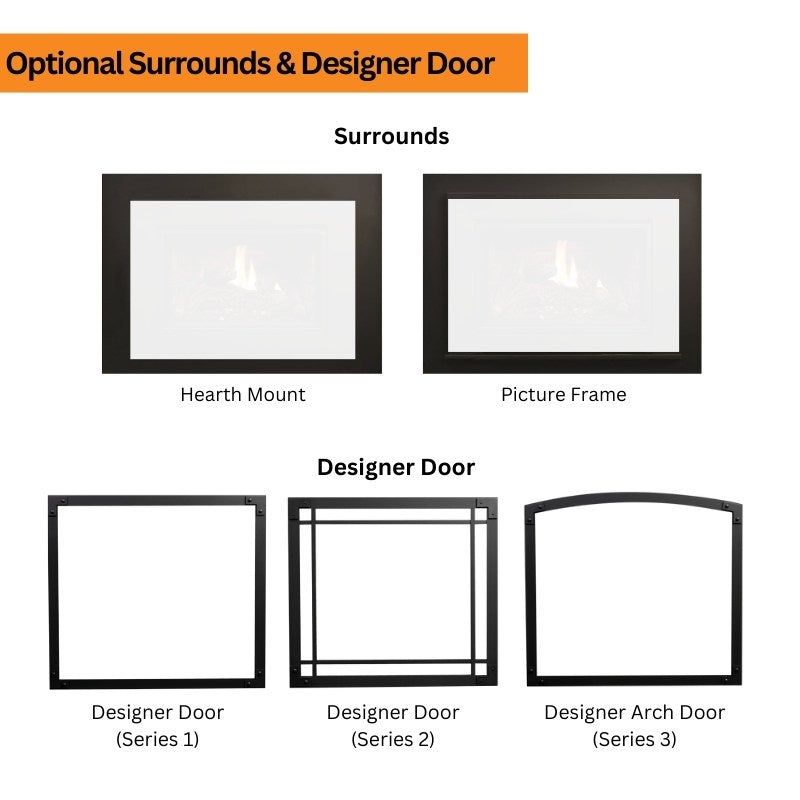

| Surrounds | Picture frame 4 in wide covers 40 5/8 in W x 37 in H; 1 5/8 in wide covers 36 1/8 in W x 32 1/2 in H; hearth mount 4 in wide covers 40 5/8 in W x 35 in H (per current listing) |
Features
- Dedicated Clean View appliance with ceramic glass
- Millivolt or IPI valve works in a power failure with high and low heat and flame adjustment

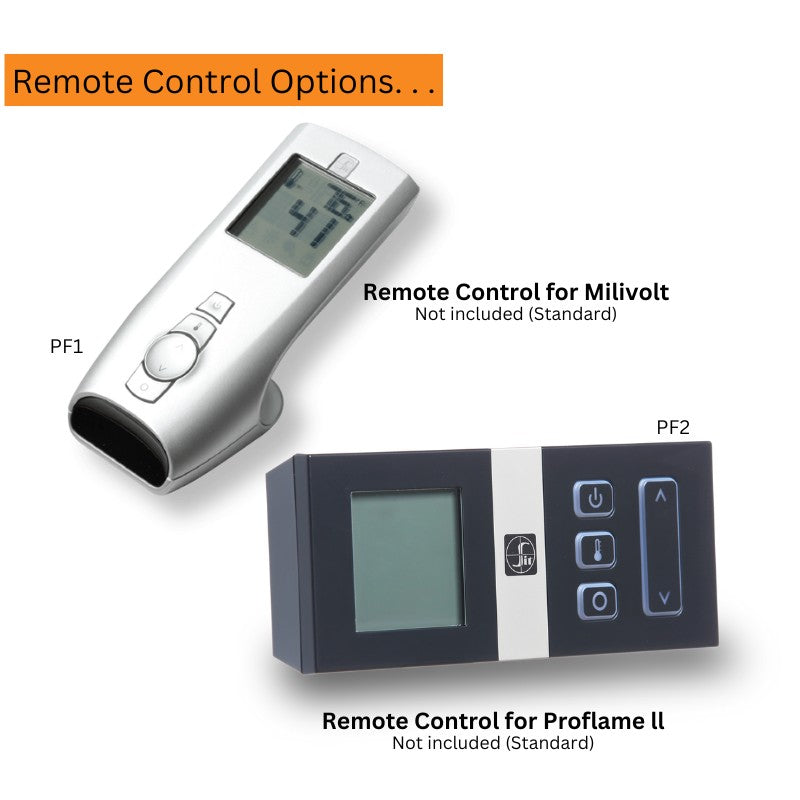

- ProFlame II models include a remote with flame, fan, thermostat and smart thermostat control
- Safety screen barrier and matte black liner
- Optional vented chase for cool touch walls or reduced mantel clearances

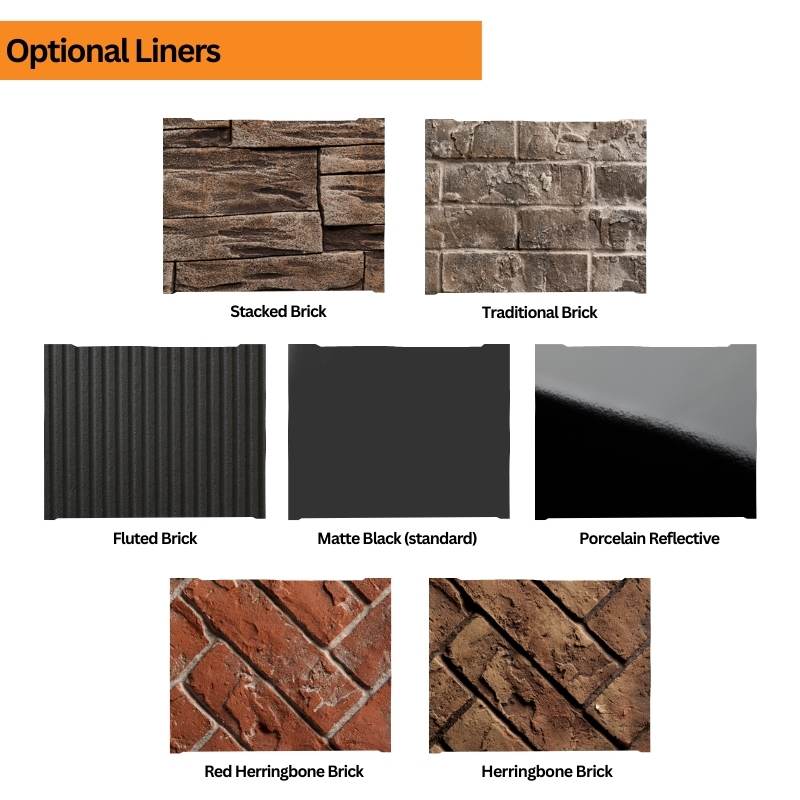

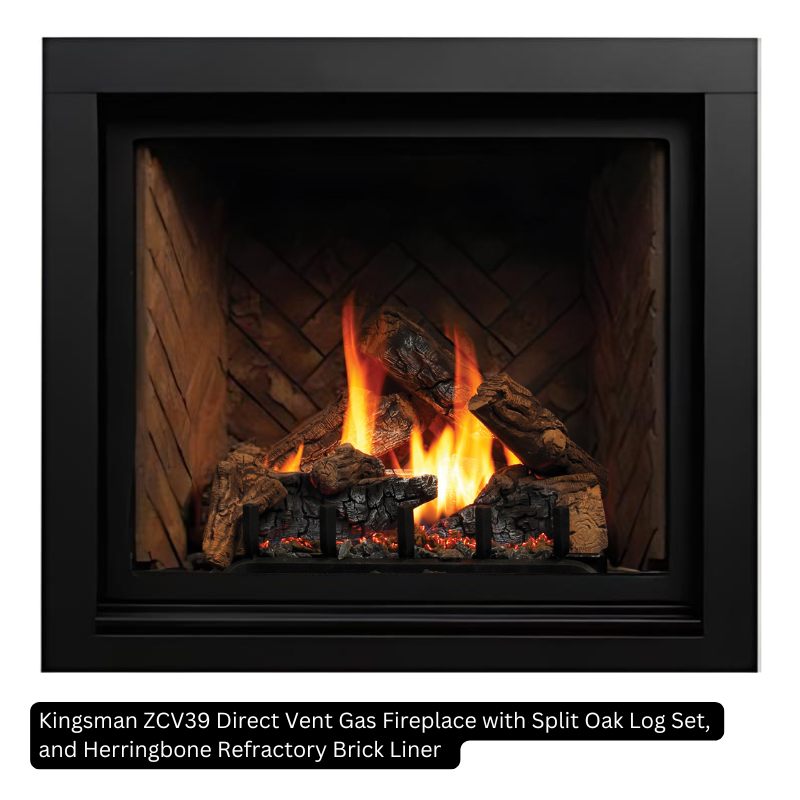

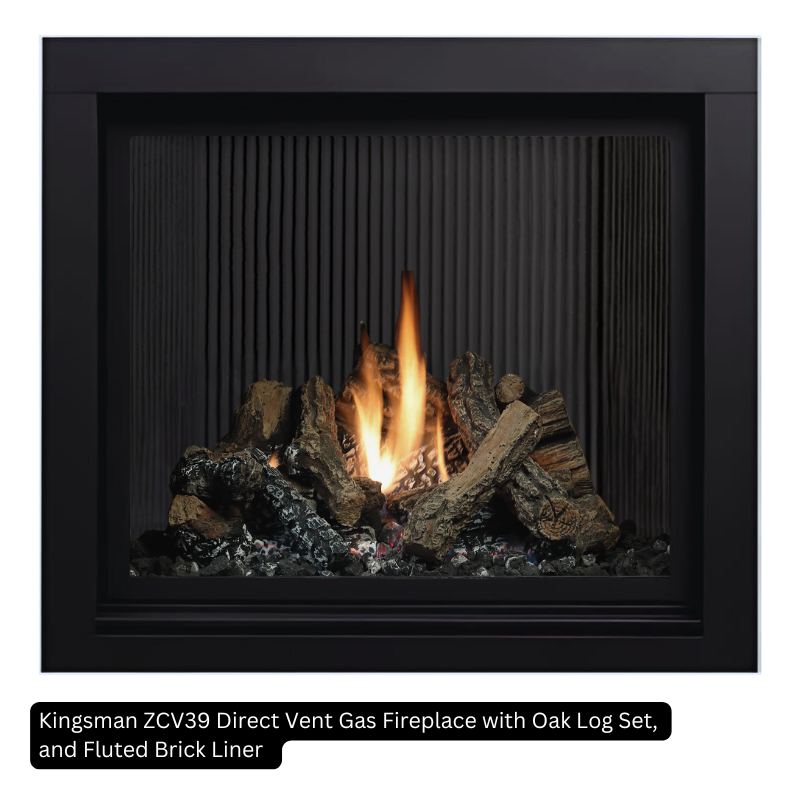

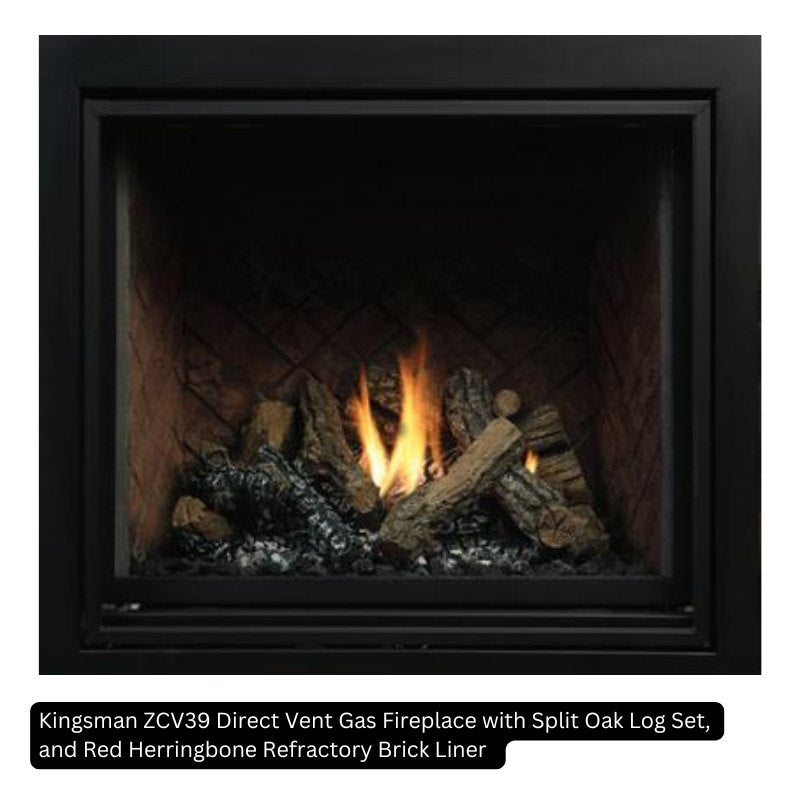

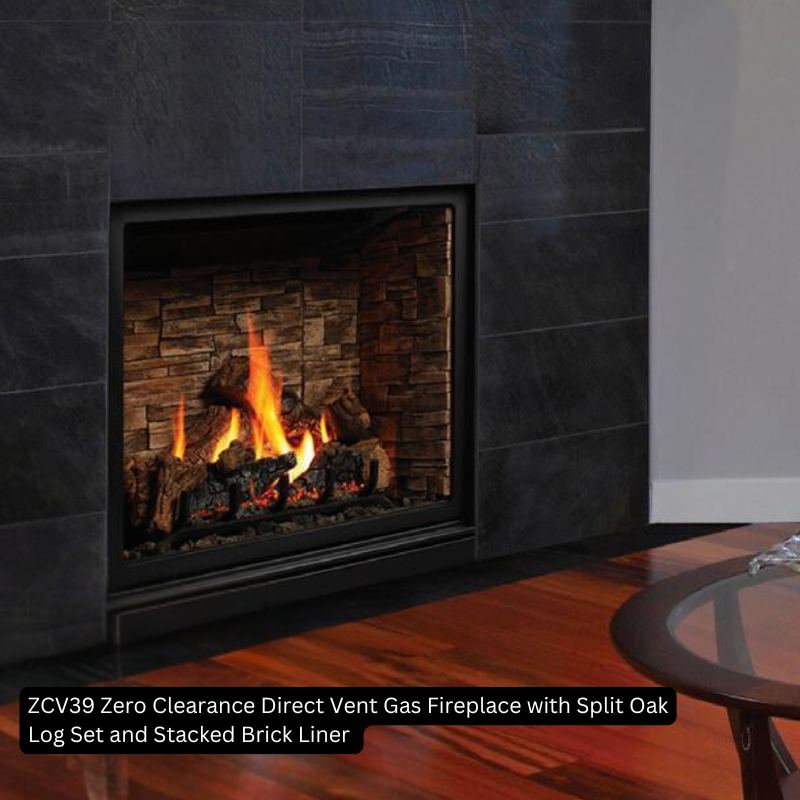

- Liners: standard matte black, traditional brick, herringbone brick, red herringbone brick, stacked brick, fluted brick or porcelain reflective
- Optional glass tray accent lighting and designer doors
What Is Included and What You Will Need
- Included: fireplace with safety screen and the liner selected; ProFlame II models add the remote control

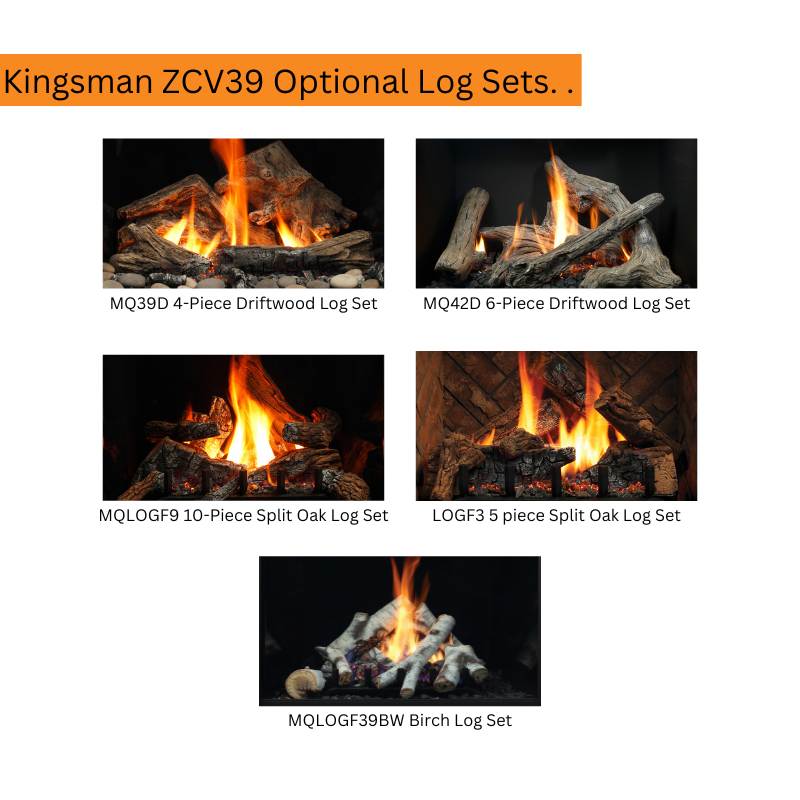

- Required: media or a log set, which the listing shows as a required choice made in a separate Media Options step
- Required: Kingsman or approved direct vent pipe and termination, a gas line and a licensed installer
- Optional: fan kit, picture frame or hearth mount surrounds, designer doors, thermostats, remote controls and the wall mount battery holder (WMBH)
Installation Notes
Choose a vented or non-vented chase before framing, because the manual gives separate framing, clearance and facing rules for each. For an island with a top vent, the horizontal vent run may not exceed 20 ft, and propane horizontal installs need one additional foot of vertical rise before going horizontal. A licensed gas fitter must install it. In New York City, gas fireplace work must be done by a licensed professional under a DOB permit, and the direct vent route should be planned before ordering. Book a free design consultation and we will help you plan the layout, utilities and installation.
Documentation
Frequently Asked Questions
Does it work in a power failure?
Yes. Millivolt and IPI valve systems operate during a power failure, and the optional wall mount battery holder supports IPI models.
Can I mount a TV above it?
Kingsman offers a vented chase option for cooler walls and reduced mantel clearances. Follow the manual for the chase, mantel height and facing requirements.
Is media included?

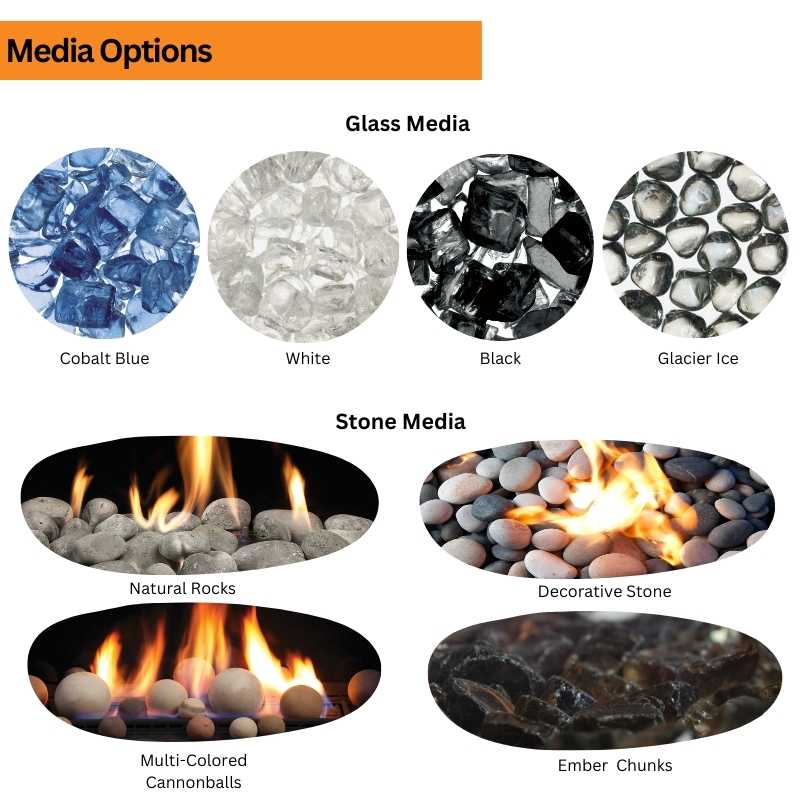

No. This listing sets media as a required separate choice, so pick logs, rocks, stones or glass before ordering.
How do I choose natural gas or propane?
Choose the fuel when you order. The unit is not convertible without a certified kit, and propane needs more minimum ceiling height than natural gas.
Related reading: Direct vent gas fireplace buying guide and NYC fireplace code guide.
Warranty
Per the Kingsman manual: a basic one year warranty replaces any component found defective in materials or workmanship, including labor, excluding accent light bulbs, gasketing, glass fronts and paint. The heat exchanger, combustion chamber and burner are covered for the period the original owner owns the product, with replacement parts only (labor, freight and handling are not covered).
