Kingsman  |  SKU: ZCV34NH

Kingsman ZCV34 34" Zero Clearance Clean View Direct Vent Gas Fireplace | Ceramic Glass

$2,601.86

Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.

Most items ship within 1 business day. Manufacturer-direct items may take up to 2 weeks. Call us before ordering if needed immediately. 718-326-4328

Pickup available at Maspeth, NY Showroom

Usually ready in 2-4 days
400+ five-star Google reviews
  • Free shipping on this item to most of the US, or free local delivery by our team. Most items ship within 1 business day.
  • Factory-authorized Kingsman dealer. You keep the full manufacturer warranty.
  • 30-day returns, no restocking fee.
  • Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Questions about fit, venting or power? Talk to the team that installs it. Mon to Fri 9 to 5, Sat 10 to 3.
Call 718-326-4328 Free Consultation

Free & Flat Rate Shipping
  • Orders Over $999 Ship Out Fast & Free
  • Delivery typically takes 5 -7 transit days
  • $19.95-$99.95 Flat-Rate Shipping on orders under $999
  • Our team & trucks deliver locally within 60 miles of our showroom. (Tri-State NY,NJ,CT including all of Suffolk County)
  • Free Shipping Applies to Contiguous US only - See our shipping page for exclusions e.g. ethanol fuel

Assembly & Installation

Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!

WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW

Call for a free quote 718-326-4328

Warranty

Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.

Returns
  • No-Restock Fees
  • 30-Day Return Policy
  • The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
  • We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.

Description

Available Sizes: Kingsman ZCV Ceramic Glass Direct Vent Gas Fireplaces

34" (Current Size) | 39" | 42"

Overall Dimensions: framing depth 18-1/8 in (flush with the unit face); unit width and height are in the Kingsman manual drawings

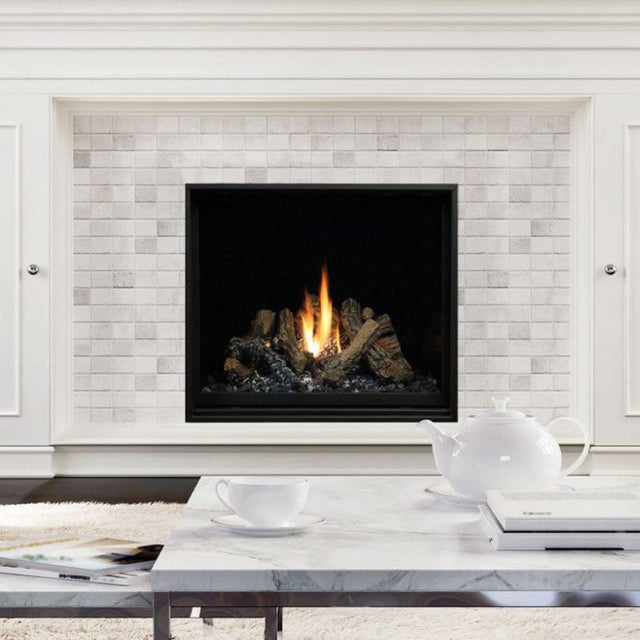

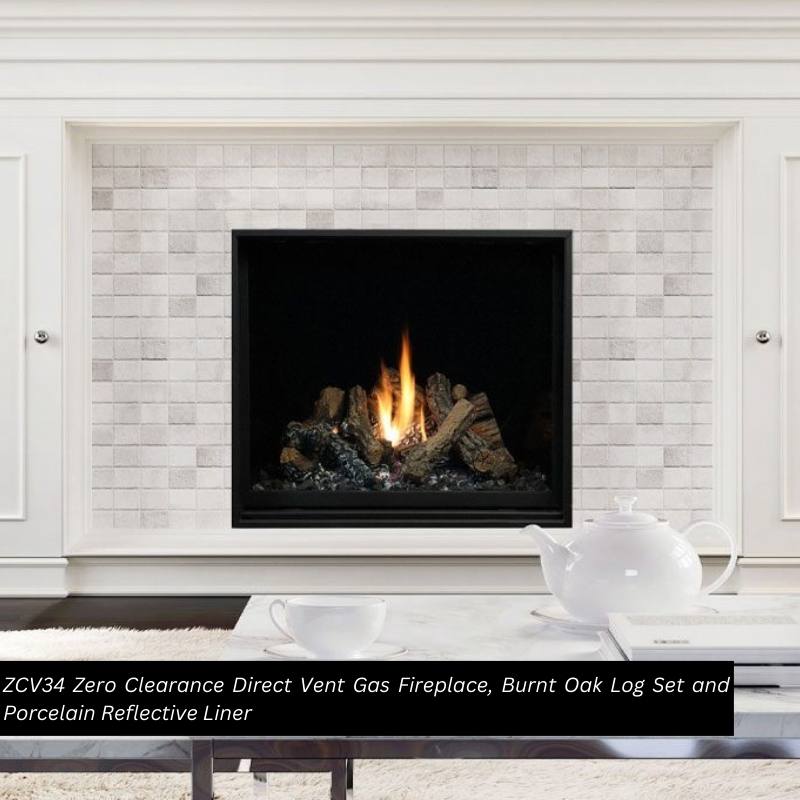

The Kingsman ZCV34 with ceramic glass is a 34 inch dedicated Clean View zero clearance direct vent gas fireplace for new construction or renovation. It has a 28 5/8 in by 25 3/8 in viewing area and up to 19,000 BTU, with millivolt or ProFlame II electronic ignition that keeps working in a power failure. An optional vented chase gives cool touch walls above the fireplace, which suits a TV mount.

Key Specifications

Model ZCV34NH, ZCV34LPH (millivolt), ZCV34NHE2 (ProFlame II electronic with remote)
Configuration Dedicated Clean View, zero clearance direct vent
Input, natural gas 19,000 BTU maximum, 13,500 BTU low
Input, propane 18,000 BTU maximum, 14,000 BTU low
Glass Ceramic (H models): Robax ceramic or coated Neoceram, 5 mm minimum for replacement
Glass viewing area 28 5/8 in W x 25 3/8 in H (per current listing)
Gas supply 3/8 in NPT inlet; natural gas 5.5 in w.c. minimum, 7 normal, 9 maximum; propane 11 in w.c. minimum and normal, 12 maximum
Electrical Three-prong grounded plug for IPI models; do not wire 120V to millivolt switches or thermostats
Certification CSA/ANSI Z21.88:19, CSA 2.33:19 and CSA 2.17-2017
Weight Not published

Dimensions and Cutout

Framing depth 18-1/8 in with drywall flush with the unit face, or 17-5/8 in with 1/2 in non-combustible facing
Minimum enclosure height, non-vented chase 48 in natural gas, 60 in propane
Minimum enclosure height, vented chase 68 in for both fuels
Front clearance 36 in to combustibles; 0 in back, sides, top and floor from standoffs
Vented chase grills Front opening 3-1/4 in x 31-3/8 in; side openings 4-13/16 in x 10-1/4 in, both sides
Surrounds Picture frame 4 in wide covers 36 5/8 in W x 33 3/8 in H; 1 11/16 in wide covers 31 1/16 in W x 28 3/4 in H; hearth mount 3 in wide covers 34 7/8 in W x 30 3/4 in H (per current listing)

Features

  • Dedicated Clean View appliance with ceramic glass
  • Millivolt or IPI valve works in a power failure with high and low heat and flame adjustment

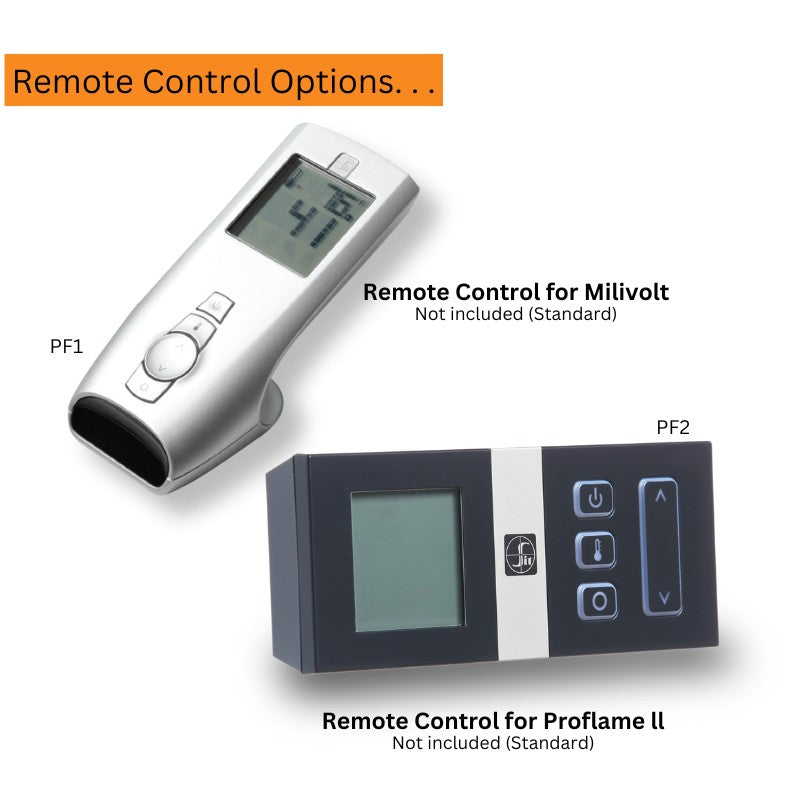

  • ProFlame II models include a remote with flame, fan, thermostat and smart thermostat control
  • Safety screen barrier and matte black liner
  • Optional vented chase for cool touch walls or reduced mantel clearances

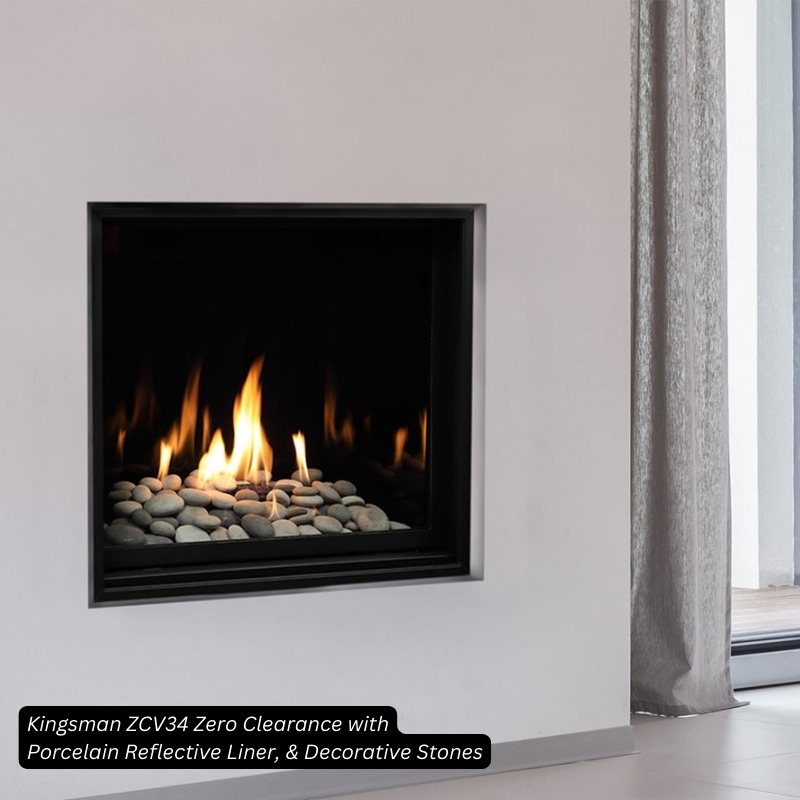

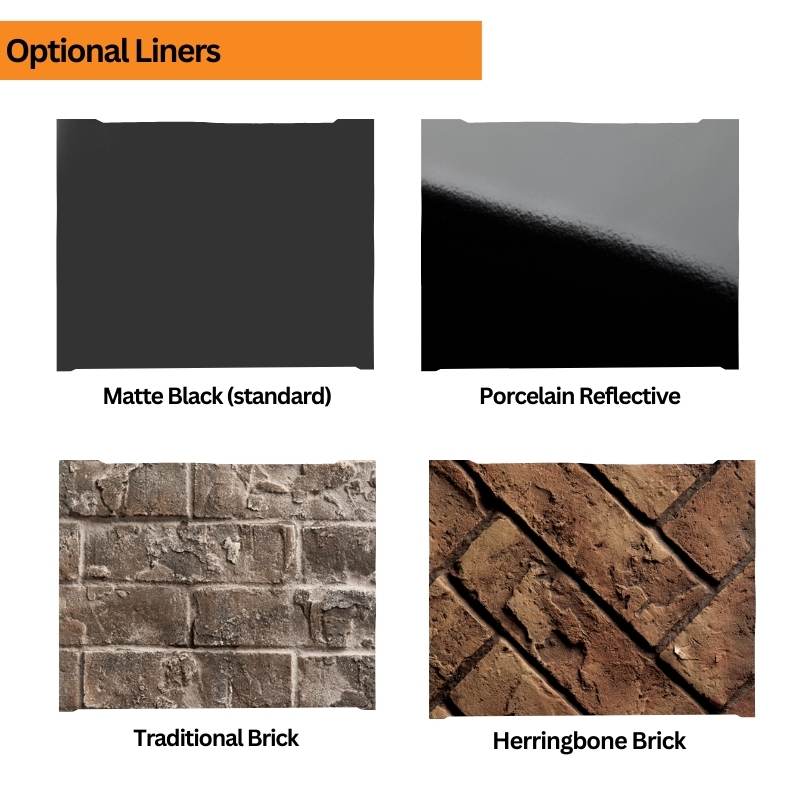

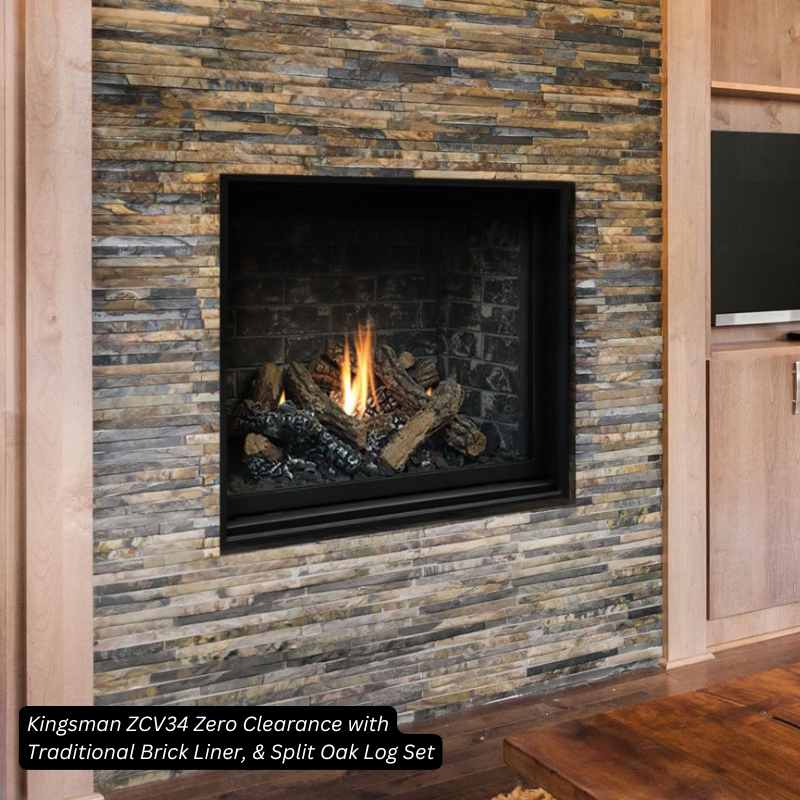

  • Liners: standard matte black, traditional brick, herringbone brick or porcelain reflective
  • Certified for bedroom use per the manual, subject to local code

What Is Included and What You Will Need

  • Included: fireplace with safety screen and the liner selected; ProFlame II models add the remote control

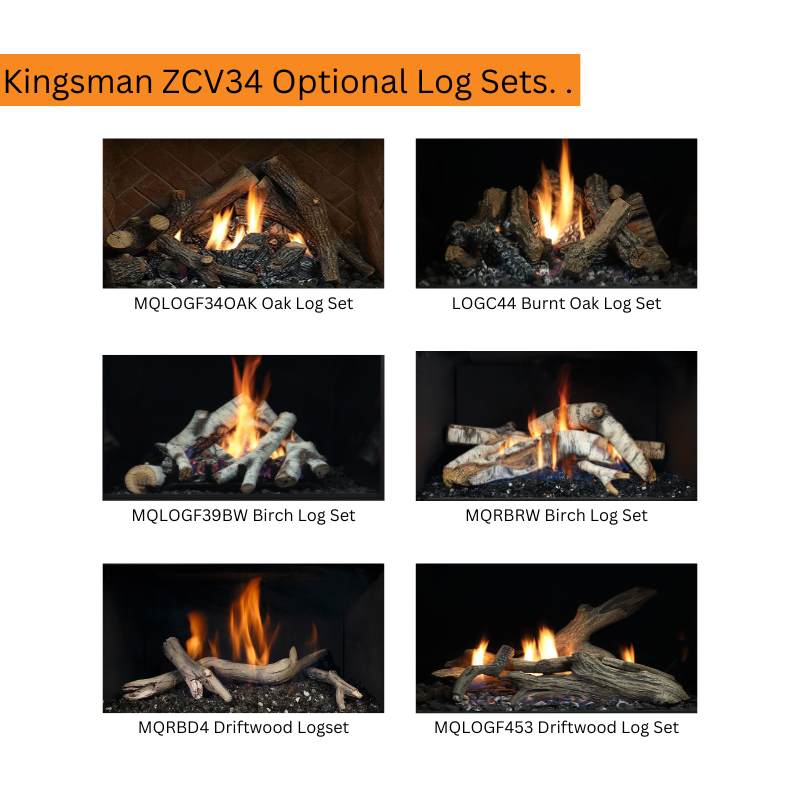

  • Required: media or a log set, which the listing shows as a required choice made in a separate Media Options step; the manual says the unit must not run without decorative glass embers on the burner and media tray
  • Required: Kingsman or approved direct vent pipe and termination, a gas line and a licensed installer; non-vented chase installs also need the Z58WTS wall thimble shield
  • Optional: Z46FK fan kit (factory installed on ProFlame 2 units), surrounds, thermostats, remote controls and the wall mount battery holder (WMBH)

Installation Notes

Choose a vented or non-vented chase before framing, because the manual gives separate framing, clearance and facing rules for each. Face materials on a non-vented chase must be non-combustible. For an island with a top vent, the horizontal vent run may not exceed 20 ft. Install natural gas or propane only as shown on the rating plate. A licensed gas fitter must install it. In New York City, gas fireplace work must be done by a licensed professional under a DOB permit, and the direct vent route should be planned before ordering. Book a free design consultation and we will help you plan the layout, utilities and installation.

Documentation

Frequently Asked Questions

What is the difference between the ZCV34 H and non-H models?

H models have ceramic glass. Non-H models use Low E tempered glass. This listing covers the H ceramic glass models.

Can I mount a TV above it?

Kingsman offers a vented chase option for cooler walls and reduced mantel clearances. Follow the manual for the chase, mantel height and facing requirements, and check your TV maker limits.

Does it work in a power failure?

Yes. Millivolt and IPI valve systems operate during a power failure, and the optional wall mount battery holder supports IPI models.

Is media included?

No. This listing sets media as a required separate choice, so pick logs, rocks, stones or glass before ordering.

Related reading: Direct vent gas fireplace buying guide and NYC fireplace code guide.

Warranty

Per the Kingsman manual: a basic one year warranty replaces any component found defective in materials or workmanship, including labor, excluding accent light bulbs, gasketing, glass fronts and paint. The heat exchanger, combustion chamber and burner are covered for the period the original owner owns the product, with replacement parts only (labor, freight and handling are not covered).
