American Fyre Designs  |  SKU: 689-SM-11-M7PC

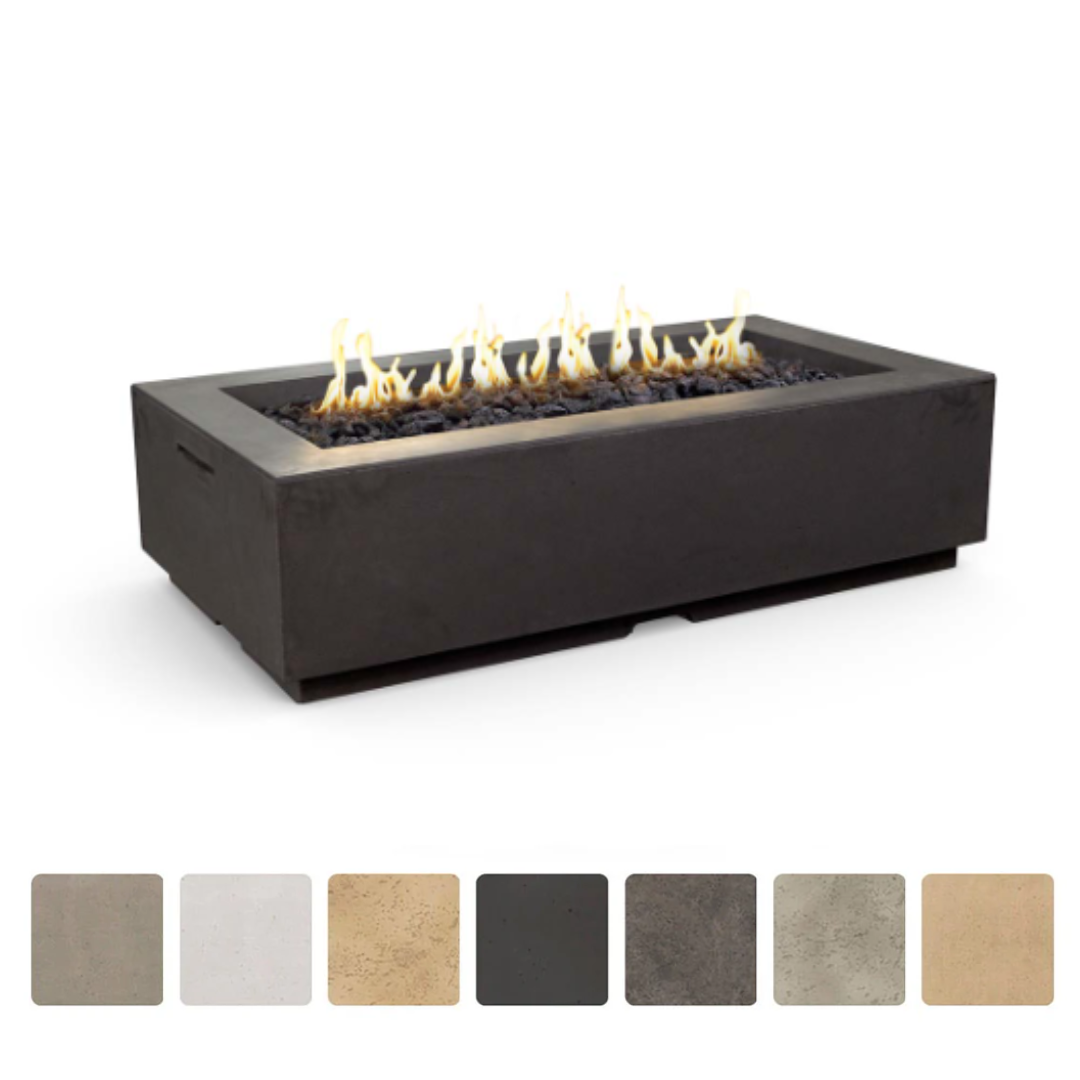

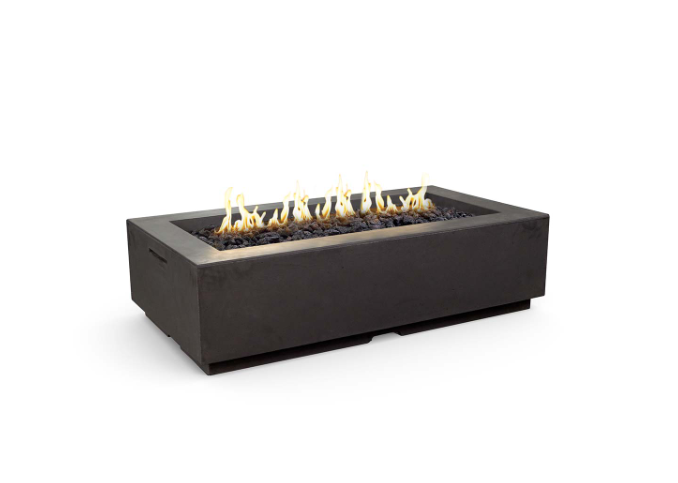

American Fyre Designs Louvre Rectangle 56-Inch Gas Fire Pit

$3,923.10 $4,359.00

Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.

Most items ship within 1 business day. Manufacturer-direct items may take up to 2 weeks. Call us before ordering if needed immediately. 718-326-4328

Pickup available at Maspeth, NY Showroom

Usually ready in 2-4 days
400+ five-star Google reviews
  • Free shipping on this item to most of the US, or free local delivery by our team. Most items ship within 1 business day.
  • Factory-authorized American Fyre Designs dealer. You keep the full manufacturer warranty.
  • 30-day returns, no restocking fee.
  • Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Questions about fit, venting or power? Talk to the team that installs it. Mon to Fri 9 to 5, Sat 10 to 3.
Call 718-326-4328 Free Consultation

Free & Flat Rate Shipping
  • Orders Over $999 Ship Out Fast & Free
  • Delivery typically takes 5 -7 transit days
  • $19.95-$99.95 Flat-Rate Shipping on orders under $999
  • Our team & trucks deliver locally within 60 miles of our showroom. (Tri-State NY,NJ,CT including all of Suffolk County)
  • Free Shipping Applies to Contiguous US only - See our shipping page for exclusions e.g. ethanol fuel

Assembly & Installation

Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!

WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW

Call for a free quote 718-326-4328

Warranty

Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.

Returns
  • No-Restock Fees
  • 30-Day Return Policy
  • The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
  • We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.

Description

Available Sizes: American Fyre Designs Louvre Rectangle Fire Pits

56 in. (Current Size) | Long 72 in.

American Fyre Designs GFRC fire pits in the same series. Size, weight and burner differ; confirm clearances and fuel before ordering.

Overall Dimensions: 56-1/4" W x 30-1/4" D x 15-1/4" H

The Louvre Rectangle wraps crisp louvered detailing around a 56-inch GFRC body with a 36-inch linear burner down the middle. At 15-1/4 inches tall it keeps sightlines open across a patio or pool deck, and it is the mid-size of the Louvre family, between the 48-inch round and the 72-inch long rectangle. The manual version runs 65,000 BTU; FyreStarter adds Bluetooth control, a 75,000 BTU high and a gentle 32,000 BTU low.

Key Specifications

Model 689-xx-11-M7NC / M7PC (Manual Flame Sensing); 689-xx-11-H7NC / H7PC (FyreStarter Bluetooth); xx = finish code
Fuel Natural gas or propane (chosen at order)
Burner 36" stainless steel linear burner
Heat output 65,000 BTU NG or LP (Manual Flame Sensing); 75,000 BTU high / 32,000 BTU low (FyreStarter)
Ignition Manual flame sensing valve with AA battery spark igniter, or FyreStarter electronic ignition with Bluetooth app control
Electrical None for manual models; FyreStarter needs 120VAC, 15 amp minimum, GFCI outlet
Material Glass fiber reinforced concrete (GFRC), hand-applied finish
Finishes Smoke, Cafe Blanco, Black Lava
Certification ANSI Z21.97 / CSA 2.41, outdoor decorative gas appliance
Weight 215 lbs

Dimensions and Cutout

Overall 56-1/4" W x 30-1/4" D x 15-1/4" H
Burner 36" linear
Installation type Freestanding, no cutout; the propane tank is not stored inside the unit
Clearances 3 ft from the unit edge to any construction at the sides; 6 ft from the top of the unit to any overhead construction

Features

  • Louvered GFRC sides give a tailored, architectural look that suits modern and transitional homes
  • Low 15-1/4" profile keeps views to the garden, pool or skyline open
  • 36-inch linear stainless steel burner for a long, even flame line
  • FyreStarter option: 75,000 BTU high and 32,000 BTU low, Bluetooth phone control and a USB charging outlet (two USB-A, one USB-C)
  • Manual Flame Sensing option needs no electrical service: a battery spark igniter and a flame-sensing safety valve
  • Hand-applied finishes, made to order with natural variation in texture and color
  • Handcrafted in the USA by American Fyre Designs (R.H. Peterson Co.)

What Is Included and What You Will Need

  • Included: Louvre Rectangle fire pit in your selected finish, 36" linear stainless burner and valve system, bag of lava granules for the required base layer
  • Natural gas: a dedicated gas line with shutoff sized for the model you choose (up to 75,000 BTU on FyreStarter), installed by a licensed plumber
  • Propane: the tank cannot go inside this unit; use a remote 20 lb cylinder in an enclosure such as the Reclaimed Wood Contempo Tank/End Table with the AFD 5110-26 10 ft extension hose
  • FyreStarter models: a 120V, 15 amp minimum, GFCI-protected weatherproof in-use outlet
  • Decorative media (recommended 50 lbs of glass or gems, or 30 lbs of lava): Fyre Glass, Reflective Fyre Glass, Fyre Gems or Diamond Nuggets
  • Optional: vinyl protective cover (8150A)

Installation Notes

Outdoor use only. Set the unit on a hard, level surface with 3 ft of clearance from its edge to any construction, and never under overhead construction less than 6 ft above the top. Do not run it in high wind. Size the gas line for the full load and run it before the patio is finished. Natural gas piping must be installed by a qualified installer; in New York City that means a licensed master plumber under permit, and roof or terrace locations may need building approval. The unit ships LTL freight at 215 lbs. Our team installs across NYC, Long Island, Westchester and New Jersey; talk to us about your patio plan.

Documentation

Frequently Asked Questions

Manual Flame Sensing or FyreStarter?

Manual is simpler and needs no outlet, at a steady 65,000 BTU. FyreStarter adds push-button and phone control, a 75,000 BTU high and 32,000 BTU low, but needs a 120V GFCI outlet nearby.

How much media does it take?

American Fyre Designs recommends about 50 lbs of glass or gems, or 30 lbs of lava granules or coals, over the included lava base.

How does it compare to the Louvre Long Rectangle?

Same louvered design and height. The 72-inch Long Rectangle uses a 48" burner (up to 100,000 BTU); this 56-inch model uses a 36" burner and fits a smaller seating group.

Related reading: Gas Fire Pit and Fire Table Buying Guide and Outdoor Fireplace Buying Guide.

Warranty

American Fyre Designs by R.H. Peterson Co. warrants the GFRC fire feature and burner for three years and all valves, electrical components, accessories and controls for one year (batteries, wind guards and screens excluded) from the date of purchase. Coverage is for the original purchaser with proof of purchase, excludes labor, and does not cover damage from burning wood or any fuel other than natural gas or propane, or damage or discoloration from use in high wind.
