American Fyre Designs Milan Tall Linear 72-Inch Gas Fire Table
American Fyre Designs Milan Tall Linear 72-Inch Gas Fire Table - 48" Linear Burner / Smoke / Propane is backordered and will ship as soon as it is back in stock.
Description
Description
Available Sizes: American Fyre Designs Milan Linear 72 in. Fire Tables
Low (16 in. H) | Tall (32 in. H) (Current Size)
American Fyre Designs GFRC fire tables in the same series. Size, weight and burner differ; confirm clearances and fuel before ordering.
Overall Dimensions: 72" W x 16" D x 32" H

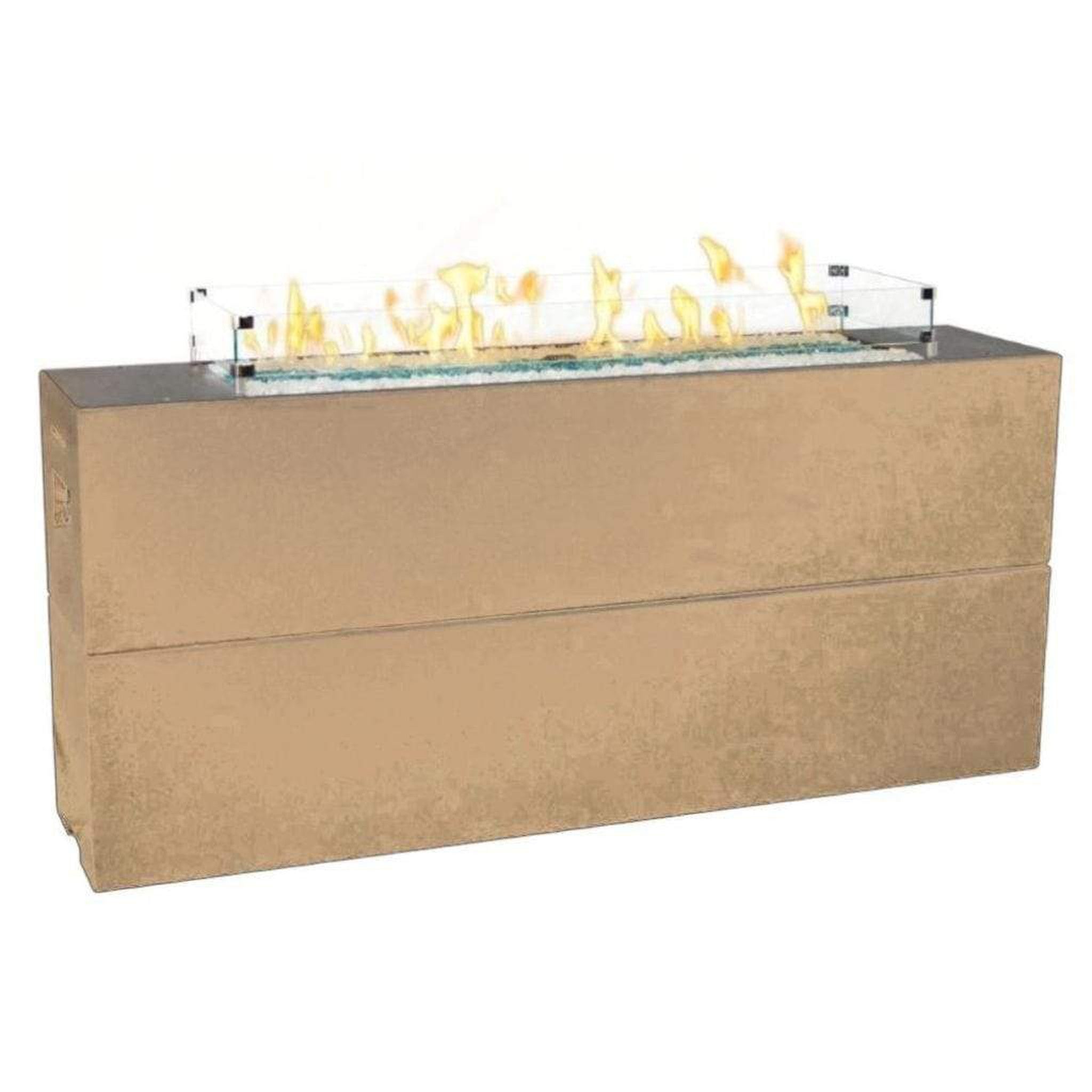

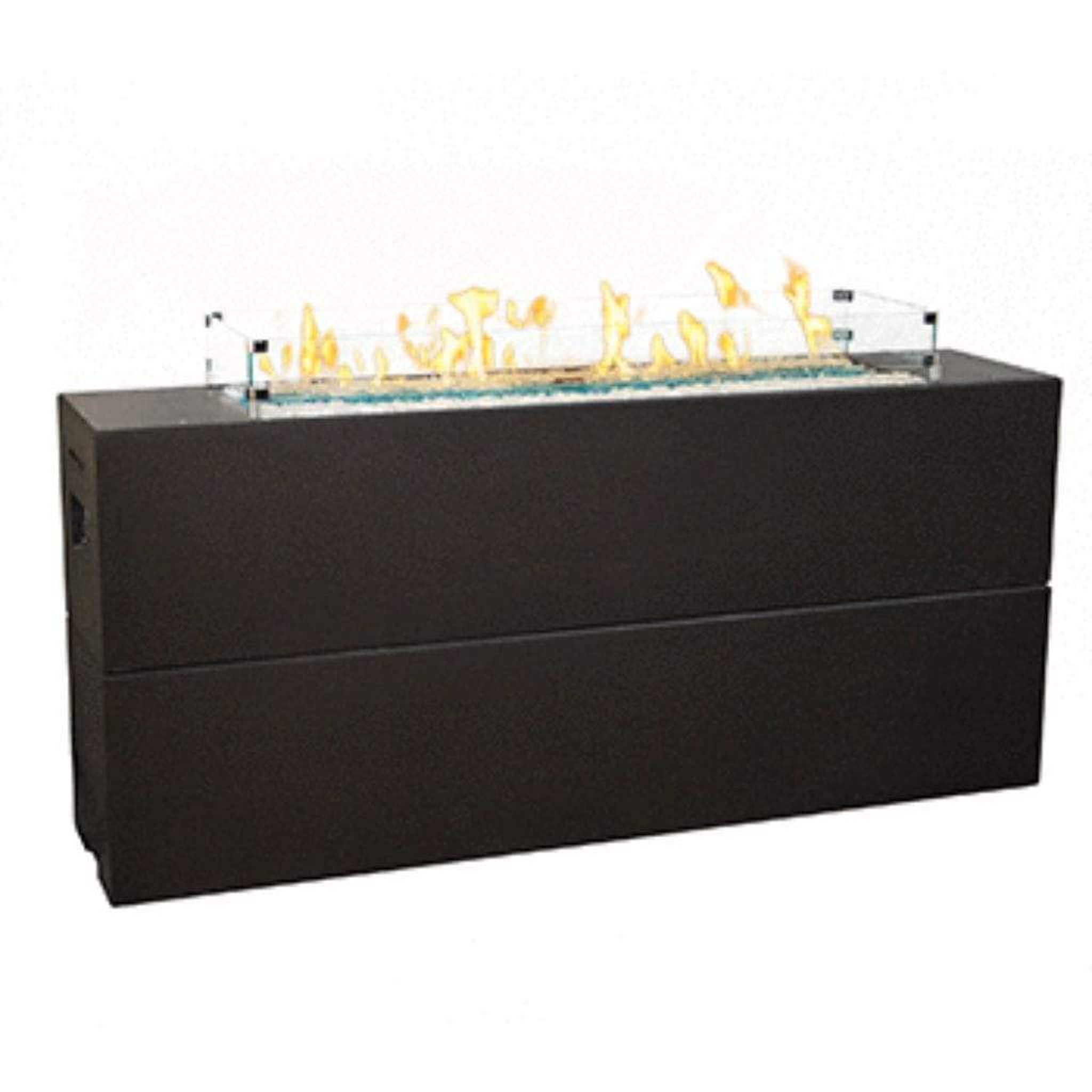

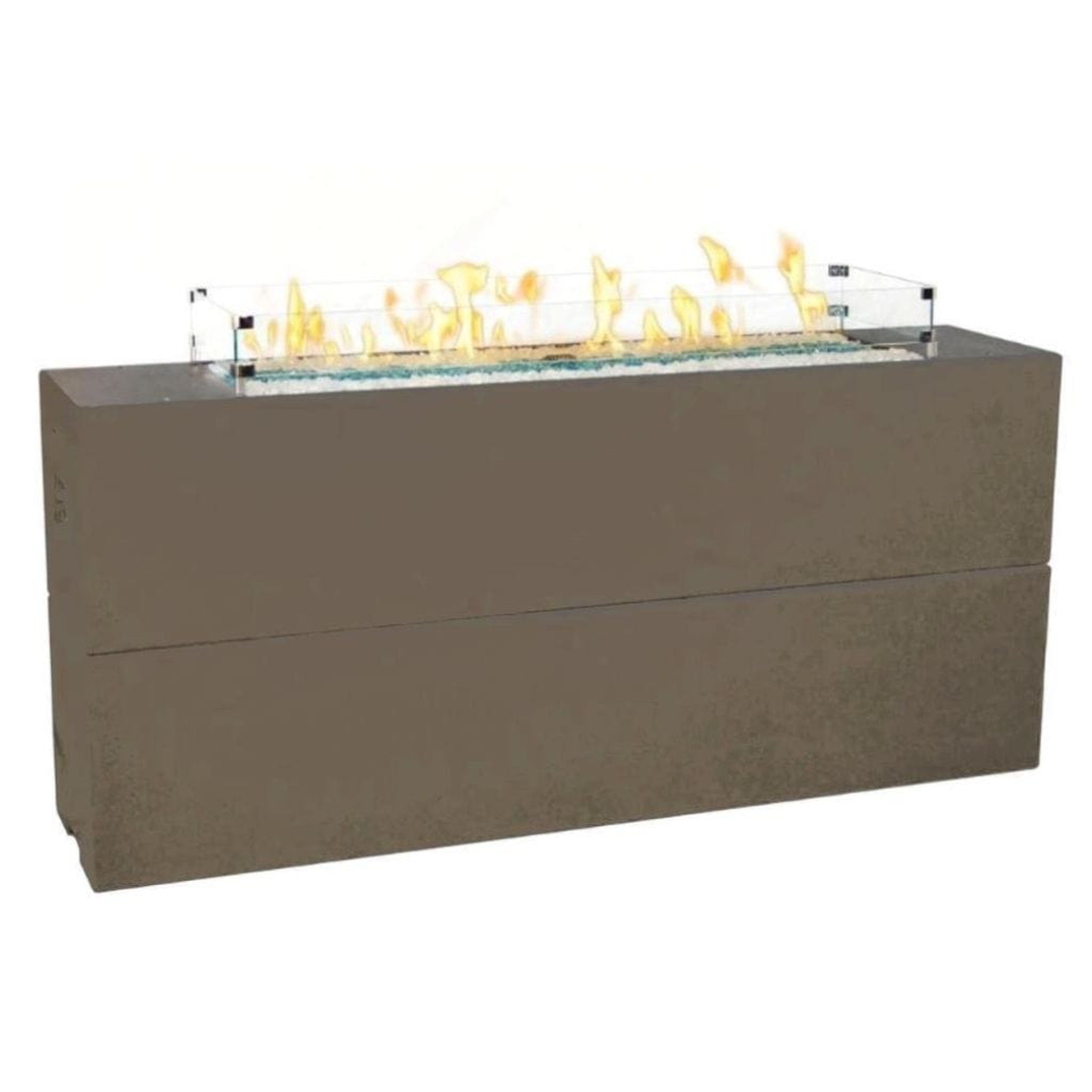

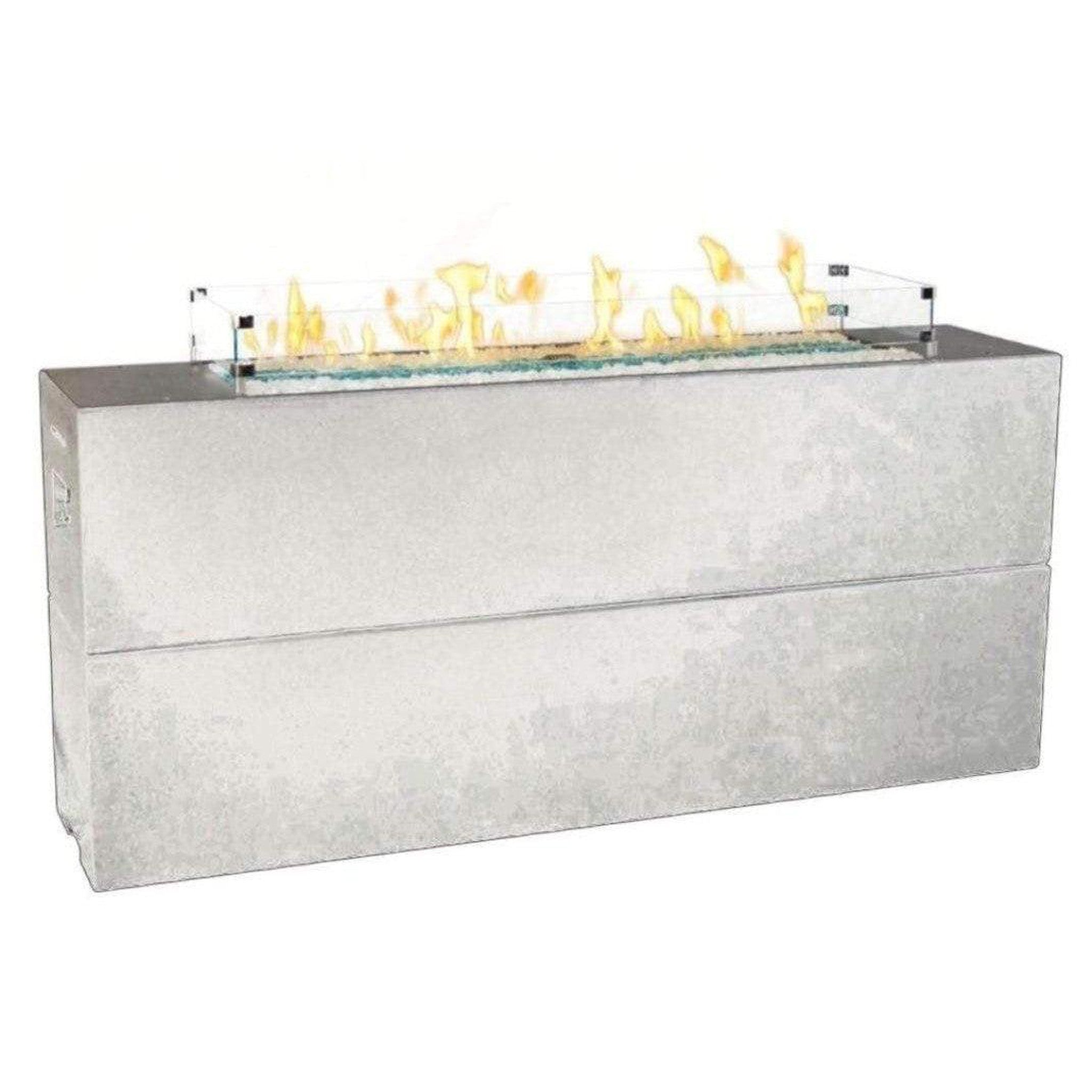

The Milan Tall Linear is a 72-inch GFRC fire table with a slim 16-inch depth and a counter-forward 32-inch height, so it works as a fire feature and a sculptural privacy screen along a terrace, pool deck or rooftop edge. A 48-inch stainless steel linear burner runs the length of the top. Choose Manual Flame Sensing for a steady 65,000 BTU, or FyreStarter for a 100,000 BTU high, a 53,000 BTU low and Bluetooth control.
Key Specifications
| Model | 215-xx-11-M8NC / M8PC (Manual Flame Sensing); 215-xx-11-H8NC / H8PC (FyreStarter Bluetooth); xx = finish code |
| Fuel | Natural gas or propane (chosen at order) |
| Burner | 48" stainless steel linear burner |
| Heat output | 65,000 BTU/h NG or LP (Manual Flame Sensing); 100,000 BTU/h high / 53,000 BTU/h low (FyreStarter) |
| Ignition | Manual flame sensing valve with AA battery spark igniter, or FyreStarter electronic ignition with Bluetooth app control |
| Electrical | None for manual models; FyreStarter needs 120VAC, 15 amp minimum, 60 Hz, GFCI weatherproof outlet |
| Material | Glass fiber reinforced concrete (GFRC), hand-applied finish |
| Finishes | Smoke, Cafe Blanco, Black Lava (per current listing; AFD also publishes additional finishes) |
| Certification | ANSI Z21.97 / CSA 2.41, outdoor decorative gas appliance |
| Weight | 360 lbs |
Dimensions and Cutout
| Overall | 72" W x 16" D x 32" H |
| Burner | 48" linear |
| Installation type | Freestanding, no cutout; the propane tank is not stored inside the unit |
| Gas supply pressure | Natural gas 5 to 10.5 in. w.c.; propane 11 to 13 in. w.c.; 1/2 inch minimum supply pipe with a shutoff valve within 6 ft |
| Clearances | 3 ft from the unit edge to any construction at the sides; 6 ft from the top of the unit to any overhead construction; 0 inches below |
Features
- Slim 72 x 16 inch footprint with a tall 32-inch profile that doubles as a privacy screen
- 48-inch stainless steel linear burner for a long, even flame line
- FyreStarter option: 100,000 BTU high and 53,000 BTU low, Bluetooth phone control
- Manual Flame Sensing option needs no electrical service: a battery spark igniter and a flame-sensing safety valve
- Lightweight, weather-resistant GFRC construction with hand-applied finishes
- Optional glass wind guard and fitted cover (see below)
- Built by American Fyre Designs in the USA
What Is Included and What You Will Need
- Included: Milan Tall Linear fire table in your selected finish, stainless steel linear burner and valve system, 10 lb bag of lava granules for the required base layer
- Natural gas: a dedicated gas line with shutoff, installed by a licensed plumber
- Propane: the tank cannot go inside this unit; use a remote 20 lb cylinder in an enclosure such as the Reclaimed Wood Contempo Tank/End Table with a hose no longer than 10 ft
- FyreStarter models: a 120V, 15 amp minimum, GFCI-protected weatherproof outlet
- Decorative media (AFD recommends 35 lbs of glass or gems, or 20 lbs of lava granules or coals): Fyre Glass, Reflective Fyre Glass, Fyre Gems or Diamond Nuggets
- Optional: tempered glass wind guard and vinyl protective cover (listing cites part 8144A for this model; confirm fit before ordering)
Installation Notes
Outdoor use only. Set the table on a hard, level surface with 3 ft of clearance from its edge to any construction, and never under overhead construction less than 6 ft above the top. Do not run it in high wind. Have your plumber size the gas line for the full 100,000 BTU load before the patio is finished. Natural gas piping must be installed by a qualified installer; in New York City that means a licensed master plumber under permit, and roof or terrace locations may need building approval. The unit ships LTL freight at 360 lbs. Our team installs across NYC, Long Island, Westchester and New Jersey. Book a free design consultation and we will help you plan the layout, utilities and installation.
Documentation
- Installation & Owner's Manual (store copy)
- Milan Linear Firetable Installation & Owner's Manual H2-031 (dealer-hosted copy)
- FyreStarter Bluetooth Control Manual
- American Fyre Designs catalog
Frequently Asked Questions
Manual Flame Sensing or FyreStarter?
Manual is simpler and needs no outlet, at a steady 65,000 BTU. FyreStarter adds push-button and phone control, a 100,000 BTU high and 53,000 BTU low, but needs a 120V GFCI outlet nearby.
Can I run it on propane?
Yes, but the tank cannot be stored inside this table. Use a remote 20 lb cylinder in a ventilated enclosure such as a tank table, with a hose no longer than 10 ft.
How much media does it take?
AFD recommends about 35 lbs of glass or gems, or 20 lbs of lava granules or coals, over the included lava base.
Does it come with a wind guard or cover?
No. The tempered glass wind guard and the protective cover are optional accessories sold separately.
Related reading: Gas Fire Pit and Fire Table Buying Guide and Outdoor Fireplace Buying Guide.
Warranty
American Fyre Designs warrants the GFRC fire feature and burners for three years and all valves, electrical components, accessories and controls for one year (batteries, wind guards and screens excluded) from the date of purchase. Coverage is for the original purchaser with proof of purchase and does not cover damage from burning wood or any fuel other than natural gas or propane, or damage or discoloration from high winds.
