Description
Description
Available Sizes: American Outdoor Grill L-Series Built-In Propane Grills with Lights and Rotisserie
24 in. | 30 in. | 36 in. (Current Size)
Same series, fuel and built-in installation. Burner count, cooking area and cutout dimensions differ by size.
Overall Dimensions: 40-1/8" W x 25-7/8" D x 22-1/4" H

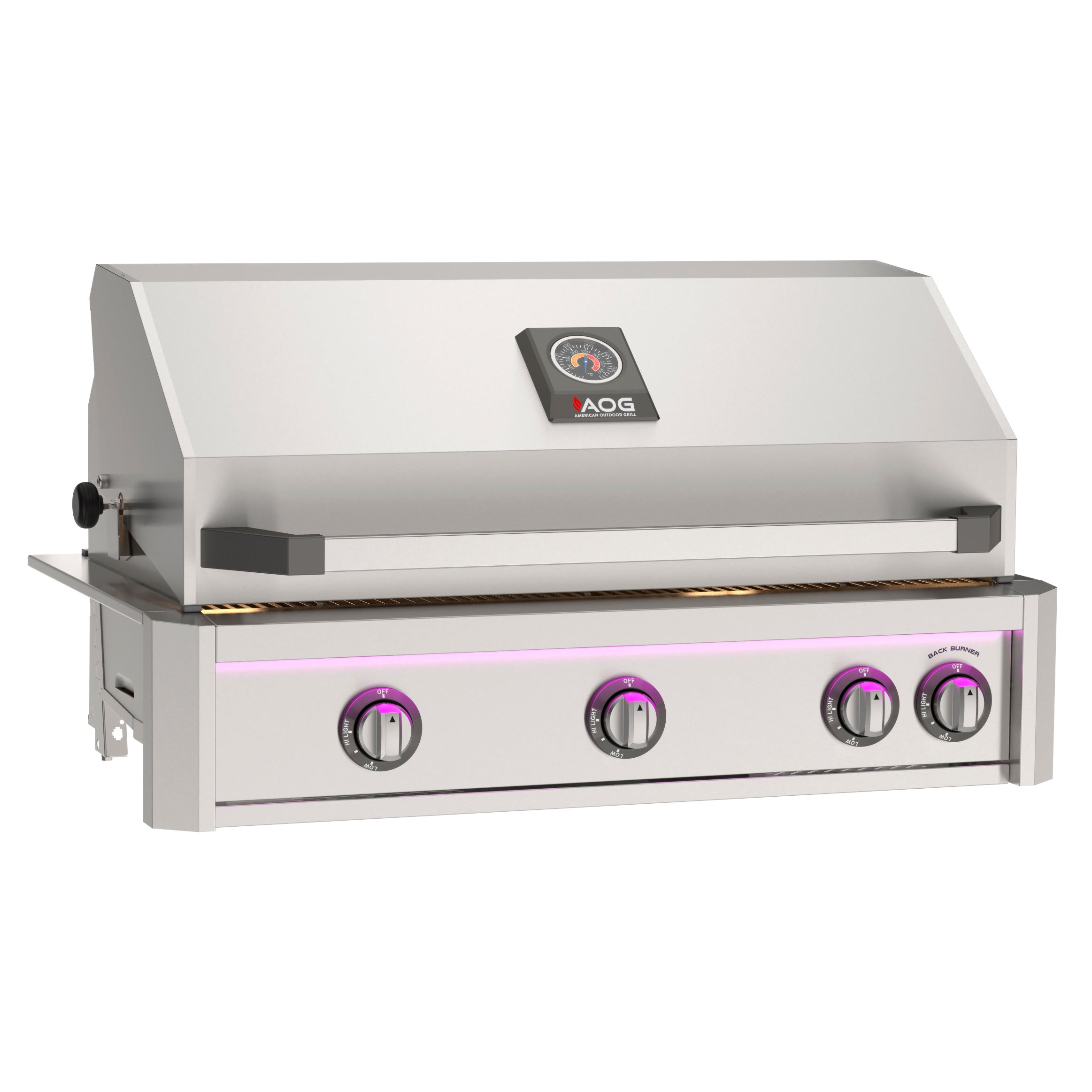

The American Outdoor Grill 36-Inch L-Series Built-In Propane Grill (AOG36LP) is the largest L-Series grill from the Robert H. Peterson Co.: 648 square inches of Diamond Sear grids over 304 stainless tubular burners, an infrared backburner with the rotisserie kit included, and a lighting system built for cooking after dark. It is the centerpiece size for a propane outdoor kitchen that wants rotisserie and night lighting without stepping up to a luxury-tier price. A gas conversion kit ships in the box.
Key Specifications
| Model | AOG36LP (36" L-Series Built-In, propane) |
| UPC | 619655085029 |
| Main Burners | Heavy-duty 304 stainless tubular burners (4 per current listing), 50,000 BTU primary |
| Infrared Backburner | 12,000 BTU, with rotisserie kit (spit rod, forks and motor) included |
| Primary Cooking Surface | 648 sq in (829 sq in with warming rack per current listing) |
| Cooking Grids | Diamond Sear 304 stainless steel |
| Heat Management | Vaporizer panels |
| Ignition | Flame Thrower ignition system |
| Lighting | Interior halogen lights plus external multi-color LED light bar with remote control and LED master power button |

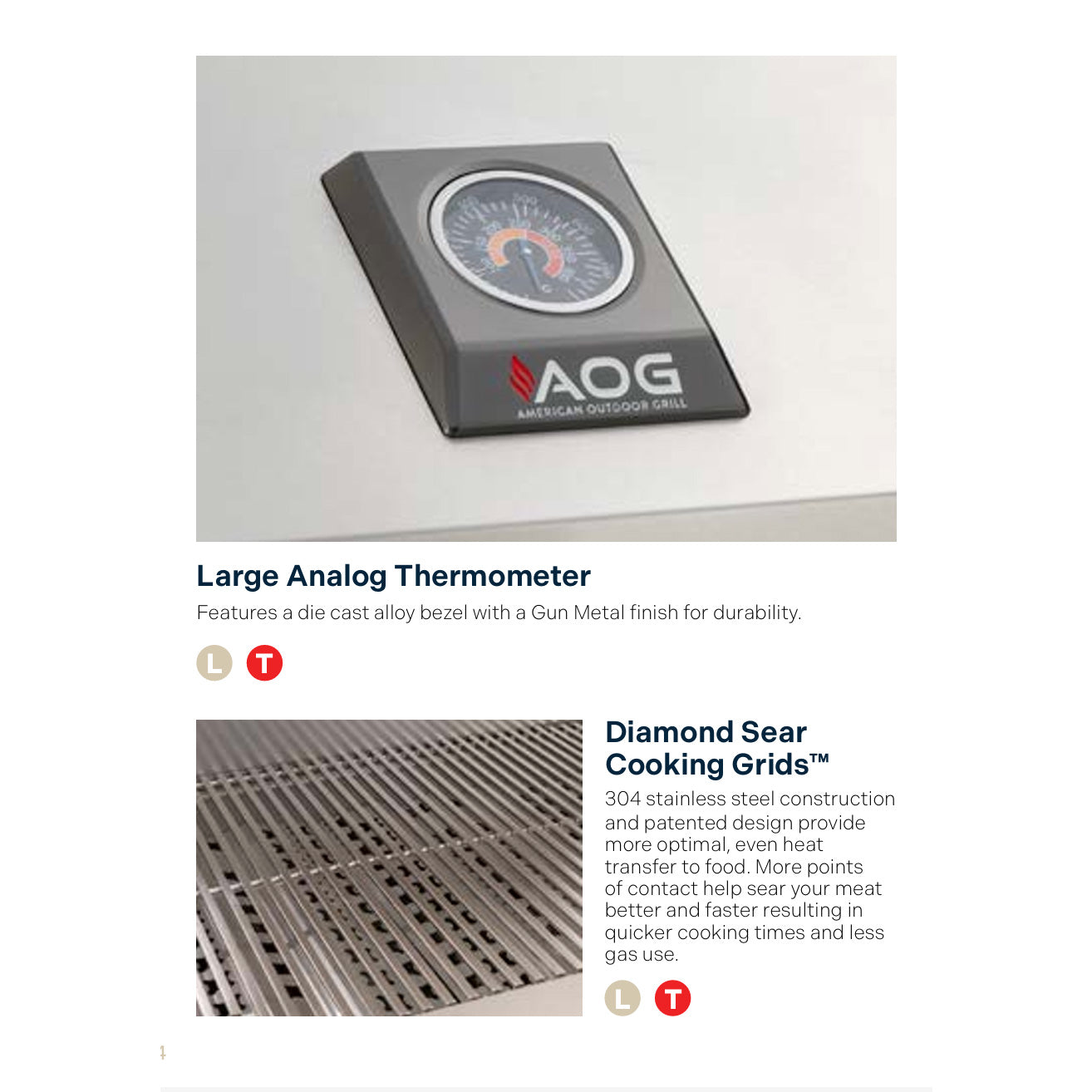

| Hood | Spring-assisted, with large analog thermometer in a die-cast gun metal bezel |
| Power | 120V AC required; 15 A minimum GFCI grounded receptacle |
| Weight | 179 lb per current listing |
Dimensions and Cutout
| Overall (W x D x H) | 40-1/8" x 25-7/8" x 22-1/4" per the AOG 2026 Spec Guide |
| Cutout (W x D x H) | 36-3/4" x 19-1/2" x 8-1/2" |
| Counter overhang cutout width | 40-3/4" |
| Cutout with 36-IL-C insulating liner (W x D x H) | 40-5/8" x 21-5/8" x 9" |
| Enclosure | Non-combustible countertop required; a combustible enclosure needs the insulating liner |
Features

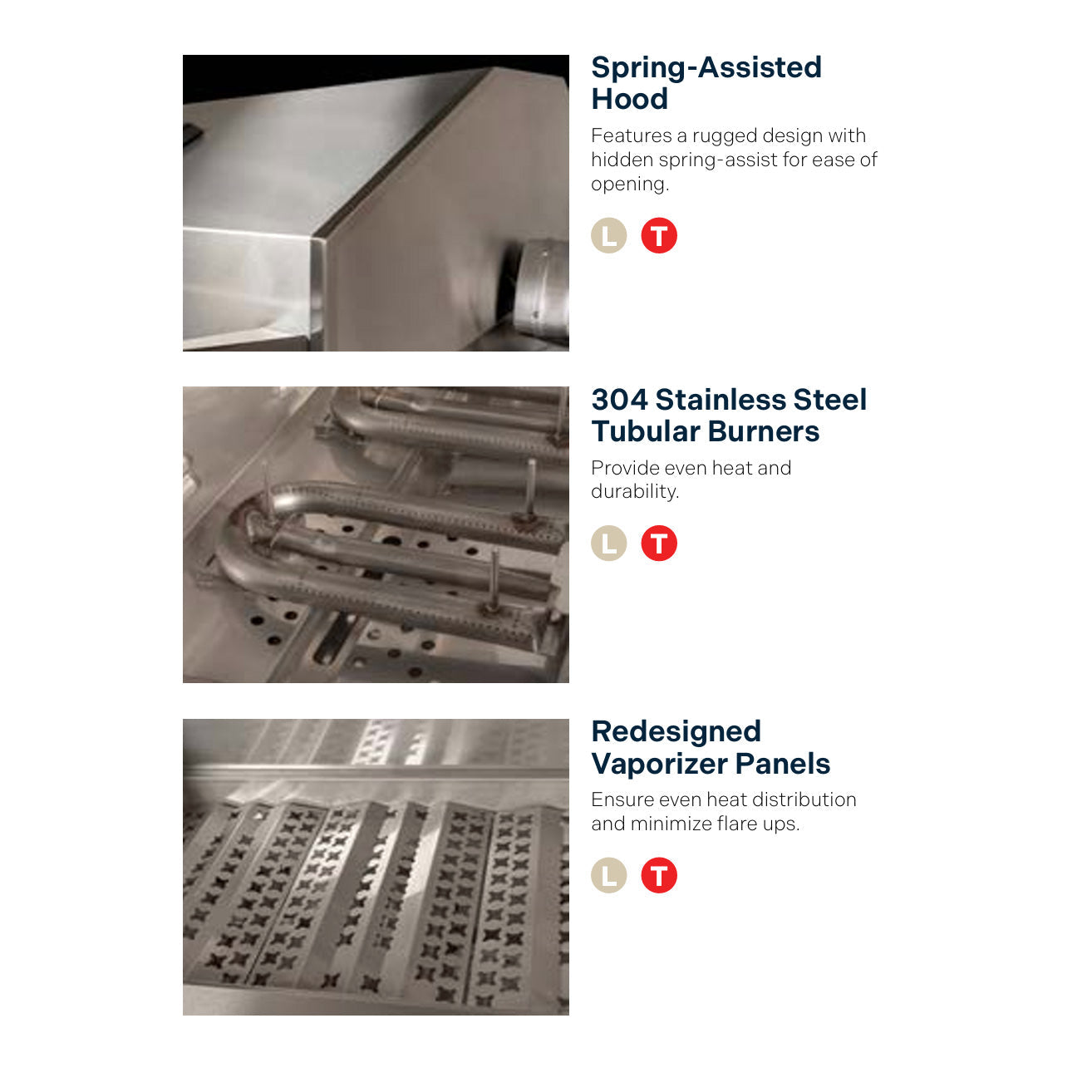

- Diamond Sear 304 stainless grids hold heat at the surface for strong sear marks
- Heavy-duty 304 stainless tubular burners with vaporizer panels for even heat and fewer flare-ups

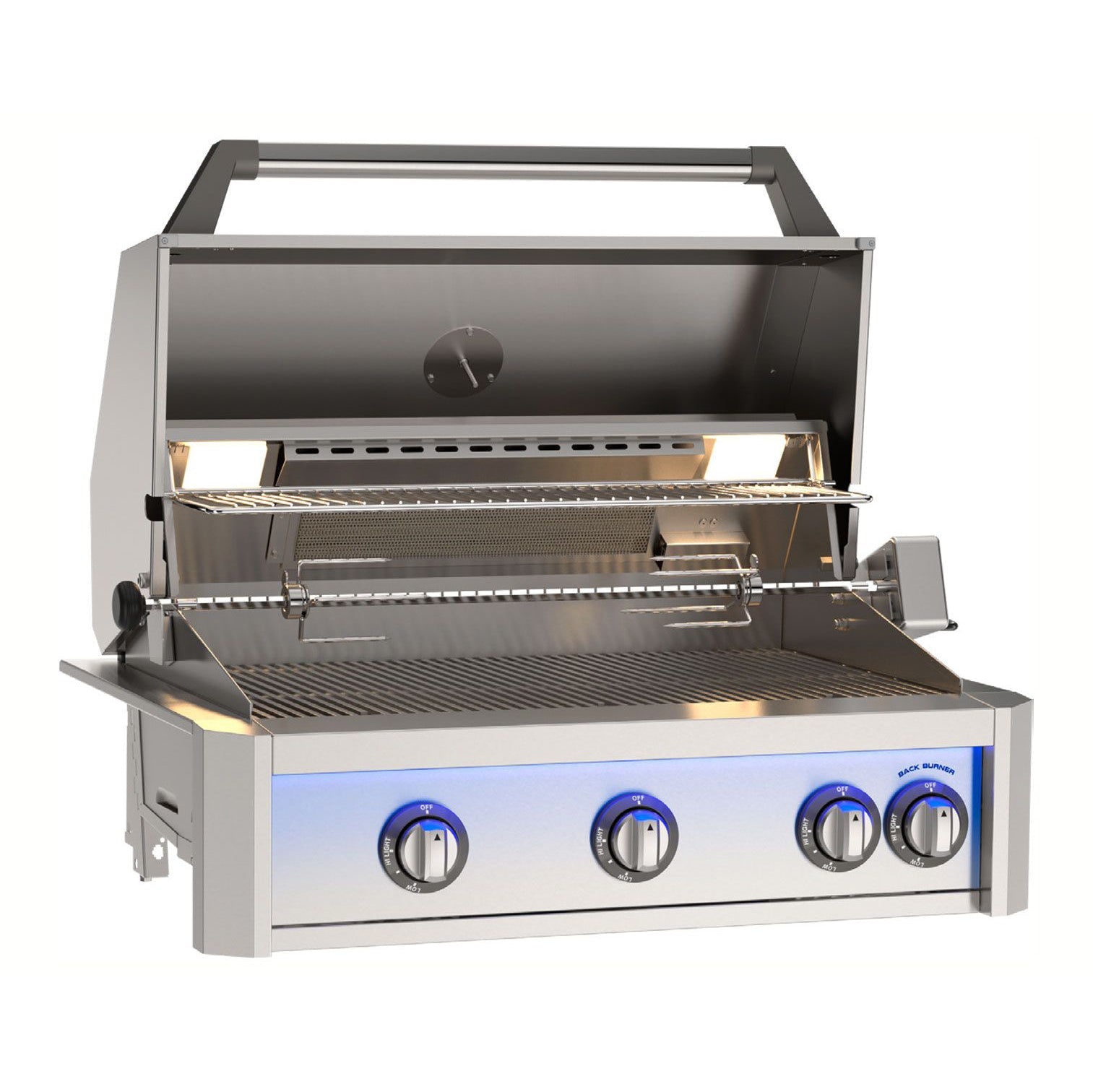

- 12,000 BTU infrared backburner and rotisserie kit included

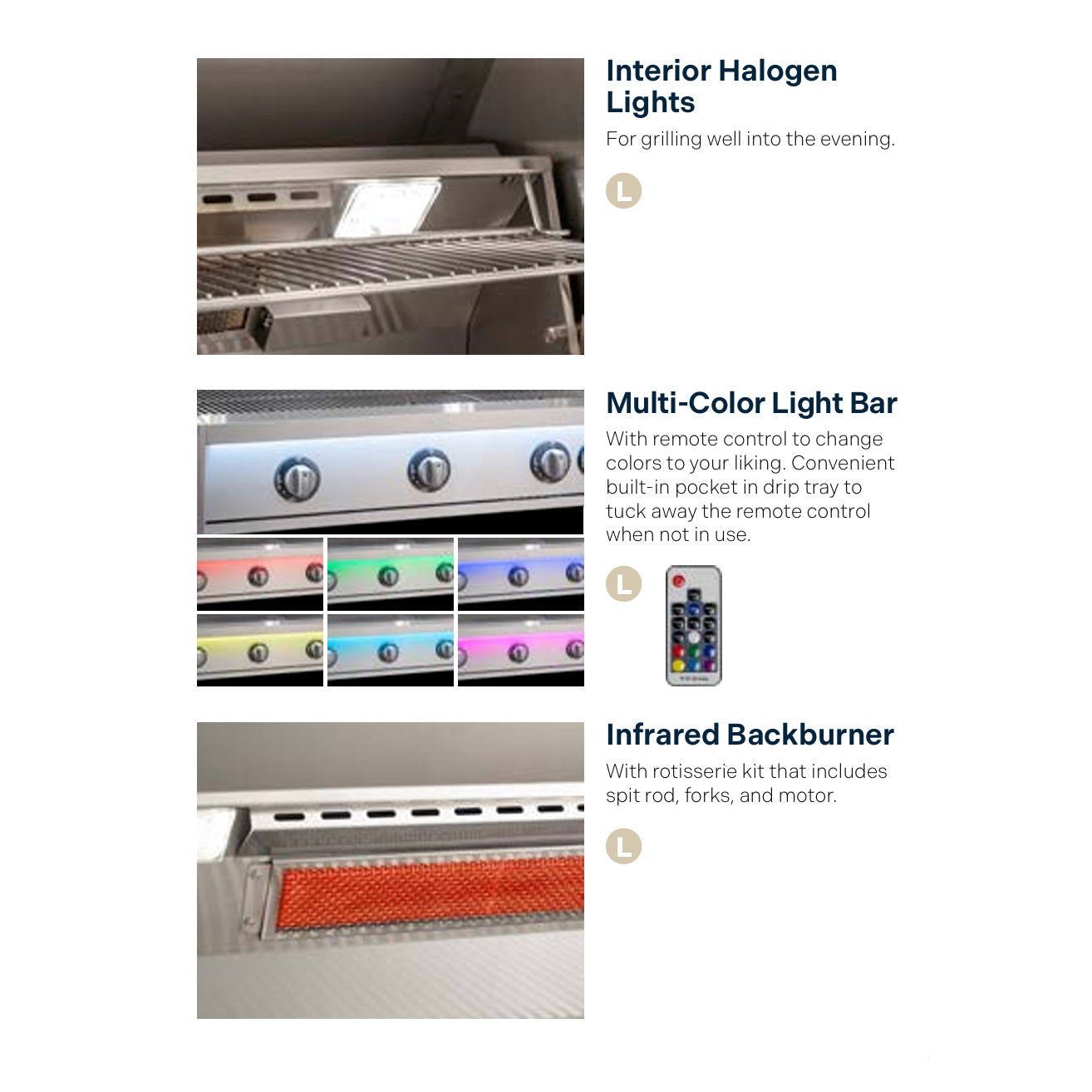

- External multi-color LED light bar with remote, plus interior halogen lights

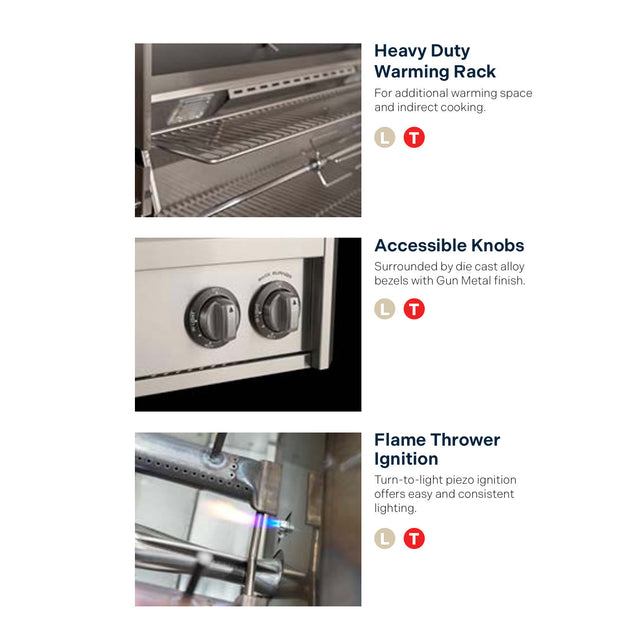

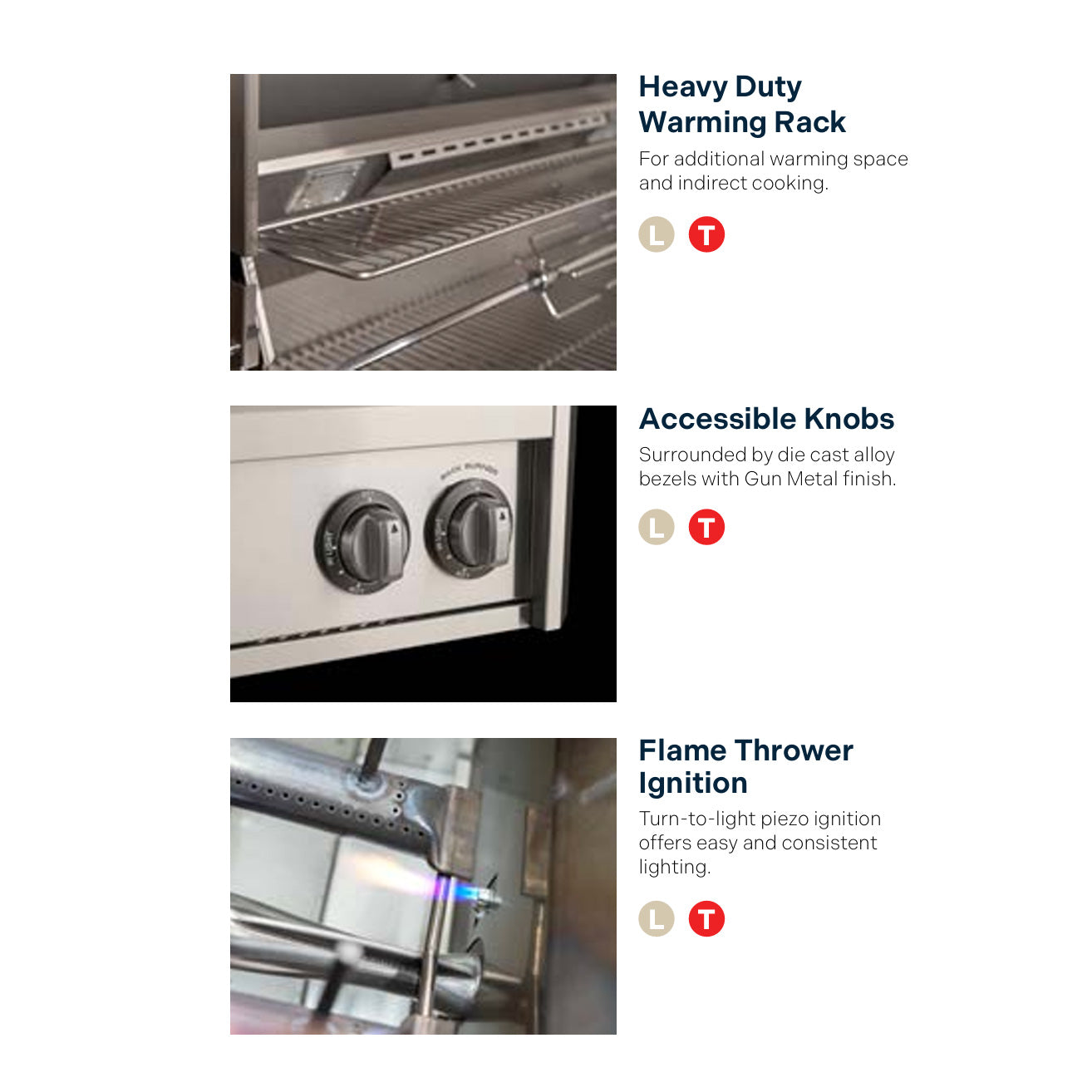

- Flame Thrower ignition for consistent lighting
- Spring-assisted hood with a commercial caliber handle and die-cast gun metal end caps
- Heavy-duty warming rack

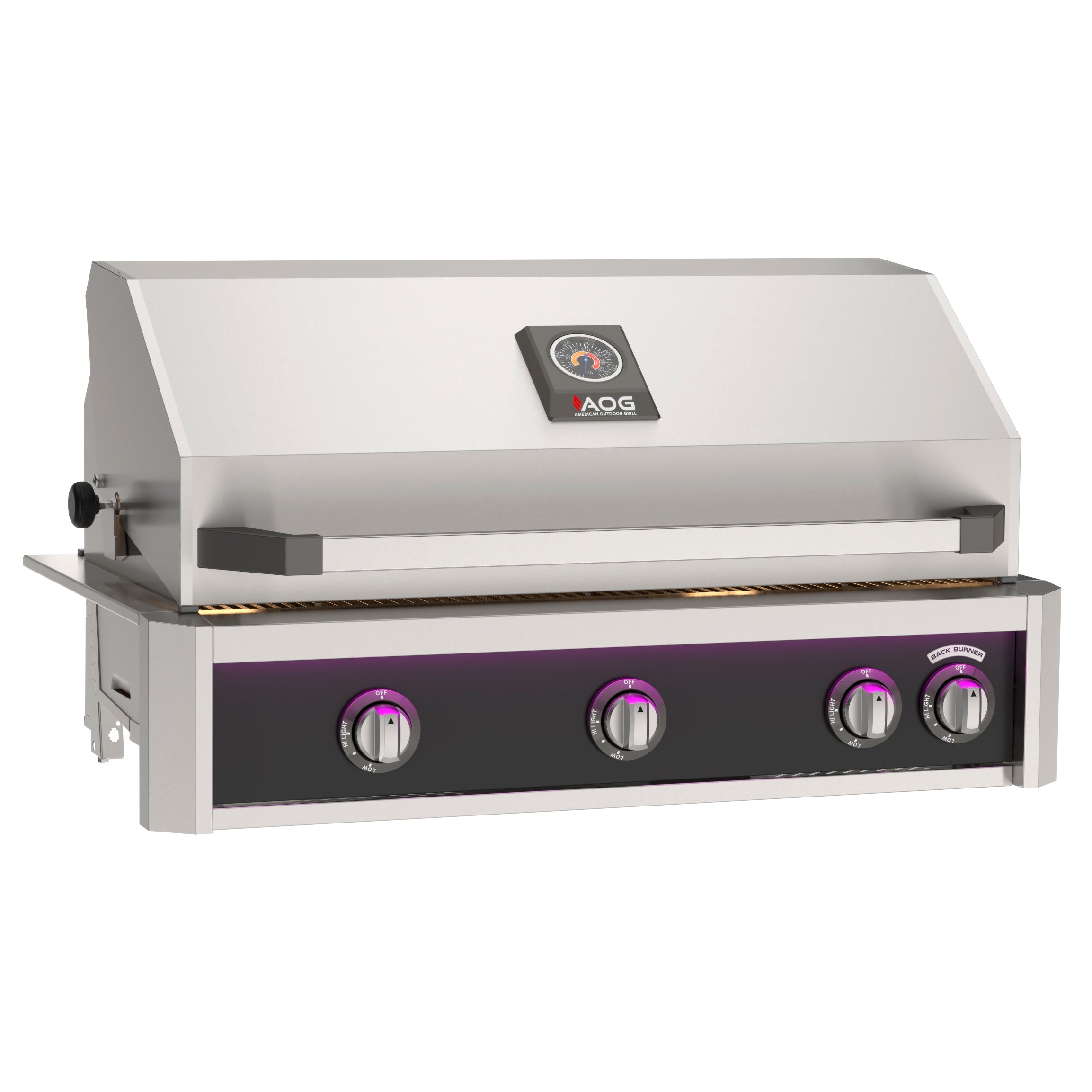

- Optional black or white accent color panel for the control panel
What Is Included and What You Will Need
- Included: 36" L-Series grill head (propane), infrared backburner, rotisserie kit, LED light bar with remote, warming rack and gas conversion kit
- Required: a regulated propane supply sized for 62,000 BTU total, a non-combustible countertop and enclosure (or the AOG 36-IL-C insulating liner for combustible framing), proper enclosure venting, and a 120V GFCI receptacle within reach
- Optional: the AOG stainless steel griddle (GR18A) and the AOG 36 in 1000 CFM vent hood (VHD-36) for covered installs
- Also available: AOG36LN natural gas model
Installation Notes
AOG requires the enclosure to sit on a hard, level surface, be properly vented, and have a non-combustible countertop; the grill hangs from its stainless hanger on the cutout edges. If the countertop overhangs the front wall, it must be cut flush for the width of the control panel. Leave a 1-1/2 in hole for the gas supply and one for the electrical supply. Propane cylinders are tightly restricted on New York City terraces and rooftops, so most NYC installs use natural gas; confirm with your building before choosing propane. Book a design consultation to have us plan the island, gas and electrical around this grill.
Documentation
Frequently Asked Questions
Is the rotisserie included?
Yes. The L-Series includes the infrared backburner and a rotisserie kit with spit rod, forks and motor.
Can I convert it to natural gas later?
AOG ships every grill with a gas conversion kit; conversion should be done by a qualified gas installer.
Does it need electricity?
Yes. All L-Series grills require 120V AC for the lights and rotisserie, on a 15 A minimum GFCI receptacle.
L-Series or T-Series?
The L-Series adds the infrared backburner, rotisserie kit, LED light bar and halogen interior lights; the T-Series uses the same cutout without them.
Related reading: Built-In Gas Grill Buying Guide and Natural Gas vs Propane Grill.
Warranty
AOG limited warranty: stainless steel burners and barbecue housing for as long as the original purchaser owns them (lifetime); Diamond Sear cooking grids 15 years; valves, controls and manifolds 10 years; backburners, rotisserie kits and vaporizer panels 3 years; ignition systems (excluding batteries), electronic components, grill parts and accessories 2 years.
