Broil King  |  SKU: 886714

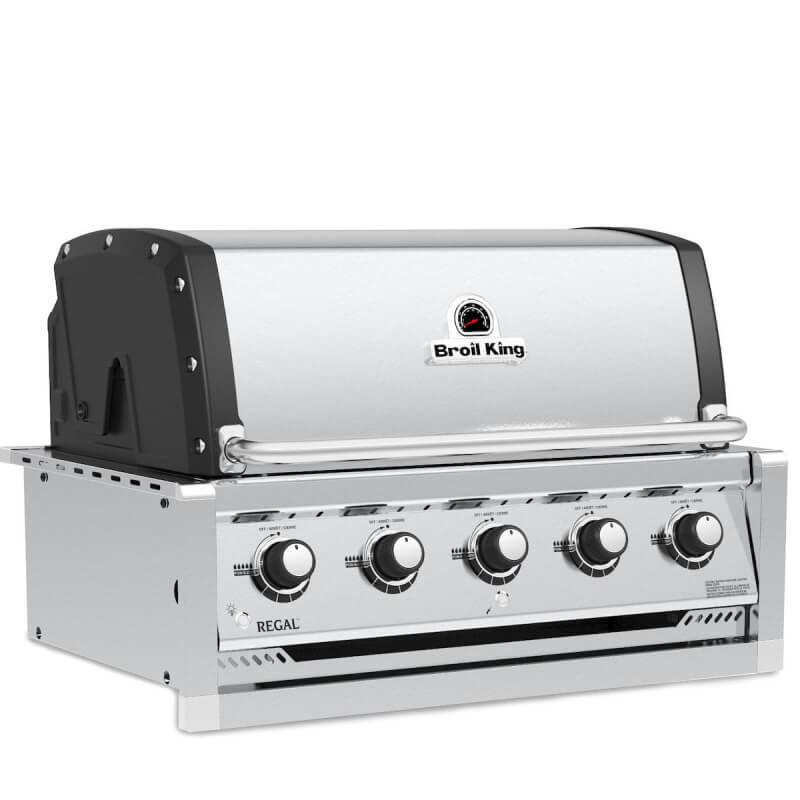

Broil King Regal S520 5-Burner Built In Gas Grill

$1,839.00

Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.

This item is available for pick-up or local delivery only (NYC Tri-State NJ CT & Long Island). Call us before ordering if needed immediately. 718-326-4328

Pickup available at Maspeth, NY Showroom

Usually ready in 2-4 days
400+ five-star Google reviews
  • Local delivery or pick-up across NYC, Long Island, NJ and CT. Delivery is free on this item.
  • Factory-authorized Broil King dealer. You keep the full manufacturer warranty.
  • 30-day returns, no restocking fee.
  • Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Questions about fit, venting or power? Talk to the team that installs it. Mon to Fri 9 to 5, Sat 10 to 3.
Call 718-326-4328 Free Consultation

Free & Flat Rate Local Delivery
  • Our team & trucks deliver locally within 60 miles of our showroom. (NYC Tri-State including all of Suffolk County)
  • Orders Over $999 Ship Out Fast & Free
  • Delivery typically takes 5 -7 days
  • $49.95 Flat-Rate Local Shipping on orders under $999
  • Setup & Assembly available for most items at checkout

Assembly & Installation

Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!
Call for a free quote 718-326-4328

Visit our sister site to learn more about our showroom products like Direct Vent Gas Fireplaces, www.NYCFireplaces.com

Warranty

Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.

Returns
  • No-Restock Fees
  • 30-Day Return Policy
  • The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
  • We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.

Description

Explore other Broil King Regal S built-in gas grill models: Model 420 | Model 520 (current)

Overall Dimensions: Cutout 36-1/4 in W x 23-1/8 in D x 10-29/32 in H (current listing)

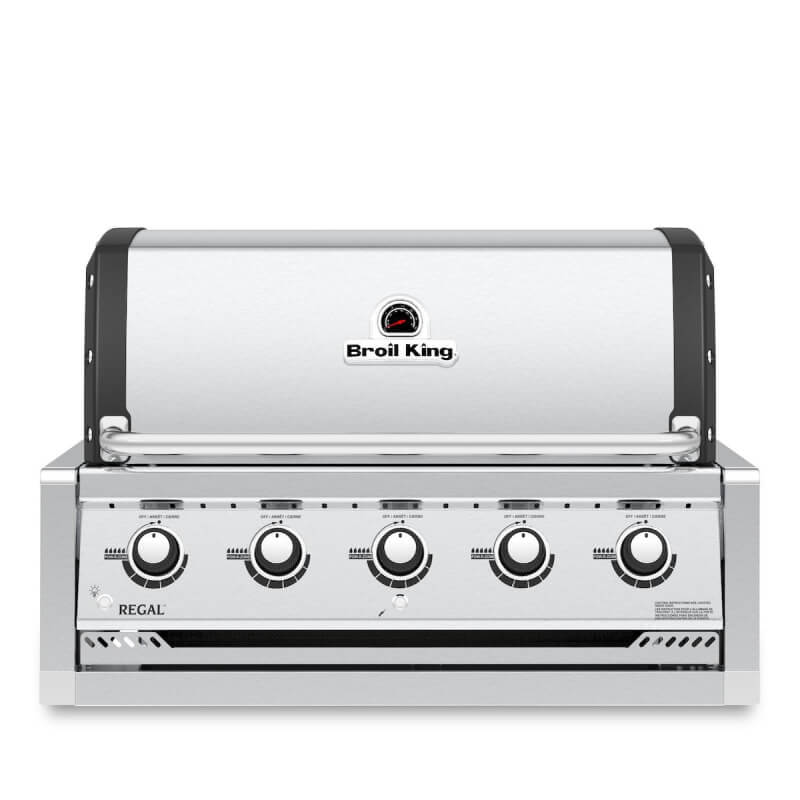

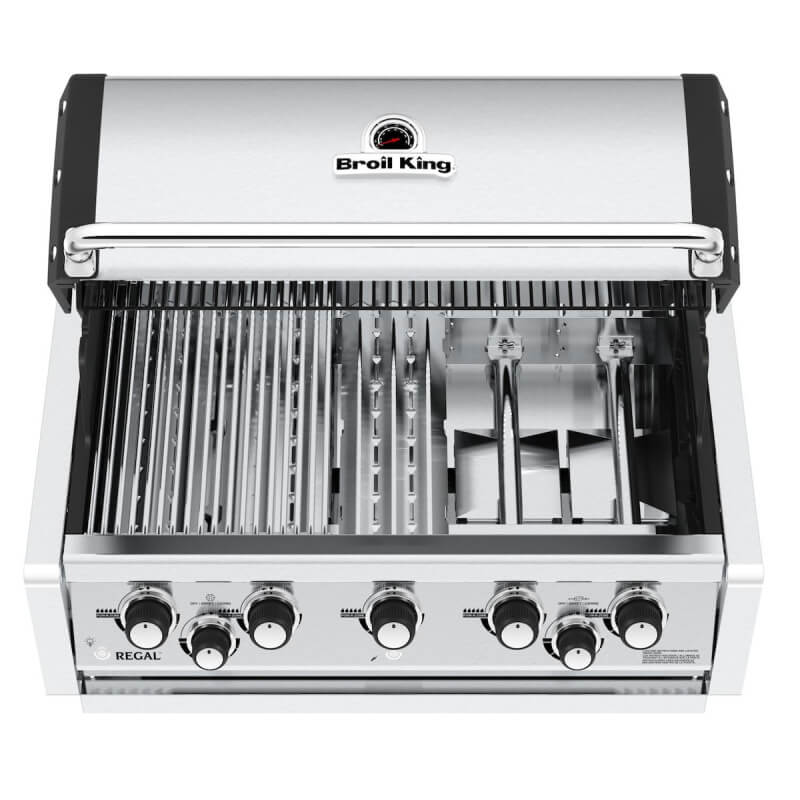

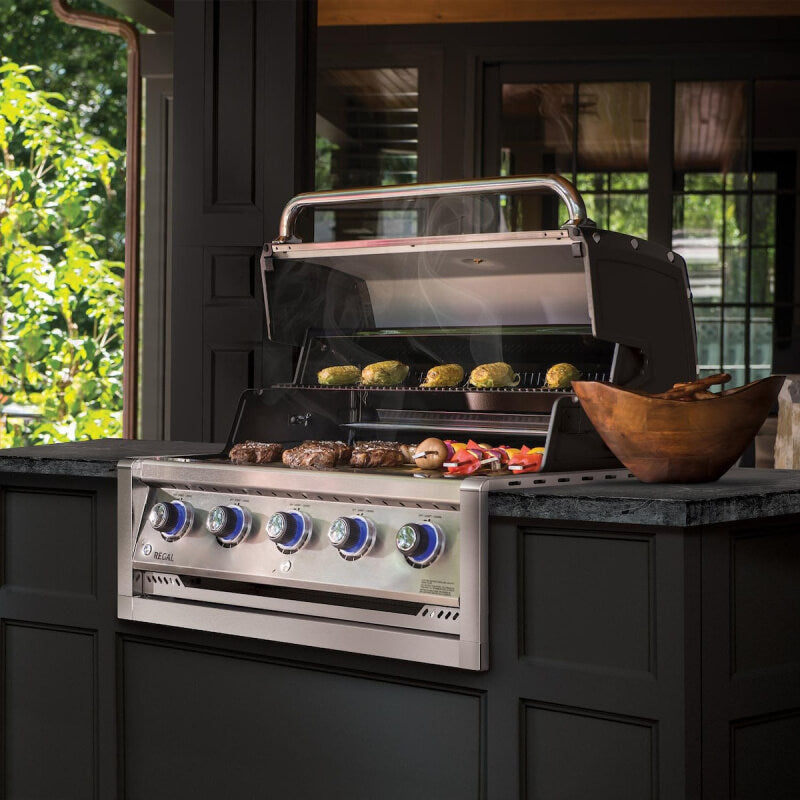

The Broil King Regal S 520 Built-In is a 5-burner gas grill head for an outdoor kitchen island, bringing Broil King's Dual-Tube burners and Flav-R-Wave cooking system to a masonry or steel-frame island at a value price. 5 stainless burners deliver 55,000 BTU across 625 sq in of 9 mm stainless grids, with a warming rack for 875 sq in in total.

Features

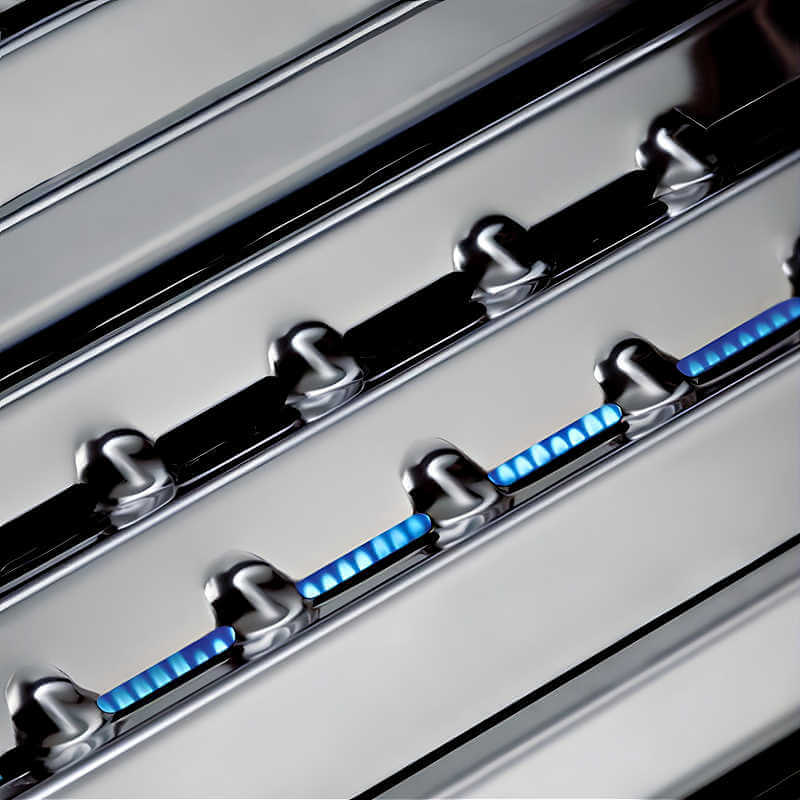

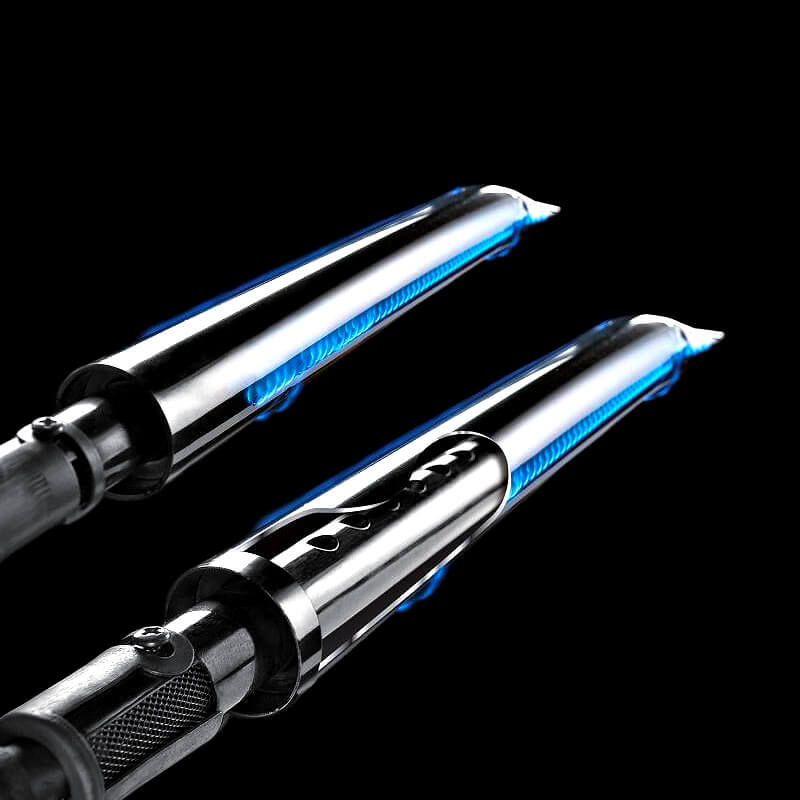

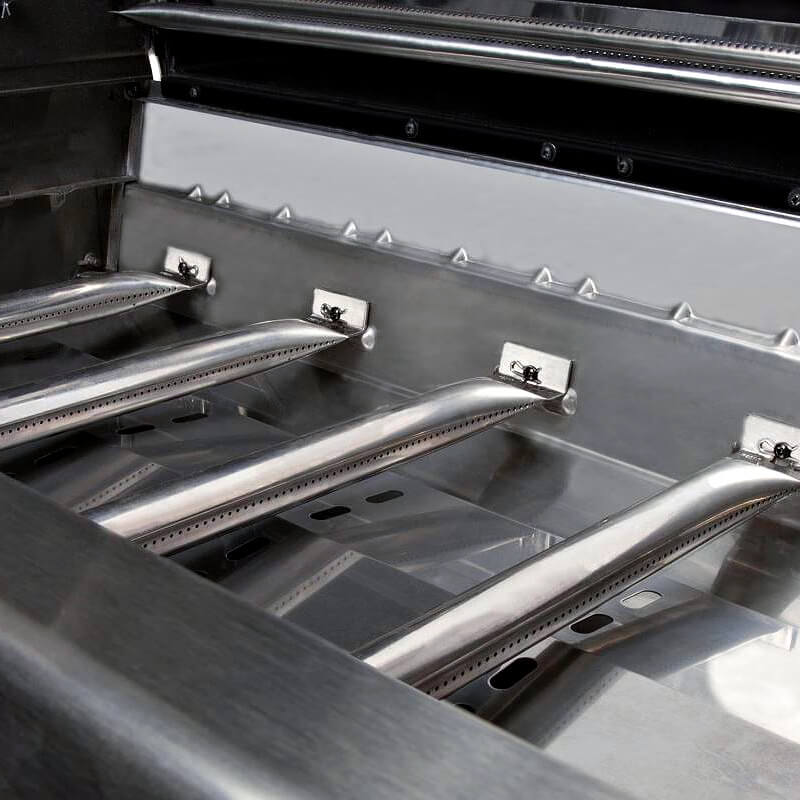

  • 5 stainless steel Dual-Tube burners, 55,000 BTU total

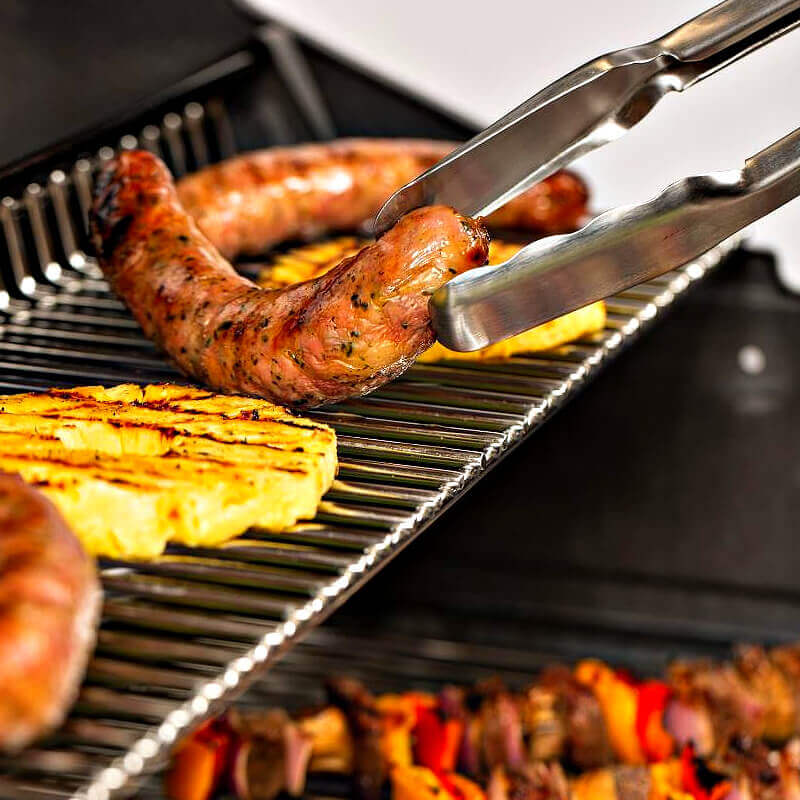

  • 625 sq in primary plus 250 sq in warming rack, 875 sq in total

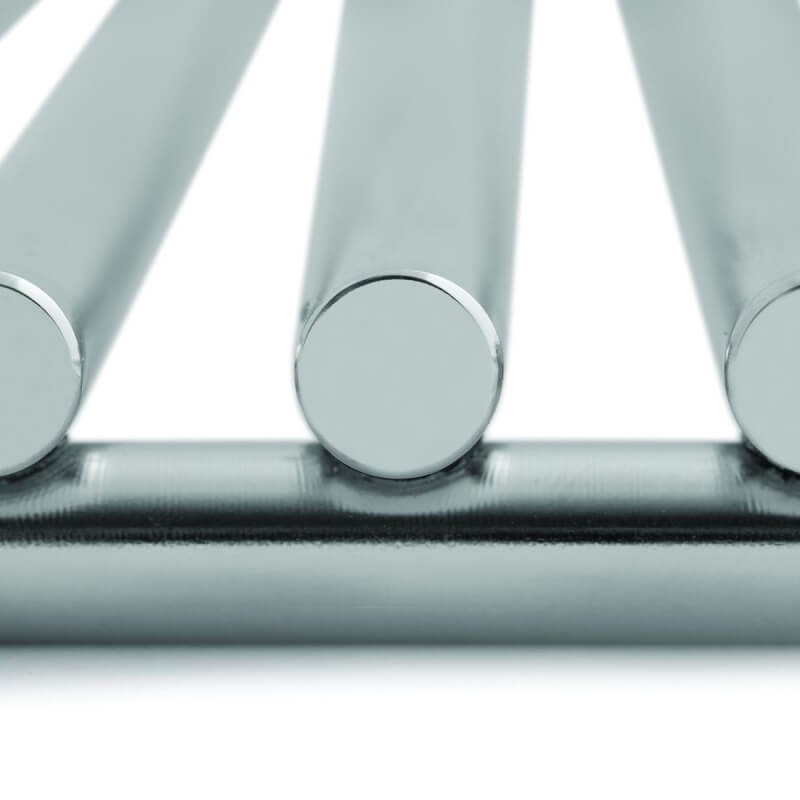

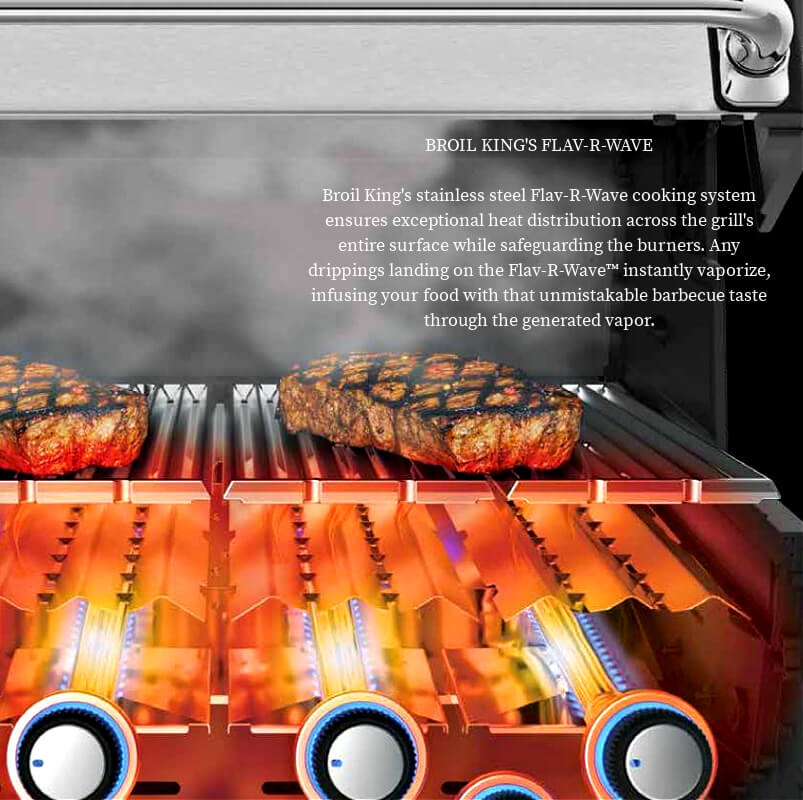

  • Solid 9 mm stainless steel rod cooking grids and stainless Flav-R-Wave cooking system

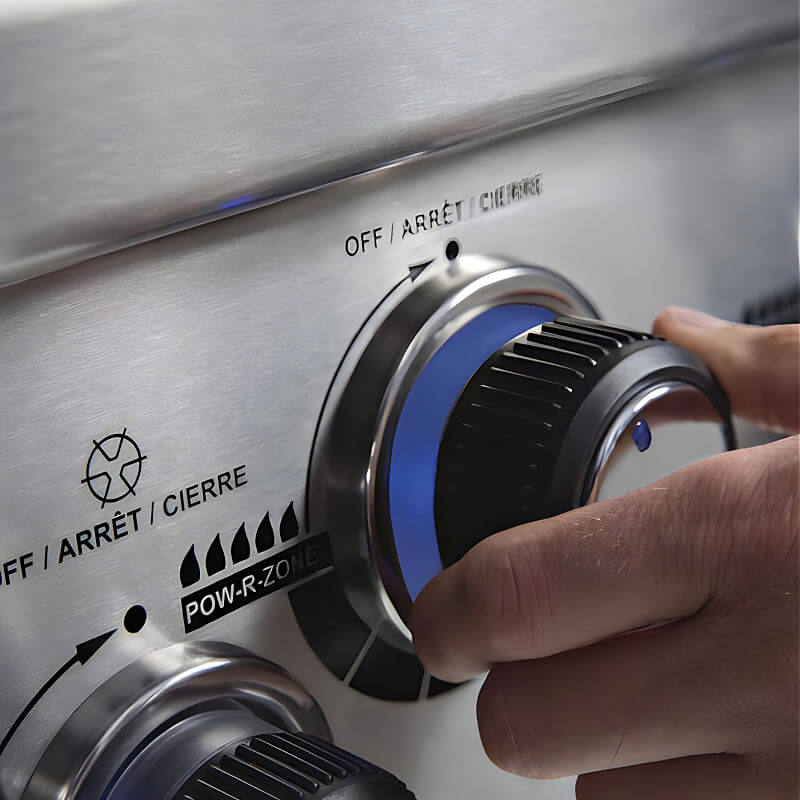

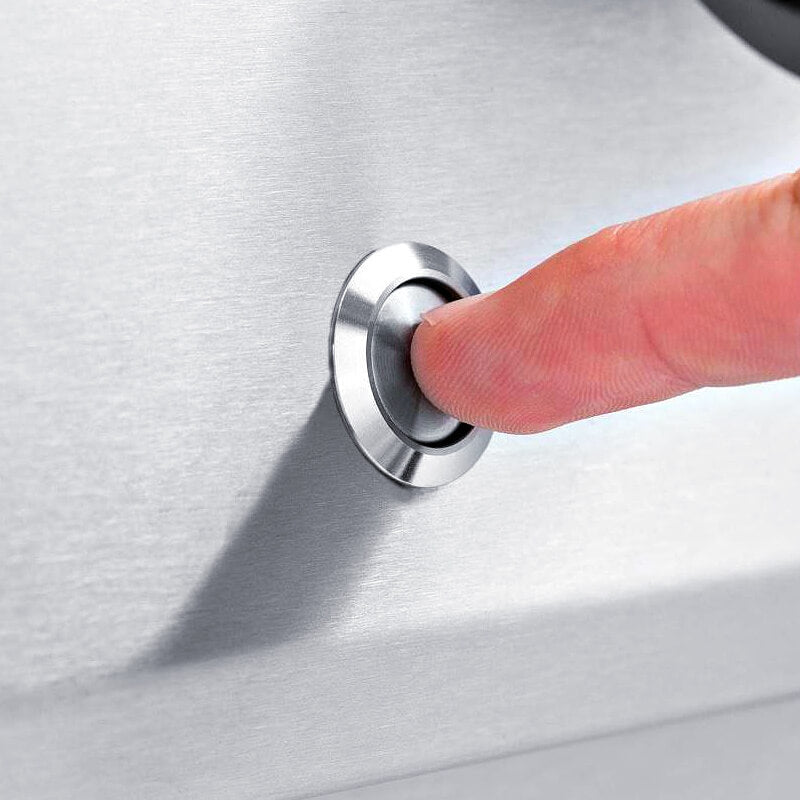

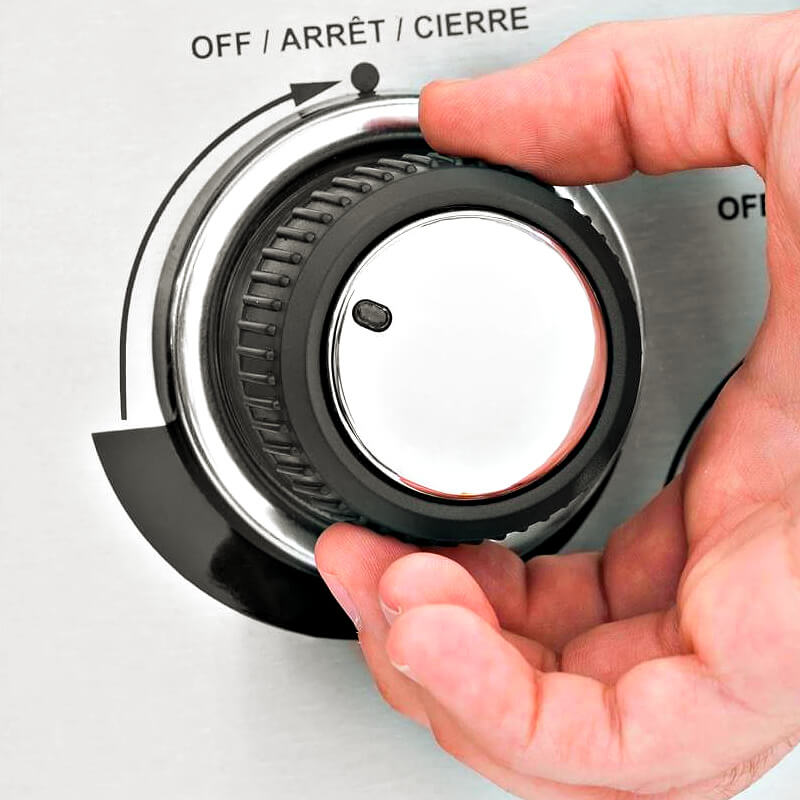

  • Linear-Flow valves with 180 degree Sensi-Touch control and Sure-Lite electronic ignition

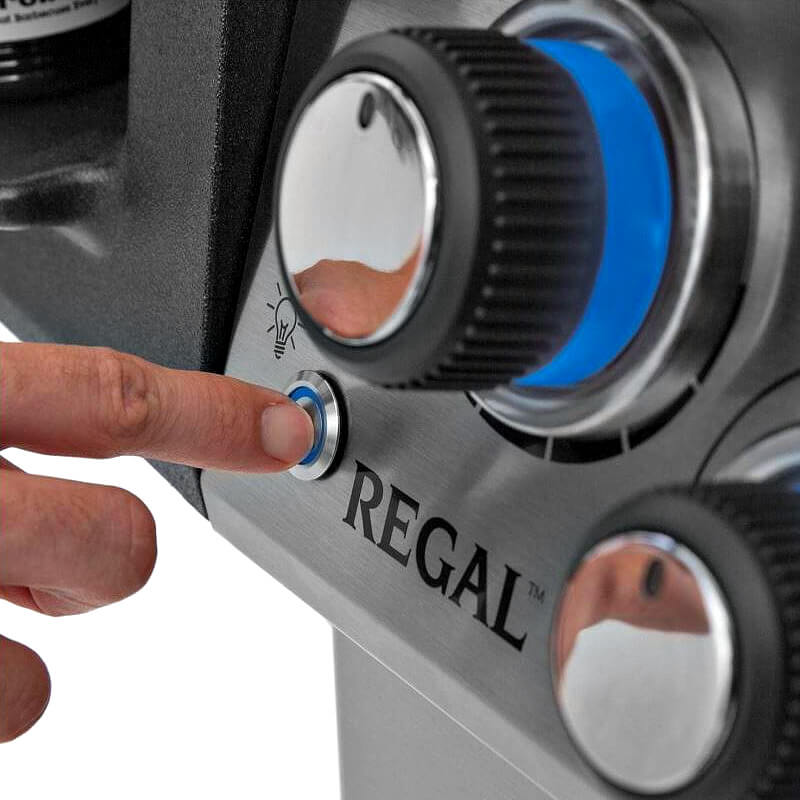

  • Deluxe Accu-Temp thermometer and control knob lights
  • Stainless cookbox and roll-action hood with cast aluminum end caps

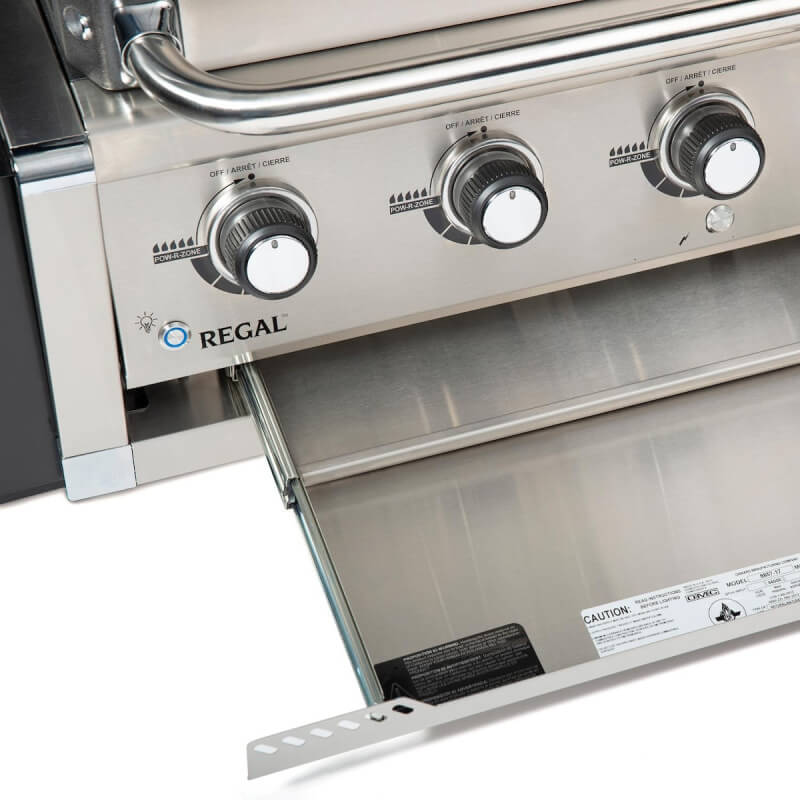

  • Slide-out grease tray for cleanup from the front

Key Specifications

Model / SKU Broil King Regal S 520 Built-In; 886714 (propane) / 886717 (natural gas)
Main burners 5 stainless steel Dual-Tube, 55,000 BTU
Cooking area 625 sq in primary, 250 sq in secondary, 875 sq in total
Cooking grids 9 mm stainless steel rods
Rotisserie Not included
Side burner None
Ignition Sure-Lite electronic
Fuel Propane (20 lb tank) or natural gas (10 ft hose included)
Weight 168.6 lb (current listing)

Dimensions and Cutout

Cutout (W x D x H) 36-1/4 x 23-1/8 x 10-29/32 in (current listing)
Clearance to combustibles 30 in at the sides and rear (owner's manual)

What Is Included and What You Will Need

  • Broil King Regal S 520 Built-In grill head with grids, Flav-R-Wave system and warming rack
  • Natural gas model: 10 ft natural gas hose
  • You will need: a non-combustible island built to the cutout with ventilation and access for the gas connection and grease tray, plus a gas supply with an accessible shutoff and power for the lights

Optional Accessories

Installation Notes

Broil King gas grills are for outdoor use only. Keep at least 30 in (76 cm) from combustible surfaces at the sides and rear, never operate the grill under an overhead roof or unprotected combustible overhang, and keep the gas hose and power cord away from hot surfaces. Build the island from non-combustible materials to the cutout, with venting and service access as described in the owner's manual.

In New York City, a fixed natural gas line to a grill requires a licensed master plumber and a DOB permit, and FDNY restricts propane cylinder storage and use on balconies, terraces and rooftops, so confirm your building rules before choosing a fuel.

Designing an island around this grill? Book a design consultation.

Documentation

Frequently Asked Questions

Can I convert it between propane and natural gas?

Broil King builds the Regal S 520 Built-In as separate propane and natural gas models; order the variant that matches your supply. The natural gas model ships with a 10 ft hose.

How much can I cook at once?

625 sq in of primary cooking space and 875 sq in in total.

Does it include a rotisserie?

No rotisserie burner or kit is included on this model.

What clearance does it need?

Build it into a non-combustible island to the published cutout, and keep 30 in from combustible surfaces at the sides and rear per the owner's manual.

Related reading: Built-in gas grill buying guide, How to measure a built-in grill cutout, Natural gas vs propane grills.

Warranty

Broil King provides a limited lifetime warranty on the cookbox, including the lid, control panel and housing; 15 years on the stainless steel Dual-Tube burners and Flav-R-Wave cooking system; and 2 years on all other parts and paint, per the current listing and the warranty table in the owner's manual. Coverage is for the original purchaser, limited to repair or replacement of defective parts, and labor is not included.
