Bromic Tungsten Electric 3000W/6000W Ceiling Recess Kit - White
Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.
Bromic Tungsten Electric 3000W/6000W Ceiling Recess Kit - White is backordered and will ship as soon as it is back in stock.
Pickup available at Maspeth, NY Showroom
Usually ready in 2-4 days
Free & Flat Rate Shipping
Free & Flat Rate Shipping
- Orders Over $999 Ship Out Fast & Free
- Delivery typically takes 5 -7 transit days
- $19.95-$99.95 Flat-Rate Shipping on orders under $999
- Our team & trucks deliver locally within 60 miles of our showroom. (Tri-State NY,NJ,CT including all of Suffolk County)
- Free Shipping Applies to Contiguous US only - See our shipping page for exclusions e.g. ethanol fuel
Assembly & Installation
Assembly & Installation
Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!
WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW
- Outdoor Kitchens
- Outdoor Fireplaces/Firepits
- Outdoor Pizza Ovens
- Gas Fireplaces
- Gas Inserts
- Gas Log Sets
- Fireplace Doors
- Fireplace Mantels
- Electric Fireplaces
- Water Vapor Fireplaces
- Ethanol Fireplaces
Call for a free quote 718-326-4328
Warranty
Warranty
Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.
Returns
Returns
- No-Restock Fees
- 30-Day Return Policy
- The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
- We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.
Bromic Tungsten Electric 3000W/6000W Ceiling Recess Kit - White is backordered and will ship as soon as it is back in stock.
Description
Description

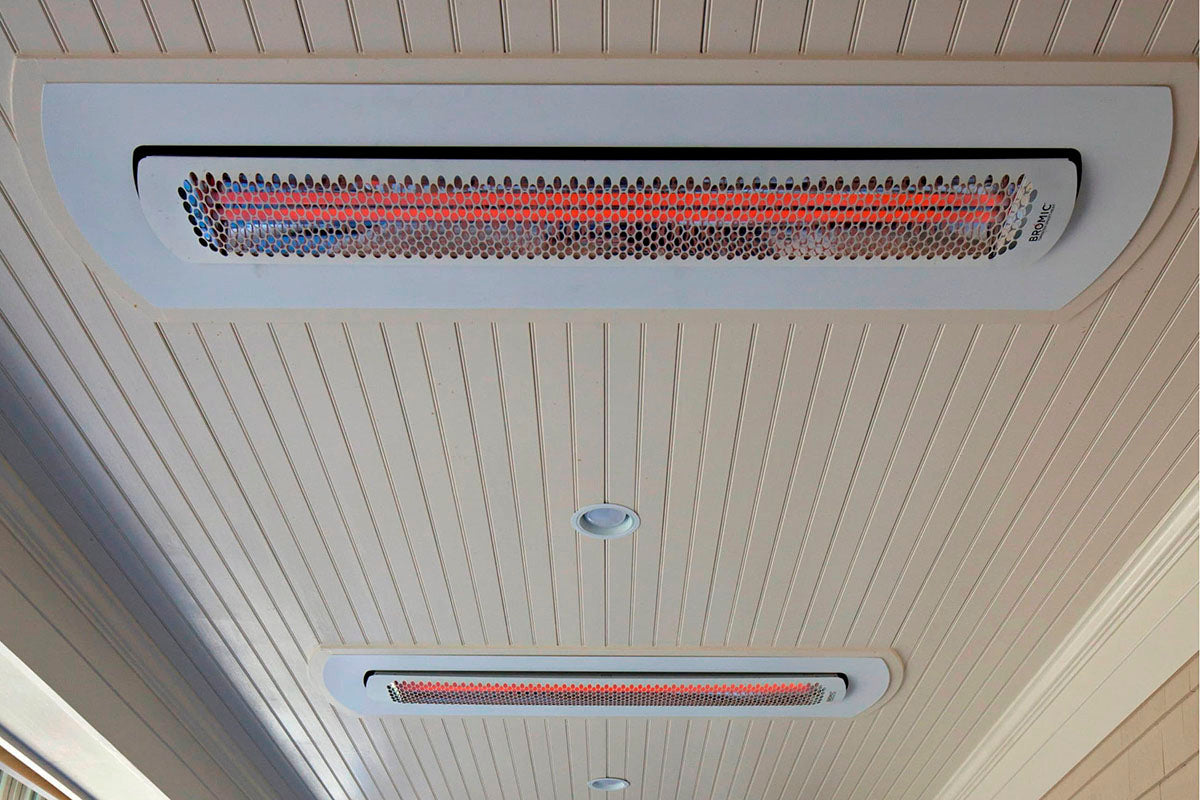

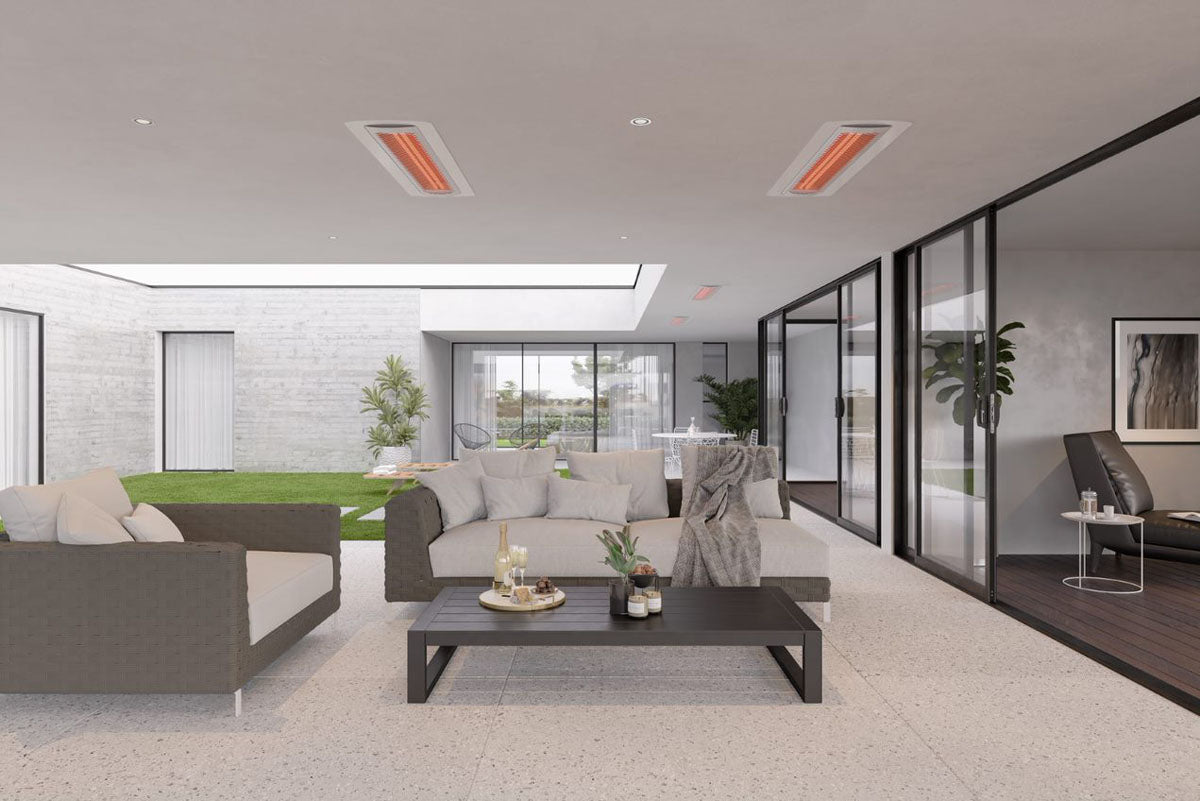

The Bromic BH8180095 is the white ceiling recess kit for the 3000W and 6000W Tungsten Smart-Heat Electric heaters. It lets the 56 in Tungsten sit flush in a ceiling box so the housing disappears and only the heating face shows, the finished way to build Tungsten heat into a covered patio, porch or restaurant ceiling. A black version (BH8180011) is listed separately.
Features
- Factory recess kit for the 56 in Tungsten Smart-Heat Electric 3000W and 6000W heaters
- White finish to match white Tungsten heaters
- Ceiling frame fastens to a ceiling box built on site from Hardie, cement board or similar
- Supplied with terminal blocks, wire conduit, junction box cover and 5 wires; dual element heaters can be wired to switch elements independently
- Heater surface mounts at 96 in (8 ft) above the floor
Key Specifications
| Model / SKU | Bromic Tungsten Electric Ceiling Recess Kit, White; BH8180095 |
| Fits | Bromic Tungsten Smart-Heat Electric 3000W and 6000W (56 in) heaters, sold separately |
| Ceiling box dimension A | 57.5 in for 3000W and 6000W (Bromic manual) |
| Finish | White |
| UPC | 9320688217431 (current listing) |
Dimensions and Cutout
| Mounting height | Heater surface at 96 in (8 ft) above the floor |
| Heater spacing | At least 20 in between heaters, measured from the heater edge |
| Front clearance | Keep combustibles at least 3 ft from the front of the heater |
What Is Included and What You Will Need

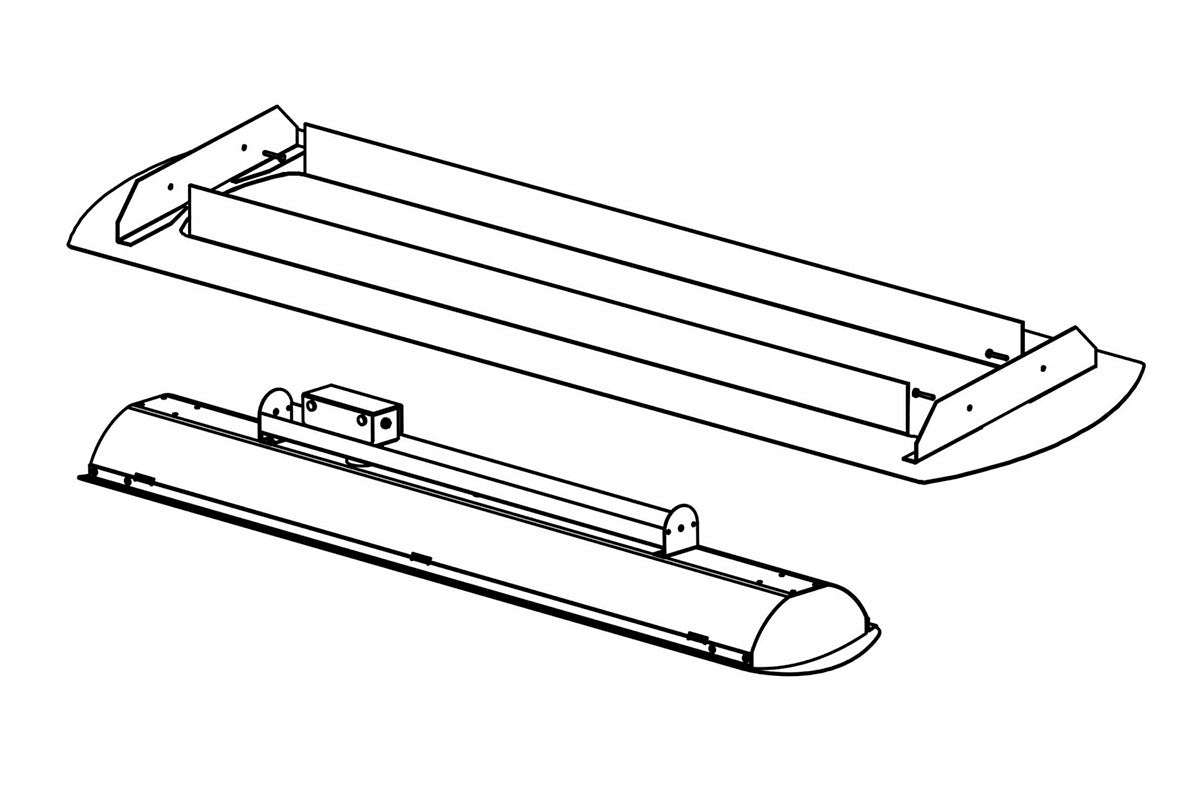

- Bromic BH8180095 ceiling recess frame, terminal blocks, wire conduit, junction box cover and 5 wires
- You will need: a 3000W or 6000W Tungsten Electric heater, a ceiling box built from cement board or similar, fasteners for the frame, and a licensed electrician
Optional Accessories
- Bromic Heating Tungsten Smart-Heat 56-Inch 6000W Dual Element 240V Electric Infrared Patio Heater - White
- Bromic Tungsten Smart-Heat Electric 208V & 277V Patio Heater
- Bromic Tungsten Electric 3000W/6000W Ceiling Recess Kit - Black
- Bromic Affinity Smart-Heat Control System
Installation Notes
Build the ceiling box first: Bromic notes the box is supplied by the installer and should be Hardie, cement board or similar, and recommends lining joists with fireproof insulation if the box sits above them. Fasten the frame to the box, mount the heater on its brackets, and use ceramic or high-heat wire nuts for the connections.
In New York City, a new heater circuit on a terrace, balcony or roof requires a licensed electrician and an electrical permit, and co-op or condo boards often require approval, so plan the wiring before you order.
Planning heat for a covered patio? Book a design consultation.
Documentation
Frequently Asked Questions
Which heaters does it fit?
The 3000W and 6000W Tungsten Smart-Heat Electric heaters (56 in). The 2000W and 4000W heaters use BH8180096 (white) or BH8180010 (black).
Is the ceiling box included?
No. Bromic expects the installer to build the box from cement board or a similar material.
Can I wire the two elements separately?
Yes. The kit comes with 5 wires so dual element models can be switched independently or together.
Related reading: Patio heater buying guide, Best patio heater for a covered patio.
Warranty
Per the current listing, Bromic covers the recess kit under its one year parts warranty on the heater series, for the original owner; labor is not included. Repairs must be carried out by a Bromic authorized service agent. See the Bromic warranty for full terms.
