Bromic  |  SKU: BH0420038-2

Bromic Tungsten Smart-Heat Electric 208V & 277V Patio Heater

$1,011.00

Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.

Most items ship within 1 business day. Manufacturer-direct items may take up to 2 weeks. Call us before ordering if needed immediately. 718-326-4328

Pickup available at Maspeth, NY Showroom

Usually ready in 2-4 days
400+ five-star Google reviews
  • Free shipping on this item to most of the US, or free local delivery by our team. Most items ship within 1 business day.
  • Factory-authorized Bromic dealer. You keep the full manufacturer warranty.
  • 30-day returns, no restocking fee.
  • Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Questions about fit, venting or power? Talk to the team that installs it. Mon to Fri 9 to 5, Sat 10 to 3.
Call 718-326-4328 Free Consultation

Free & Flat Rate Shipping
  • Orders Over $999 Ship Out Fast & Free
  • Delivery typically takes 5 -7 transit days
  • $19.95-$99.95 Flat-Rate Shipping on orders under $999
  • Our team & trucks deliver locally within 60 miles of our showroom. (Tri-State NY,NJ,CT including all of Suffolk County)
  • Free Shipping Applies to Contiguous US only - See our shipping page for exclusions e.g. ethanol fuel

Assembly & Installation

Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!

WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW

Call for a free quote 718-326-4328

Warranty

Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.

Returns
  • No-Restock Fees
  • 30-Day Return Policy
  • The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
  • We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.

Description

Overall Dimensions: 44 or 56 x 8.5 x 3.5 in (L x H x D) by wattage, per the Bromic manual

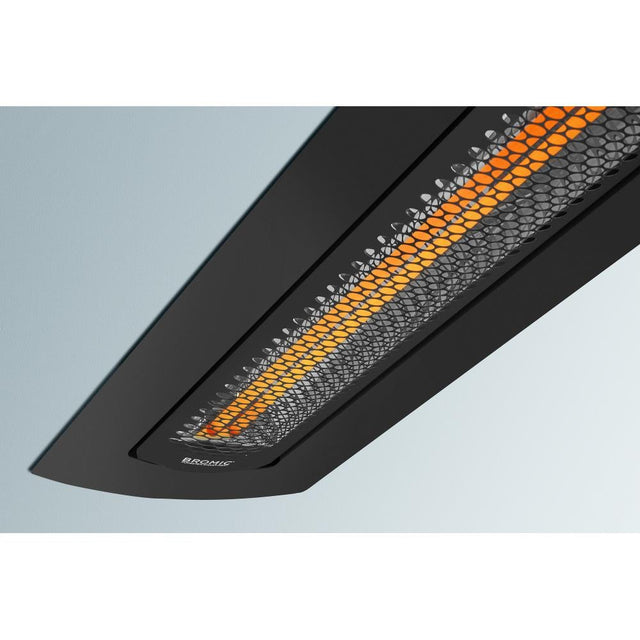

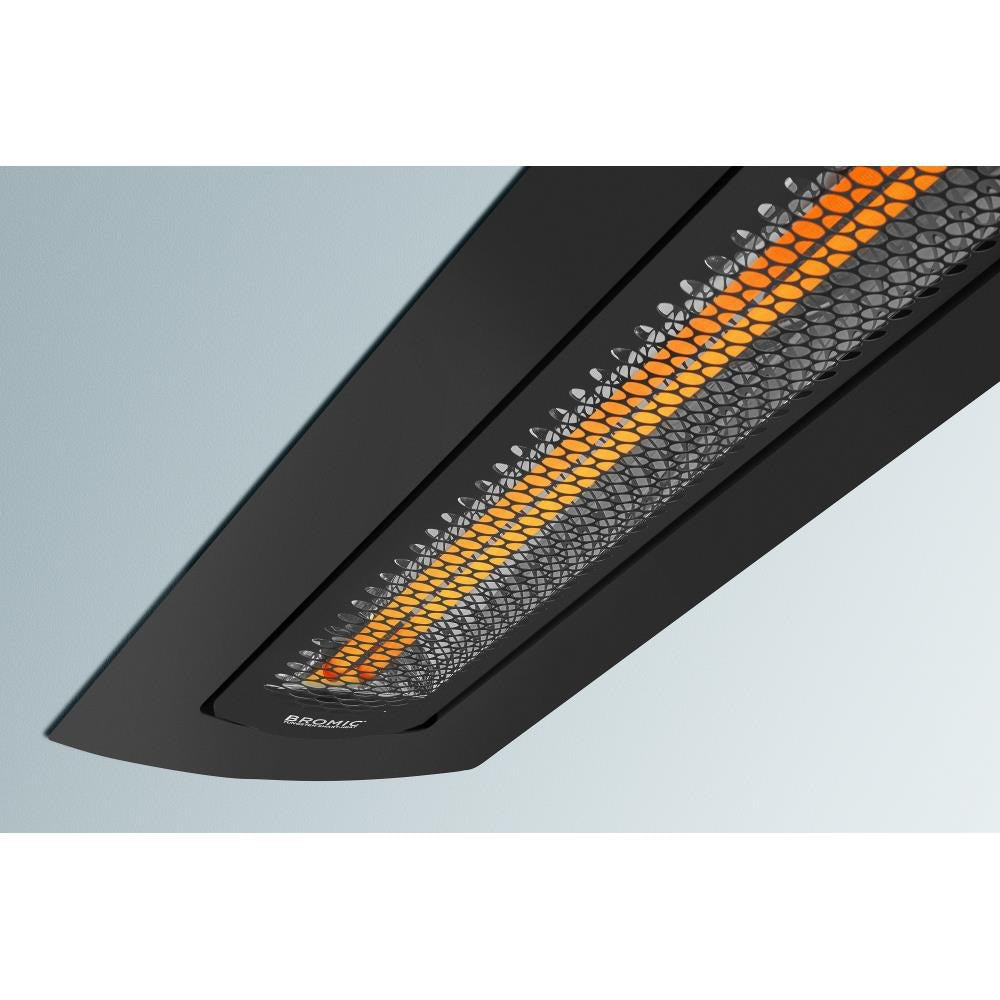

These are the commercial-voltage versions of the Bromic Tungsten Smart-Heat Electric infrared heater: the same tube elements and weather-rated housing as the 240 V line, wired for 208 V or 277 V service in commercial buildings, restaurants and multi-unit residential properties. Pick 3000W, 4000W or 6000W, the voltage your building runs, and black or white.

Features

  • Commercial 208 V and 277 V models to match the building service
  • 3000W single element, 4000W and 6000W dual element outputs covering up to 100, 120 or 144 sq ft
  • IPX4 water ingress rating for covered outdoor areas
  • Wall or ceiling brackets with 15, 30 or 45 degree tilt; tube suspension and ceiling recess kits available
  • Dual element models can be wired to run one or both elements
  • ETL / cETL listed (Intertek 4005951), per the manual

Key Specifications

Models See the model table under Dimensions
Protection IPX4
Certification Intertek ETL / cETL 4005951
Weight 19.8 lb (44 in) or 22 lb (56 in)

Dimensions and Cutout

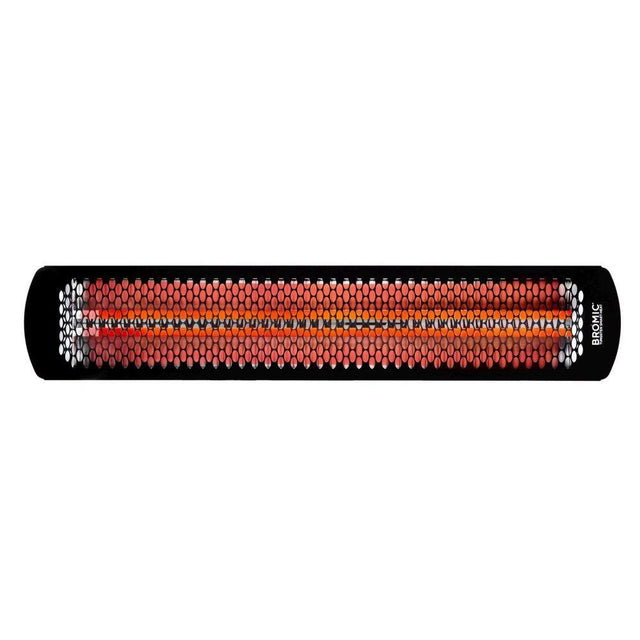

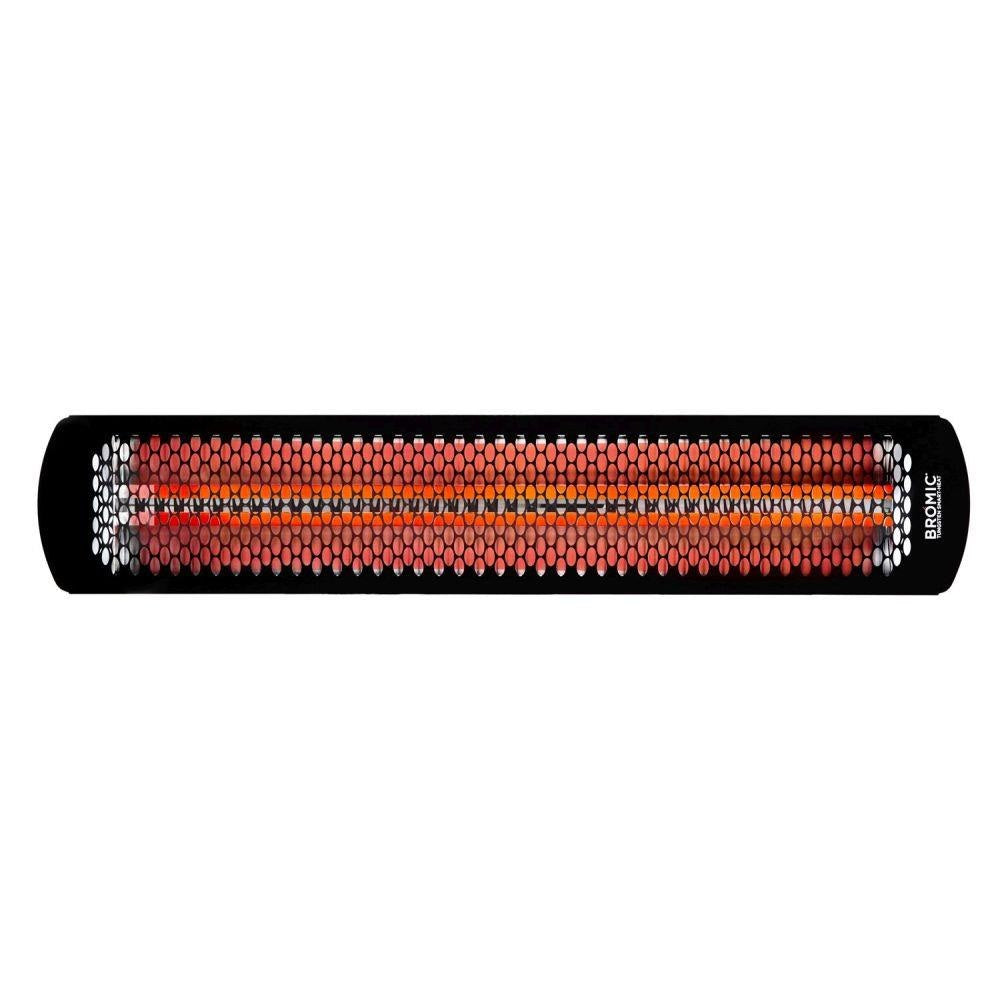

BH0420038-2 3000W, 208V, Black, 1 element, 14.42A, up to 100 sq ft, 56 x 8.5 x 3.5 in
BH0420034-2 4000W, 208V, Black, 2 elements, 19.23A, up to 120 sq ft, 44 x 8.5 x 3.5 in
BH0420042-2 4000W, 277V, Black, 2 elements, 14.44A, up to 120 sq ft, 44 x 8.5 x 3.5 in

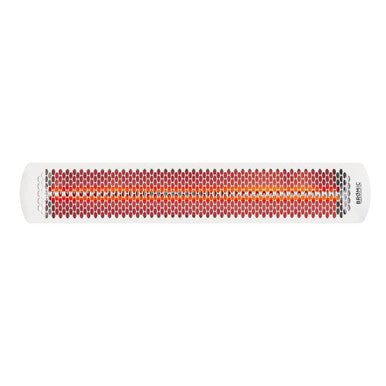

BH0420037-2 4000W, 208V, White, 2 elements, 19.23A, up to 120 sq ft, 44 x 8.5 x 3.5 in
BH0420044-2 4000W, 277V, White, 2 elements, 14.44A, up to 120 sq ft, 44 x 8.5 x 3.5 in
BH0420035-2 6000W, 208V, Black, 2 elements, 28.85A, up to 144 sq ft, 56 x 8.5 x 3.5 in
BH0420043-2 6000W, 277V, Black, 2 elements, 21.66A, up to 144 sq ft, 56 x 8.5 x 3.5 in
BH0420036-2 6000W, 208V, White, 2 elements, 28.85A, up to 144 sq ft, 56 x 8.5 x 3.5 in
BH0420045-2 6000W, 277V, White, 2 elements, 21.66A, up to 144 sq ft, 56 x 8.5 x 3.5 in
Mounting height Heater surface at least 96 in (8 ft) above the floor
Clearances At least 3 ft in front of the heater; 20 in between heaters; never mount vertically

What Is Included and What You Will Need

  • Tungsten Smart-Heat Electric heater in the selected output, voltage and finish
  • Mounting brackets (6.5 in for single element, 9.5 in for dual element models)
  • You will need: a dedicated 208 V or 277 V circuit sized to the amperage above, an IPX4-rated cord grip and conduit, and a licensed electrician

Optional Accessories

Installation Notes

Hardwire the heater to a dedicated circuit with an all-pole disconnect, keep the face angled down and the heater under cover where possible, and do not mount it vertically, which Bromic says voids the warranty. Keep combustibles 3 ft from the front and away from the sides and rear.

In New York City, a new heater circuit on a terrace, balcony or roof requires a licensed electrician and an electrical permit, and co-op or condo boards often require approval, so plan the wiring before you order.

Specifying heat for a restaurant, rooftop or commercial terrace? Book a design consultation.

Documentation

Frequently Asked Questions

Which voltage do I need?

Match the building: 208 V is common in commercial and multifamily buildings, 277 V on lighting circuits in larger buildings. A licensed electrician should confirm before you order.

How much area does each size heat?

Up to 100 sq ft (3000W), 120 sq ft (4000W) or 144 sq ft (6000W), per Bromic.

Can it be recessed into the ceiling?

Yes, with the Bromic Tungsten ceiling recess kit for the heater size.

Related reading: Patio heater buying guide, Best patio heater for a covered patio, Bromic vs Infratech patio heaters.

Warranty

Bromic warrants the heater to the original purchaser against defects in materials and workmanship for one year from the date of purchase, and its Tungsten Electric element warranty terms cover the heating element for its intended lifetime as defined in that document. Repairs must be carried out by a Bromic authorized service agent; vertical mounting and an incorrectly installed cord grip void coverage. See the Bromic warranty documents above for full terms.
