American Fyre Designs Contractor Model Gas Fire Pit

Overall Dimensions: 39 in diameter x 14-1/2 in H

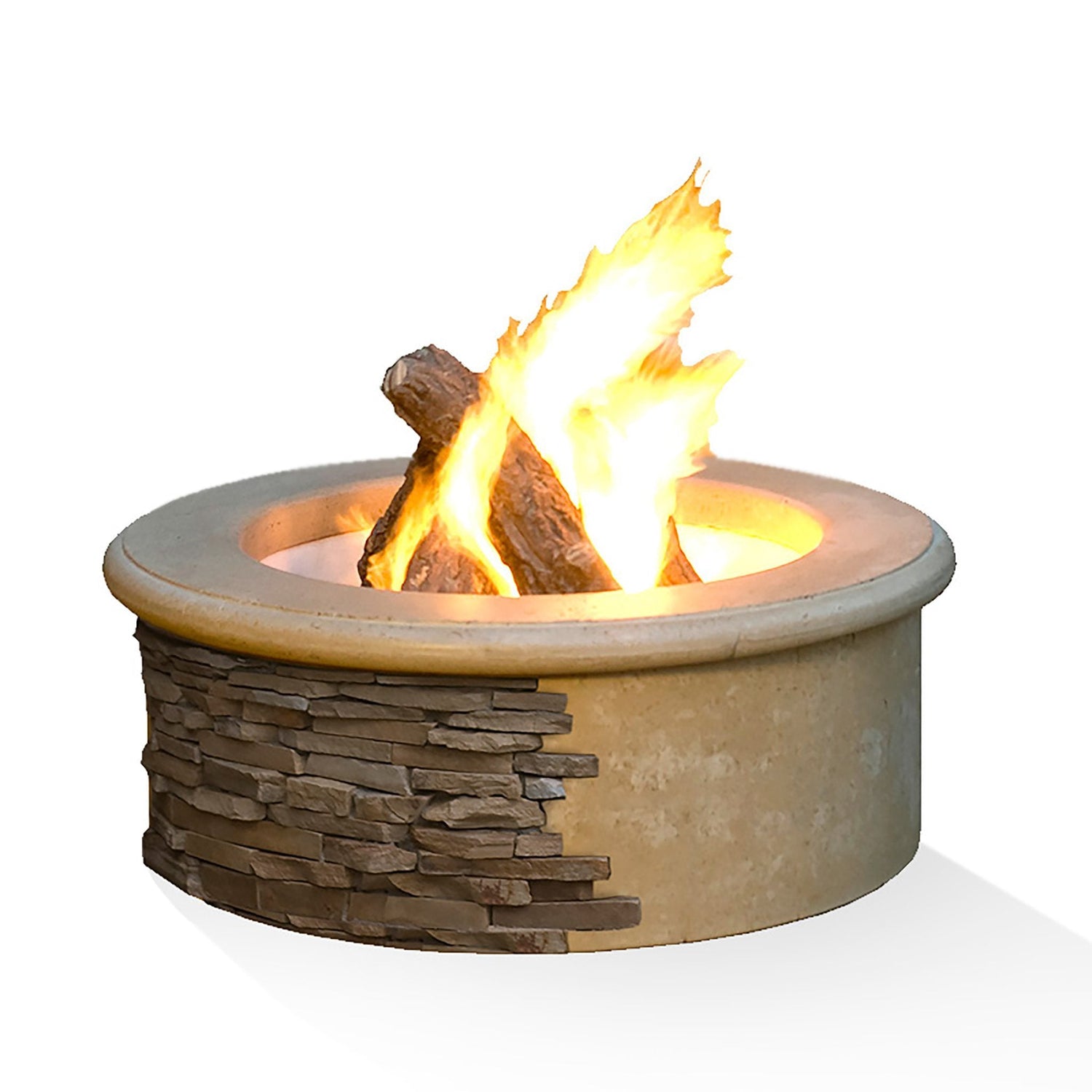

The American Fyre Designs Contractor Model Gas Fire Pit (series 685) is a 39 inch glass fiber reinforced concrete (GFRC) fire pit with a reversible floor and a plain face, made to be left as is or clad in brick, stucco, stone or tile by your mason. A 16 inch stainless steel star burner gives an even, round flame. It suits a custom patio where the pit should match the surrounding hardscape, with gas from a line or from a 20 lb propane cylinder kept nearby.

Key Specifications

Dimensions and Cutout

Features

• Plain GFRC face that can be left natural or clad in brick, stucco, stone or tile
• Reversible floor for different media depths
• 16 in stainless steel star burner for an even, round flame
• Works with lava rock, gas logs or fire glass
• Adjustable flame so you can sit close or farther back
• Two person assembly
• Handcrafted in the USA by American Fyre Designs

What Is Included and What You Will Need

• Included: Contractor Model fire pit in your finish with 16 in star burner and valve system, and a base layer of lava granules
• Natural gas: a gas line of at least 1/2 in interior diameter with shutoff, installed by a licensed plumber
• Propane: a 20 lb cylinder with an overfill protection valve placed nearby outdoors, not inside the pit, with a regulator hose
• FyreStarter models: a 120V GFCI protected weatherproof outlet nearby
• Required primary media: per the AFD manual, 50 lbs of glass or 30 lbs of lava with the burner in the lower position, or 80 lbs of glass or 40 lbs of lava in the upper position: Fyre Glass, Reflective Fyre Glass, Fyre Gems or Diamond Nuggets
• Optional: vinyl protective cover

Installation Notes

Outdoor use only. Set the unit on a hard, level surface with the clearances above, and do not run it in rain or high wind. Keep the media 1 to 2 in above the burner and never more than 2 in. Natural gas piping must be installed by a qualified installer; in New York City that means a licensed master plumber under permit, and roof or terrace locations may need building approval. Propane storage and use are regulated in the five boroughs, so confirm your building's rules before ordering. Units ship by LTL freight and are made to order. Our team installs across NYC, Long Island, Westchester and New Jersey; talk to us about your patio plan.

Documentation

• Installation Manual
• Current fire pits Installation & Owner's Manual H2-060 (manufacturer)
• American Fyre Designs product page

Frequently Asked Questions

Manual flame sensing or FyreStarter?

Manual is simpler and needs no outlet, at 65,000 BTU. FyreStarter adds push button and Bluetooth phone control at 100,000 BTU, per the AFD product page, and needs a 120V GFCI outlet nearby.

Can I run it on a propane tank?

Yes, with a 20 lb cylinder placed nearby outdoors. The pit itself does not hold a cylinder.

How much media does it need?

The AFD manual calls for 50 lbs of glass or 30 lbs of lava with the burner in the lower position, or 80 lbs of glass or 40 lbs of lava in the upper position.

Can I clad it in stone or brick?

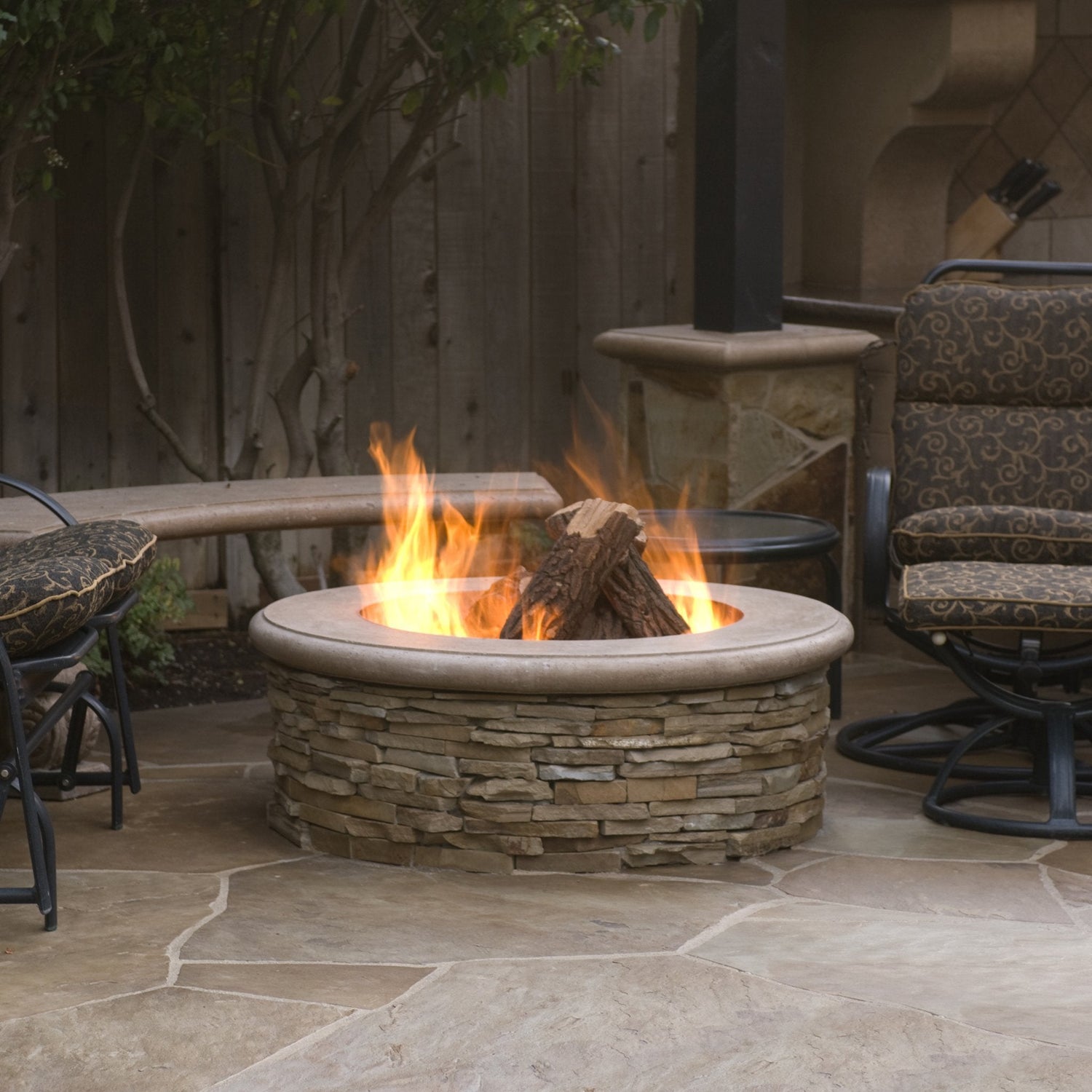

Yes. The plain GFRC face is designed to be left natural or finished in brick, stucco, stone or tile. Plan clearances to construction around the finished size.

Related reading: Gas Fire Pit and Fire Table Buying Guide and Outdoor Fireplace Buying Guide.

Warranty

American Fyre Designs warrants GFRC fire features and burners for three years and valves, electrical components, accessories and controls for one year, excluding batteries, wind guards and screens, for the original purchaser with proof of purchase in single family residential use in the US or Canada. Damage from burning wood or any fuel other than natural gas or propane, and from high wind, is not covered.
