Delta Heat Gas Grill Owners Manual
Delta Heat Cutout Dimensions
Features
- Delta Heat grills are made in the USA with 304 stainless steel offering quality construction and lasting durability
- Two position rotisserie with heavy duty stainless steel motor

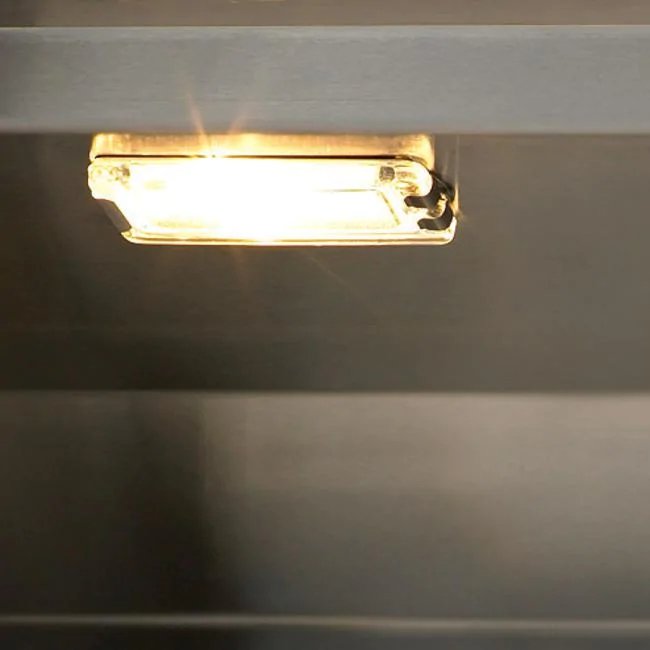

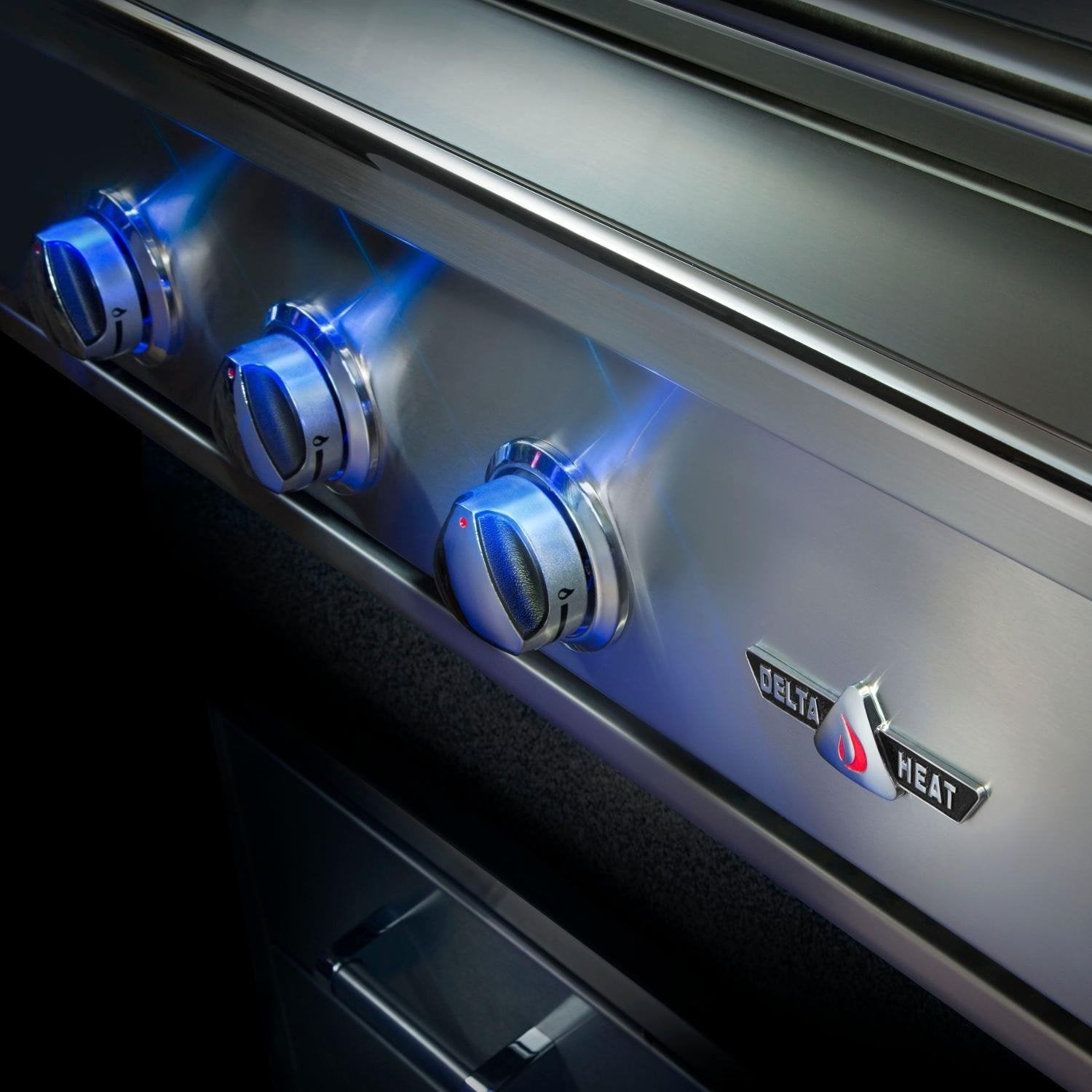

- Convenient LED control panel lights and interior Halogen lights are great for entertaining at night

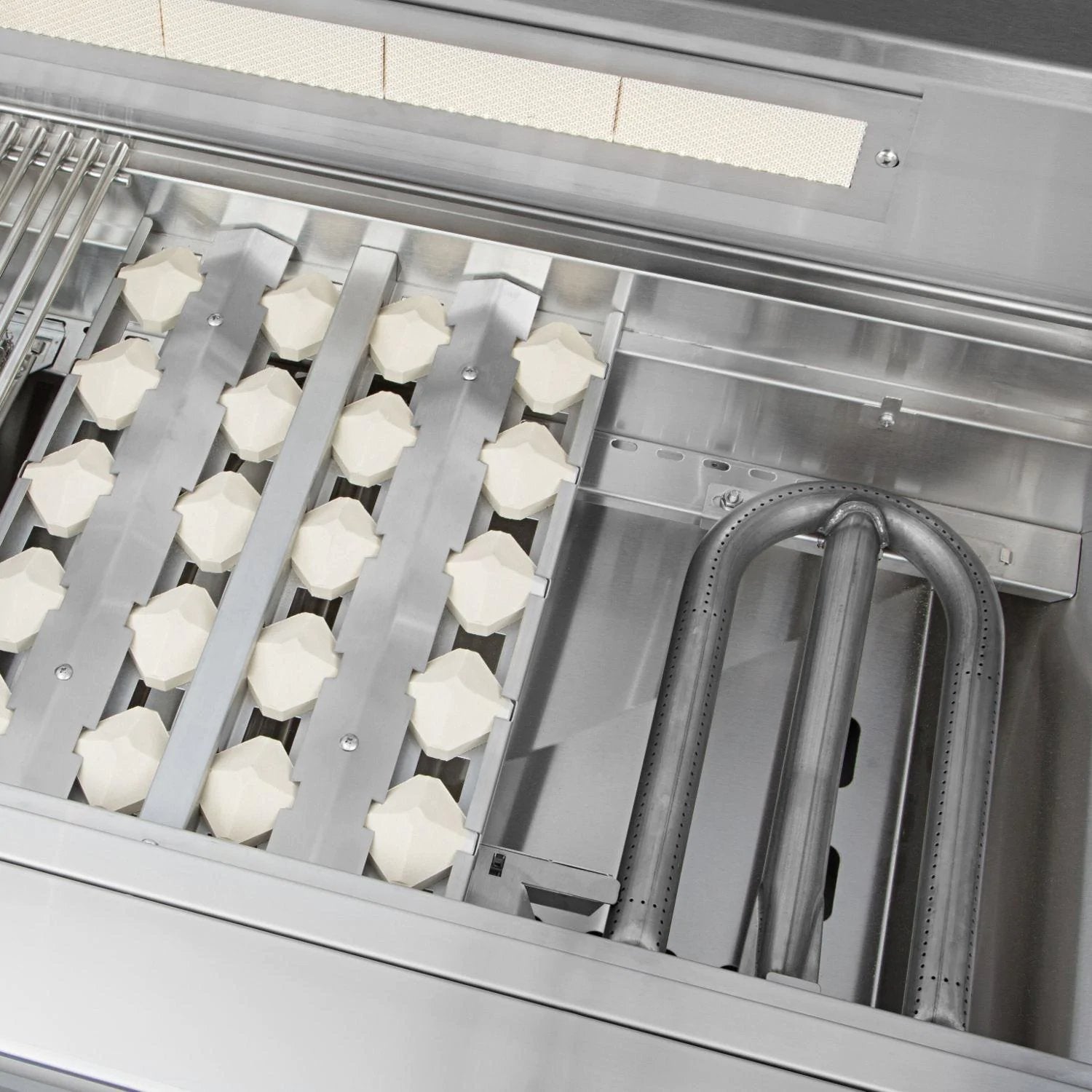

- Stainless steel grilling grates and Ceramic Briquettes facilitate even radiant heat distribution
- Welded construction eliminates gaps where grease and moisture can collect

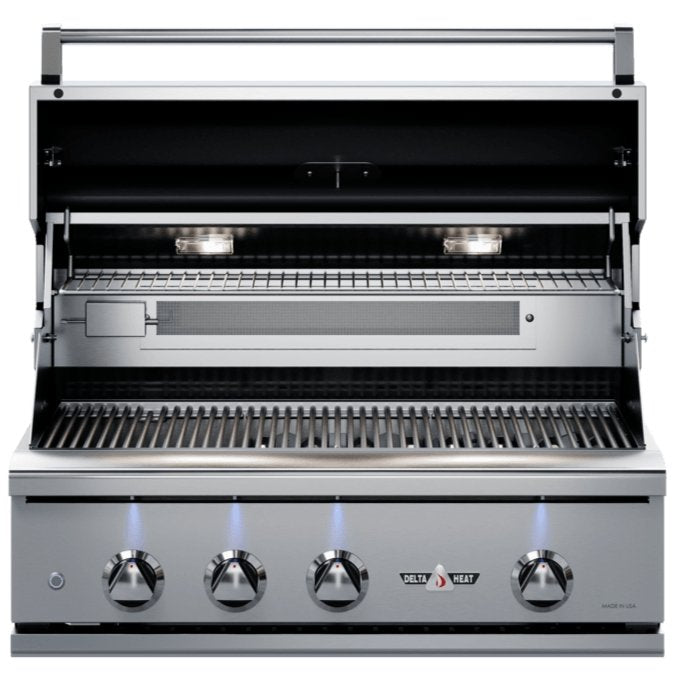

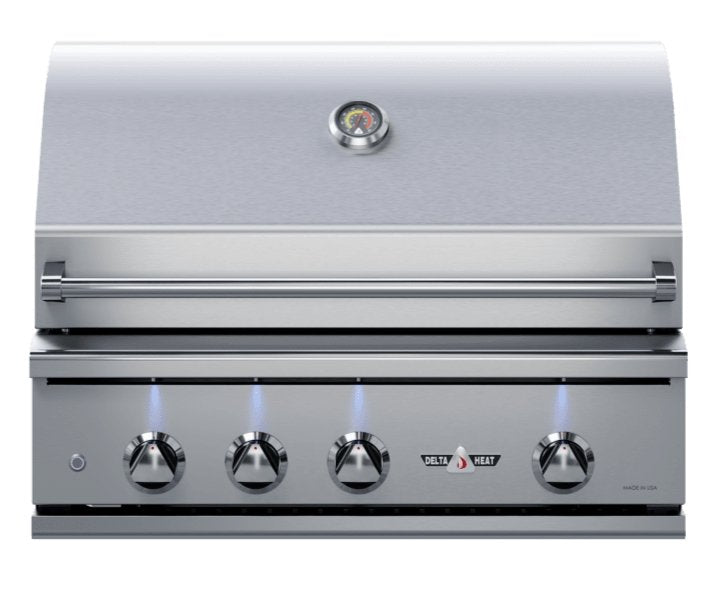

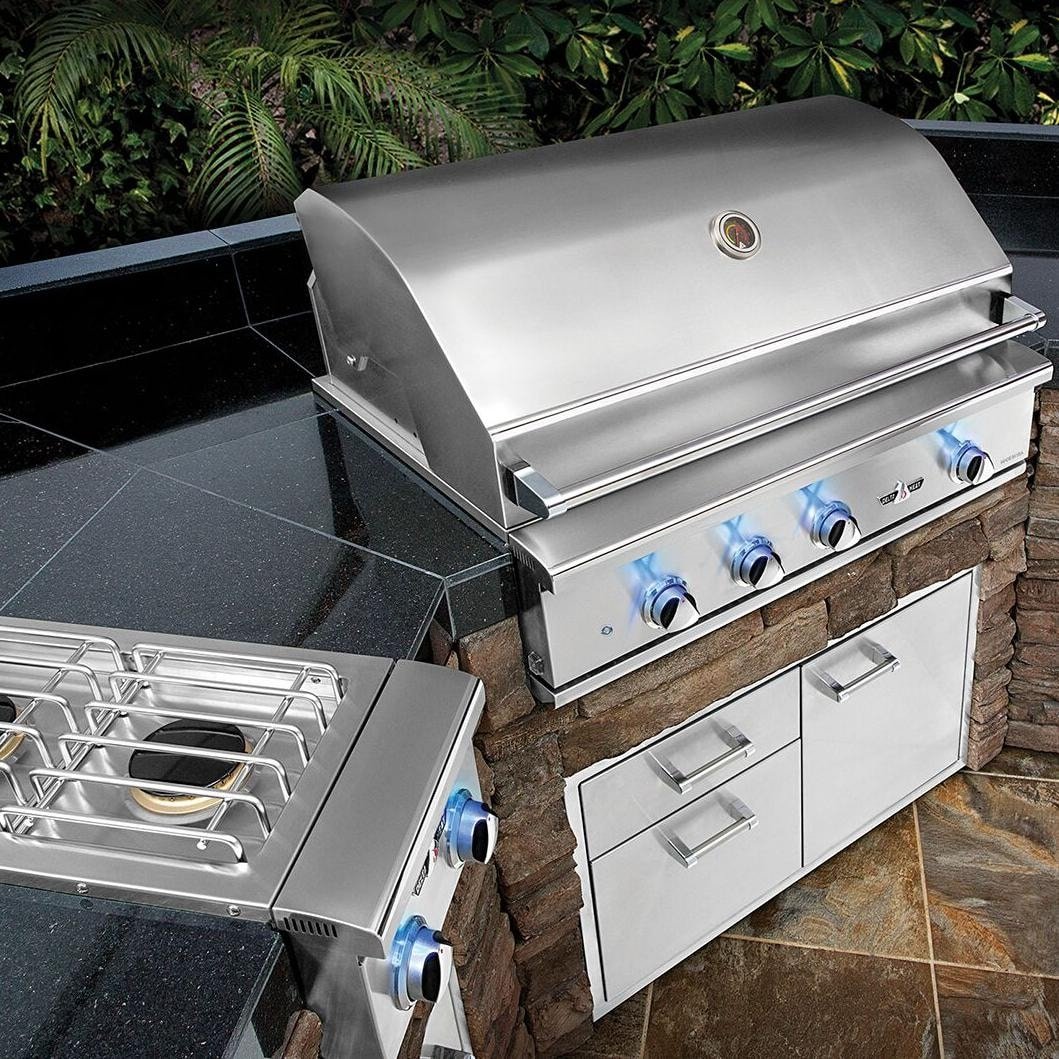

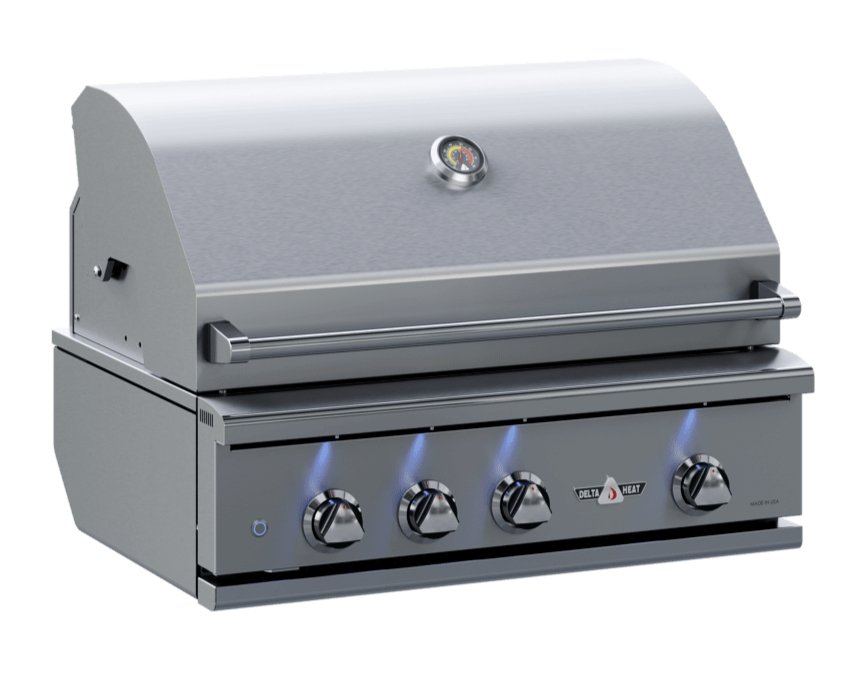

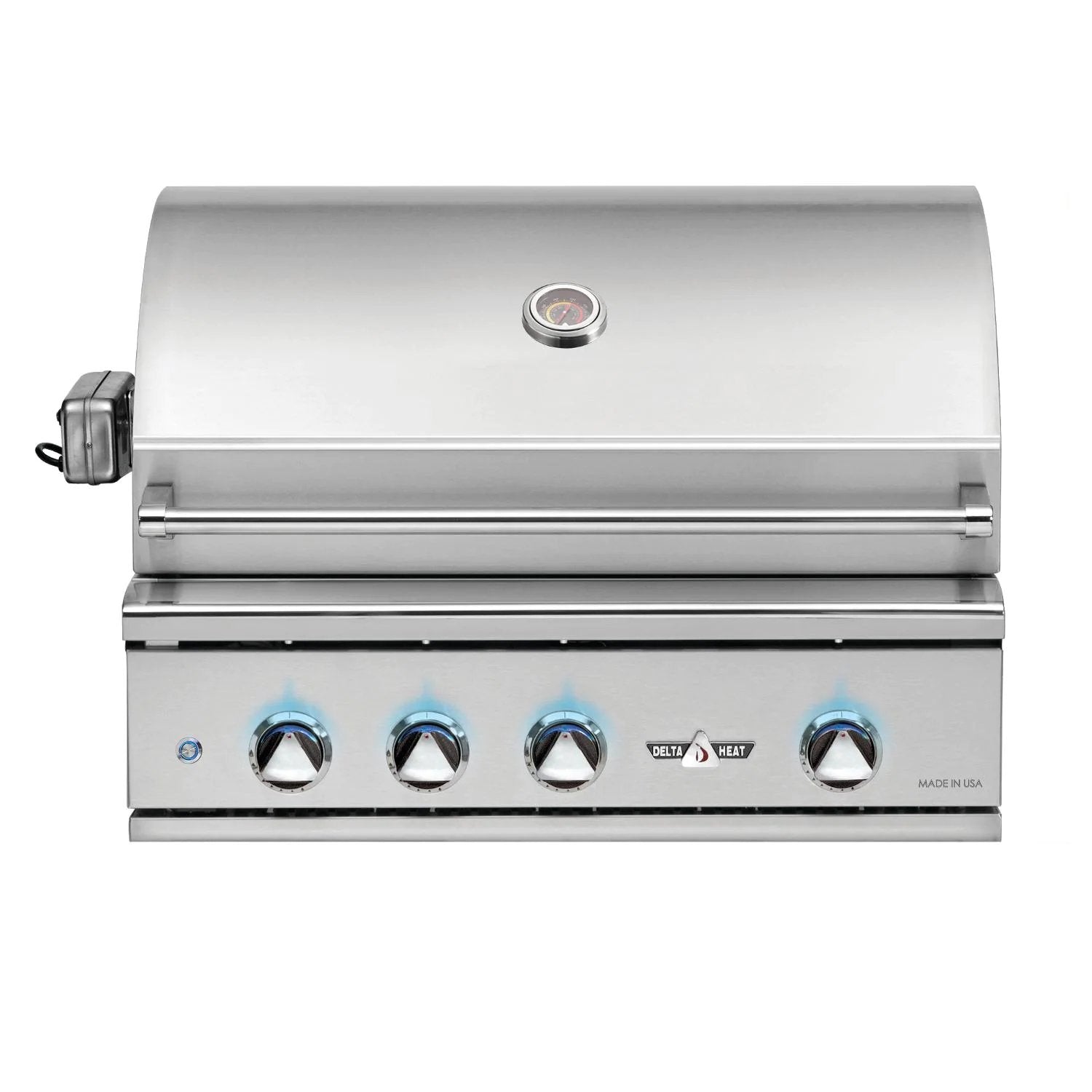

This Delta Heat gas grill brings exceptional quality and performance to any outdoor kitchen. Delta Heat gas grills feature 304 stainless steel with seamless welded construction, sleek high-polished accents, and double-lined hood for maximum strength, durability, and appeal to your entertaining experience. This 32-inch grill has three (3) 18 gauge stainless steel U-Burners, ceramic briquette flame tamers that distributes the radiant heat more evenly across the cooking surface, and stainless steel cooking grates. Decorative blue LED lights illuminate the control knobs turning your grill into the main attraction and the interior halogen lights illuminate the 525 square inches of main cooking surface for entertaining at night. The grill has 174 square inches of secondary cooking with the adjustable warming rack. This Delta Heat grill has an integrated infrared rotisserie burner and two position rotisserie kit with heavy duty stainless steel 40 lb. capacity motor. Delta Heat products are designed and manufactured in the USA with pride.
Cutout Dimensions (in inches): 30.5 W x 19.75 D x 9.5 H.
Specifications
| Class | Premium |
| Fuel Type | Natural Gas |
| Configuration | Built-In |
| Exterior Material | Stainless Steel |
| Exterior Stainless Grade | 304 Stainless Steel |
| Primary Color | Stainless Steel |
| Number Of Main Burners | 3 Burners |
| Grilling Surface BTUs | 49500 |
| Infrared Main Burner | Not Available |
| Main Burner Material | Stainless Steel |
| Flame Tamer Material | Ceramic |
| Cooking Grate Material | Stainless Steel |
| Cooking Grid Dimensions | 30 X 17 1/2" |
| Main Grilling Area | 525 Sq. Inches |
| Secondary Grilling Area | 239 Sq. Inches |
| Burger Count | 24 |
| WiFi/Bluetooth Enabled | None |
| Rotisserie Burner BTUs | 13000 |
| Rotisserie Kit | Yes |
| Heat Zone Separators | No |
| Ignition Type | Continuous Spark |
| Flash Tubes | No |
| Grill Lights | Internal / External |
| Spring Assisted Hood | Yes |

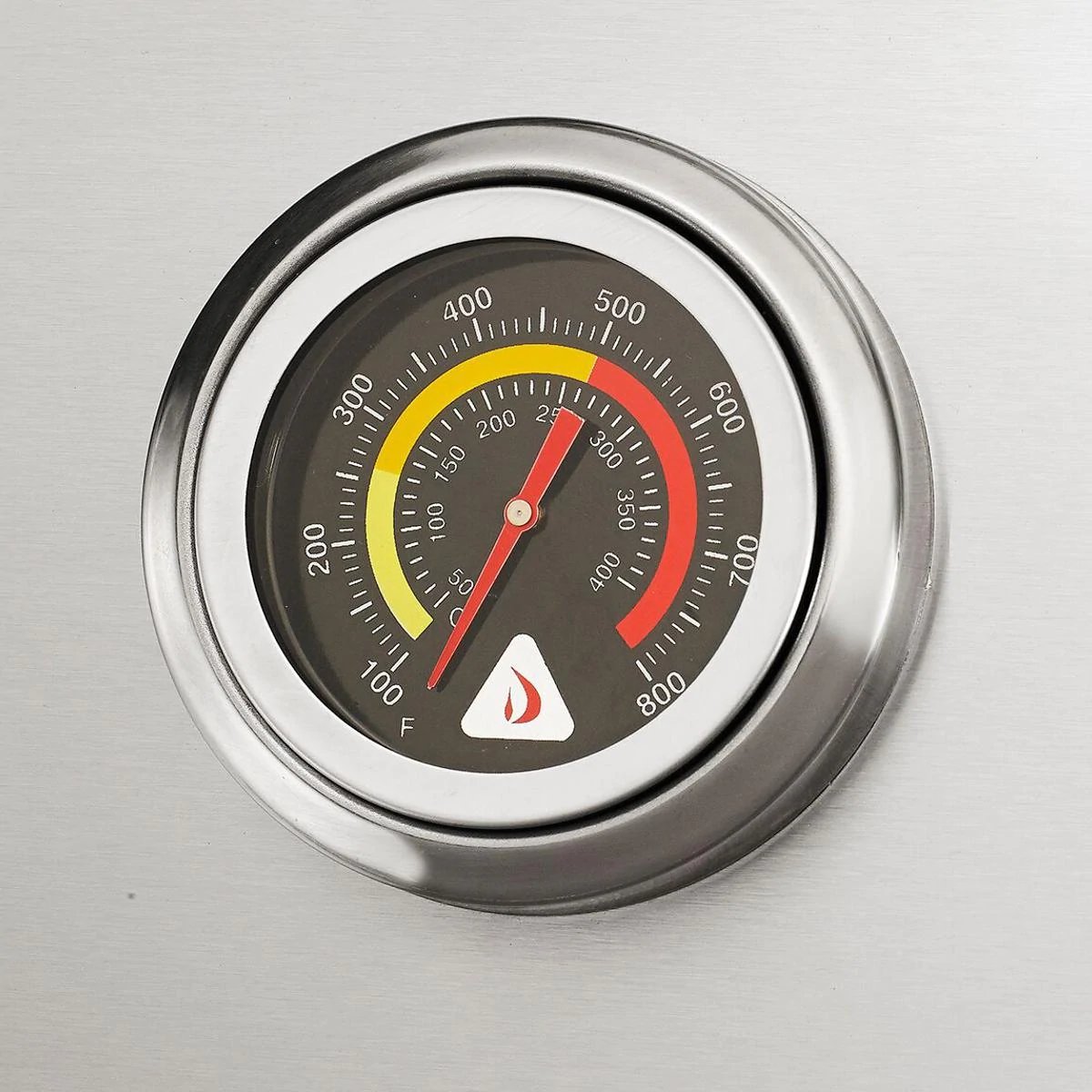

| Thermometer | Analog |
| Includes Smoker Box | No |
| Side Shelves | No |
| Made In USA | Yes |
| Commercial-Grade Multi-User | Yes |
| Size | Medium (27 - 33") |
Dimensions
| Width | 32" |
| Depth | 24.5" |
| Height | 23.25" |
| Weight | 175 lbs |
| Cutout Width | 30 1/2" |
| Cutout Depth | 19 3/4" |
| Cutout Height | 9 1/2" |
Warranty
The stainless steel main burners, fabricated stainless steel housing are warranted to be free from defects in materials and workmanship under normal residential use for the lifetime of the product. The stainless steel grates are warranted to be free from defects in materials and workmanship under normal residental use for fifteen (15) years from the original date of purchase. The briquette trays and gas valves are warranted to be free from defects in materials and workmanship under normal use for a period of five (5) years from the original date of purchase. All other grill components are warranted to be free from defects in materials and workmanship for a period of two (2) years from the original date of purchase. For one (1) year from the date of original purchase your Delta Heat grill warranty covers all parts and labor to repair or replace any part that proves to be defective in materials or workmanship. When used in a multi-user setting (bed and breakfast inn, private clubs, multi-dwelling condos and apartments), Delta Heat warrants this grill to be free from defects in material and workmanship for a period of ninety (90) days from the original date of purchase. This multi-user warranty excludes commercial locations such as restaurants and food service locations.
Refer to manufacturers manual for full warranty details.
