EcoSmart Fire  |  SKU: ESF.2.B.AB3

EcoSmart Fire AB3 Ethanol Burner

$1,195.00

Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.

Most items ship within 1 business day. Manufacturer-direct items may take up to 2 weeks. Call us before ordering if needed immediately. 718-326-4328

Pickup available at Maspeth, NY Showroom

Usually ready in 2-4 days
400+ five-star Google reviews
  • Free shipping on this item to most of the US, or free local delivery by our team. Most items ship within 1 business day.
  • Factory-authorized EcoSmart Fire dealer. You keep the full manufacturer warranty.
  • 30-day returns, no restocking fee.
  • Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Questions about fit, venting or power? Talk to the team that installs it. Mon to Fri 9 to 5, Sat 10 to 3.
Call 718-326-4328 Free Consultation

Free & Flat Rate Shipping
  • Orders Over $999 Ship Out Fast & Free
  • Delivery typically takes 5 -7 transit days
  • $19.95-$99.95 Flat-Rate Shipping on orders under $999
  • Our team & trucks deliver locally within 60 miles of our showroom. (Tri-State NY,NJ,CT including all of Suffolk County)
  • Free Shipping Applies to Contiguous US only - See our shipping page for exclusions e.g. ethanol fuel

Assembly & Installation

Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!

WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW

Call for a free quote 718-326-4328

Warranty

Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.

Returns
  • No-Restock Fees
  • 30-Day Return Policy
  • The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
  • We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.

Description

Available Sizes:

AB3, 10.2-inch burner, 2.5 L (Current Size)AB8, 14.2-inch burner, 8 L

Round AB Series bioethanol burners. AB3 and AB8 have different heights, top trays, heat outputs, room-volume requirements and installation clearances. Choose the matching stainless steel or black finish on the destination page; compare the model specifications.

Overall Dimensions: 10.2 in diameter x 3.7 in H burner (11.5 x 4 in with top tray), per the EcoSmart Fire manual

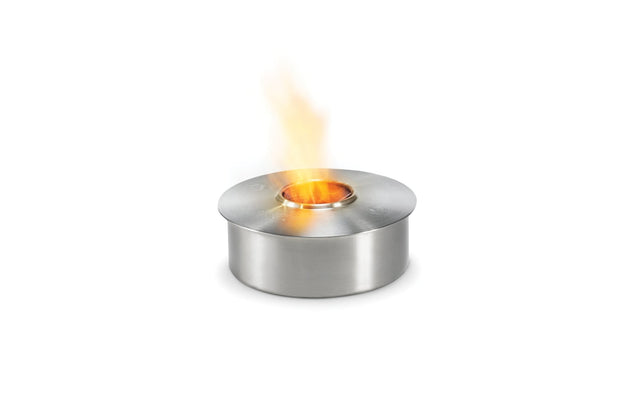

The EcoSmart Fire AB3 is the smaller of the two round AB Series bioethanol burners: a 2.5 liter, 304 stainless steel burner for compact custom fire features indoors or out, such as a small fire pit, table insert or niche. It needs no flue, gas line or electrical connection, burns clean e-NRG bioethanol for about 8 to 11 hours per fill, and ships with the jerry can, lighting rod and lighter needed to run it safely.

Features

  • Round 2.5 L burner for compact custom fireplaces, tables and fire pits
  • About 8 to 11 hours per fill on the maximum setting (EcoSmart Fire manual)
  • 5,800 BTU/h (1.7 kW) maximum thermal output

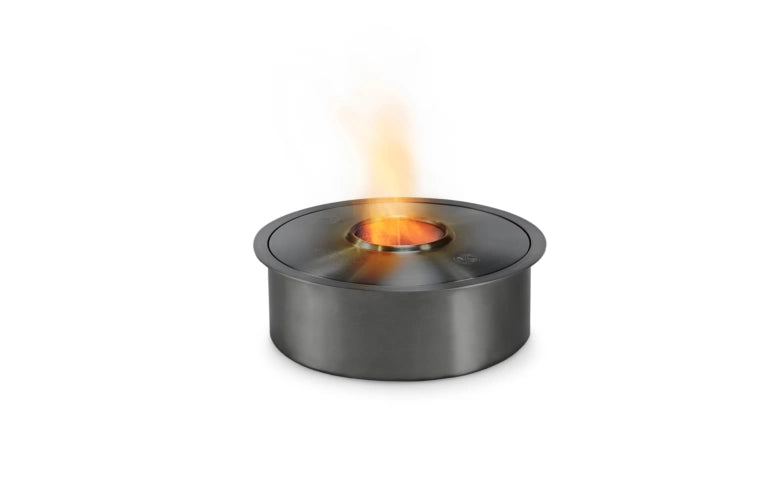

  • 304 stainless steel; black finish also offered
  • Steel wool fill stabilizes the flame and regulates fuel use
  • No flue, chimney, gas line or electrical connection
  • Listed to UL 1370 for unvented alcohol fuel burning decorative appliances

Key Specifications

Model / SKU EcoSmart Fire AB3; ESF.2.B.AB3 (stainless), ESF.2.B.AB3.BL (black)
Fuel e-NRG bioethanol only
Fuel capacity 2.5 L (0.7 gal); combustion chamber 0.4 L
Thermal output 6.14 MJ/h, 5,800 BTU/h, 1.7 kW (max)
Fuel consumption 0.31 L/h (0.1 gal/h) on max
Burn time About 8 to 11 hours
Material 304 stainless steel
Weight 2.4 kg (5.4 lb); 3.7 kg (8.1 lb) with top tray
Listing OMNI-Test Laboratories, UL 1370
Application Indoor and outdoor

Dimensions and Cutout

Burner 10.2 in diameter x 3.7 in H (260 x 94 mm)
With top tray 11.5 in diameter x 4 in H (291 x 101 mm)
Minimum firebox (within a firebox) 15.7 in W x 13.8 in D x 19.7 in H
Placement in a firebox At least 1.8 in to the front, 1.2 in to the rear and 2.8 in to each side from the burner flange
Without a firebox 59.1 in overhead clearance indoors, 78.7 in outdoors, and 23.6 in to combustible materials
Indoor room size At least 40 m3 (1,413 cu ft) per burner

What Is Included and What You Will Need

  • AB3 burner
  • 5 L (1.25 gal) jerry can with bottle adaptor and extension spout
  • Lighting rod and lighter
  • Installation, operation and maintenance manual
  • Top tray where required by local standards

Optional Accessories

Installation Notes

Set the AB3 in non-combustible material only, such as stainless steel, concrete, brick or natural stone, in a fixed position, and keep the firebox or open-installation clearances above. A custom firebox must be non-combustible, take a top tray, have 0.8 in spacers on all sides and a 7 to 9 in static windscreen. Fill only when the burner is cool, and never refill while lit.

In New York City, ethanol fire features are popular because they need no gas line or chimney, but co-op and condo boards and FDNY rules for balconies, terraces and fuel storage still apply, so confirm what your building allows before you buy.

Designing a custom ethanol fire feature? Book a design consultation.

Documentation

Frequently Asked Questions

How long does a fill last?

About 8 to 11 hours on the 2.5 L tank at the maximum setting, per EcoSmart Fire.

Can I use it outdoors?

Yes. The AB3 is rated for indoor and outdoor use; protect it from drafts and rain.

What fuel does it use?

EcoSmart specifies e-NRG bioethanol only.

How big a room does it need indoors?

At least 40 cubic meters (about 1,413 cu ft) per burner, with good ventilation.

Related reading: Ethanol fireplace buying guide, Which EcoSmart burner do I need?.

Warranty

MAD Design Group warrants EcoSmart Fire stainless steel parts (raw, linished, powder-coated and black ceramic coated) for two (2) years from the date of purchase, and mild steel, cement, glass and similar materials for one (1) year, under a transferable limited warranty; defective parts are repaired or replaced without cost for materials or labour through an authorized service centre. Chips and scratches are not covered, and installation service calls and shipping costs are excluded. See the manual for full terms.
