EcoSmart Fire  |  SKU: ESF.G.GRA.18.GH

EcoSmart Fire Grate 18 Fireplace

$2,095.00

Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.

Most items ship within 1 business day. Manufacturer-direct items may take up to 2 weeks. Call us before ordering if needed immediately. 718-326-4328

Pickup available at Maspeth, NY Showroom

Usually ready in 2-4 days
400+ five-star Google reviews
  • Free shipping on this item to most of the US, or free local delivery by our team. Most items ship within 1 business day.
  • Factory-authorized EcoSmart Fire dealer. You keep the full manufacturer warranty.
  • 30-day returns, no restocking fee.
  • Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Questions about fit, venting or power? Talk to the team that installs it. Mon to Fri 9 to 5, Sat 10 to 3.
Call 718-326-4328 Free Consultation

Free & Flat Rate Shipping
  • Orders Over $999 Ship Out Fast & Free
  • Delivery typically takes 5 -7 transit days
  • $19.95-$99.95 Flat-Rate Shipping on orders under $999
  • Our team & trucks deliver locally within 60 miles of our showroom. (Tri-State NY,NJ,CT including all of Suffolk County)
  • Free Shipping Applies to Contiguous US only - See our shipping page for exclusions e.g. ethanol fuel

Assembly & Installation

Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!

WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW

Call for a free quote 718-326-4328

Warranty

Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.

Returns
  • No-Restock Fees
  • 30-Day Return Policy
  • The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
  • We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.

Description

Available Sizes:

18″, AB8 burner, 8 L (Current Size)30″, XL500 burner, 5 L36″, XL700 burner, 7 L

Graphite Grate Series ethanol fireplaces use different burner models by size: Grate 18 has a round AB8 burner; Grate 30 and 36 have linear XL500 and XL700 burners. Heat output, burn time, minimum room volume and fireplace opening requirements differ; compare the specifications before choosing.

Overall Dimensions: 18 x 16 x 7.9 in (L x W x H), per the EcoSmart specification

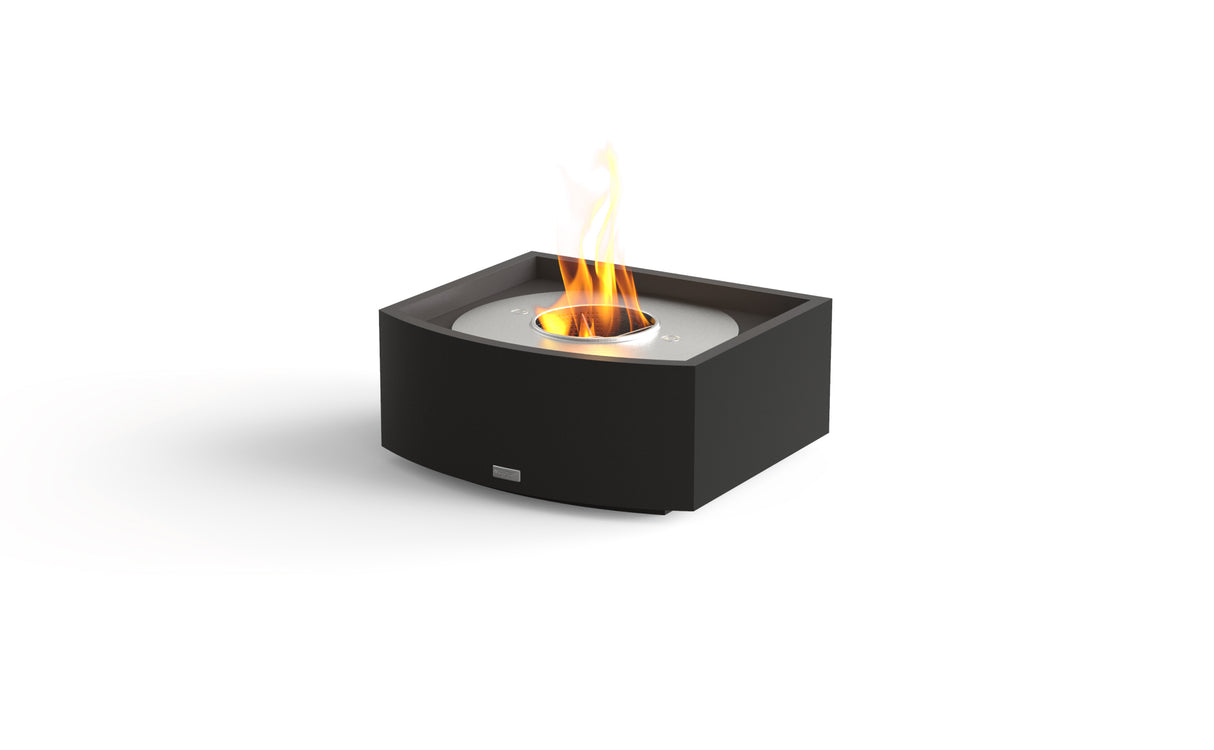

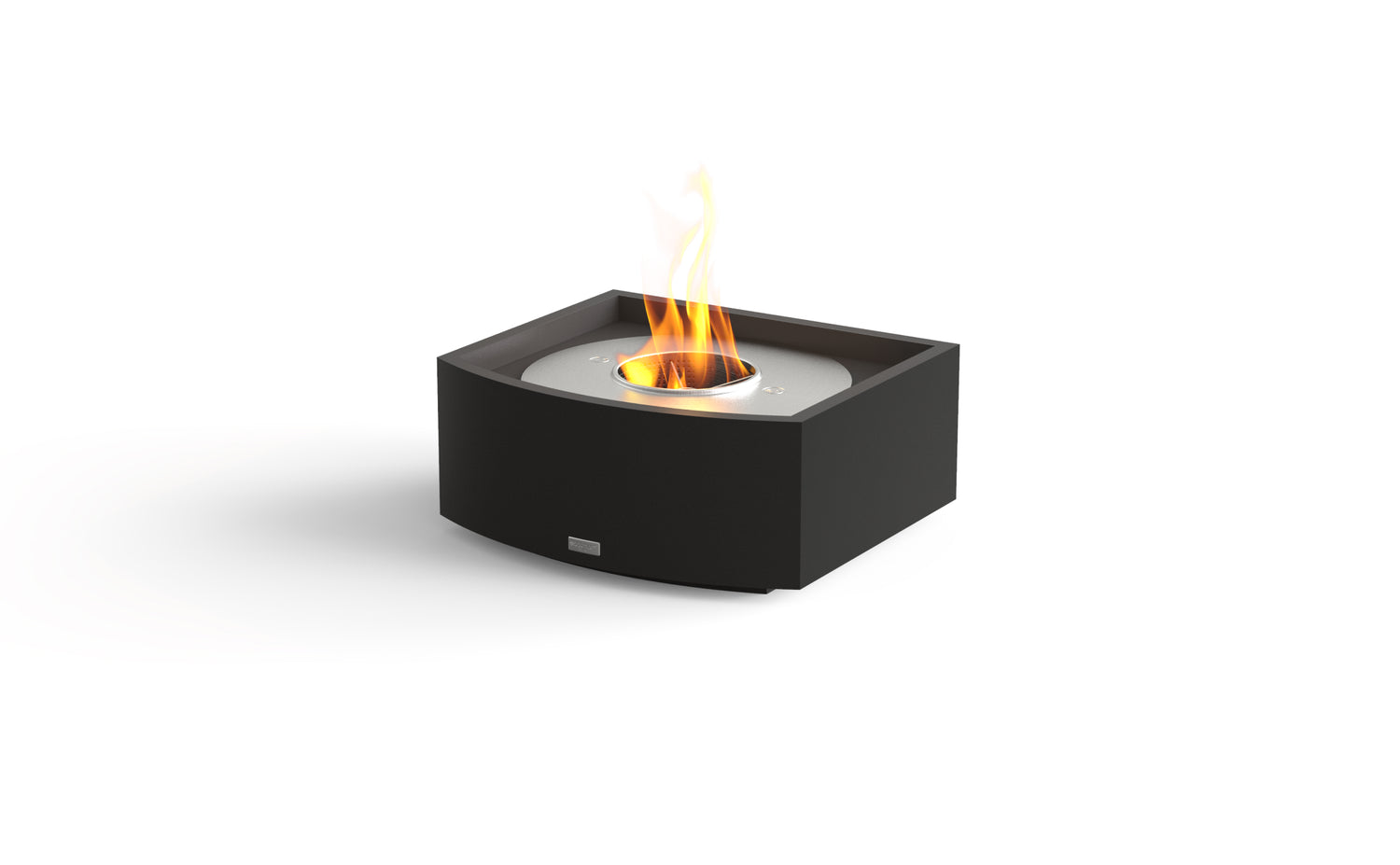

The EcoSmart Fire Grate 18 turns a small, disused wood-burning fireplace into a clean-burning bioethanol fire in minutes. A graphite Fluid Concrete grate holds an 8 litre AB8 burner, so there is no smoke, soot or ash to deal with, no gas line and no electricity, and you can run it with or without a working chimney.

Features

  • AB8 burner with an 8 litre (2.1 gal) fuel capacity in stainless steel or black ceramic coating
  • Up to 20,433 BTU/h, or 12,860 BTU/h with the included AB8 efficiency ring fitted
  • Burn time of 7 to 9 hours per fill, or 9 to 11 hours with the efficiency ring
  • Graphite Fluid Concrete grate that resists stains, impact and weathering
  • Smallest footprint in the EcoSmart Grate Series, for smaller traditional fireplaces
  • Fixing brackets included to locate the grate permanently

Key Specifications

Model / SKU EcoSmart Fire Grate 18, graphite, ESF.G.GRA.18.GH
Fuel e-NRG bioethanol only
Burner AB8, 8 L (2.1 gal)
Thermal output 20,433 BTU/h (6 kW); 12,860 BTU/h (3.77 kW) with efficiency ring
Burn time 7 to 9 hours; 9 to 11 hours with efficiency ring
Heats on average Over 645 sq ft (323 sq ft with efficiency ring)
Minimum room size 4,096 cu ft per burner
Application Indoor
Materials Fluid Concrete surround, grade 304 stainless steel burner (black ceramic coating optional)
Certification O-TL listed to UL 1370; EN 16647 BSI certified
Weight 36.2 lb (16.4 kg) with burner and accessories

Dimensions and Cutout

Grate 18 in L x 16 in W x 7.9 in H (457 x 406 x 200 mm)
Minimum firebox for the AB8 burner 25.6 in W x 17.7 in D x 31.5 in H (burner manual)
Burner placement in a firebox At least 1.8 in to the front, 1.2 in to the rear and 5.7 in to each side
Clearance to flammables Flame mouth at least 59.1 in from curtains and other flammable materials

What Is Included and What You Will Need

  • Grate 18 with AB8 burner
  • AB8 efficiency ring
  • Jerry can with safety spout and e-NRG bottle adaptor
  • Lighting rod and lighter
  • Ground fixing brackets
  • You will need: e-NRG bioethanol fuel, and an existing non-combustible fireplace at least 25.6 x 17.7 x 31.5 in with any gas line disconnected and capped

Optional Accessories

Installation Notes

Install the grate on a level, non-combustible platform. If the fireplace had a gas line, it must be disconnected and made safe by a licensed professional before installation. EcoSmart recommends closing the damper or blocking the chimney with a metal plate to keep heat in the room, and the room must be at least 4,096 cu ft per burner with good ventilation and no strong drafts.

Use e-NRG bioethanol only, never refuel a burner that is lit or still hot, and keep the flame at least 59.1 in from curtains and other flammables.

Ethanol burners need no chimney, gas line or electricity, but they are open-flame appliances: many New York City co-op and condo boards restrict them, and fuel storage in multifamily buildings is limited, so confirm your building rules before you order.

Want help choosing a fireplace conversion? Book a design consultation.

Documentation

Frequently Asked Questions

Do I need a working chimney?

No. Bioethanol produces no smoke, so the grate works with or without an operational chimney; EcoSmart recommends closing the damper to keep heat in.

How long does a fill last?

About 7 to 9 hours on the 8 litre AB8 burner, or 9 to 11 hours with the efficiency ring fitted.

What fuel does it use?

e-NRG bioethanol only.

Can it go outside?

EcoSmart lists the Grate 18 for indoor use.

Related reading: Ethanol fireplace buying guide, Which EcoSmart burner do I need?, Best fireplace for an NYC apartment.

Warranty

EcoSmart Fire products carry a transferable limited warranty. The EcoSmart burner manual lists 2 years on stainless steel parts, including the burner, and 1 year on mild steel, powder-coated and concrete (cement) components and glass; chips, scratches and natural variation in Fluid Concrete are not covered. Register the product with EcoSmart to activate the warranty.
