EcoSmart Fire  |  SKU: ESF.G.GRA.30.GH

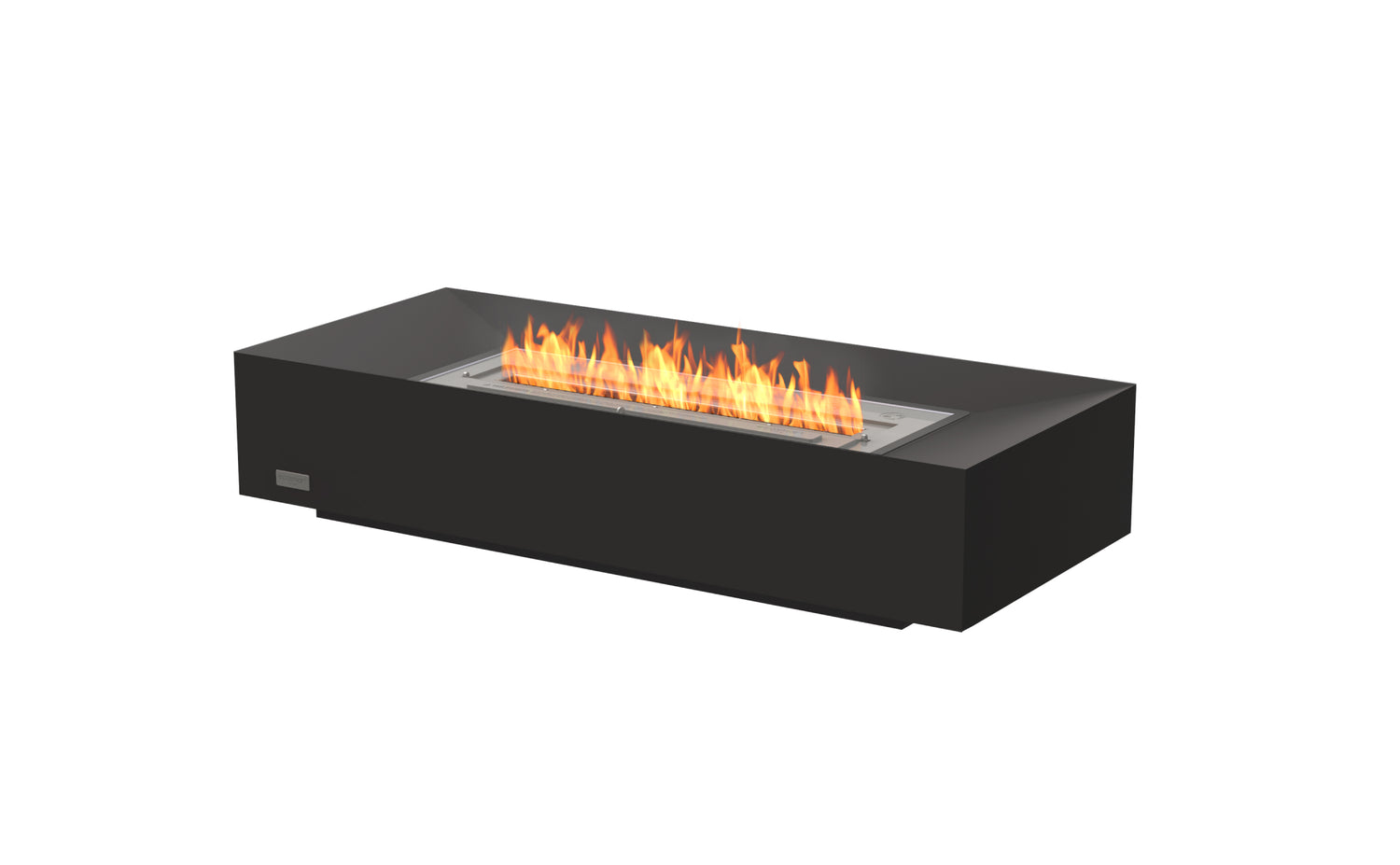

EcoSmart Fire Grate 30 Fireplace

$2,595.00

Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.

Most items ship within 1 business day. Manufacturer-direct items may take up to 2 weeks. Call us before ordering if needed immediately. 718-326-4328

Pickup available at Maspeth, NY Showroom

Usually ready in 2-4 days
400+ five-star Google reviews
  • Free shipping on this item to most of the US, or free local delivery by our team. Most items ship within 1 business day.
  • Factory-authorized EcoSmart Fire dealer. You keep the full manufacturer warranty.
  • 30-day returns, no restocking fee.
  • Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Questions about fit, venting or power? Talk to the team that installs it. Mon to Fri 9 to 5, Sat 10 to 3.
Call 718-326-4328 Free Consultation

Free & Flat Rate Shipping
  • Orders Over $999 Ship Out Fast & Free
  • Delivery typically takes 5 -7 transit days
  • $19.95-$99.95 Flat-Rate Shipping on orders under $999
  • Our team & trucks deliver locally within 60 miles of our showroom. (Tri-State NY,NJ,CT including all of Suffolk County)
  • Free Shipping Applies to Contiguous US only - See our shipping page for exclusions e.g. ethanol fuel

Assembly & Installation

Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!

WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW

Call for a free quote 718-326-4328

Warranty

Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.

Returns
  • No-Restock Fees
  • 30-Day Return Policy
  • The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
  • We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.

Description

Available Sizes:

18″, AB8 burner, 8 L30″, XL500 burner, 5 L (Current Size)36″, XL700 burner, 7 L

Graphite Grate Series ethanol fireplaces use different burner models by size: Grate 18 has a round AB8 burner; Grate 30 and 36 have linear XL500 and XL700 burners. Heat output, burn time, minimum room volume and fireplace opening requirements differ; compare the specifications before choosing.

Overall Dimensions: 30 in L x 13 in W x 6.1 in H (762 x 330 x 156 mm, EcoSmart Grate 30 model specs)

The EcoSmart Fire Grate 30 is the compact model in EcoSmart's Grate Series, a graphite Fluid Concrete grate with a built-in XL500 bioethanol burner that turns a smaller unused wood-burning fireplace into a clean-burning one. Set it on a level platform in the firebox, fill it with e-NRG bioethanol and light it: there is no gas line, electrical connection, smoke or carbon residue. Because it burns without smoke, it can be used with or without a working chimney, and EcoSmart recommends closing the damper or blocking the flue to keep heat in the room.

Key Specifications

Model EcoSmart Fire Grate 30, ESF.G.GRA.30.GH
Fuel e-NRG bioethanol
Burner XL500, 5 L (1.3 gal), stainless or black
Heat Output 11,430 BTU/h (3.35 kW, 12 MJ/h)
Heats on Average Over 430.6 sq ft indoors
Burn Time About 10 to 13 hours
Application Indoor
Surround Graphite Fluid Concrete
Burner Material Grade 304 stainless steel, optional black ceramic coating
Certifications O-TL listed to UL 1370, EN 16647 BSI certified, ACCC Safety Mandate compliant
Approx. Weight 41.1 lb (18.7 kg) including burner

Dimensions and Cutout

Grate 30 in L x 13 in W x 6.1 in H
Minimum Firebox (XL500, within a firebox) 31.5 in W x 13.8 in D x 19.7 in H, per the EcoSmart burner manual
Minimum Room Size 2,825 cu ft (80 cu m) per burner
Combustibles Keep the mouth of the flame at least 59.1 in (1,500 mm) from curtains and other combustibles above, per the burner manual

Features

  • Converts an existing wood-burning fireplace in minutes
  • Self-contained bioethanol burner with no gas or electrical connection
  • No smoke, soot or carbon residue; wipe clean with a damp cloth
  • Fluid Concrete with a stain- and impact-resistant barrier
  • Fixing brackets for a permanent position
  • Optional plasma fire screen and twin feet fixings

What Is Included and What You Will Need

  • Included per EcoSmart: grate with XL500 burner, jerry can with safety spout and e-NRG bottle adaptor, lighting rod and lighter, XL baffles and ground fixing brackets
  • Required: e-NRG bioethanol fuel and a level platform in a fireplace that meets the minimum firebox size
  • If the fireplace has a gas line, it must be disconnected and made safe by a qualified, licensed professional before installation

Installation Notes

EcoSmart states the grate should be installed only after any gas connections or pipe lines have been disconnected and made safe by a licensed professional. Use it only in a well-ventilated room of at least 2,825 cu ft that is protected from cross drafts, and let the burner cool for 60 minutes after shutting it off before refueling. Closing the damper or plating the flue keeps more heat in the room. In New York City, any gas disconnection must be done by a licensed master plumber. Book a free design consultation and we will check whether your fireplace fits the Grate 30.

Documentation

Frequently Asked Questions

Do I need a working chimney?

No. Bioethanol burns without smoke, so the grate can be used with or without an operational chimney. EcoSmart recommends sealing the chimney to save heat.

Will it fit my fireplace?

The XL500 burner manual calls for a firebox at least 31.5 in wide, 13.8 in deep and 19.7 in high.

How long does a fill last?

About 10 to 13 hours from the 5 L burner.

Can it be used outdoors?

EcoSmart lists the Grate 30 for indoor application.

Related reading: Ethanol fireplace buying guide and Which EcoSmart burner do I need?

Warranty

Per the EcoSmart operations and burner manual, the transferable limited warranty is two years from purchase on stainless steel parts, including black ceramic coated, and one year on mild steel, cement, glass, leather, fabric, teak and MDF. Chips, scratches and non-structural hairline cracks in Fluid Concrete are not covered.
