Description
Description
Explore other Fire Magic Echelon Diamond analog built-in gas grill sizes: 30 inch (current size) | 36 inch | 48 inch

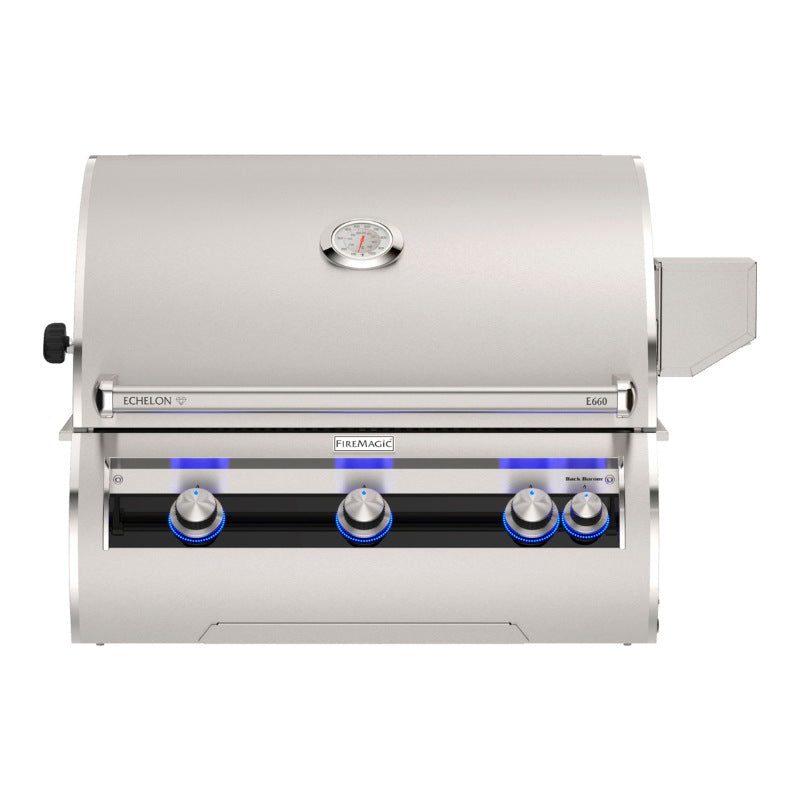

The Fire Magic Echelon Diamond E660i is Fire Magic's flagship 30-inch grill: 3 cast 304 stainless E-burners (75,000 BTU), patented Diamond Sear grids and a black glass control panel with a hood-mounted analog thermometer.
It drops into a non-combustible island cutout of 31-1/4 W x 23-1/2 D x 11-1/2 H in. Models covered: E660i-9EAN, E660i-9EAN-W, E660i-9EAP, E660i-9EAP-W, E660i-9LAN, E660i-9LAN-W, E660i-9LAP, E660i-9LAP-W.
Features
- 3 cast 304 stainless steel E-burners, 75,000 BTU combined, guaranteed for life
- Patented Diamond Sear cooking grids over stainless flavor grids with heat zone separators
- Optional left-side infrared sear burner (the L models)
- Infrared rotisserie backburner (11,000 BTU) with heavy-duty rotisserie kit
- Analog hood thermometer
- Hot surface ignition with flash tube backup, interior halogen lights and LED back-lit knobs

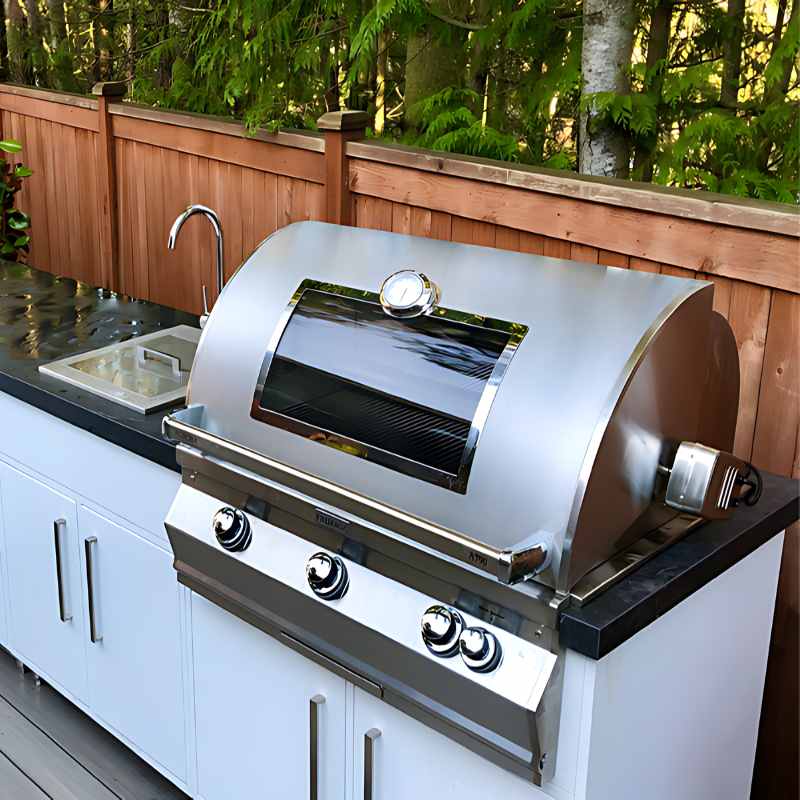

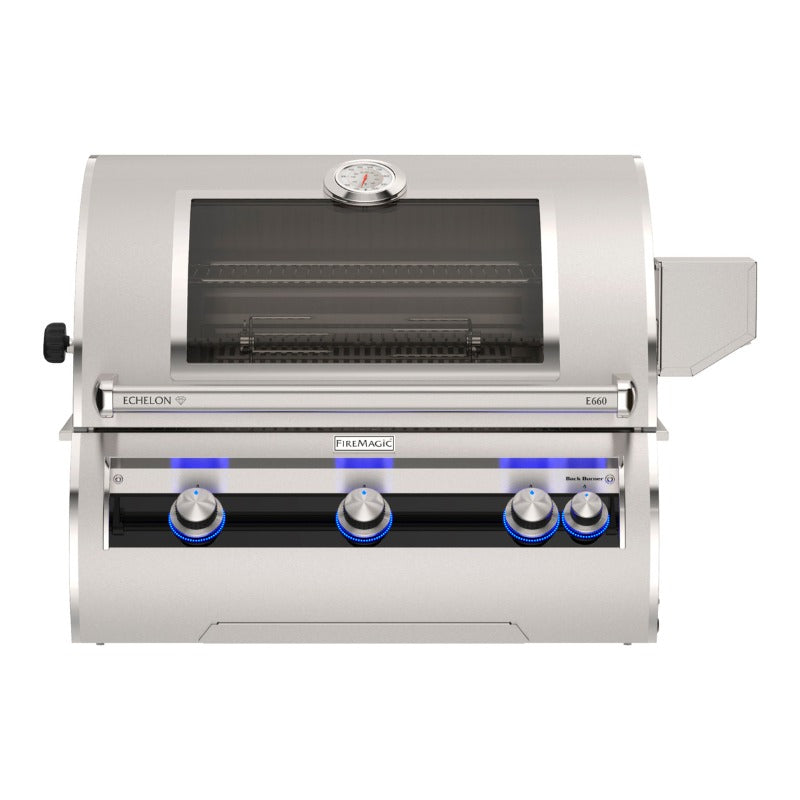

- Optional Magic View Window (the -W models)
Key Specifications
| Models | E660i-9EAN, E660i-9EAN-W, E660i-9EAP, E660i-9EAP-W, E660i-9LAN, E660i-9LAN-W, E660i-9LAP, E660i-9LAP-W |
| Series | Echelon Diamond E660i |
| Configuration | Built-in |
| Fuel | Natural gas or propane |
| Main burners | 3 cast stainless E-burners, 75,000 BTU (L models: one replaced by an infrared sear burner) |
| Rotisserie backburner | Infrared, 11,000 BTU, rotisserie kit included |
| Primary cooking area | 30 x 22 in (660 sq. in.) |
| Secondary area | 288 sq. in. adjustable warming rack |
| Total cooking area | 948 sq. in. |
| Thermometer | Analog, hood mounted |
| Magic View Window | Optional (-W models) |
| Ignition | Hot surface, flash tube backup |
| Electrical | 120 VAC outlet required for ignition and lights |
| Construction | 304 stainless steel |
Dimensions and Cutout
| Cutout (W x D x H) | 31-1/4 W x 23-1/2 D x 11-1/2 H in. |
| Insulating liner for combustible islands | Fire Magic 3176-52 |
What Is Included and What You Will Need
- Included: grill head, Diamond Sear grids, flavor grids, warming rack and drip tray, rotisserie kit
- You will need: a non-combustible island with a 31-1/4 W x 23-1/2 D x 11-1/2 H in. cutout, a gas supply with shutoff valve and a 120 VAC GFCI outlet
- You will need for a combustible frame: the Fire Magic 3176-52 insulating liner
Optional Accessories
- Fire Magic Insulating Liner For E660i and A660i Built-In Grills - 3176-52
- Fire Magic Grill Cover For Aurora A660i / E660i Built-in Gas Grill
- Fire Magic Echelon Diamond Built-In Gas Power Burner
- Fire Magic Double Side Burner
- Fire Magic 1 Hour Stainless Steel Gas Timer Box - 5521-11T
Installation Notes
Frame the island to the cutout above using non-combustible materials, or add the Fire Magic insulating liner where framing is combustible. Provide enclosure ventilation, an accessible gas shutoff and a GFCI outlet as the manual specifies. In NYC the gas line is run by a licensed plumber under permit.
Planning a full outdoor kitchen? Book a design consultation.
Documentation
- Echelon Diamond analog series installation and owner manual (E660i, E790i, E1060i)
- Echelon Diamond built-in grill quick start guide
- Fire Magic product specification guide (cutouts, liners, clearances)
- Fire Magic grill brochure
Frequently Asked Questions
What does the L in the model number mean?
L models swap the left gas burner for an infrared sear burner. E models have all gas burners.
What is the -W suffix?
It adds the Magic View Window in the hood.
Do I need the insulating liner?
Only if the island frame is combustible, such as wood framing. Masonry or steel-stud islands with cement board do not need it.
Where is it made?
Fire Magic grills are built in the USA by RH Peterson in California.
Related reading: Built-in gas grill buying guide, How to measure a built-in grill cutout.
Warranty
Fire Magic residential warranty for the original owner: lifetime on the cast stainless steel burners, stainless steel cooking grids and stainless steel housing; 15 years on brass valves, inner liners, manifold assemblies and backburner assemblies (excluding ignition and electronic parts); 5 years on flavor grids and infrared burners; 3 years on side burners and other components; 1 year on ignition systems (except batteries), electronic components including lights and thermometers, and accessories. Register the grill with Fire Magic and keep proof of purchase.
