Fire Magic 8-Inch Spacer For 36-Inch Vent Hood | 36-VH-7-02
Fire Magic 8-Inch Spacer For 36-Inch Vent Hood | 36-VH-7-02 is backordered and will ship as soon as it is back in stock.
Description
Description
Explore other Fire Magic vent hood spacer sizes: 36 inch (current size) | 42 inch | 48 inch | 60 inch
Order now with free shipping!

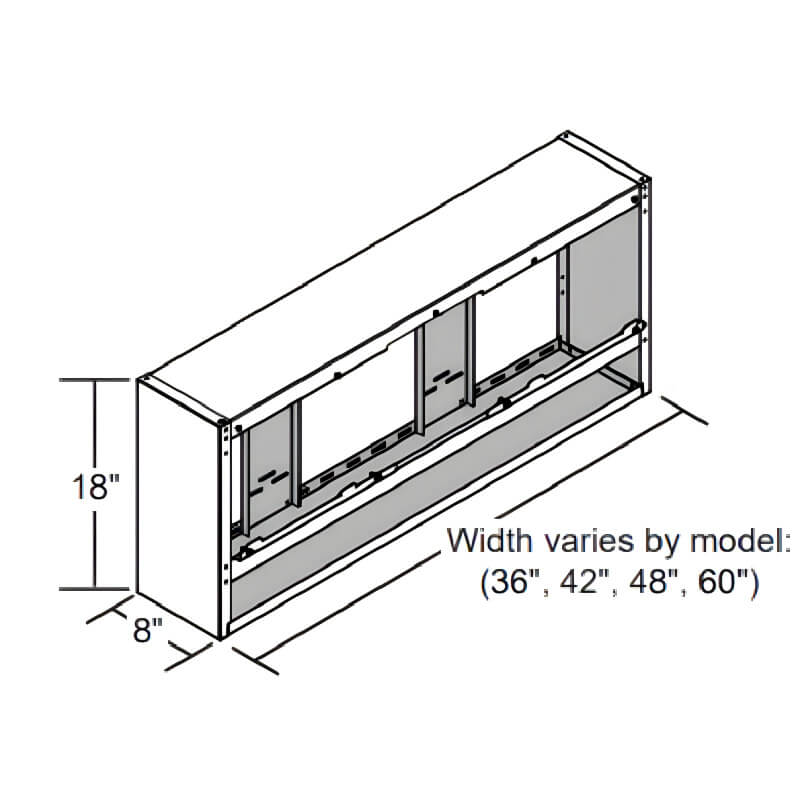

Overall Dimensions: 36 W x 8 D x 18 H in

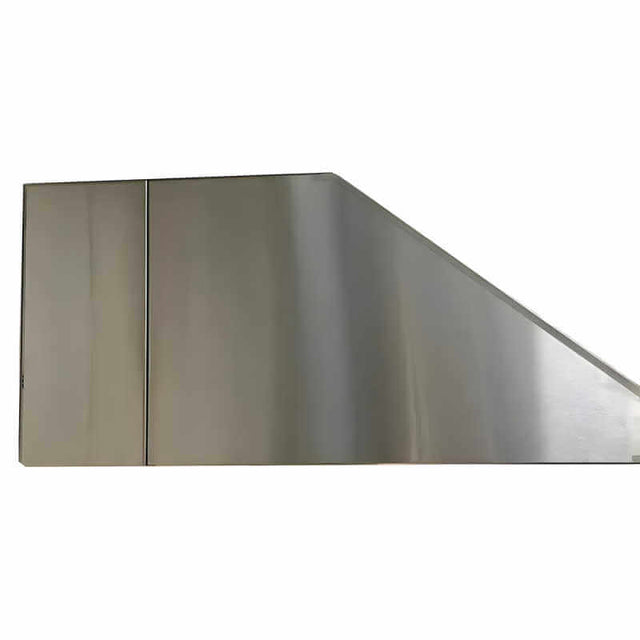

The Fire Magic 36-VH-7-02 is the 8 in spacer for the 36 in Fire Magic VH-7 series wall vent hood. It mounts to the wall behind the hood and moves the hood 8 in forward, so the hood sits over the grill when the grill is set out from the wall. Fire Magic says its spacer and duct cover must be used together.
Features
- Spacer for the 36 in Fire Magic VH-7 series vent hood only
- Moves the hood 8 in off the wall
- Hardware included: 4 support plates and mounting screws
- Used together with the matching duct cover
Key Specifications
| Model / SKU | Fire Magic 36-VH-7-02 |
| Size | 36 W x 8 D x 18 H in |
| Fits | Fire Magic 36-VH-7 vent hood |
| Hardware | 4 support plates, 2 1/4-20 screws, 5 #10 x 3/4 in screws (L-C2-584) |
| Used with | 36-VH-7-DC duct cover |
What Is Included and What You Will Need
- Fire Magic 36-VH-7-02 spacer with support plates and screws
- You will need: the matching vent hood and duct cover, and a qualified installer
Optional Accessories
- Fire Magic 36-Inch 1200 CFM Stainless Steel Outdoor Vent Hood - 36-VH-7
- Fire Magic Vent Hood 36-Inch Duct Cover 36-VH-7-DC
Installation Notes
Fire Magic sizes the spacer for 8 in between a non-combustible wall and the rear of the grill (a 4 in backsplash plus 4 in clearance), with the hood 30 to 33 in above the countertop. Install it with the vent hood by a qualified professional, following the vent hood manual. Planning the rest of the outdoor kitchen? Book a design consultation.
Documentation
- Fire Magic Vent Hood Spacer Instructions L-C2-584 ((36, 42, 48, 60)-VH-7-02)
- Fire Magic Wall Vent Hood Installation Instructions and Owner's Manual L-C2-583 (spacer and duct cover requirements, warranty)
- Fire Magic Product Specifications Guide L-C1-01326 (current cut-outs)
Frequently Asked Questions
What does the spacer do?
Moves the vent hood 8 in out from the wall so it lines up over the grill.
Do I need the duct cover too?
Yes. Fire Magic says the duct cover and spacer must be used together.
Related reading: Do you need a vent hood over an outdoor grill?, Outdoor kitchen planning guide.
Warranty
Fire Magic's limited warranty schedule (printed in its current owner's manuals) covers grill accessories for one (1) year from the date of purchase. For the original purchaser, single family residential use in the US or Canada, with proof of purchase; labor is excluded and professional installation is required.
