Fire Magic  |  SKU: 36-VH-7

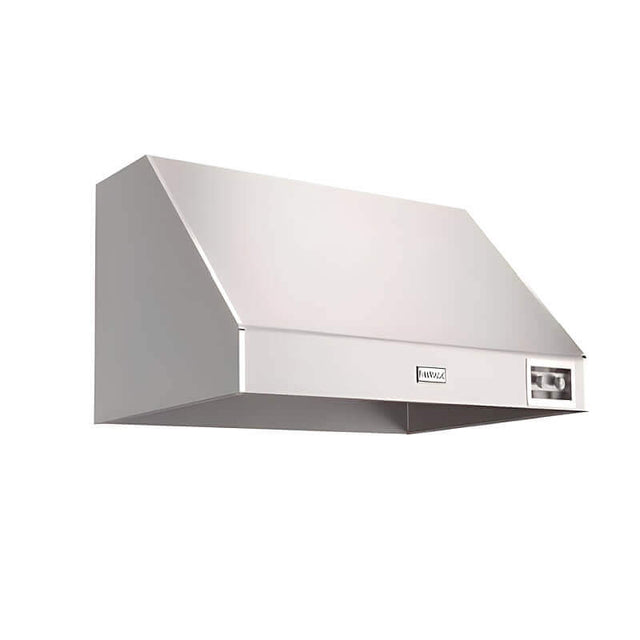

Fire Magic 36-Inch 1200 CFM Stainless Steel Outdoor Vent Hood - 36-VH-7

$4,516.20 $5,018.00

Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.

Most items ship within 1 business day. Manufacturer-direct items may take up to 2 weeks. Call us before ordering if needed immediately. 718-326-4328

Pickup available at Maspeth, NY Showroom

Usually ready in 2-4 days
400+ five-star Google reviews
  • Free shipping on this item to most of the US, or free local delivery by our team. Most items ship within 1 business day.
  • Factory-authorized Fire Magic dealer. You keep the full manufacturer warranty.
  • 30-day returns, no restocking fee.
  • Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Questions about fit, venting or power? Talk to the team that installs it. Mon to Fri 9 to 5, Sat 10 to 3.
Call 718-326-4328 Free Consultation

Free & Flat Rate Shipping
  • Orders Over $999 Ship Out Fast & Free
  • Delivery typically takes 5 -7 transit days
  • $19.95-$99.95 Flat-Rate Shipping on orders under $999
  • Our team & trucks deliver locally within 60 miles of our showroom. (Tri-State NY,NJ,CT including all of Suffolk County)
  • Free Shipping Applies to Contiguous US only - See our shipping page for exclusions e.g. ethanol fuel

Assembly & Installation

Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!

WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW

Call for a free quote 718-326-4328

Warranty

Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.

Returns
  • No-Restock Fees
  • 30-Day Return Policy
  • The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
  • We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.

Description

Explore other Fire Magic stainless outdoor vent hood sizes: 36 inch (current size) | 42 inch | 48 inch | 60 inch

Overall Dimensions: 36 in W x 30 in D x 18 in H

The Fire Magic 36-inch 36-VH-7 is a 1,200 CFM stainless steel outdoor vent hood for covered patios and grill islands. Two 120V fans pull smoke, heat and grease away from the grill, and a thermal sensor starts the fans automatically at 140 degrees Fahrenheit. It can be vented vertically or horizontally, so it suits most covered outdoor kitchen layouts.

Key Specifications

Model 36-VH-7
Airflow 1,200 CFM
Fans Dual 120V fans, 1,010 W total
Electrical 120 VAC, 60 Hz, 15 A minimum circuit, GFCI protected
Lighting Two 120V, 50 W halogen bulbs (VH-23)
Material Brushed 304 stainless steel
Filters One set of 4 filters (VH-16-4)
Mounting height 30 to 33 in above the grill surface
Recommended grill size (A,C)540 models (Aurora and Choice 540 series)
Certification ANSI Z21.58b and CSA 1.6b
Weight Not published

Dimensions and Cutout

Hood (W x D x H) 36 in x 30 in x 18 in
Duct transition 10 in x 21-3/4 in x 9 in, with a 10 in diameter outlet
Rear vent hole 11-1/2 in
Mounting height 30 to 33 in above the grill

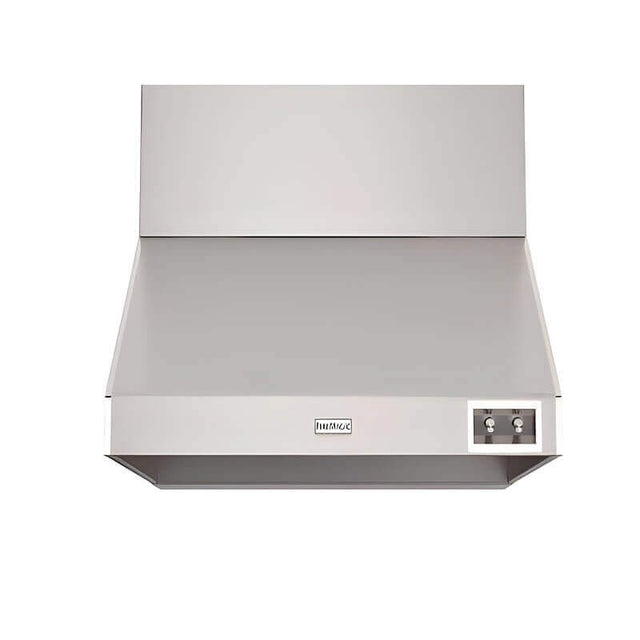

Spacer and duct cover Spacer 36-VH-7-02 and duct cover 36-VH-7-DC are sold separately and must be used together

Features

  • Convertible vertical or horizontal venting
  • Thermal safety sensor starts the fans at 140 degrees Fahrenheit
  • Anodized aluminum filters that are removable and dishwasher safe
  • Halogen under-mount lamps light the grill for evening cooking
  • LED illuminated push buttons show at a glance when the hood is on
  • Seamless polished edges on brushed 304 stainless steel

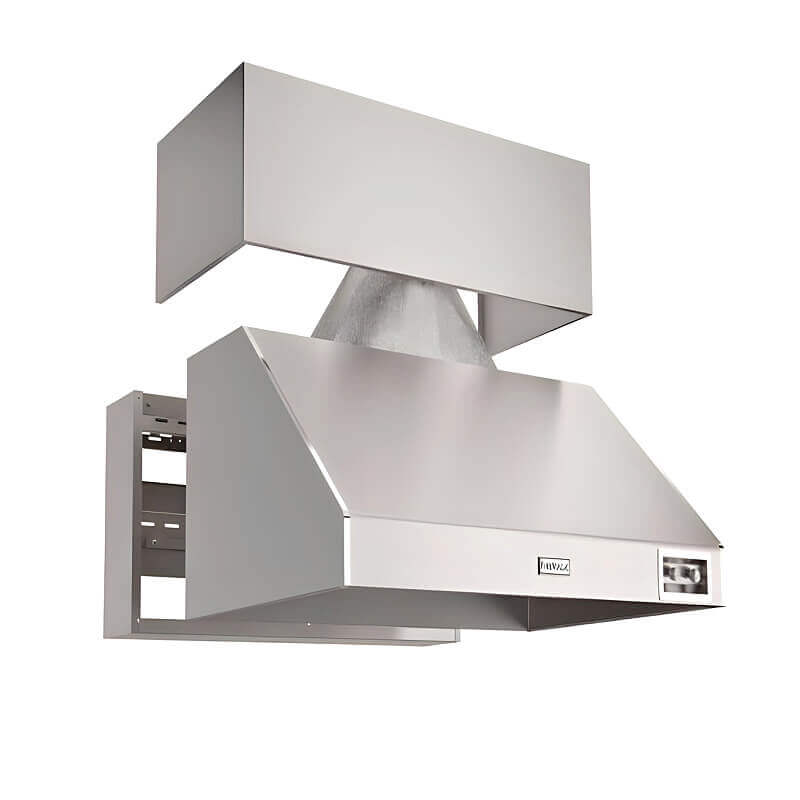

  • Easy install mounting bracket

What Is Included and What You Will Need

  • Included: hood with fans, halogen lamps, one set of 4 filters (VH-16-4) and mounting bracket
  • Required: Fire Magic spacer 36-VH-7-02 and duct cover 36-VH-7-DC, which are not included and must be used together
  • Required: a dedicated 120 VAC GFCI-protected circuit of at least 15 A, and ductwork sized for the 10 in outlet
  • Mounting note: remove the junction box (two screws) when mounting the hood

Installation Notes

Mount the hood 30 to 33 in above the grill surface, using the rear vent hole at 11-1/2 in for the duct. Electrical connection and ductwork should be done by licensed trades, and an outdoor hood needs a GFCI protected circuit. Follow the owner's manual for clearances to combustibles. Book a free design consultation and we will help you plan the layout, utilities and installation.

Documentation

Frequently Asked Questions

Does the hood come with the spacer and duct cover?

No. The 36-VH-7-02 spacer and 36-VH-7-DC duct cover are sold separately and must be used together.

How high do I mount it?

Fire Magic specifies 30 to 33 in above the grill surface.

What grill is it sized for?

Fire Magic recommends this size for grills up to (A,C)540 models (Aurora and Choice 540 series).

What power does it need?

120 VAC, 60 Hz on a GFCI protected circuit of at least 15 A. The fans draw 1,010 W together.

Related reading: Do you need a vent hood over an outdoor grill and How to plan an outdoor kitchen.

Warranty

Fire Magic vent hood warranty summary: stainless steel housing for life, other non-electronic components for 3 years and electronics for 1 year. Terms are published by Fire Magic at firemagicgrills.com/warranty; confirm current terms with us before you order.
