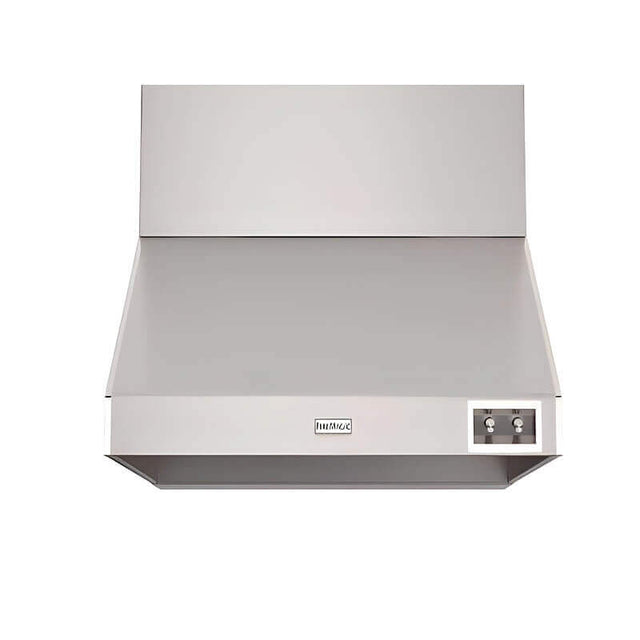

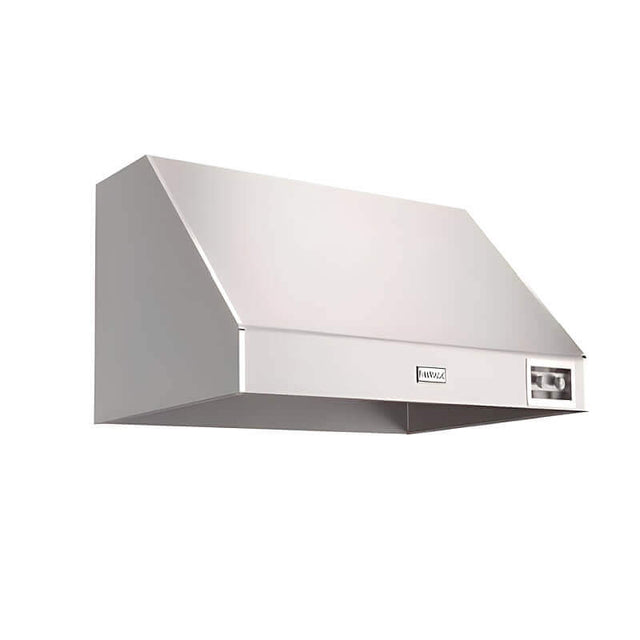

Fire Magic 48-Inch 1200 CFM Stainless Steel Outdoor Vent Hood - 48-VH-7

$5,166.00 $5,740.00

Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.

Most items ship within 1 business day. Manufacturer-direct items may take up to 2 weeks. Call us before ordering if needed immediately. 718-326-4328

Pickup available at Maspeth, NY Showroom

Usually ready in 2-4 days
400+ five-star Google reviews
  • Free shipping on this item to most of the US, or free local delivery by our team. Most items ship within 1 business day.
  • Factory-authorized Fire Magic dealer. You keep the full manufacturer warranty.
  • 30-day returns, no restocking fee.
  • Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Questions about fit, venting or power? Talk to the team that installs it. Mon to Fri 9 to 5, Sat 10 to 3.
Call 718-326-4328 Free Consultation

Free & Flat Rate Shipping
  • Orders Over $999 Ship Out Fast & Free
  • Delivery typically takes 5 -7 transit days
  • $19.95-$99.95 Flat-Rate Shipping on orders under $999
  • Our team & trucks deliver locally within 60 miles of our showroom. (Tri-State NY,NJ,CT including all of Suffolk County)
  • Free Shipping Applies to Contiguous US only - See our shipping page for exclusions e.g. ethanol fuel

Assembly & Installation

Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!

WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW

Call for a free quote 718-326-4328

Warranty

Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.

Returns
  • No-Restock Fees
  • 30-Day Return Policy
  • The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
  • We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.

Description

Explore other Fire Magic stainless outdoor vent hood sizes: 36 inch | 42 inch | 48 inch (current size) | 60 inch

Overall Dimensions: 48 in W x 30 in D x 18 in H (hood only, not counting the 10 in transition)

The Fire Magic 48-VH-7 is a 48 in, 1200 CFM outdoor wall-mount vent hood for mid-to-large grill lines: Fire Magic lists it for grills up to the 790 models. It pulls smoke, heat and grease out of an outdoor kitchen and covers a typical 36 to 40 in grill with room to spare.

Key Specifications

Model 48-VH-7
Airflow 1200 CFM, 120 V high-pressure fans
Power 120 VAC, 15 A minimum, 60 Hz, GFCI outlet; 1,010 W consumption
Lighting Halogen lights, 120 V / 50 W bulbs
Controls 3-position rotary switch and thermal switch
Venting Convertible, top vent or rear vent, 10 in diameter transition
Use Outdoor, wall-mount installation only, for use over gas grills (not charcoal)
Designed for grills Up to (A,E)790 (per Fire Magic)
Certification Certified to ANSI Z21.58b per owner's manual
Weight 164 lb (per current listing)

Dimensions and Cutout

Hood width / depth / height 48 in / 30 in / 18 in
Transition height / width / depth 10 in / 21 3/4 in / 9 in
Transition diameter 10 in
Mounting height 30 to 33 in above the grill, centered and level
Rear vent hole 11 1/2 in (see manual)

Features

  • 1200 CFM high-pressure fan system
  • 304 stainless steel construction (per current listing)
  • Halogen lights over the cooktop
  • Thermal switch that starts the fans when the hood gets hot
  • Top or rear exhaust, convertible on site
  • Removable baffle and grease filters
  • Spacer and duct cover available to finish the install

What Is Included and What You Will Need

  • Included: vent hood with transition, light assemblies and bulbs, baffle and grease filters.
  • Required: a 120 VAC GFCI outlet, metal ductwork to the outdoors, and a non-combustible rear wall mounting.

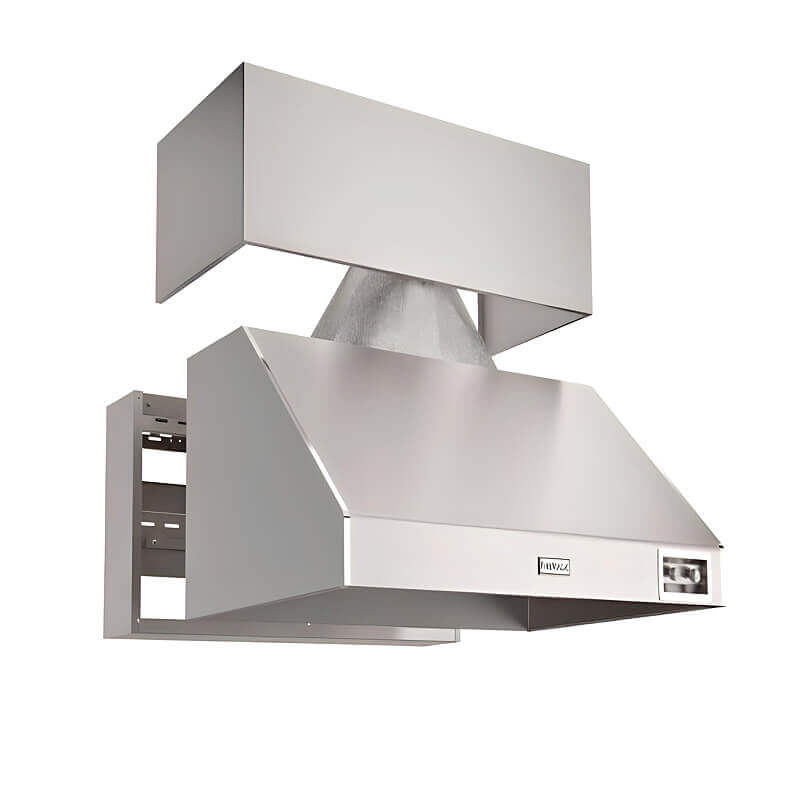

  • Optional and sold together: 48 in spacer and 48 in duct cover. Fire Magic states the duct cover and spacer must be used together.

Installation Notes

This hood is for outdoor, wall-mount installation only and must be installed by a qualified professional. Mount it 30 to 33 in above the grill, vent it to the outdoors with metal duct, and keep ducting as straight as possible. The hood needs a 120 VAC, 15 A minimum GFCI grounded outlet. NYC and Long Island jobs need the correct permits, and the hood has to suit your grill line and roof or soffit. Book a design consultation and we will size the hood, spacer and duct cover with you.

Documentation

Frequently Asked Questions

Which grills is the 48 in hood for?

Fire Magic lists the 48-VH-7 for grills up to the 790 models. The 60 in hood is for up to the E1060.

Do I need the spacer and duct cover?

Neither is included. Fire Magic sells them for this hood and states they must be used together; a custom spacer and soffit are the alternative, in non-combustible construction only.

Can it vent out the top or the back?

Both. It converts between top-vent and rear-vent, with a 10 in transition.

Can I use it over a charcoal grill?

No. The manual states it is for use with gas grills only.

Related reading: Do you need a vent hood over an outdoor grill? and Outdoor kitchen planning guide.

Warranty

Fire Magic's published warranty covers vent hood housings for the life of the original purchaser, and all other vent hood components (except electronic parts) for three (3) years; electronic components including lights are covered for one (1) year. It applies to single family residential use with proof of purchase. Full terms: Fire Magic warranty.
