Fire Magic 42-Inch 1200 CFM Stainless Steel Outdoor Vent Hood - 42-...
Fire Magic 42-Inch 1200 CFM Stainless Steel Outdoor Vent Hood - 42-VH-7 is backordered and will ship as soon as it is back in stock.
Description
Description
Explore other Fire Magic stainless outdoor vent hood sizes: 36 inch | 42 inch (current size) | 48 inch | 60 inch
Overall Dimensions: 42 in W x 30 in D x 18 in H
The Fire Magic 42-inch 42-VH-7 is a 1,200 CFM stainless steel outdoor vent hood for covered patios and grill islands. Two 120V fans pull smoke, heat and grease away from the grill, and a thermal sensor starts the fans automatically at 140 degrees Fahrenheit. It can be vented vertically or horizontally, so it suits most covered outdoor kitchen layouts.
Key Specifications
| Model | 42-VH-7 |
|---|---|
| Airflow | 1,200 CFM |
| Fans | Dual 120V fans, 1,010 W total |
| Electrical | 120 VAC, 60 Hz, 15 A minimum circuit, GFCI protected |
| Lighting | Two 120V, 50 W halogen bulbs (VH-23) |
| Material | Brushed 304 stainless steel |
| Filters | One set of 4 filters (VH-18-4) plus 2 filter spacers (VH-42-03-06) |
| Mounting height | 30 to 33 in above the grill surface |
| Recommended grill size | (A,E)660 models (Aurora and Echelon 660 series) |
| Certification | ANSI Z21.58b and CSA 1.6b |
| Weight | Not published |
Dimensions and Cutout
| Hood (W x D x H) | 42 in x 30 in x 18 in |
|---|---|
| Duct transition | 10 in x 21-3/4 in x 9 in, with a 10 in diameter outlet |
| Rear vent hole | 11-1/2 in |
| Mounting height | 30 to 33 in above the grill |

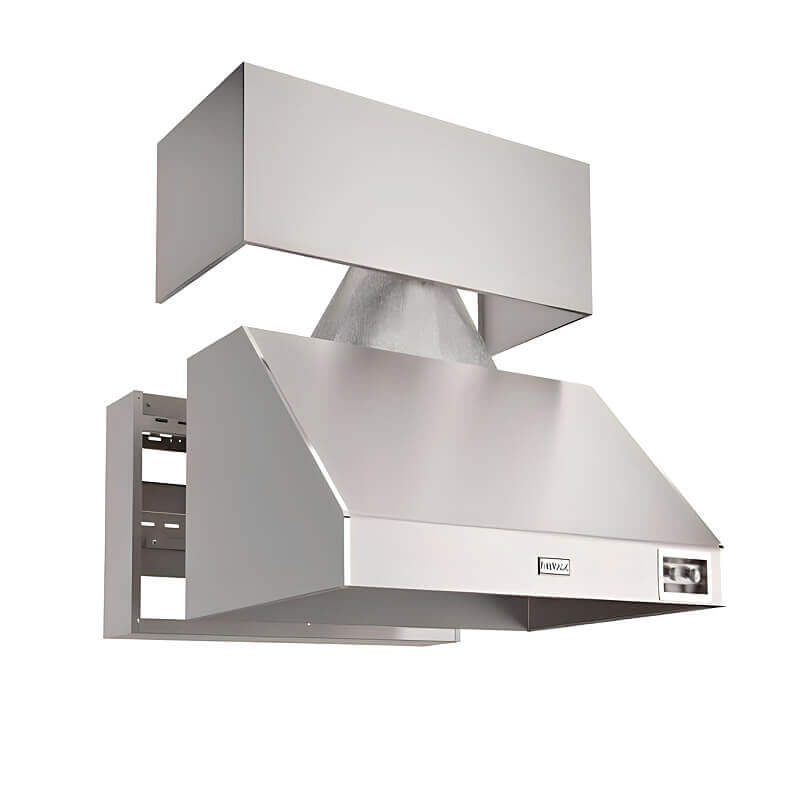

| Spacer and duct cover | Spacer 42-VH-7-02 and duct cover 42-VH-7-DC are sold separately and must be used together |
Features
- Convertible vertical or horizontal venting
- Thermal safety sensor starts the fans at 140 degrees Fahrenheit
- Anodized aluminum filters that are removable and dishwasher safe
- Halogen under-mount lamps light the grill for evening cooking
- LED illuminated push buttons show at a glance when the hood is on
- Seamless polished edges on brushed 304 stainless steel
- Easy install mounting bracket
What Is Included and What You Will Need
- Included: hood with fans, halogen lamps, one set of 4 filters (VH-18-4) plus 2 filter spacers (VH-42-03-06) and mounting bracket
- Required: Fire Magic spacer 42-VH-7-02 and duct cover 42-VH-7-DC, which are not included and must be used together
- Required: a dedicated 120 VAC GFCI-protected circuit of at least 15 A, and ductwork sized for the 10 in outlet
- Mounting note: remove the junction box (two screws) when mounting the hood
Installation Notes
Mount the hood 30 to 33 in above the grill surface, using the rear vent hole at 11-1/2 in for the duct. Electrical connection and ductwork should be done by licensed trades, and an outdoor hood needs a GFCI protected circuit. Follow the owner's manual for clearances to combustibles. Book a free design consultation and we will help you plan the layout, utilities and installation.
Documentation
Frequently Asked Questions
Does the hood come with the spacer and duct cover?
No. The 42-VH-7-02 spacer and 42-VH-7-DC duct cover are sold separately and must be used together.
How high do I mount it?
Fire Magic specifies 30 to 33 in above the grill surface.
What grill is it sized for?
Fire Magic recommends this size for grills up to (A,E)660 models (Aurora and Echelon 660 series).
What power does it need?
120 VAC, 60 Hz on a GFCI protected circuit of at least 15 A. The fans draw 1,010 W together.
Related reading: Do you need a vent hood over an outdoor grill and How to plan an outdoor kitchen.
Warranty
Fire Magic vent hood warranty summary: stainless steel housing for life, other non-electronic components for 3 years and electronics for 1 year. Terms are published by Fire Magic at firemagicgrills.com/warranty; confirm current terms with us before you order.
