- Echelon Diamond grills offer the premium features you expect for a true luxury grilling experience
- Diamond Sear cooking grids feature a wide, flat top, optimally transferring heat from the burner to the cooking surface

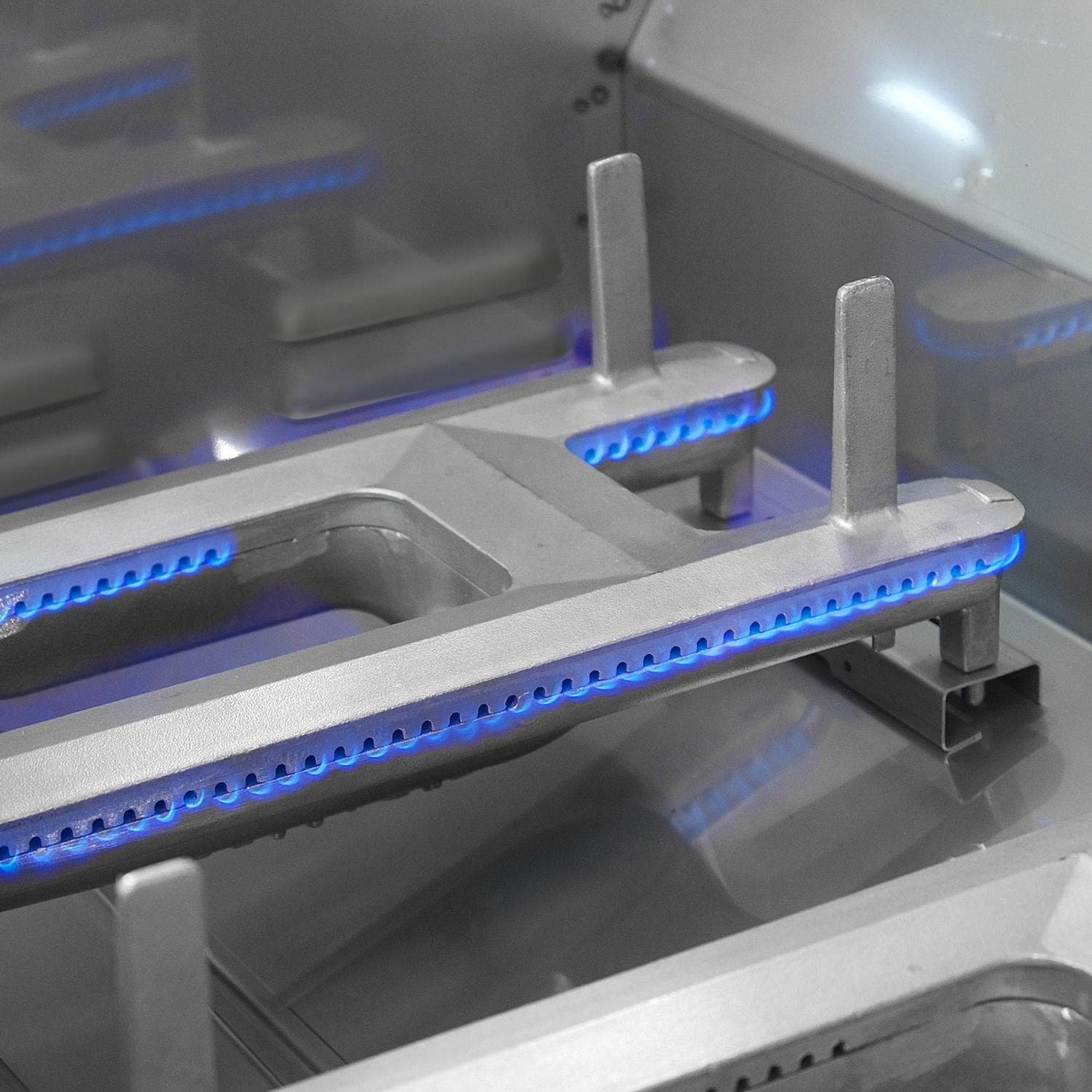

- Cast stainless steel burners with flavor grids provide even heating and independent heat zones

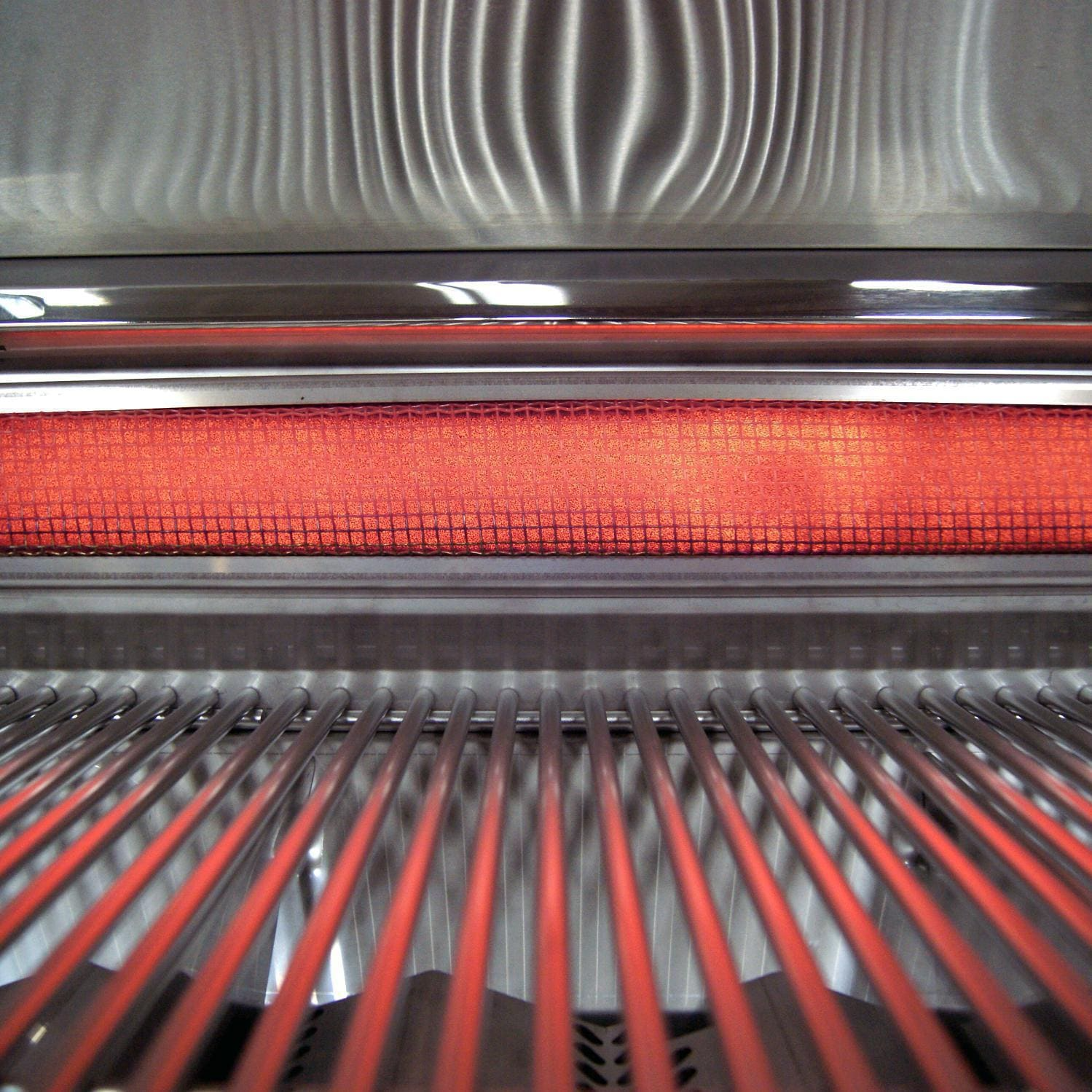

- Quantum rotisserie burner produces twice the heat per BTU of standard infrared burners

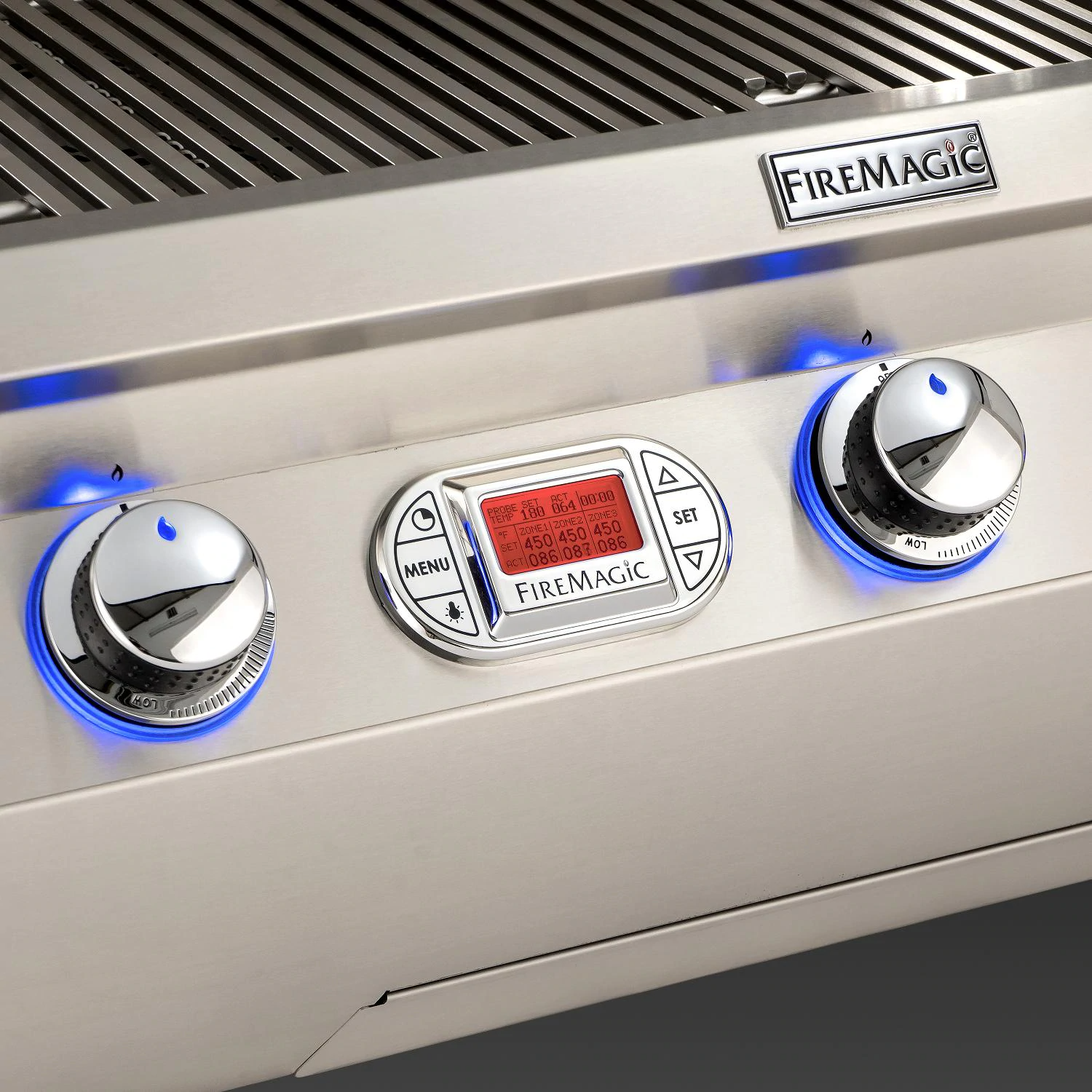

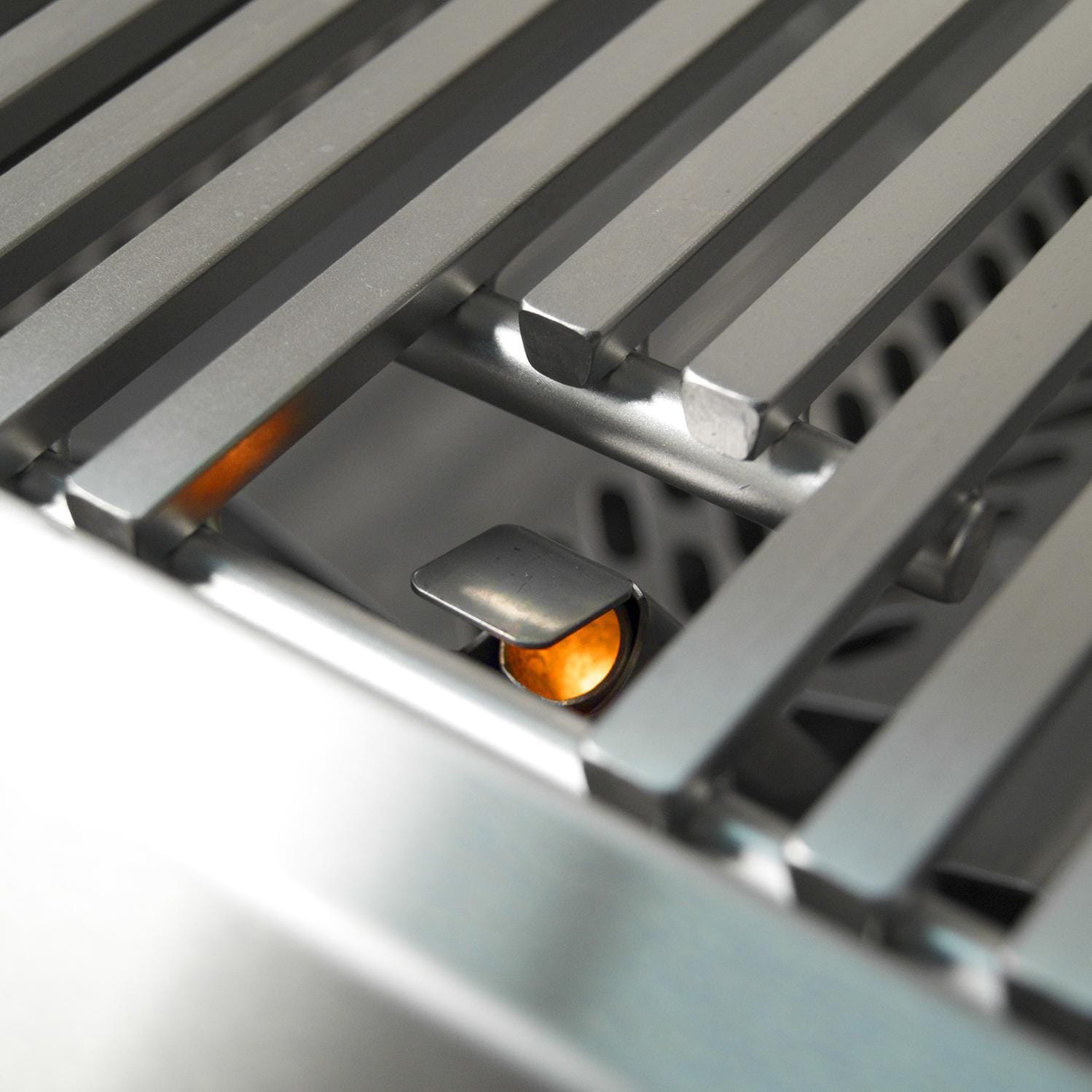

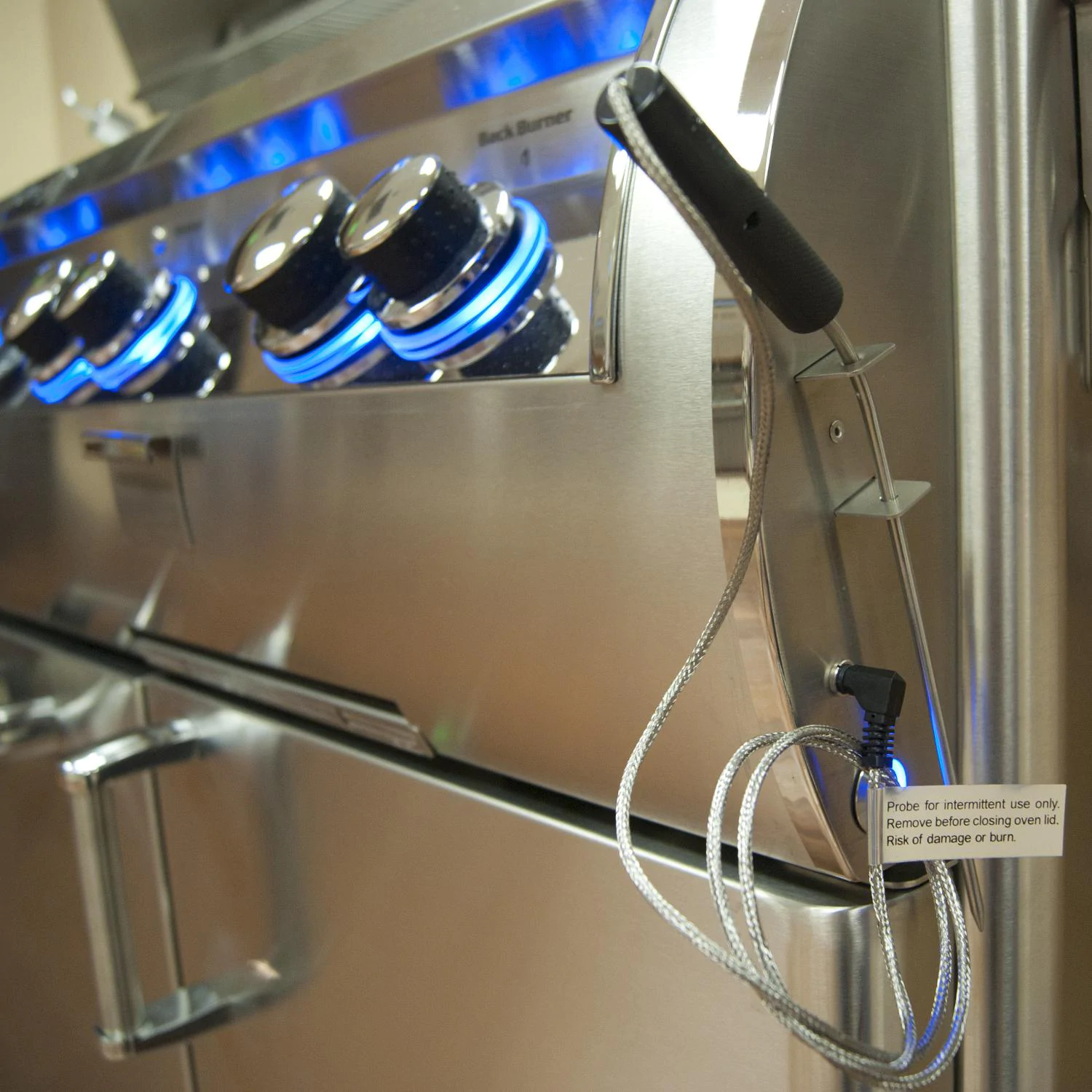

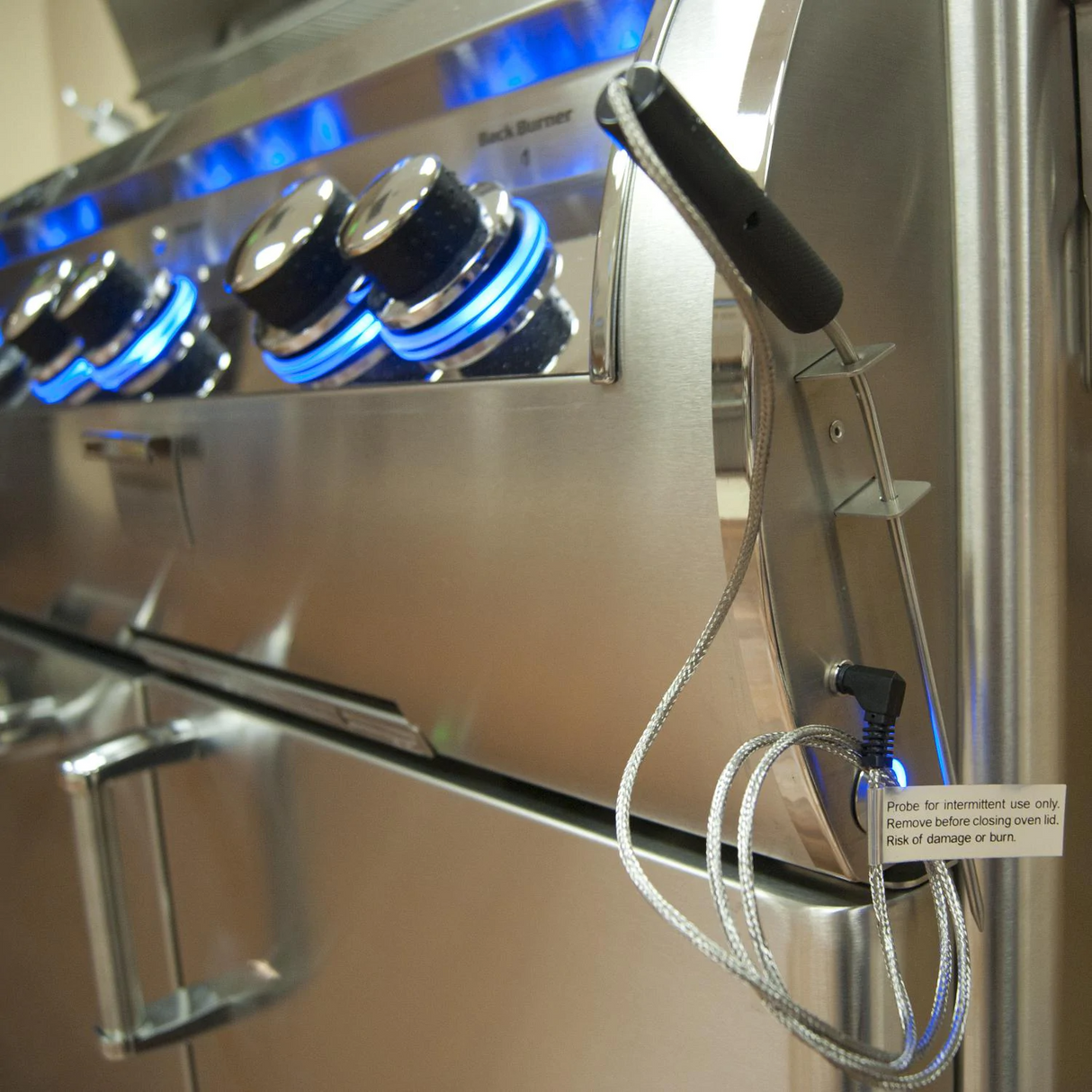

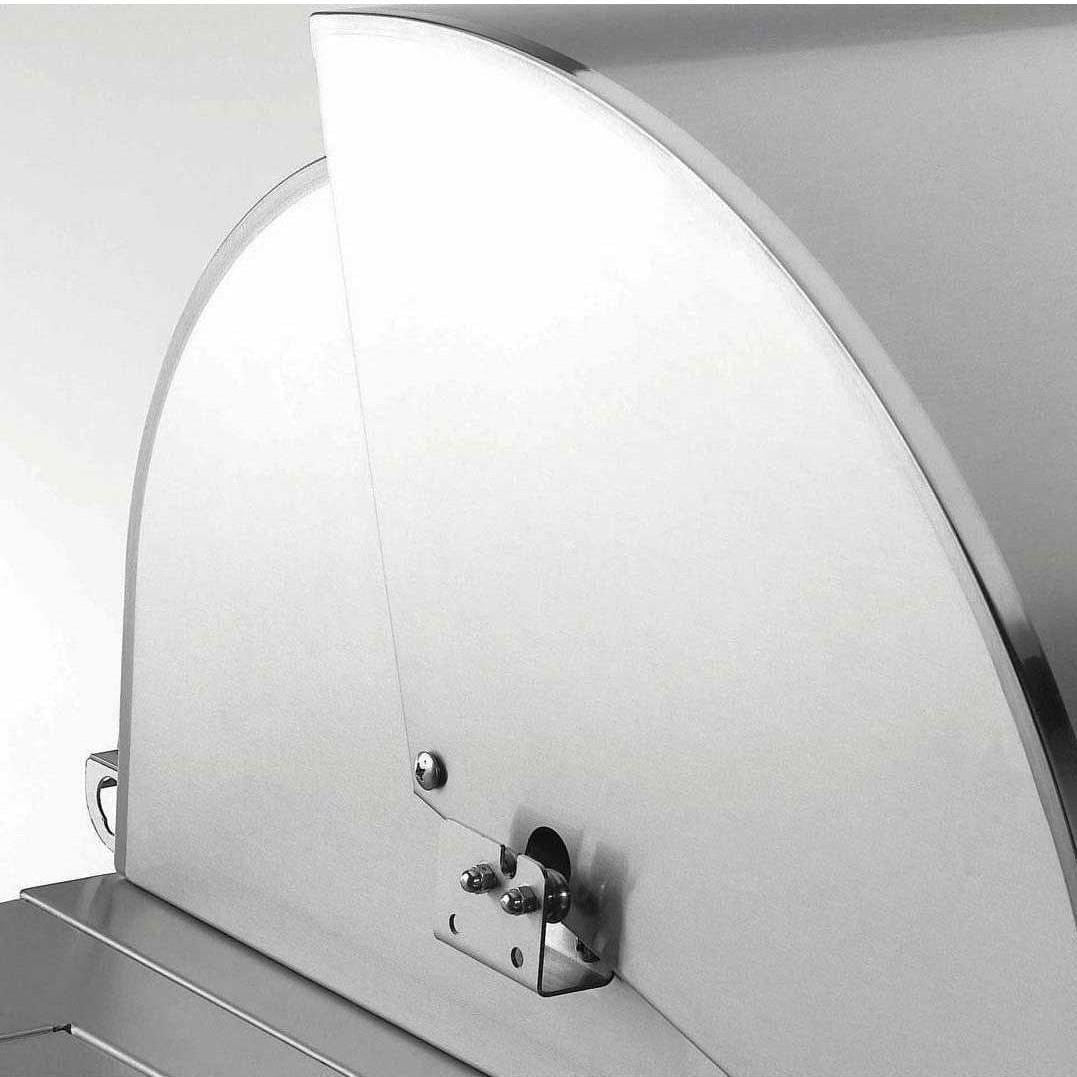

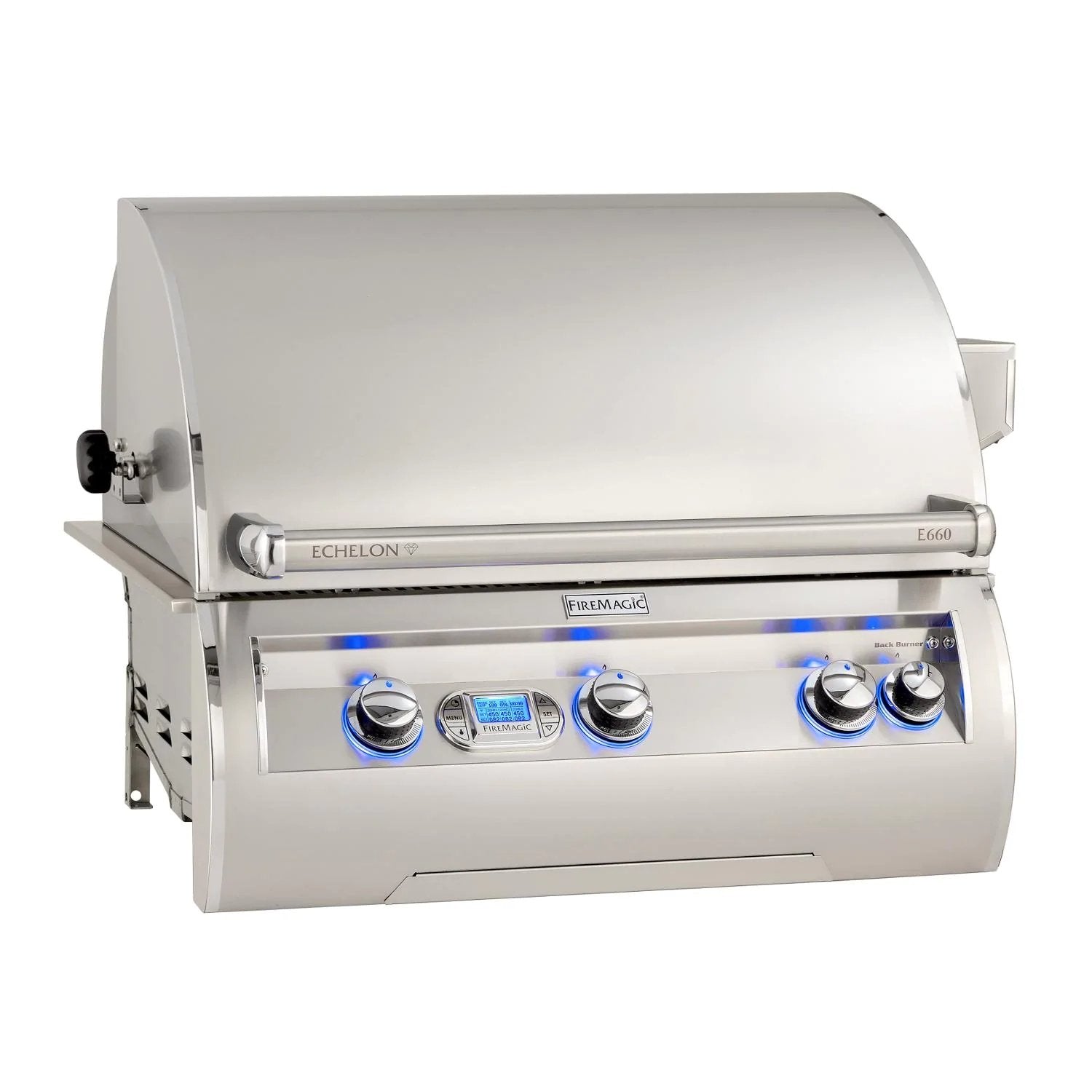

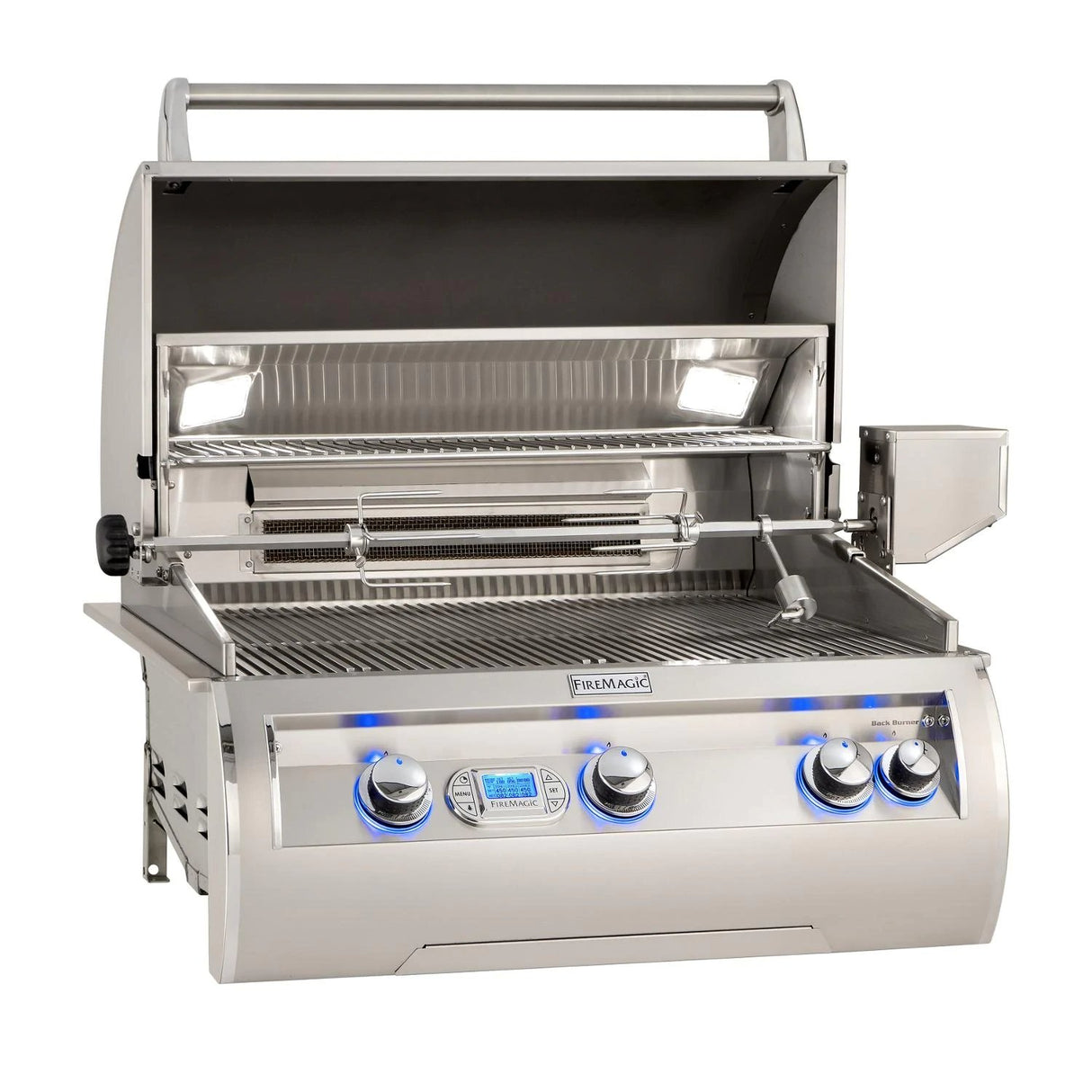

Known for crafting American-made premium grills for over 75 years, Fire Magic is dedicated to providing their customers with a quality outdoor cooking experience. Nowhere is this more evident than with the Echelon Diamond series, which embodies performance, beauty, and innovation in grilling. The Echelon Diamond E660I built-in natural gas grill features 304 stainless steel construction for lasting quality, and modern styling with a sleek, contoured control panel that includes LED backlit comfort touch knobs and a state-of-the-art digital thermometer display. This display has 4 zone temperature reading and can be used to monitor the included food probe. With finger touch controls, you can set temperatures, monitor cooking time, switch the internal lights on or off, and even choose between 4 colors for the display. The double-walled, spring assisted hood opens 90 degrees for easier access and more efficient exhaust. Inside, this grill features two cast stainless steel E-burners, made with 1/4-inch thick walls and precision porting. Reliable hot surface ignition always lights your burners where others might fail. Flash tubes serve as a backup. Flavor grids sit above the burners to spread heat evenly and protect the burners from debris and grease. These flavor grids have attached heat zone separators, allowing you to create independent heat zones at the surface of the grill for varied cooking options. The 660 sq. in. cooking surface consists of the patented Diamond Sear cooking grids. These grids feature a matte, non-stick surface, and a trapezoidal shape that optimally transfers heat from the burner to the wide surface of the cooking grids. The warming rack above can be adjusted and moved out of the way when not in use. In the rear of the grill is a Quantum stainless steel infrared backburner for the included heavy duty rotisserie kit that produces 11,000 BTUs of radiant heat. This burner uses stainless steel foam, which provides double the heat per BTU. Additionally, Echelon Diamond grills come with a charcoal/smoker basket for adding delicious, smoky flavor to your cook. For night time grilling, the interior of the grill is lit by two halogen lights. A new, larger drip tray with ball bearing glides makes cleanup with the disposable drip pan system even easier than before. Solid, raised hangers line the sides and back of the grill for a seamless look when placed into a counter top or island. A 120 VAC power source is required for ignition, as well as for the lighting functions. With all of these premium features, the Echelon Diamond series from Fire Magic defines luxury grilling.
|Fuel Type||Natural Gas/Propane|
|Exterior Material||Stainless Steel|
|Exterior Stainless Grade||304 Stainless Steel|
|Primary Color||Stainless Steel|
|Number Of Main Burners||3 Burners|
|Grilling Surface BTUs||75000|
|Infrared Main Burner||Optional|
|Main Burner Material||304 Cast Stainless Steel + Ceramic Infrared|
|Flame Tamer Material||Stainless Steel|
|Cooking Grate Material||Stainless Steel|
|Cooking Grid Dimensions||30 X 22"|
|Main Grilling Area||660 Sq. Inches|
|Secondary Grilling Area||240 Sq. Inches|
|Total Grilling Area||900 Sq. Inches|
|Rotisserie Burner BTUs||11000|
|Heat Zone Separators||Yes|
|Ignition Type||Hot Surface|

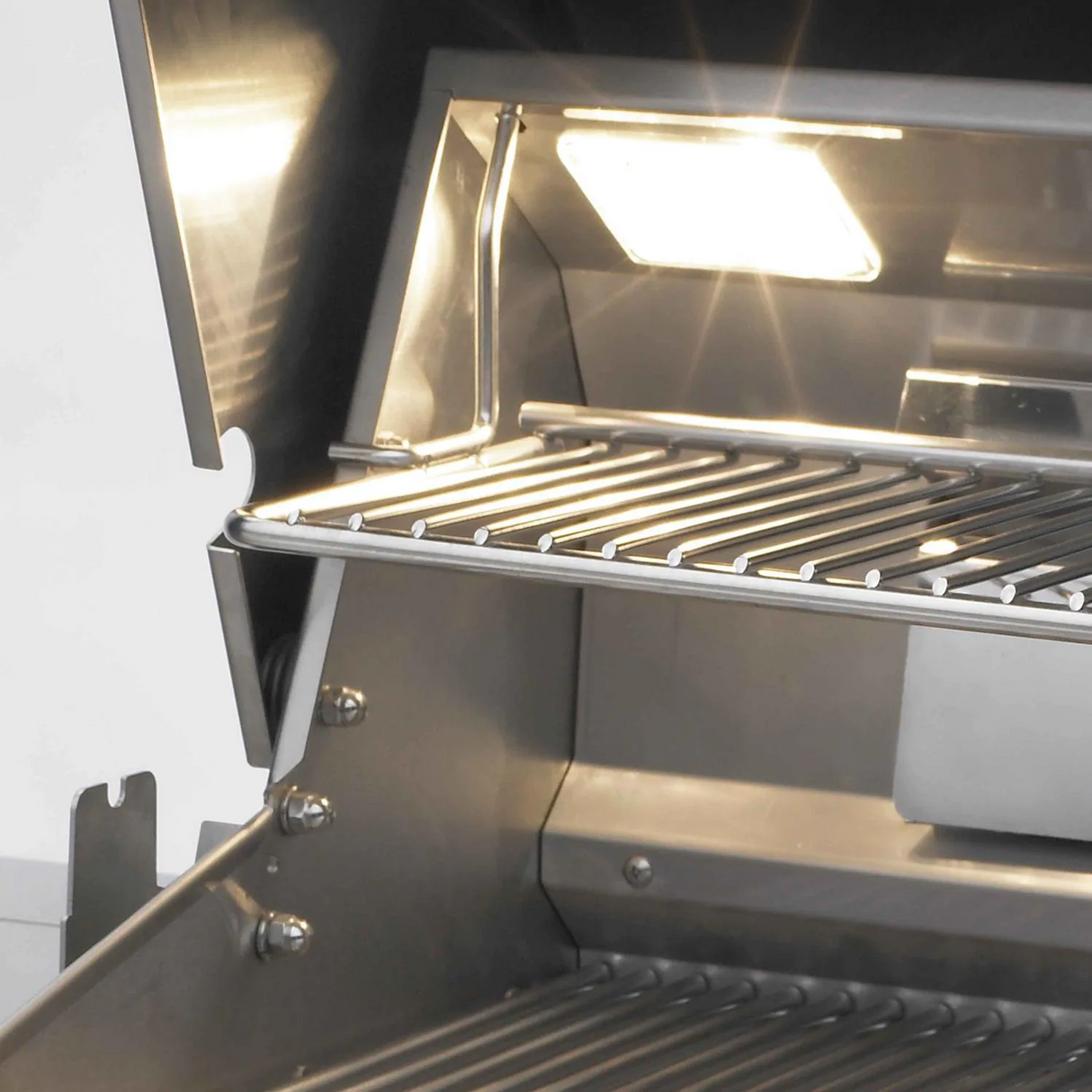

|Grill Lights||Internal / External|
|Spring Assisted Hood||Yes|
|Includes Smoker Box||No|
|Made In USA||Yes|
|Size||Medium (27 - 33")|
|Cutout Width||31 1/4"|
|Cutout Depth||23 1/2"|
|Cutout Height||11 1/2"|
Fire Magic Warrants this product against defects in materials and workmanship under normal residential use and conditions for the following periods: Cast stainless steel burners, stainless steel cooking grids, and stainless steel housing for the lifetime of the user; brass valves, inner liners, manifold assemblies, porcelain housings, and backburner assemblies (excluding ignition parts) for fifteen (15) years; flavor grids and infrared burners on the grill for five (5) years; side burners and other Fire Magic grill components (excluding ignition and electronic parts) for three (3) years; and ignition systems (except batteries), electronic components (including lights and thermometers), and grill accessories for one (1) year.
Refer to manufacturers manual for full warranty details.
