Fire Magic  |  SKU: 3185-52

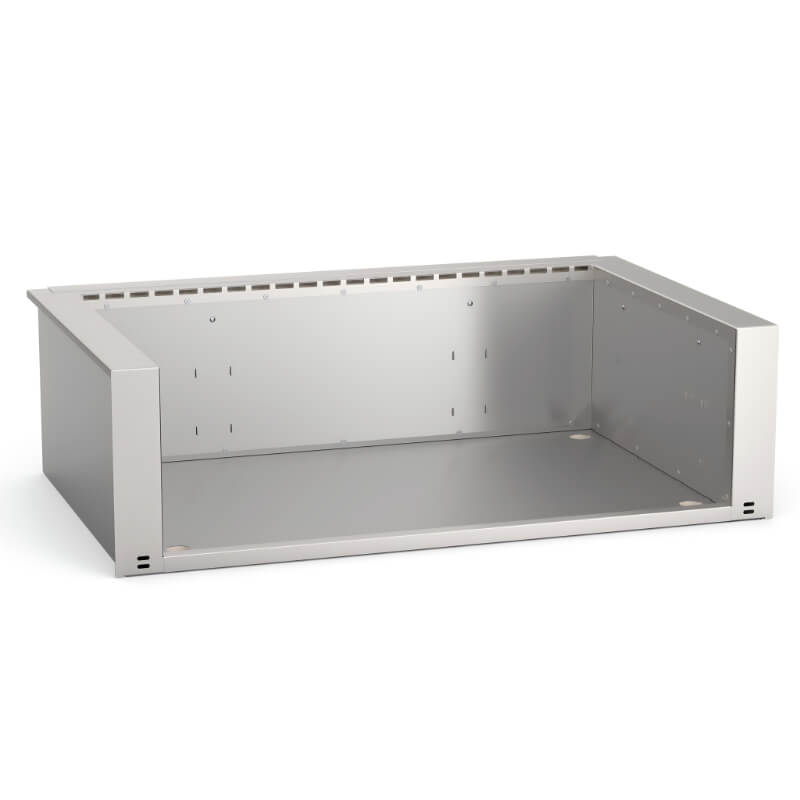

Fire Magic Insulating Liner For E1060i Built-In Grills - 3185-52

$2,117.70 $2,353.00

Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.

Most items ship within 1 business day. Manufacturer-direct items may take up to 2 weeks. Call us before ordering if needed immediately. 718-326-4328

Pickup available at Maspeth, NY Showroom

Usually ready in 2-4 days
400+ five-star Google reviews
  • Free shipping on this item to most of the US, or free local delivery by our team. Most items ship within 1 business day.
  • Factory-authorized Fire Magic dealer. You keep the full manufacturer warranty.
  • 30-day returns, no restocking fee.
  • Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Questions about fit, venting or power? Talk to the team that installs it. Mon to Fri 9 to 5, Sat 10 to 3.
Call 718-326-4328 Free Consultation

Free & Flat Rate Shipping
  • Orders Over $999 Ship Out Fast & Free
  • Delivery typically takes 5 -7 transit days
  • $19.95-$99.95 Flat-Rate Shipping on orders under $999
  • Our team & trucks deliver locally within 60 miles of our showroom. (Tri-State NY,NJ,CT including all of Suffolk County)
  • Free Shipping Applies to Contiguous US only - See our shipping page for exclusions e.g. ethanol fuel

Assembly & Installation

Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!

WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW

Call for a free quote 718-326-4328

Warranty

Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.

Returns
  • No-Restock Fees
  • 30-Day Return Policy
  • The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
  • We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.

Description

Explore other Fire Magic insulating liner for E660/A660, E790/A790, and E1060 built-in grills sizes: 30 inch | 36 inch | 48 inch (current size)

Overall Dimensions: Cutout 54 7/8 x 26 x 12 1/4 in (W x D x H), per the Fire Magic product specification guide

The Fire Magic 3185-52 insulating liner lets you install an Echelon Diamond E1060i 48 in built-in grill in an island framed with wood or other combustible materials, as long as the countertop is non-combustible. The 304 stainless liner hangs from the countertop on its own hangers, so the grill drops in without extra support framing underneath.

Features

  • Required for an E1060i built-in grill in a combustible-frame island with a non-combustible countertop
  • Built-in hangers support the liner from the countertop
  • No additional support framing needed below; framing the cut-out with side walls, a rear wall and a base is permitted
  • 304 stainless steel construction
  • Arrives pre-assembled and ready to install

Key Specifications

Model / SKU Fire Magic insulating liner 3185-52
UPC 619655074269
Fits Fire Magic Echelon Diamond E1060i built-in grills
Construction 304 stainless steel (per current listing)
Mounting Hangs from the countertop on included hangers
Required countertop Non-combustible
Made in USA (per current listing)

Dimensions and Cutout

Opening required with liner 54 7/8 in W x 26 in D x 12 1/4 in H (Fire Magic specification guide)
Countertop overhang Must be cut flush with the front wall for the width of the liner flanges

What Is Included and What You Will Need

  • 3185-52 insulating liner with hangers
  • You will need: a Fire Magic Echelon Diamond E1060i built-in grill, a non-combustible countertop, and island ventilation openings as the grill manual requires

Installation Notes

Use the liner only in an enclosure built of combustible materials with a non-combustible countertop, and follow every enclosure requirement in the E1060i grill owner's manual. The island must have openings for drainage, replacement air and cross-ventilation of any space exposed to possible gas leakage.

Cut the opening to 54 7/8 x 26 x 12 1/4 in per the Fire Magic specification guide. If the countertop overhangs the island face, cut it flush with the front wall across the liner flanges, and allow for any tile or stone substrate on the front wall when setting the front-to-back cut-out.

Gas grill installation should be done by a licensed professional. Building a new island? Book a design consultation.

Documentation

Frequently Asked Questions

Do I need this liner?

Yes, if your E1060i goes into an island framed with wood or other combustible materials. A fully non-combustible masonry island does not need one.

What cut-out does the liner need?

54 7/8 in wide, 26 in deep and 12 1/4 in high, per the Fire Magic specification guide.

Does it fit other grills?

No. The 3185-52 is sized for the E1060i; other Echelon and Aurora grills use their own liners.

Related reading: How to measure a built-in grill cutout, Built-in gas grill buying guide.

Warranty

The current listing states a one (1) year Fire Magic warranty on this insulating liner against defects in materials and workmanship under normal residential use. See the Fire Magic owner's manual for full terms.
